🎆 Bevy Hanabi

🎆 Hanabi — a GPU particle system for the Bevy game engine.

Overview

The Hanabi particle system is a modern GPU-based particle system for the Bevy game engine. It focuses on scale to produce stunning visual effects (VFX) in real time, offloading most of the work to the GPU, with minimal CPU intervention. The design is inspired by modern particle systems found in other industry-leading game engines.

🚧 This project is under heavy development, and is currently lacking both features and performance / usability polish. However, for moderate-size effects, it can already be used in your project. Feedback and contributions on both design and features are very much welcome.

🎆 Hanabi makes heavy use of compute shaders to offload work to the GPU in a performant way. Support for compute shaders on the wasm target (WebAssembly) via WebGPU is only available since Bevy v0.11, and is not yet available in 🎆 Hanabi. See #41 for details on progress.

Usage

The 🎆 Bevy Hanabi plugin is compatible with Bevy versions >= 0.6; see Compatible Bevy versions.

Add the dependency

Add the bevy_hanabi dependency to Cargo.toml:

[dependencies]
bevy_hanabi = "0.10"

See also Features below for the list of supported features.

System setup

Add the HanabiPlugin to your app:

use bevy_hanabi::prelude::*;

App::default()
    .add_plugins(DefaultPlugins)
    .add_plugins(HanabiPlugin)
    .run();

Create an effect asset

Create an EffectAsset describing a visual effect:

fn setup(mut effects: ResMut<Assets<EffectAsset>>) {
  // Define a color gradient from red to transparent black
  let mut gradient = Gradient::new();
  gradient.add_key(0.0, Vec4::new(1., 0., 0., 1.));
  gradient.add_key(1.0, Vec4::splat(0.));

  // Create a new expression module
  let mut module = Module::default();

  // On spawn, randomly initialize the position of the particle
  // to be over the surface of a sphere of radius 2 units.
  let init_pos = SetPositionSphereModifier {
      center: module.lit(Vec3::ZERO),
      radius: module.lit(0.05),
      dimension: ShapeDimension::Surface,
  };

  // Also initialize a radial initial velocity to 6 units/sec
  // away from the (same) sphere center.
  let init_vel = SetVelocitySphereModifier {
      center: module.lit(Vec3::ZERO),
      speed: module.lit(6.),
  };

  // Initialize the total lifetime of the particle, that is
  // the time for which it's simulated and rendered. This modifier
  // is almost always required, otherwise the particles won't show.
  let lifetime = module.lit(10.); // literal value "10.0"
  let init_lifetime = SetAttributeModifier::new(
      Attribute::LIFETIME, lifetime);

  // Every frame, add a gravity-like acceleration downward
  let accel = module.lit(Vec3::new(0., -3., 0.));
  let update_accel = AccelModifier::new(accel);

  // Create the effect asset
  let effect = EffectAsset::new(
    // Maximum number of particles alive at a time
    32768,
    // Spawn at a rate of 5 particles per second
    Spawner::rate(5.0.into()),
    // Move the expression module into the asset
    module
  )
  .with_name("MyEffect")
  .init(init_pos)
  .init(init_vel)
  .init(init_lifetime)
  .update(update_accel)
  // Render the particles with a color gradient over their
  // lifetime. This maps the gradient key 0 to the particle spawn
  // time, and the gradient key 1 to the particle death (10s).
  .render(ColorOverLifetimeModifier { gradient });

  // Insert into the asset system
  let effect_handle = effects.add(effect);
}

Spawn a particle effect

Use a ParticleEffect to create an effect instance from an existing asset. The simplest way is to use the ParticleEffectBundle to ensure all required components are spawned together.

commands
    .spawn(ParticleEffectBundle {
        effect: ParticleEffect::new(effect_handle),
        transform: Transform::from_translation(Vec3::Y),
        ..Default::default()
    });

Examples

See the examples/ folder.

Note for Linux users: The examples build with the bevy/x11 feature by default to enable support for the X11 display server. If you want to use the Wayland display server instead, add the bevy/wayland feature.

Firework

Combine the SetPositionSphereModifier for spawning and LinearDragModifier to slow down particles, to create a firework effect. This example makes use of an HDR camera with Bloom. See the example file for more details about how the effect is designed.

cargo run --example firework --features="bevy/bevy_winit bevy/bevy_pbr bevy/png 3d"

Portal

Combine the SetVelocityTangentModifier for tangential rotation of particles around a circle and the OrientAlongVelocityModifier to create elongated sparks, to produce a kind of "magic portal" effect. This example makes use of an HDR camera with Bloom. See the example file for more details about how the effect is designed.

cargo run --example portal --features="bevy/bevy_winit bevy/bevy_pbr bevy/png 3d"

Expressions

Demonstrate the use of the Expression API to build a visual effect simulated and animated entirely on the GPU. The animation is hard-coded into the simulation compute shader generated by 🎆 Hanabi based on the expression designed by the effect author.

cargo run --example expr --features="bevy/bevy_winit bevy/bevy_pbr 3d"

Gradient

Animate an emitter by moving its Transform component, and emit textured quad particles with a ColorOverLifetimeModifier.

cargo run --example gradient --features="bevy/bevy_winit bevy/bevy_pbr bevy/png 3d"

Force Field

This example demonstrates the force field modifier ForceFieldModifier, which allows creating some attraction and repulsion sources affecting the motion of the particles. It also demonstrates the use of the AabbKillModifier to either kill the particles exiting an "allowed" space (green box) or entering a "forbidden" space (red box).

cargo run --example force_field --features="bevy/bevy_winit bevy/bevy_pbr 3d"

2D

This example shows how to use 🎆 Hanabi with a 2D camera.

The white square mesh is moving forward and backward along the camera depth. The 2D effect itself remains at a constant position. When the square mesh moves behind the effect, the particles are rendered in front of it, and conversely when it moves forward the particles are rendered behind it.

cargo run --example 2d --features="bevy/bevy_winit bevy/bevy_sprite 2d"

Multi-camera

The example demonstrates the use of multiple cameras and render layers to selectively render effects. Each camera uses a different combination of layers, and each effect is assigned a different layer.

cargo run --example multicam --features="bevy/bevy_winit bevy/bevy_pbr 3d"

Activate

This example demonstrates manual activation and deactivation of a spawner, from code (CPU). The circle bobs up and down in the water, spawning square bubbles when in the water only.

cargo run --example activate --features="bevy/bevy_winit bevy/bevy_pbr 3d"

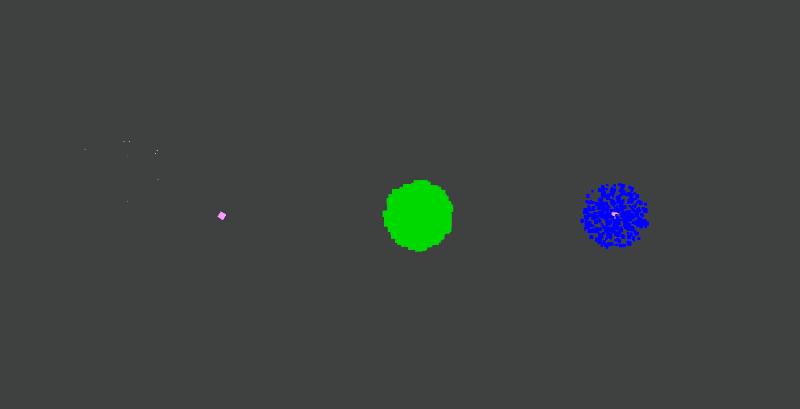

Spawn

This example demonstrates three spawn modes:

• Left: Continuous emission with a fixed rate (particles/second).
• Center: One-shot burst emission of a fixed count of particles.
• Right: Continuous bursts of particles, an hybrid between the previous two. This effect also uses a property to change over time the direction of the acceleration applied to all particles.

It also shows the applying of constant acceleration to all particles. The right spawner's acceleration (gravity) is controlled by a custom property, which is slowly rotated by a Bevy system (CPU side).

cargo run --example spawn --features="bevy/bevy_winit bevy/bevy_pbr 3d"

Spawn on command

This example demonstrates how to emit a burst of particles when an event occurs. A property is also used to modify the color of the particles spawned. This gives total control of the spawning to the user code.

cargo run --example spawn_on_command --features="bevy/bevy_winit bevy/bevy_pbr 3d"

Circle

This example demonstrates the circle spawner type, which emits particles along a circle perimeter or a disk surface. This allows for example simulating a dust ring around an object colliding with the ground.

The example also uses the FlipbookModifier to animate the particles with a spritesheet texture.

cargo run --example circle --features="bevy/bevy_winit bevy/bevy_pbr bevy/png 3d"

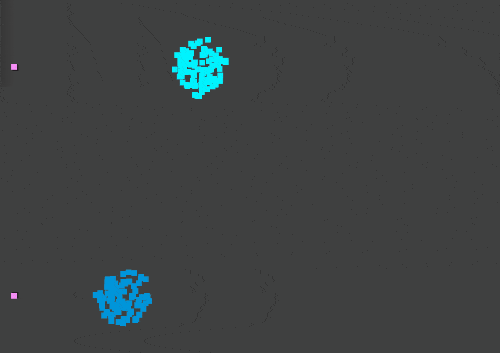

Visibility

This example demonstrates the difference between the default SimulationCondition::WhenVisible which simulates an effect when it's visible only, and SimulationCondition::Always which always simulates an effect even if the entity is hidden.

• The top effect uses SimulationCondition::Always, continuing to simulate even when hidden, moving to the right.
• The bottom effect uses SimulationCondition::WhenVisible, pausing simulation while hidden, and resuming its motion once visible again from the position where it was last visible.

cargo run --example visibility --features="bevy/bevy_winit bevy/bevy_pbr 3d"

Random

This example spawns particles with randomized parameters.

cargo run --example random --features="bevy/bevy_winit bevy/bevy_pbr 3d"

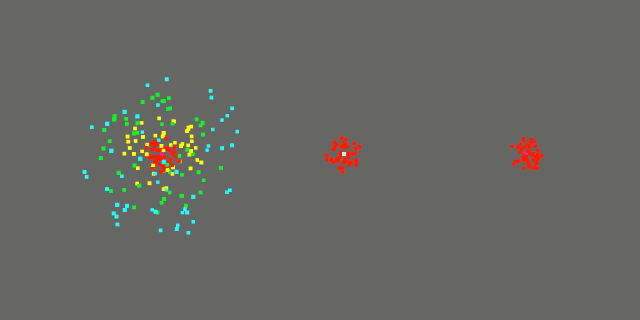

Lifetime

This example demonstrates particle effects with different lifetimes. Each effect emits particles every 3 seconds, with a particle lifetime of:

• Left: 12 seconds, longer than the emit rate, so multiple bursts accumulate.
• Center: 3 seconds, like the emit rate, so particles die when new ones are emitted.
• Right: 0.75 second, shorter than the emit rate, so particles die much earlier than the next burst.

cargo run --example lifetime --features="bevy/bevy_winit bevy/bevy_pbr 3d"

Billboard

This example demonstrates particles with the billboard render modifier, making them always face the camera. It also demonstrates the use of alpha cutoff to filter out texture samples below a certain threshold, varying this threshold back and forth between 0 and 1. Finally, the example uses attributes to store per-particle data like a color or in-plane rotation.

cargo run --example billboard --features="bevy/bevy_winit bevy/bevy_pbr bevy/png 3d"

Feature List

This list contains the major fixed features provided by 🎆 Hanabi. Beyond that, with the power of the Expressions API, visual effect authors can further customize their effects by assigning individual particle attributes (position, color, etc.).

• Spawn
  • Constant rate
  • One-time burst
  • Repeated burst
  • Spawner resetting
  • Spawner activation/deactivation
  • Randomized spawning parameters
• Initialize
  • Constant position
  • Position over shape
    • cube
    • circle
    • sphere
    • cone / truncated cone (3D)
    • plane
    • generic mesh / point cloud (?)
  • Random position offset
  • Velocity over shape (with random speed)
    • circle
    • sphere
    • tangent
  • Constant/random per-particle color
  • Constant/random per-particle size
  • Constant/random par-particle age and lifetime
• Update
  • Simulation condition
    • Always, even when hidden
    • Only when visible
  • Motion integration (Euler)
  • Apply forces and accelerations
    • Constant acceleration (gravity)
    • Radial acceleration
    • Tangent acceleration
    • Force field
    • Linear drag
  • Collision
    • Shape
      • plane
      • cube
      • sphere
    • Depth buffer
  • Allow/deny despawn box
  • Lifetime
  • Size change over lifetime
  • Color change over lifetime
• Render
  • Quad
    • Textured
  • Generic 3D mesh
  • Deformation
    • Velocity (trail)
  • Camera support
    • Render layers
    • 2D cameras (Camera2dBundle) only
    • 3D cameras (Camera3dBundle) only
    • Simultaneous dual 2D/3D cameras
    • Multiple viewports (split screen)
    • HDR camera and bloom
  • Size and orient particles
    • Face camera (Billboard)
    • Face constant direction
    • Orient alongside velocity
    • Screen-space size (projection independent)
• Debug
  • GPU debug labels / groups
  • Debug visualization
    • Position magnitude
    • Velocity magnitude
    • Age / lifetime

Features

🎆 Bevy Hanabi supports the following cargo features:

For optimization purpose, users of a single type of camera can disable the other type by skipping default features in their Cargo.toml. For example to use only the 3D mode:

bevy_hanabi = { version = "0.10", default-features = false, features = [ "3d" ] }

Compatible Bevy versions

The main branch is compatible with the latest Bevy release.

Compatibility of bevy_hanabi versions:
