Rust implementation of inverse and forward kinematic solutions for six-axis industrial robots with a parallel base and spherical wrist. Hardened against the J5 = 0° or ± 180° singularity and optimized for trajectory planning.

Intro

This work builds upon the 2014 paper titled An Analytical Solution of the Inverse Kinematics Problem of Industrial Serial Manipulators with an Ortho-parallel Basis and a Spherical Wrist, authored by Mathias Brandstötter, Arthur Angerer, and Michael Hofbaur. The paper is available in ResearchGate. Additionally, it draws inspiration from the similar C++ project, Jmeyer1292/opw_kinematics, which served as a reference implementation for generating data for the test suite. This documentation also incorporates the robot diagram from that project.

Features

• rs-opw-kinematics is written entirely in Rust (not a C++ binding) and deployable via Cargo.
• All returned solutions are valid, normalized, and cross-checked with forward kinematics.
• Joint angles can be checked against constraints, ensuring only compliant solutions are returned.
• Collision detection (with Parry) allows excluding solutions where the robot would collide with itself or environment objects. It is possible to set guaranteed safety distances between surfaces rather than just checking if they touch.
• For kinematic singularity at J5 = 0° or J5 = ±180° positions this solver provides reasonable J4 and J6 values close to the previous positions of these joints (and not arbitrary that may result in a large jerk of the real robot)
• The robot can be equipped with the tool and placed on the base, planning for the desired location and orientation of the tool center point (TCP) rather than any part of the robot.
• Planning a Cartesian stroke composed of linear segments, ensuring configuration consistency (no abrupt jumps) and collision-free movement. Alternative methods for executing the stroke are being explored, transitioning from the specified "onboarding" robot configuration to the first waypoint before the linear stroke.
• Jacobian, torques and velocities
• 5 DOF inverse kinematics.
• Visualization (with Bevy) allows quick check if the robot is properly configured.

The solver currently uses 64-bit floats (Rust f64), providing the positional accuracy below 1µm for the two robots tested.

Parameters

This library uses seven kinematic parameters (a1, a2, b, c1, c2, c3, and c4). This solver assumes that the arm is at zero when all joints stick straight up in the air, as seen in the image below. It also assumes that all rotations are positive about the base axis of the robot. No other setup is required.

To use the library, fill out an opw_kinematics::Parameters data structure with the appropriate values for the 7 kinematic parameters and any joint offsets required to bring the paper's zero position (arm up in Z) to the manufacturer's position. Additionally, there are 6 "sign correction" parameters (-1 or 1) that should be specified if your robot's axes do not match the convention in the paper.

For example, the ABB IRB2400 has the following values:

let parameters = Parameters {
a1: 0.100, a2: - 0.135, b: 0.000, c1: 0.615, c2: 0.705, c3: 0.755, c4: 0.085,
offsets: [0.0, 0.0, -std::f64::consts::PI / 2.0, 0.0, 0.0, 0.0],
sign_corrections: [1; 6],
}

Note that the offset of the third joint is -90°, bringing the joint from the upright position to parallel with the ground at "zero."

If you have the OPW robot and not sure how to configure it for this tool, contact bourumir.wyngs@gmail.com and we will help with integration.

Constraints

Since 1.1.0, it is possible to set constraints for the joints. Robot poses where any of the joints are outside the specified constraint range are not included in the returned list of solutions. It is also possible to influence the sorting of the result list by giving some preference to the center of constraints.

Constraints are specified by providing two angles, from and to, for every joint. If from < to, the valid range spans between from and to. If from > to, the valid range spans over the 0°, wrapping around. For instance, if from = 5° and to = 15°, values 6°, 8°, and 11° are valid, while values like 90°, and 180° are not. If from = 15° and to = 5° (the opposite), values 16°, 17°, 100°, 180°, 359°, 0°, 1°, 3°, 4° are valid, while 6°, 8°, and 11° are not.

Constraints are tested for the range from -2π to 2π, but as angles repeat with the period of 2π, the constraint from -π to π already permits free rotation, covering any angle.

Since 1.7.0, convenience method exists to specify constraints as ranges in degrees.

Please see the example.

Jacobian: torques and velocities

Since 1.3.2, it is possible to obtain the Jacobian that represents the relationship between the joint velocities and the end-effector velocities. The computed Jacobian object provides:

• Joint velocities required to achieve a desired end-effector velocity.
• Joint torques required to achieve a desired end-effector force/torque.

The same Joints structure is reused, the six values now representing either angular velocities in radians per second or torques in Newton meters. For the end effector, it is possible to use either nalgebra::Isometry3 or Vector6, both defining velocities in m/s or rotations in N m.

These values are useful when path planning for a robot that needs to move very swiftly, to prevent overspeed or overtorgue of individual joints.

Please see the example.

The tool and the base

Since 1.3.2, robot can be equipped with the tool, defined as nalgebra::Isometry3. The tool isometry defines both additional translation and additional rotation. The "pose" as defined in forward and inverse kinematics now becomes the pose of the tool center point, not any part of the robot. The robot can also be placed on a base, further supporting the conditions much closer to the real industrial environment.

"Robot with the tool" and "Robot on the base" can be constructed around any Kinematics trait, and implement this trait themselves. It is possible to cascade them, constructing a robot on a base and with the tool (or two tools if the first is a receptacle of the tool changer).

Please see the example.

The frame

Since 1.7.0 this package supports the frame transform that allows to transform the robot trajectory (in terms of joint angles) prepared for one location to make the same kind of movements in another location (translated and rotated). Frame in robotics is most commonly defined by the 3 pairs of points (to and from) if the transform includes also rotation, or just a single pair is enough if only shift (but not a rotation) is involved.

Once constructed by specifying original and transformed points, the Frame object can take "canonical" joint angles and calculated joint angles for the transformed (shifted and rotated) trajectory. See the frame documentation and example for details.

Individual link positions

It is now possible to obtain positions of individual links in forward kinematics. This would be needed for collision avoidance and graphical rendering of the robot. See forward_with_joint_poses method.

5 DOF inverse kinematics

For tools that are not sensitive to axis rotation (such as welding torches or paint sprayers), inverse kinematics can be requested where the value of joint 6 (which typically controls this rotation) is either inherited from the previous position or explicitly specified.

The 5 DOF robot can still be represented with the same diagram, and has the same parameters. However, joint 6 is assumed to be fixed. Such a robot still can bring the tool to the needed location, also following the generic orientation but the rotation around the tool axis is not followed.

Support for 5 DOF robots is now included through an additional 'dof' field in the parameter data structure. 5 DOF inverse kinematics can also be requested for 6 DOF robots, particularly when the last joint is in constant motion (e.g., for drilling), or when maintaining precise tool rotation would cause the robot to exceed its constraints. This method is also faster to compute. If the robot is flagged as 5 DOF robot, the value of the joint 6 will normally be 0 and ignored.

Parallelogram

The parallelogram mechanism maintains the orientation of the end-effector in some robots. It introduces a geometric relationship between two joints, typically referred to as the driven joint (often J₂) and the coupled joint (often J₃), to ensure the end-effector remains stable in its orientation during motion.

In forward kinematics, J₃ is adjusted by subtracting the value of J₂ multiplied by a scaling factor s (often 1.0). The relationship can be written as:

J₃' = J₃ − s * J₂

This adjustment maintains the correct orientation of the end-effector as the robot moves through its workspace.

In inverse kinematics, the process is reversed. The value of J₂ is added back to J₃, ensuring accurate joint angle calculations for achieving the desired end-effector pose and orientation. This can be expressed as:

J₃' = J₃ + s * J₂

The scaling factor s determines how much influence J₂ has on J₃. A scaling factor of 1.0 is the common, as this value ensures the end-effector’s orientation remains unchanged if only J₃ and J₂ move.

See Parallelogram and example.

Collision avoidance

The new class KinematicsWithShape combines kinematics and collision checking. It implements the Kinematics trait, providing both forward and inverse kinematic solutions. During inverse kinematics, any colliding poses are excluded from the solution list.

For collision avoidance, you need to supply meshes for robot joints and, optionally, for the base, tool, and environment objects.

Starting with version 1.8.0, it is now possible to configure a safety distance — the minimum distance to a surface below which a collision is detected. In most real-world scenarios, a robot must maintain a guaranteed clearance from objects it might collide with (including its own parts) rather than simply avoiding surface contact.

If the safety distance is set to zero, collisions are still likely due to the inherent limitations in system accuracy. Setting a zero safety distance is only advisable if the meshes are "inflated" (made larger than their actual size), but achieving this reliably is challenging and requires careful validation. On the other hand, checking for contact rather than maintaining a safety distance is significantly faster.

Safety distances are controlled through SafetyDistances structure as shown in the example below.

Safety distances can be configured separately for robot-to-robot and robot-to-environment collisions. Shorter distances can be specified for joints that naturally operate in proximity.

The code below demonstrates how to create this structure, complete with tool, base and constraints (see alsoexample.:

use std::ops::RangeInclusive;
use nalgebra::{Isometry3, Translation3, UnitQuaternion};
use rs_opw_kinematics::constraints::{Constraints, BY_PREV};
use rs_opw_kinematics::collisions::{BaseBody, CollisionBody, RobotBody};
use rs_opw_kinematics::kinematics_with_shape::KinematicsWithShape;
use rs_opw_kinematics::parameters::opw_kinematics::Parameters;
use rs_opw_kinematics::{utils, visualization};
use rs_opw_kinematics::read_trimesh::{load_trimesh_from_stl, load_trimesh_from_ply };


/// Create the sample robot we will visualize. This function creates
/// Staubli RX160, using is parameter set.
/// It loads the joint meshes from .stl files bundles in the test folder
/// where they are shared under the rights of Apache license (ROS Industrial project).
/// Four environment objects and tool are also created.
pub fn create_rx160_robot() -> KinematicsWithShape {
    // Environment object to collide with.
    let monolith = load_trimesh_from_stl("src/tests/data/object.stl");

    let robot = KinematicsWithShape::with_safety(
        // OPW parameters for Staubli RX 160
        Parameters {
            a1: 0.15,
            a2: 0.0,
            b: 0.0,
            c1: 0.55,
            c2: 0.825,
            c3: 0.625,
            c4: 0.11,
            ..Parameters::new()
        },

        Constraints::from_degrees(
          [
            -225.0..=225.0, -225.0..=225.0, -225.0..=225.0,
            -225.0..=225.0, -225.0..=225.0, -360.0..=360.0,
          ],
          BY_PREV, // Prioritize previous joint position
        ),

        // Joint meshes
        [
            // If your mesh is offset in .stl file, use Trimesh::transform_vertices,
            // you may also need Trimesh::scale on some extreme cases.
            // If your joints or tool consist of multiple meshes, combine these
            // with Trimesh::append

            load_trimesh_from_stl("src/tests/data/staubli/rx160/link_1.stl"),
            load_trimesh_from_stl("src/tests/data/staubli/rx160/link_2.stl"),
            load_trimesh_from_stl("src/tests/data/staubli/rx160/link_3.stl"),
            load_trimesh_from_stl("src/tests/data/staubli/rx160/link_4.stl"),
            load_trimesh_from_stl("src/tests/data/staubli/rx160/link_5.stl"),
            load_trimesh_from_stl("src/tests/data/staubli/rx160/link_6.stl")
        ],

        // Base link mesh
        load_trimesh_from_stl("src/tests/data/staubli/rx160/base_link.stl"),

        // Base transform, this is where the robot is standing
        Isometry3::from_parts(
            Translation3::new(0.4, 0.7, 0.0).into(),
            UnitQuaternion::identity(),
        ),

        // Tool mesh. Load it from .ply file for feature demonstration (different format)
        load_trimesh_from_ply("src/tests/data/flag.ply"),

        // Tool transform, tip (not base) of the tool. The point past this
        // transform is known as tool center point (TCP).
        Isometry3::from_parts(
            Translation3::new(0.0, 0.0, 0.8).into(),
            UnitQuaternion::identity(),
        ),

        // Objects around the robot, with global transforms for them.
        vec![
            CollisionBody { mesh: monolith.clone(), pose: Isometry3::translation(1., 0., 0.) },
            CollisionBody { mesh: monolith.clone(), pose: Isometry3::translation(-1., 0., 0.) },
            CollisionBody { mesh: monolith.clone(), pose: Isometry3::translation(0., 1., 0.) },
            CollisionBody { mesh: monolith.clone(), pose: Isometry3::translation(0., -1., 0.) }
        ],
        SafetyDistances {
          to_environment: 0.05,   // Robot should not come closer than 5 cm to pillars
          to_robot_default: 0.05, // No closer than 5 cm to itself.
          special_distances: SafetyDistances::distances(&[
            // Due construction of this robot, these joints are very close so
            // special rules are needed for them.
            ((J2, J_BASE), NEVER_COLLIDES), // base and J2 cannot collide
            ((J3, J_BASE), NEVER_COLLIDES), // base and J3 cannot collide
            ((J2, J4), NEVER_COLLIDES),
            ((J3, J4), NEVER_COLLIDES),
            ((J4, J_TOOL), 0.02_f32), // reduce distance requirement to 2 cm.
            ((J4, J6), 0.02_f32),     // reduce distance requirement to 2 cm.
          ]),
          mode: CheckMode::AllCollsions, // we need to report all for visualization
          // mode: CheckMode::NoCheck, // this is very fast but no collision check
        },
    );

  // Let's play a bit with this robot now:

  let pose = Isometry3::from_parts(
    Translation3::new(0.0, 0.0, 1.5), // position 1.5 meter high above a center of the world
    UnitQuaternion::identity()); // with robot tool pointing right upwards

  // Collision aware inverse kinematics (colliding solutions discarded)
  let solutions = robot.inverse(&pose);
  dump_solutions(&solutions); // Print solutions in degrees

  // Collision check against given joint positions
  if robot.collides(&[173_f64.to_radians(), 0., -94_f64.to_radians(), 0., 0., 0.]) {
    println!("Collision detected");
  }

  robot
}

Path planning

There are currently few path planning libraries available in Rust. Instead of incorporating them directly into our project and writing the code around, we decided to explore the complexity of integrating these libraries as external dependencies (referenced only in examples). This approach allowed us to identify key "pain points" that complicate the integration of external path planners.

We provide external support for two libraries, rrt and pathfinding. Although rs-opw-kinematics does not use either internally, we include examples demonstrating their usage. These two libraries are listed as development dependencies in Cargo.toml.

rrt

The Rapidly-Exploring Random Tree (RRT) library, rrt, is available under the Apache 2.0 license by Takashi Ogura and Mitsuharu Kojima. It can be used the following way:

use rrt::dual_rrt_connect;
fn plan_path(
  kinematics: &KinematicsWithShape,
  start: Joints, goal: Joints,
) -> Result<Vec<Vec<f64>>, String> {
  let collision_free = |joint_angles: &[f64]| -> bool {
    let joints = &<Joints>::try_from(joint_angles).expect("Cannot convert vector to array");
    !kinematics.collides(joints)
  };

  // Constraint compliant random joint configuration generator.
  let random_joint_angles = || -> Vec<f64> {
    // RRT requires vector and we return array so convert
    return kinematics.constraints()
            .expect("Set joint ranges on kinematics").random_angles().to_vec();
  };

  // Plan the path with RRT
  dual_rrt_connect(
    &start, &goal, collision_free,
    random_joint_angles, 3_f64.to_radians(), // Step size in joint space
    2000,  // Max iterations
  )
}

This library required to produce random joint angles within constraints. We made constraints easily accessible from the instance of Kinematics, and provided random_angles() methods for them.

See the example. for how to define the robot and other boilerplate code. The direct output will be a vector of vectors (not vector of Joints), each representing a step in the trajectory.

Cartesian stroke

Producing a robot's movement over the surface of an object performing a task (such as welding, painting, or washing) involves more than simply converting a single pose into joint rotations. Such a task requires a series of poses where the transitions between poses must often follow a straight-line trajectory. This cannot be assumed when joints undergo significant rotations between poses. Additionally, the robot's configurations (defined by joint angles) for adjacent poses must blend smoothly without abrupt changes. Abrupt jumps often result from alternative solutions in inverse kinematics. While these alternative solutions may provide suitable positions for the tool center point, they can cause large joint rotations (e.g., 110 degrees), significantly increasing the risk of collisions.

This means that although alternative solutions exist, the initial configuration at the start of a stroke often determines how the stroke progresses. If the trajectory cannot be completed before finishing the stroke, it may still be possible to execute the stroke by starting with a different initial configuration.

For this reason, the stroke planning in this library consists of the following steps:

• Starting from the "home" position and moving to the "landing" position:
  The landing position should be close to the working surface and slightly elevated to allow the robot to move safely into this configuration without risky movements near the surface. This phase is planned using the Rapidly-exploring Random Tree (RRT) algorithm.

• Executing the stroke:
  The robot transitions from the landing position to the first stroke position, moves between stroke positions, and finally returns to a "parking" position, lifting away from the surface.

  • All strokes in this phase are Cartesian, even if the steps between stroke points are large.
  • The planner generates sufficient intermediate poses to ensure the robot avoids collisions during long linear movements and prevents unexpected configuration changes.
  • These "intermediate" poses are flagged and can be included in the output (for simpler robots) or excluded (for advanced robots capable of executing Cartesian strokes using their built-in software).

You will find the complete code in cartesian_stroke.rs between examples.

    let planner = Cartesian {
        robot: &k, // The robot, instance of KinematicsWithShape
        check_step_m: 0.02, // Pose distance check accuracy in meters (for translation)
        check_step_rad: 3.0_f64.to_radians(), // Pose distance check accuracy in radians (for rotation)
        max_transition_cost: 3_f64.to_radians(), // Maximal transition costs (not tied to the parameter above)
        // (weighted sum of abs differences between 'from' and 'to' for all joints, radians).
        transition_coefficients: DEFAULT_TRANSITION_COSTS, // Joint weights to compute transition cost
        linear_recursion_depth: 8,

        // RRT planner that computes the non-Cartesian path from starting position to landing pose
        rrt: RRTPlanner {
            step_size_joint_space: 2.0_f64.to_radians(), // RRT planner step in joint space
            max_try: 1000,
            debug: true,
        },
        include_linear_interpolation: true, // If true, intermediate Cartesian poses are
        // included in the output. Otherwise, they are checked but not included in the output

        debug: true, // verbose output to console
    };

    // plan path
    let started = Instant::now();
    // start is Joints, starting position. land and park are landing and parking poses. steps is the vector of poses.
    let path = planner.plan(&start, &land, steps, &park);
    let elapsed = started.elapsed();

    match path {
        Ok(path) => {
            for joints in path {
                println!("{:?}", &joints);
            }
        }
        Err(message) => {
            println!("Failed: {}", message);
        }
    }
    println!("Took {:?}", elapsed);

It is important that while Parry3D can compute distances till collision objects and plan with safety margins, it is much slower than simply checking for collisions. Example explains how to create the SafetyDistances object that can be used for specifying how collisions should be checked. It is possible to specify the check with safety margin, or just check for collisions, or do not check for collisions at all if we concentrate on path and constraints to be sure everything is collision-free anyway.

Please see the example.

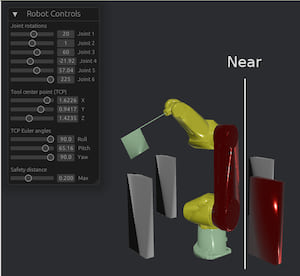

Visualization

KinematicsWithShape is also straightforward to visualize, as it fully integrates both the kinematics and 3D meshes representing the robot. To display it, simply pass this structure to the built-in function visualize_robot:

fn main() {
    // The robot itself (as per example above)
    let robot = create_rx160_robot();

    // In which position to show the robot on startup
    let intial_angles = [173., -8., -94., 6., 83., 207.];

    // Boundaries for XYZ drawbars in visualization GUI
    let tcp_box: [RangeInclusive<f64>; 3] = [-2.0..=2.0, -2.0..=2.0, 1.0..=2.0];

    visualization::visualize_robot(robot, intial_angles, tcp_box);
}

Visualization primarily serves to verify that your parameters, meshes, tool, and base setup are correct. It is not intended as a production feature. Using Bevy, the visualization will display the robot (mounted on its base and equipped with the tool), various environment objects, and a selection of handles to manipulate the robot.

In the visualization window, you can adjust joint positions for forward kinematics or set the tool center point using Cartesian coordinates for inverse kinematics. Collision detection is active in both modes, but it functions differently: in inverse kinematics, movement is restricted to prevent collisions entirely (the robot will not move if a collision would occur). In forward kinematics, collisions are allowed, but colliding robot joints and environment objects will be highlighted.

When using inverse kinematics, you may observe unexpected large "jumps," or in some cases, no viable solution within the robot's reach, constraints, and collision boundaries. This simply reflects the inherent limitations and complexities of real-world robotic movement.

Example

Cargo.toml:

[dependencies]
rs-opw-kinematics = ">=1.7.0, <2.0.0"

Simple "hello world" demonstrating singularity evasion would look more or less like this:

use rs_opw_kinematics::kinematic_traits::{Joints, Kinematics, Pose, JOINTS_AT_ZERO};
use rs_opw_kinematics::kinematics_impl::OPWKinematics;
use rs_opw_kinematics::parameters::opw_kinematics::Parameters;
use rs_opw_kinematics::utils::{dump_joints, dump_solutions};

fn main() {
    // Create a robot with built-in parameter set. It is a simple Kinematics with no collision checks.
    let robot = OPWKinematics::new(Parameters::irb2400_10());
    let joints: Joints = [0.0, 0.1, 0.2, 0.3, 0.0, 0.5]; // Joints are alias of [f64; 6], given in radians here
    println!("\nInitial joints with singularity J5 = 0: ");
    dump_joints(&joints);

    println!("\nSolutions assuming we continue from somewhere close. No singularity effect.");
    // Some previous pose for picking the best solution when infinite number of these exist.
    let when_continuing_from: [f64; 6] = [0.0, 0.11, 0.22, 0.3, 0.1, 0.5];
    let solutions = robot.inverse_continuing(&pose, &when_continuing_from);
    dump_solutions(&solutions);
}

Starting from version 1.7.0, rs-opw-kinematics has evolved beyond being just a set of "useful building blocks." It now enables the creation of a complete robot setup, which includes mounting the robot on a base, equipping it with a tool, and integrating collision checking. See example complete_visible_robot.

Configuring the solver for your robot

The project contains built-in definitions for ABB IRB 2400/10, IRB 2600-12/1.65, IRB 4600-60/2.05; KUKA KR 6 R700 sixx, FANUC R-2000iB/200R; Stäubli TX40, TX2-140, TX2-160 and TX2-160L with various levels of testing. Robot manufacturers may provide such configurations for the robots they make. For instance, FANUC M10IA is described here. Many other robots are described in ros-industrial/fanuc repository. This project contains the code for reading such configurations directly, including support for deg(angle) function that sometimes occurs there:

  let parameters = Parameters::from_yaml_file(filename).expect("Failed to load parameters");
  println!("Reading:\n{}", &parameters.to_yaml());
  let robot = OPWKinematics::new(parameters);

Since version 1.2.0, parameters and constraints can also be directly extracted from URDF file:

  let robot = rs_opw_kinematics::urdf::from_urdf_file("/path/to/robot.urdf");
  println!("Reading:\n{}", &parameters.to_yaml());

There is also more advanced function rs_opw_kinematics::urdf::from_urdf that takes URDF string rather than the file, provides error handling and much more control over how the solver is constructed from the extracted values.

YAML reader supports additional 'dof' field that can be set to 6 (default) or 5 (5DOF robot, tool rotation not accounted for). The URDF reader has als been extended to support such robots, but joint names must always be explicitly provided. Instead of specifying a name for joint 6, the name of the tool center point (TCP) must be given. Both YAML and URDF readers still try to get the parameter c4 that is now distance from J5 axis till TCP.

Important: The URDF reader assumes a robot with a parallel base and spherical wrist and not an arbitrary robot. You can easily check this in the robot documentation or simply looking into the drawing. If the robot appears OPW compliant yet parameters are not extracted correctly, please submit a bug report, providing URDF file and expected values. Use visualization as explained before feeding the output to the physical robot.

Disabling filesystem

For security and performance, some users prefer smaller libraries with fewer dependencies. If YAML and URDF readers are not in use and meshes for collision detection are obtained from somewhere else ( or collision detection is not used), the filesystem access can be completely disabled in your Cargo.toml, importing the library like:

rs-opw-kinematics = { version = ">=1.8.0, <2.0.0", default-features = false }

In this case, import of URDF and YAML files will be inaccessible, visualization and collision detection will not work either, and used dependencies will be limited to the single nalgebra crate.

Testing

The code of this project is tested against the test set (cases.yaml, 2048 cases per robot) that is believed to be correct for the two robots, KUKA KR 6 R700 sixx and ABB IRB 2400/10. It has been produced using independent C++ implementation by Jmeyer1292/opw_kinematics. The testing suite checks if the solutions match.
