unit-sphere

A library for performing geometric calculations on the surface of a sphere.

The library uses a combination of spherical trigonometry and vector geometry to perform great-circle navigation on the surface of a unit sphere, see Figure 1.

Figure 1 A Great Circle Path

A great circle is the shortest path between positions on the surface of a sphere. It is the spherical equivalent of a straight line in planar geometry.

Spherical trigonometry

A great circle path between positions may be calculated using spherical trigonometry.

The course (initial azimuth) of a great circle can be calculated from the latitudes and longitudes of the start and end points. While great circle distance can also be calculated from the latitudes and longitudes of the start and end points using the haversine formula. The resulting distance in Radians can be converted to the required units by multiplying the distance by the Earth radius measured in the required units.

Vector geometry

Points on the surface of a sphere and great circle poles may be represented by 3D vectors. Many calculations are simpler using vectors than spherical trigonometry.

Figure 2 Spherical Vector Coordinates

For example, the across track distance of a point from a great circle can be calculated from the dot product of the point and the great circle pole vectors. While the intersection points of great circles can simply be calculated from the cross product of their pole vectors.

Design

The great_circle module performs spherical trigonometric calculations and the vector module performs vector geometry calculations.

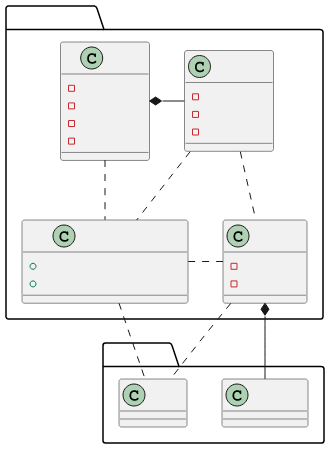

Figure 3 Class Diagram

The library is declared no_std so it can be used in embedded applications.

Example

The following example calculates the intersection between two Great Circle Arcs. The values are taken from Charles Karney's original solution to Intersection between two geodesic lines.

use unit_sphere::{Arc, Degrees, LatLong, calculate_intersection_point};
use angle_sc::is_within_tolerance;

let istanbul = LatLong::new(Degrees(42.0), Degrees(29.0));
let washington = LatLong::new(Degrees(39.0), Degrees(-77.0));
let reyjavik = LatLong::new(Degrees(64.0), Degrees(-22.0));
let accra = LatLong::new(Degrees(6.0), Degrees(0.0));

let arc1 = Arc::try_from((&istanbul, &washington)).unwrap();
let arc2 = Arc::try_from((&reyjavik, &accra)).unwrap();

let intersection_point = calculate_intersection_point(&arc1, &arc2).unwrap();
let lat_long = LatLong::from(&intersection_point);
// Geodesic intersection latitude is 54.7170296089477
assert!(is_within_tolerance(54.72, lat_long.lat().0, 0.05));
// Geodesic intersection longitude is -14.56385574430775
assert!(is_within_tolerance(-14.56, lat_long.lon().0, 0.02));
