bevy_flowfield_tiles_plugin

Inspired by the work of Elijah Emerson and with inspiration from leifnode and jdxdev this is an attempt to implement the data structures and logic required to generate a Flowfield representation of a world which can be used to pathfind movable actors.

Table of Contents

1. Intro
2. Useful Definitions
3. Design/Process
4. Usage
5. Features
6. Performance
7. License

Intro

Pathfinding in games can take different forms and those forms have certain benefits aligned with the type of game they are being applied to. Generally people run across:

• Way-point Graph - points in space linked together, very strict structure, an actor will move from one way-point to another. Great for games played on a small grid where movement needs to be restricted to precise lines, will be cumbersome when multiple actors are sharing a path - particularly when actors have some kind of collision system in place
• NavMesh - a walkable surface generated from the topology of meshes in a game world defining a valid area of movement. It allows for a range of dynamic movement within the confines of the mesh and is a natural evolution of the Way-point Graph
• FlowField Tiles - a means of handling crowd and flocking behaviour by generating a flow field (vector field) describing how an actor flows across a world. A large number of actors can flow in unison to an endpoint while sharing the same pathing data structure - saving compute resources and time

For larger and larger environemnts with an increasing number of pathing actors it may be beneficial to adopt a FlowField based approach due to the data sharing and formation/group like movement it promotes. FlowField Tiles are complex, it's effectively akin to fluid mechanics, so this is an attempt to bring an agnostic implementation to the Bevy game engine. My motivation for this is that I recently implemented a Way-point Graph for a prototype. In order to provide 'ok' actor movement it had to be made from 16 million data points. To prevent an actor from occasionally zig-zagging across the game world the granularity had to be boosted to 80 million data points to create a 'lifelike' impression of movement. That was just silly so I began looking into the history of pathfinding whereupon I stumbled across FlowField Tiles and decided to try and implement it with my favourite langauge and engine.

Useful Definitions

• Sector - a slice of a game world composed of three 2D arrays called fields (CostField, IntegrationField and FlowField). A game world is effectively represented by a number of Sectors
• CostField - a 2D array describing how difficult it is to path through each cell of the array. It is always present in system memory
• Cost - how difficult/expensive it is to path somewhere, you could also call it weight, each cell of CostField has one of these
• Portal - a navigatable point which links one Sector to another to enable movement from one side of the world to another
• IntegrationField - a 2D array which uses the CostField to determine a cumulative cost of reaching the goal/endpoint (where you want to path to). This is an ephemeral field - it exists when required to calculate a FlowField
• FlowField - a 2D array built from the IntegrationField which decribes how an actor should move (flow) across the world
• FlowField Cache - a means of storing FlowFields allowing multiple actors to use and reuse them
• Ordinal - a direction based on traditional compass ordinals: N, NE, E, SE, S, SW, W, NW. Used for discovery of Sectors/field cells at various points within the algorithm
• Field cell - an element of a 2D array
• Goal - the target field cell an actor needs to path to
• Portal goal - a target point within a sector that allows an actor to transition to another sector, thus bringing it closer towards/to the goal

Design/Process

Click to expand!

To generate a set of navigation FlowFields the game world is divided into Sectors indexed by (column, row) and each Sector has 3 layers of data: [CostField, IntegrationField, Flowfield]. Each layer aids the next in building out a path. A concept of Portals is used to connect Sectors together.

Sector

Click to expand!

For a 3-dimensional world the x-z (x-y in 2d) plane defines the number of Sectors used to represent it with a scale factor called sector_resolution. This means that a for a (30, 30) world with a resolution of 10 there would be 3x3 Sectors representing it - this implies that a single sector has relative dimensions of (10, 10) and a single field cell within a sector represents a 1x1 unit area. Each Sector has an associated unqiue ID taken as its position: (column, row).

Likewise for a (300, 550) resolution 10 world you'll be looking at 30 columns and 55 rows. The advantage of dividing a world into Sectors (as opposed to treating the whole world as a giant Flowfield) is that the work in generating a path can be split into multiple operations and only touch certain sectors. Say for the (300, 550) world you do treat it as a single set of fields - when calculating a path you could potentially have to calculate the Flowfield values for 165,000 field cells. Splitting it into sectors may mean that your path only takes you through 20 sectors, thereby only requiring 2,000 Flowfield field cells to be calculated.

CostField

Click to expand!

A CostField is an MxN 2D array of 8-bit values, by default this is always a 10x10 array. The values indicate the cost of navigating through that cell of the field. A value of 1 is the default and indicates the easiest cost, and a value of 255 is a special value used to indicate that the field cell is impassable - this could be used to indicate a wall or obstacle. All other values from 2-254 represent increasing cost, for instance a slope or difficult terrain such as a marsh. The idea is that the pathfinding calculations will favour cells with a smaller value before any others.

At runtime the CostField is generated for each Sector with the default value - although with the feature ron it is possible to load the fields from disk, or with the feature heightmap a greyscale png/jpeg can be used to seed the fields. See the Usage section below for details on updating the CostFields during an inital pass (i.e when loading a level) and tweaking it during gameplay for a world which dynamically evolves with obstacles (flipping a cell to to a higher cost or an impassable 255 when something like a wall is placed or the ground splits into a fissure).

This array is used to generate the IntegrationField when requesting a navigatable path.

Portals

Click to expand!

Each Sector has up to 4 boundaries with neighbouring Sectors (fewer when the sector is in a corner or along the edge of the game world). Each boundary can contain Portals which indicate a navigatable point from the current Sector to a neighbour. Portals serve a dual purpose, one of which is to provide responsiveness - FlowFields may take time to generate so when an actor needs to move a quick A* pathing query can produce an inital path route based on moving from one Portal to another and they can start moving in the general direction to the goal/target/endpoint. Once the FlowFields have been built the actor can switch to using them for granular navigation instead.

The following sectors are located away from any edges of the world which means each boundary can have Portals (the purple cells):

A Portal is generated at the midpoint of a boundary - in situations where the CostField contains 255 costs along the edge then multiple Portals may be generated at the midpoint of each valid pathable segment along the boundary and this is propagated to neighbouring Sectors so that every Portal has a neighbour buddy (as evident in the right hand Sector above, S(1, 1) portal (9, 1) allows movement into S(2, 1) portal (0, 1), even though S(2, 1) has a whole boundary that appears completely pathable).

On a larger scale (but still small) and for the simplist CostField available, a 2x2 Sector grid produces predictable boundary Portals.

Portal Graph

For finding a path from one Sector to another at a Portal level all Sector Portals are recorded within a data strucutre known as PortalGraph. The Portals are stored as Nodes and Edges are created between them to represent traversable paths, it gets built in three stages:

1. For all Portals add a graph node
2. For each sector create edges (pathable routes) to and from each Portal node - effectively create internal walkable routes of each sector
3. Create edges across the Portal node on all sector boundaries (walkable route from one sector to another)

This allows the graph to be queried with a source sector and a target sector and a list of Portals are returned which can be pathed. When a CostField is changed this triggers the regeneration of the sector Portals for the region that CostField resides in (and its neighbours to ensure homogenous boundaries) and the graph is updated with any new Portals nodes and the old ones are removed.

IntegrationField

Click to expand!

An IntegrationField is an MxN 2D array of 16-bit values. It uses the CostField to produce a cumulative cost to reach the end goal/target. It's an ephemeral field, as in it gets built for a required sector and then consumed by the FlowField calculation.

When a new route needs to be processed the field values are set to u16::MAX and the field cell containing the goal is set to 0.

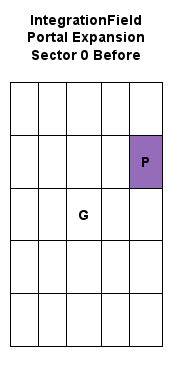

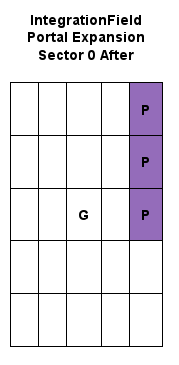

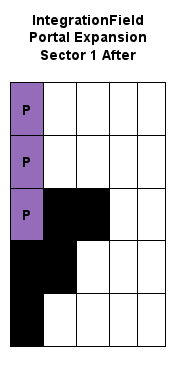

A series of passes are performed from the goal as an expanding wavefront calculating the field values:

1. The valid ordinal neighbours of the goal are determined (North, East, South, West - when not against a sector/world boundary)
2. For each ordinal field cell lookup their CostField value
3. Add the CostField cost to the IntegrationFields cost of the current cell (at the beginning this is the goal int cost 0)
4. Propagate to the next neighbours, find their ordinals and repeat adding their cost value to to the current cells integration cost to produce their cumulative integration cost, and repeat until the entire field is done

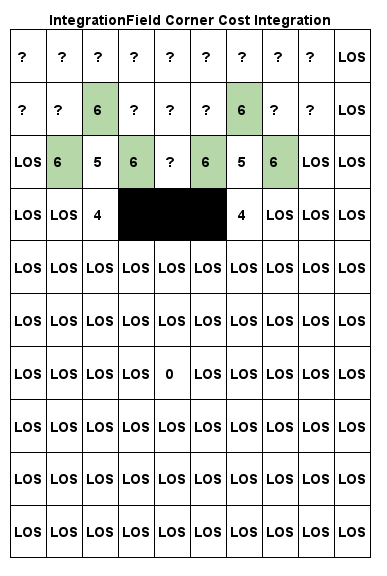

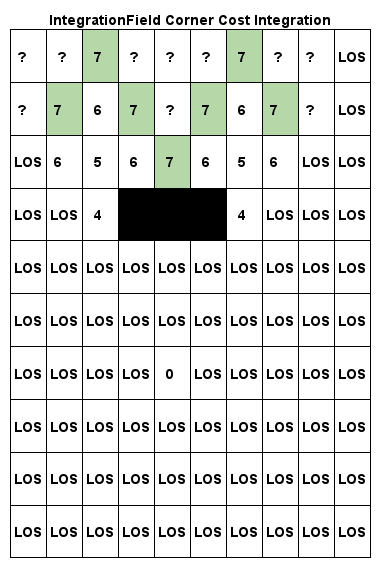

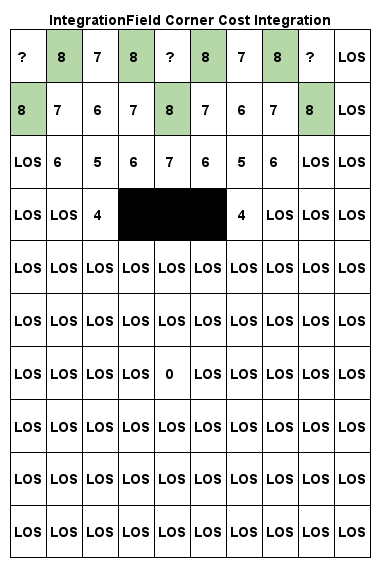

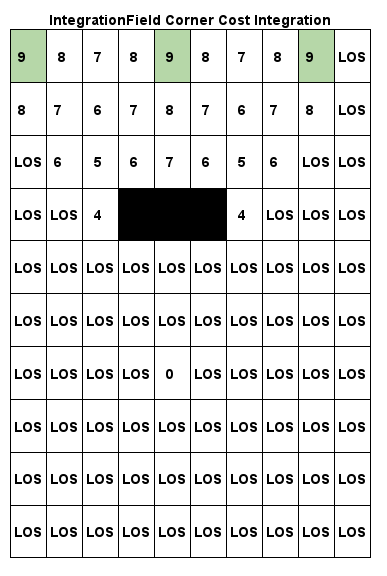

This produces a nice diamond-like pattern as the wave expands (the underlying CostField is set to 1 here):

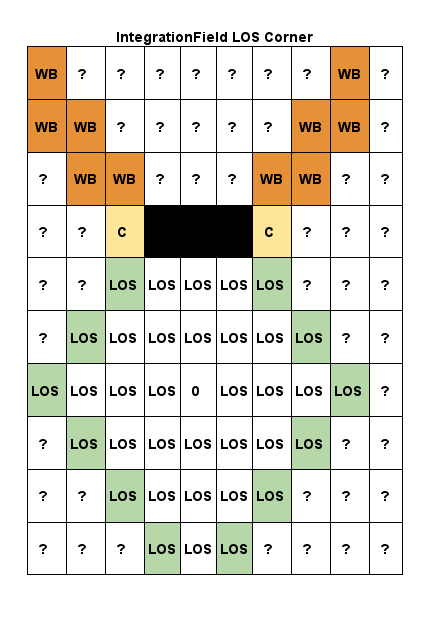

Now a dimaond-like wave isn't exactly realistic in a world of dynamic movement so at some point it should be replaced, based on various articles out there it seems people adopt the Eikonal equation to create a more spherical wave expanding over the field space.

When it comes to CostField containing impassable markers, 255 as black boxes, they are ignored so the wave flows around those areas:

And when your CostField is using a range of values to indicate different areas to traverse, such as a steep hill:

So this encourages the pathing algorithm around obstacles and expensive areas in your world!

This covers calculating the IntegrationField for a single sector containing the goal but of course the actor could be in a sector far away, this is where Portals come back into play.

From the PortalGraph we can get a path of Portals to guide the actor over several sectors to the desired sector, extending the above the IntegrationField of the goal sector has been calculated so next we "hop" through the boundary Portals working backwards from the goal sector to the actor sector (Portals are denoted as a purple shade) to produce a series of IntegrationFields for the chaining Sectors describing the flow movement.

In terms of pathfinding the actor will favour flowing "downhill". From the position of the actor and looking at its field cell neighbours a smalller value in that sectors IntegrationField means a more favourable point for reaching the end goal, going from smaller to smaller values, basically a gradient flowing downhill to the destination.

This informs the basis of a FlowField.

As an example for a 30x30 world, goal at 0 with an actor at A, an IntegrationField set interrogating all sector Portals may produce a set of fields looking similar to:

Notice the cool waves that propagate out from the goal!

Generating the fields for this path programmatically leads to:

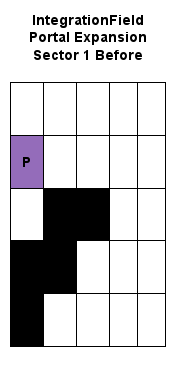

Notice that we don't bother generating the fields for sectors the actor doesn't need to path through. Also a Portal represents the midpoint of a traversable sector boundary, when generating the field we expand the portal to cover its entire segment - this increases efficiency so that an actor can more directly approach its goal rather than zig-zagging to portal boundary points.

From the IntegrationFields we can now build the final set of fields - FlowFields

FlowField

Click to expand!

A FlowField is an MxN 2D array of 8-bit values built from a Sectors IntegrationField. The first 4 bits of the value correspond to one of eight ordinal movement directions an actor can take (plus a zero vector when impassable) and the second 4 bits correspond to flags which should be used by a character controller/steering pipeline to follow a path.

The directional bits are defined as:

• 0b0000_0001 - North
• 0b0000_0010 - East
• 0b0000_0100 - South
• 0b0000_1000 - West
• 0b0000_0011 - North-East
• 0b0000_0110 - South-East
• 0b0000_1100 - South-West
• 0b0000_1001 - North-West
• 0b0000_0000 - zero vector, represents impassable cells
• 0b0000_1111 - default on FlowField initialisation, is always replaced by other values

The assistant flags are defined as:

• 0b0001_0000 - pathable

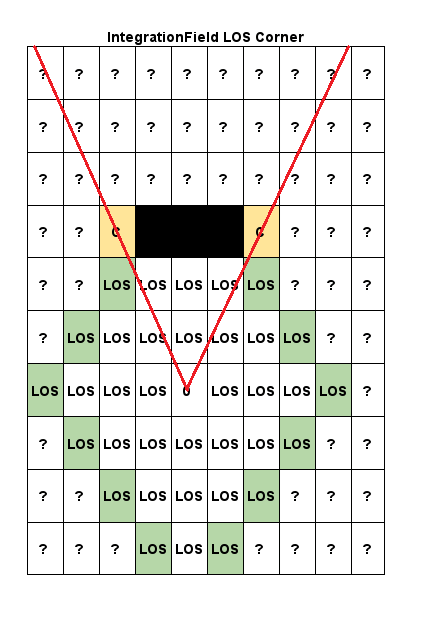

• 0b0010_0000 - has line-of-sight to goal, an actor no longer needs to follow the field, it can move in a straight line to the goal. This avoids calculating field values that aren't actually needed and once an actor enters a cell with this flag then they no longer need to spend time looking up a `FlowField``
• 0b0100_0000 - indicates the goal
• 0b1000_0000 - indicates a portal goal leading to the next sector

So a field cell in the FlowField with a value of 0b0001_0110 means the actor should flow in the South-East direction. In terms of use don't worry about understanding these bit values too much, the Usage section shows the helpers for interpreting the values of the FlowField to steer an actor.

Using the IntegrationFields generated before, with an actor in the top right trying to reach the bottom left, we now generate the FlowFields:

The thinner porition of each cell icon indicates the flow direction. The actor runs along the flow lines leading to the goal. This means for a group of actors they will flow towards the goal with a formation-like behaviour along the flow lines.

Route & FlowField Cache

Click to expand!

To enable actors to reuse FlowFields (thus avoiding repeated calculations) a pair of caches are used to store pathing data:

1. Route Cache - when an actor requests to go somewhere a high-level route is generated from describing the overall series of sector-portals to traverse (PortalGraph A*). If a FlowField hasn't yet been calculated then an actor can use the route_cache as a fallback to gain a generalist direction they should start moving in. Once the FlowFields have been built they can swap over to using those more granular paths. TODO: Additionally changes to CostFields can change portal positions and the real best path, so FlowFields are regenerated for the relevant sectors that CostFields have modified and during the regeneration steps an actor can once again use the high-level route as the fallback

2. Field Cache - for every sector-to-portal part of a route a FlowField is built and stored in the cache. Actors can poll this cache to get the true flow direction to their goal. A Character Controller/Steering Pipeline is responsible for interpreting the values of the FlowField to produce movement - while this plugin includes a Steering Pipeline the reality is that every game has it's own quirks and desires for movement so you will most likely want to build your own Pipeline. The real point of this plugin is to encapulsate the data structures and logic to make a FlowField which an Actor can then read through it's own implementation.

Note that the data stored in the caches is timestamped - if a record lives longer than 15 minutes then it is purged to reduce size and improve lookup efficiency. When implemnting a steering pipeline/character controller to interpret the FlowFields you may need to account for these old routes/paths expiring.

Actor Sizes

Click to expand!

In a simulation you may have actors of different sizes and a gap between impassable walls, consider these purple actors:

The smaller actor on the left can evidently pass through the gap between the impassable terrain. On the right however the actor is much larger and as such when processing a PathRequest only routes with suitable clearance should be considered (otherwise with a collision system in place it'd just bump into the walls to the side and never make it through).

To handle this the overall MapDimenions component which defines the sizing of the various fields contains an actor_scale parameter. This scaling is determined by the actor size and unit-size of a cell within a field. For instance a Sector with pixel dimensions of 640x640 means that each cell in the (m, n) -> (10, 10) fields represents a pixel area of 64x64, if an actor is larger than 64 pixels in width then a ratio between actor size and cell size is applied to 'grow' impassable cells to close off gaps that would be too small for the actor to path through.

In terms of what an actor 'sees' after requesting a route, the smaller actor on the left can path through the gap whereas the larger actor on the right would search for an alternate route:

In a game with actors of multiple sizes you will want to create distinct entities from FlowFieldTilesBundle where each is configured to handle a certain size of actor.

#[derive(Component)]
struct ActorSmall
#[derive(Component)]
struct ActorLarge

fn setup () {
    let map_length = 1920;
    let map_depth = 1920;
    let sector_resolution = 640;

    let actor_size_small = 16.0;
    cmds.spawn(FlowFieldTilesBundle::new(
        map_length,
        map_depth,
        sector_resolution,
        actor_size_small
    )).insert(ActorSmall);

    let actor_size_large = 78.0;
    cmds.spawn(FlowFieldTilesBundle::new(
        map_length,
        map_depth,
        sector_resolution,
        actor_size_large
    )).insert(ActorLarge);
}

fn system_navigation_small_actors(
    actor_q: Query<&Actor, With<ActorSmall>>,
    field_q: Query<&FlowCache, With<ActorSmall>>
) {/* handling movement etc */}

fn system_navigation_large_actors(
    actor_q: Query<&Actor, With<ActorLarge>>,
    field_q: Query<&FlowCache, With<ActorLarge>>
) {/* handling movement etc */}

Usage

Update your Cargo.toml and add any features you require, to actually interface with calculated fields you should enable either 2d or 3d depending on the coordinate system of your world:

[dependencies]
bevy_flowfield_tiles_plugin = { version = "0.x", features = ["3d"] }

Default

Add the plugin to your app:

use bevy_flowfield_tiles_plugin::prelude::*;

fn main() {
    App::new()
        // ... snip
        .add_plugins(FlowFieldTilesPlugin)
        // ... snip
}

Custom System Setup and Constraints

In your own simulation you may well be using custom schedules or stages to control logic execution, the plugin as is sets all the logic to run as part of the PreUpdate phase of the main Bevy schedule. To implement the logic into your own scheduling disect the contents of plugin/mod.rs - note that certain systems have been chained together and they must remain chained for accurate paths to be computed.

Initialising Data

Next it's time to spawn the bundle entity configured to your world size (looking through the examples will give some pointers on this too).

The size and resolution of the world need to be known at initialisation and three values are required:

• map_length - in 2d this refers to the pixel x size of the world. In 3d this is simply the x size
• map_depth - in 2d this refers to the pixel y size of the world. In 3d this is the z size
• sector_resolution - determines the numder of sectors by taking each size and dividing them by this value. In 2d this is basically the pixel length of each sector side and likewise for 3d it's the length of each sector side using whatever unit of measurement you've defined (for ease of use I go with a unit of x is 1 meter and a unit of z is one meter)
  • 2d: a world of pixel size (1920, 1080) with a resolution of 40 will produce 48x27 sectors. Another way of looking at this could be based on the idea of having a world made of sprites where each sprite corresponds to where a FieldCell would be. If these regular sized sprites have a pixel length and height of 64 and your world is made from a 20x20 grid of these sprites then you can calcualte what the size is. map_length would be your sprite length multiplied by the number sprites along the x axis of the world, i.e 64 * 20 = 1280. map_depth follows a likewise calculation 64 * 20 = 1280. As for resolution it will depend on how granular you want, in this example case a 10x10 CostField is supposed to overlay an exact number of sprites so we use the sprite size to find the resolution 64 * 10 = 640.
  • 3d: a world of size (780x440) with resolution 10 produces 78x44 sectors. Given that fields are 10x10 arrays this translates to a single FieldCell representing a 1x1 unit area

Within a system somewhere you can spawn the Bundle:

fn my_system(mut cmds: Commands) {
    let map_length = 1920;
    let map_depth = 1920;
    let sector_resolution = 640;
    let actor_size = 16.0;
    cmds.spawn(FlowfieldTilesBundle::new(map_length, map_depth, sector_resolution, actor_size));
}

Note that this will initialise all the CostFields representing the world with cell values of 1. Meaning everywhere is pathable, in all likihood you'll then need to seed the fields with true values.

In 3d you could consider making a raycast to the centre of where each FieldCell would be and use something like the y position of the ray hit to determine if something is passable or not and then flip the value of that particular FieldCell (EventUpdateCostfieldsCell can be used to queue a cost change).

Most likely for 2d or more complex 3d scenarios you'll probably want to enable either the ron, csv or heightmap feature which allows for creating a FlowfieldTilesBundle with inital CostFields from a .ron file, a collection of .csv or a greyscale png/jpeg where pixel colour channels are translated into costs, the examples showcase this in more detail.

Path Request

When it comes to interacting with the algorithm this is based on an event to be emitted when a movable actor needs a path:

struct EventPathRequest {
    /// The starting sector of the request
    source_sector: SectorID,
    /// The starting field cell of the starting sector
    source_field_cell: FieldCell,
    /// The sector to try and find a path to
    target_sector: SectorID,
    /// The field cell in the target sector to find a path to
    target_goal: FieldCell,
}

Each parameter can be determined by querying the MapDimension component of the Bundle with the starting and end Transform::translation of actor position and target position.

Using some example components to track and label an Actor:

/// Enables easy querying of Actor entities
#[derive(Component)]
struct Actor;
/// Consumed by an Actor steering pipeline to produce movement
#[derive(Default, Component)]
struct Pathing {
    target_position: Option<Vec2>,
    metadata: Option<RouteMetadata>,
    portal_route: Option<Vec<(SectorID, FieldCell)>>,
    has_los: bool,
}

We can then do something like process mouse clicks assign an actor a target_position (in 3d use the methods ending in xyz instead):

fn user_input(
    mouse_button_input: Res<ButtonInput<MouseButton>>,
    windows: Query<&Window, With<PrimaryWindow>>,
    camera_q: Query<(&Camera, &GlobalTransform)>,
    dimensions_q: Query<&MapDimensions>,
    mut actor_q: Query<&mut Pathing, With<Actor>>,
) {
    if mouse_button_input.just_released(MouseButton::Right) {
        // get 2d world positionn of cursor
        let (camera, camera_transform) = camera_q.single();
        let window = windows.single();
        if let Some(world_position) = window
            .cursor_position()
            .and_then(|cursor| camera.viewport_to_world(camera_transform, cursor))
            .map(|ray| ray.origin.truncate())
        {
            let map_dimensions = dimensions_q.get_single().unwrap();
            if map_dimensions
                .get_sector_and_field_cell_from_xy(world_position)
                .is_some()
            {
                let mut pathing = actor_q.get_single_mut().unwrap();
                // update the actor pathing
                pathing.target_position = Some(world_position);
                pathing.metadata = None;
                pathing.portal_route = None;
                pathing.has_los = false;
            } else {
                error!("Cursor out of bounds");
            }
        }
    }
}

The actor can then query the RouteCache to obtain a route - or if one doesn't exist it can emit a request to have a route generated.

fn get_or_request_route(
    route_q: Query<(&RouteCache, &MapDimensions)>,
    mut actor_q: Query<(&Transform, &mut Pathing), With<Actor>>,
    mut event: EventWriter<EventPathRequest>,
) {
    let (route_cahe, map_dimensions) = route_q.get_single().unwrap();
    for (tform, mut pathing) in &mut actor_q {
        if let Some(target) = pathing.target_position {
            // actor has no route, look one up or request one
            if pathing.portal_route.is_none() {
                if let Some((source_sector, source_field)) =
                    map_dimensions.get_sector_and_field_cell_from_xy(tform.translation.truncate())
                {
                    if let Some((target_sector, goal_id)) =
                        map_dimensions.get_sector_and_field_cell_from_xy(target)
                    {
                        // if a route is calculated get it
                        if let Some((metadata, route)) = route_cahe.get_route_with_metadata(
                            source_sector,
                            source_field,
                            target_sector,
                            goal_id,
                        ) {
                            pathing.metadata = Some(*metadata);
                            pathing.portal_route = Some(route.clone());
                        } else {
                            // request a route
                            event.send(EventPathRequest::new(
                                source_sector,
                                source_field,
                                target_sector,
                                goal_id,
                            ));
                        }
                    }
                }
            }
        }
    }
}

And once the FlowFields have been built they can query the FlowFieldCache instead and apply/queue up some kind of movement.

Note this example is very basic as it only handles a single actor, in an application you'd devise your own handling system:

const SPEED: f32 = 64.0;
fn actor_steering(
    mut actor_q: Query<(&mut LinearVelocity, &mut Transform, &mut Pathing), With<Actor>>,
    flow_cache_q: Query<(&FlowFieldCache, &MapDimensions)>,
    time_step: Res<Time>,
) {
    let (flow_cache, map_dimensions) = flow_cache_q.get_single().unwrap();
    for (mut velocity, tform, mut pathing) in actor_q.iter_mut() {
        // lookup the overarching route
        if let Some(route) = pathing.portal_route.as_mut() {
            // find the current actors postion in grid space
            if let Some((curr_actor_sector, curr_actor_field_cell)) =
                map_dimensions.get_sector_and_field_cell_from_xy(tform.translation.truncate())
            {
                // trim the actor stored route as it makes progress
                // this ensures it doesn't use a previous goal from
                // a sector it has already been through when it needs
                // to pass through it again as part of a different part of the route
                if let Some(f) = route.first() {
                    if curr_actor_sector != f.0 {
                        route.remove(0);
                    }
                }
                // lookup the relevant sector-goal of this sector
                'routes: for (sector, goal) in route.iter() {
                    if *sector == curr_actor_sector {
                        // get the flow field
                        if let Some(field) = flow_cache.get_field(*sector, *goal) {
                            // based on actor field cell find the directional vector it should move in
                            let cell_value = field.get_field_cell_value(curr_actor_field_cell);
                            if has_line_of_sight(cell_value) {
                                pathing.has_los = true;
                                let dir =
                                    pathing.target_position.unwrap() - tform.translation.truncate();
                                velocity.0 = dir.normalize() * SPEED * time_step.delta_seconds();
                                break 'routes;
                            }
                            let dir = get_2d_direction_unit_vector_from_bits(cell_value);
                            if dir.x == 0.0 && dir.y == 0.0 {
                                warn!("Stuck");
                                pathing.portal_route = None;
                            }
                            velocity.0 = dir * SPEED * time_step.delta_seconds();
                        }
                        break 'routes;
                    }
                }
            }
        }
    }
}

NB: generated FlowFields and Routes expire from their caches after 15 minutes, your steering pipeline may need to send a new EventPathRequest if one gets expired that an actor was relying on.

NB: when a CostField is modified Portals and the PortalGraph are updated and any Routes or FlowFields involving the modified Sector CostField are removed - they will be regenerated but a CharacterController needs to be able to handle a route vanishing from the cache and then coming back (if it can come back, the CostField update may make a route invalid if a path no longer exists).

Things that may throw the PathRequest off

If you're combining this with a Physics simulation you'll need to ensure that your CharacterController is very robust, consider some scenarios that may happen:

• A moving actor collides with something that bounces it into a sector which is not part of its route. How can the actor be made aware that this has happened and request a new route?
• An actor has escaped/tunnelled outside of your world (its translation exceeds the bounds of MapDimensions), should it be despawned or relocated to be within the bounds?

Features

• serde - enables serlialisation on some data types
• ron - enables reading CostField from files. NB: fixed-size arrays in .ron are written as tuples
• csv - enables creating all of the CostFields by reading from a directory of csv files. Note that csv filenames need to follow the sector ID convention of column_row.csv, the underscore is important, and the path of the directory should be fully qualified and the files themselves should not contain any headers
• 2d - enables interface methods when working with Flowfields in a 2d world
• 3d - enables interface methods when working with FlowFields in a 3d world
• heightmap - allows initialising the CostFields from a greyscale png/jpeg where each pixel of the image represents a FieldCell. Alpha channel is optional (it'll just be ignored if included in the image). A pixel with colour channels (0, 0, 0, 255) (black) represents an impassable 255 cost whereas (255, 255, 255, 255) (white) is translated as a cost of 1, channel values in between will be more expensive costs

Performance

Benchmarks are split into two categories:

• Data initialisation
  • init_cost_fields - measures the time it takes to initalise 100x100 sector CostFields
  • init_portals - measures the time it takes to build Portals across 100x100 sectors
  • init_portal_graph - measure the time it takes to build the PortalGraph for 100x100 sectors
  • init_bundle - measure the total time it takes to have the FlowFieldTilesBundle ready
• Algorithm use - measures generating a set of FlowFields
  • calc_route - measures how long it takes to generate a route from one corner of a 100x100 sector layout to the opposite corner
  • calc_flow_open - measure how long it takes to create a full set of FlowFields describing movement across uniform CostFields (cost = 1) from one corner to another
  • calc_flow_maze - measures how long it takes to create a full set of FlowFields describing movement from one corner to another in a 100x100 sector world. The world is composed of vertical corridors meaning that the actor has to path up and down to eventually snake it's way to the goal

Currently the slowest area is generating the PortalGraph (7s on my machine) so this should be some initialisation that happens behind the scenes (like a loading screen or some such).

Depending on pathing complexity I've seen FlowField generation range from 5-90ms.

LICENSE

Dual license of MIT and Apache.
