TextCanvas

license: MIT GitHub Tag crates.io GitHub Actions Workflow Status

TextCanvas is an HTML Canvas-like surface that can be used to draw to the terminal. Other use cases include visual checks for mathematical computations (i.e. does the graph at least look correct?), or snapshot testing (may not be the most accurate, but can have great documentation value).

It is inspired by drawille^1, which uses Braille Unicode characters to increase the resolution of the terminal by a factor of 8 (8 Braille dots in one terminal character).

The API is inspired by JavaScript Canvas's API, but has barely any features.

Examples

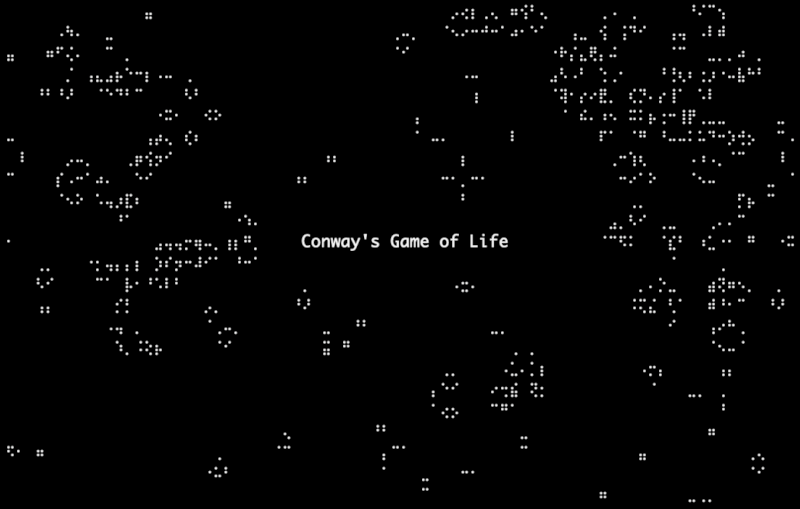

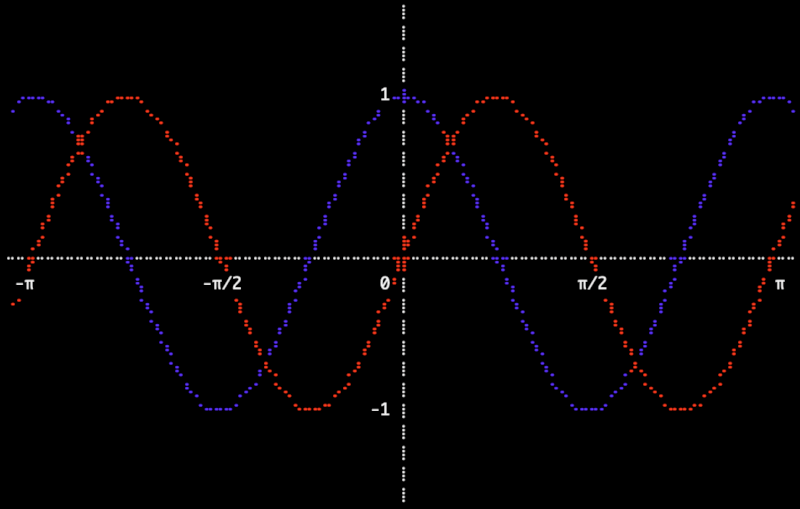

Game of Life Graph

How It Works

Braille characters start at Unicode offset U2800 (hexadecimal), and work by addition (binary flags really, just like chmod):

2800 + (1 + 2) = 2803 <=> U2801 () + U2802 () = U2803 ()

2800 + (3 + 4) = 2807 <=> U2803 () + U2804 () = U2807 ()

One character is 8 pixels, and we individually turn pixels on or off by adding or subtracting the value of the dot we want.

Each dot has its value (again, this is hexadecimal):

┌──────┐  ┌────────────┐
│ •  • │  │  0x1   0x8 │
│ •  • │  │  0x2  0x10 │
│ •  • │  │  0x4  0x20 │
│ •  • │  │ 0x40  0x80 │
└──────┘  └────────────┘

For example, to turn off the right pixel from the second row:

0x28FF () - 0x10 () = 0x28ef ()

Or the whole second row:

0x28FF () - 0x12 () = 0x28ed ()

This works in binary as well:

┌──────┐  ┌──────┐
│ •  • │  │ 1  4 │
│ •  • │  │ 2  5 │
│ •  • │  │ 3  6 │
│ •  • │  │ 7  8 │
└──────┘  └──────┘

These numbers define how dots are mapped to a bit array (ordering is historical, 7 and 8 were added later):

Bits: 0 0 0 0 0 0 0 0
Dots: 8 7 6 5 4 3 2 1

For example, to turn on the first two rows, we would activate bit 1, 4, 2, and 5:

0 0 0 1 1 0 1 1

Note that: 0b11011 = 0x1b = 0x1 + 0x8 + 0x2 + 0x10 (see hex chart)

Carrying on with this example, we could turn off the first row and turn on the last row like so:

Current pattern:  00011011
First row (1, 4): 00001001
Last row (7, 8):  11000000

0b11011 - 0b1001 + 0b11000000 = 0b11010010
  0x1b  -   0x9  +    0xc0    =    0xd2

0x2800 + 0b11010010 = 0x28d2 ()

See Also

Installation

TextCanvas provides the same API for both Python and Rust.

To install for Python, run this:

pip install git+https://github.com/qrichert/textcanvas.git

For Rust, run one of these:

cargo add textcanvas
cargo add --git https://github.com/qrichert/textcanvas.git

No runtime deps
