stm32f1xx-hal

HAL for the STM32F1 family of microcontrollers

crates.io Released API docs

Usage

This crate supports multiple microcontrollers in the stm32f1 family. Which specific microcontroller you want to build for has to be specified with a feature, for example stm32f103.

If no microcontroller is specified, the crate will not compile.

You may also need to specify the density of the device with medium, high or xl to enable certain peripherals. Generally the density can be determined by the 2nd character after the number in the device name (i.e. For STM32F103C6U, the 6 indicates a low-density device) but check the datasheet or CubeMX to be sure.

  • 4, 6 => low density, no feature required
  • 8, B => medium feature
  • C, D, E => high feature
  • F, G => xl feature

Supported Microcontrollers

  • stm32f100
  • stm32f101
  • stm32f103

Trying out the examples

You may need to give cargo permission to call gdb from the working directory.

  • Linux
    echo "set auto-load safe-path $(pwd)" >> ~/.gdbinit

  • Windows
    echo set auto-load safe-path %CD% >> %USERPROFILE%\.gdbinit


Compile, load, and launch the hardware debugger.

$ rustup target add thumbv7m-none-eabi

# on another terminal
$ openocd -f interface/$INTERFACE.cfg -f target/stm32f1x.cfg

# flash and debug the "Hello, world" example. Change stm32f103 to match your hardware
$ cargo run --features stm32f103 --example hello

$INTERFACE should be set based on your debugging hardware. If you are using an stlink V2, use stlink-v2.cfg. For more information, see the embeddonomicon.

Using as a Dependency

When using this crate as a dependency in your project, the microcontroller can be specified as part of the Cargo.toml definition.

[dependencies.stm32f1xx-hal]
version = "0.5.2"
features = ["stm32f100", "rt"]

Blinky example

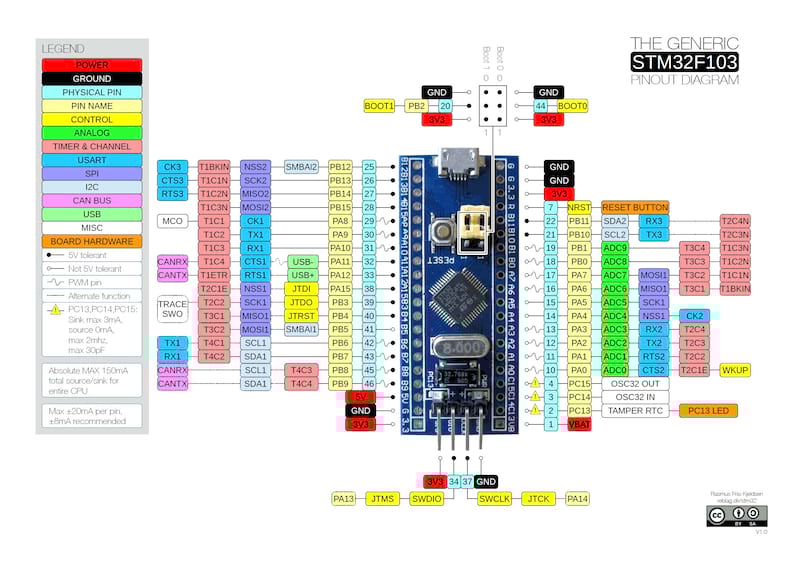

The following example blinks an LED connected to pin PC13. For instructions on how set up a project and run the example, see the documentation. For more examples, see the examples directory.

#![no_std]
#![no_main]

extern crate panic_halt;

use nb::block;

use stm32f1xx_hal::{
    prelude::*,
    pac,
    timer::Timer,
};
use cortex_m_rt::entry;

#[entry]
fn main() -> ! {
    // Get access to the core peripherals from the cortex-m crate
    let cp = cortex_m::Peripherals::take().unwrap();
    // Get access to the device specific peripherals from the peripheral access crate
    let dp = pac::Peripherals::take().unwrap();

    // Take ownership over the raw flash and rcc devices and convert them into the corresponding
    // HAL structs
    let mut flash = dp.FLASH.constrain();
    let mut rcc = dp.RCC.constrain();

    // Freeze the configuration of all the clocks in the system and store
    // the frozen frequencies in `clocks`
    let clocks = rcc.cfgr.freeze(&mut flash.acr);

    // Acquire the GPIOC peripheral
    let mut gpioc = dp.GPIOC.split(&mut rcc.apb2);

    // Configure gpio C pin 13 as a push-pull output. The `crh` register is passed to the function
    // in order to configure the port. For pins 0-7, crl should be passed instead.
    let mut led = gpioc.pc13.into_push_pull_output(&mut gpioc.crh);
    // Configure the syst timer to trigger an update every second
    let mut timer = Timer::syst(cp.SYST, clocks)
        .start_count_down(1.hz());

    // Wait for the timer to trigger an update and change the state of the LED
    loop {
        block!(timer.wait()).unwrap();
        led.set_high().unwrap();
        block!(timer.wait()).unwrap();
        led.set_low().unwrap();
    }
}

Documentation

The documentation can be found at docs.rs.

License

Licensed under either of

at your option.

Contribution

Unless you explicitly state otherwise, any contribution intentionally submitted for inclusion in the work by you, as defined in the Apache-2.0 license, shall be dual licensed as above, without any additional terms or conditions.
