esp_csi_rs

A Rust crate for collecting Channel State Information (CSI) on ESP32 series devices using the no-std embedded framework.

Overview

esp_csi_rs builds on top of Espressif's low-level abstractions to enable easy CSI collection on embedded ESP devices. The crate supports various WiFi modes and network configurations and integrates with the esp-wifi and embassy async ecosystems.

Features

✅ Device Support

esp-csi-rs supports several ESP devices including the ESP32-C6 which supports WiFi 6. The current list of supported devices are:

• ESP32
• ESP32-C2
• ESP32-C3
• ESP32-C6
• ESP32-S3

✅ Host Interface

With exception to the ESP32 and the ESP32-C2, esp-csi-rs leverages the USB-JTAG-SERIAL peripheral available on many recent ESP development boards. This allows for higher baud rates compared to using the traditional UART interface.

✅ defmt

esp-csi-rs reduces device to host transfer overhead further by supporting defmt. defmt is a highly efficient logging framework introduced by Ferrous Systems that targets resource-constrained devices. More detail about defmt can be found here.

✅ Traffic Generation

When setting up a CSI collection system, dummy traffic on the network is needed to exchange packets that encapsulate the CSI data. esp-csi-rs in turn allows you to generate either ICMP (simple ping) or UDP traffic. The crate also allows you to control the intervals at which traffic is generated. ICMP is lighter weight, however, does not carry any application data. UDP allows for the transfer of application data if needed. However, this is a feature not enabled yet.

✅ Command Line Interface (CLI)

If you are not interested in coding your own application, there is the CLI option that allows you to use this crate without coding. Check out the esp-csi-cli-rs repository where you can generate an flash a binary. This allows you to interact with your board/device rather than coding an application.

✅ NTP Timestamp

In architechtres involving a connection to a commercial router with internet access,the ESP device synchronizes with an NTP time server. Afterward, the acquired timestamp is associated with every recieved CSI packet.

✅ Network Architechtures

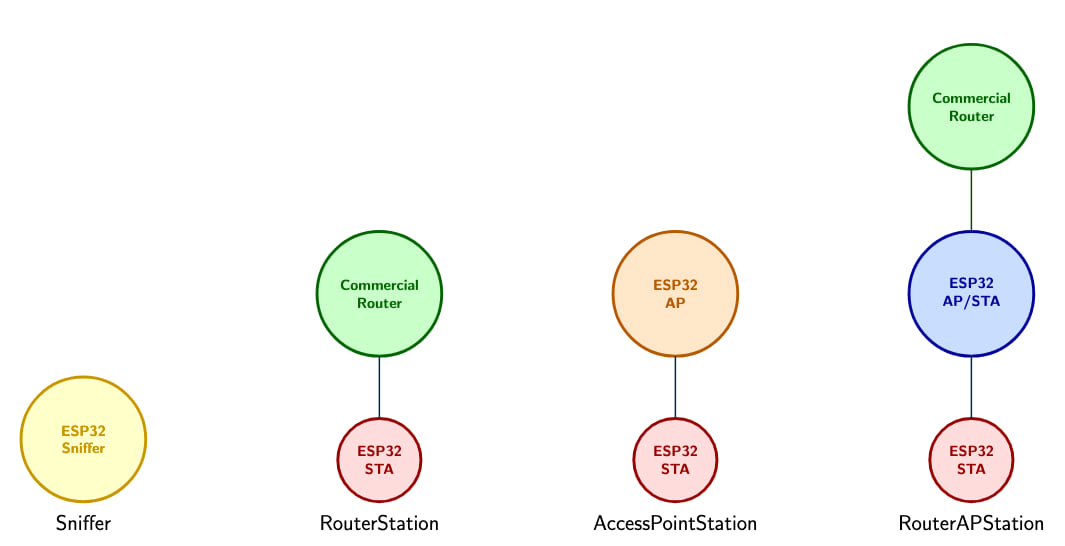

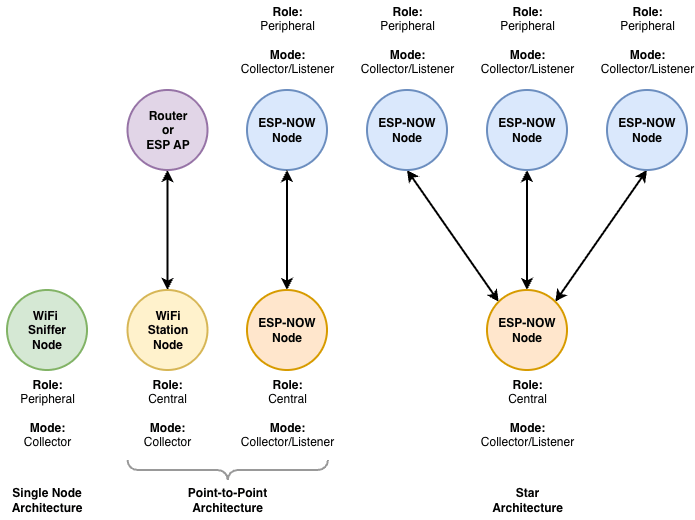

esp-csi-rs allows you to configure a device to one several modes including access point, station, or sniffer. You would need at least esp-csi-rs supports several architechtural setups allowing for flexibility in collection of CSI. These architechtures can be configured programmatically through the crate configuration options. esp-csi-rs supports four different architechtures as follows:

1. Sniffer: This is the simplest setup where only one ESP device is needed. The device is configured to "sniff" packets on surrounding networks and extract CSI data.
2. RouterStation: In this setup only one ESP device is needed as well and is configrued as a Station. The ESP station then connects to a commercial router instead. As menntioned earlier, setups including a commercial router have the advantage of syncronizing with an NTP time server. The station sends traffic to the commercial router to acquire CSI data.

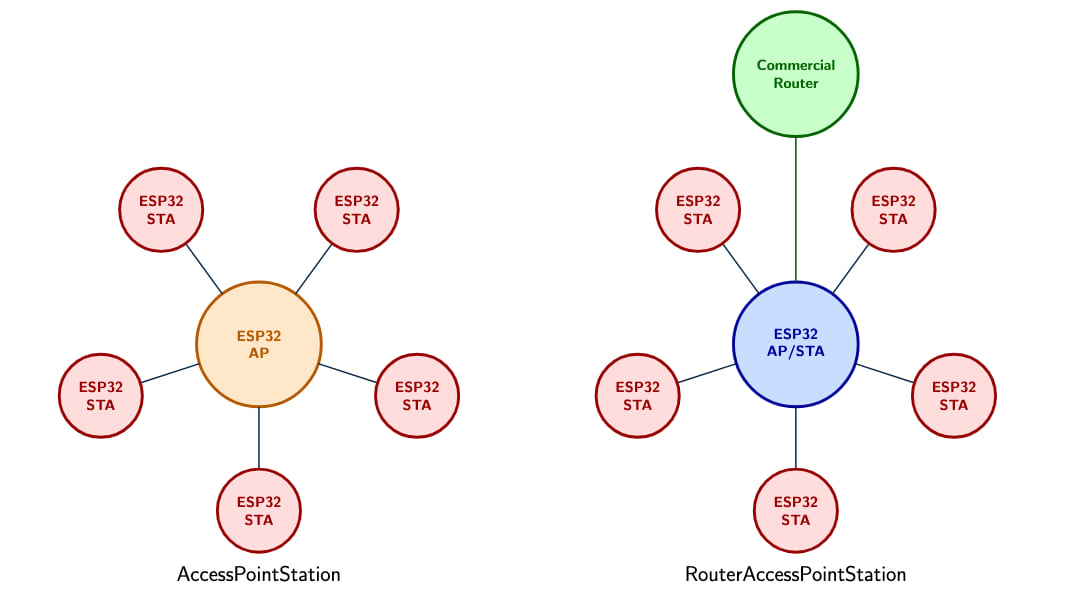

3. AccessPointStation: This setup requires the use of at least two ESP devices, one configured as a Station and one as an Access Point. The station sends traffic to the access point to acquire CSI data. This architechure is also expandable where additional stations can be introduces to connect to the central Access point.
4. RouterAccessPointStation:This setup requires the use of at least two ESP devices, one configured as a Station and one as an Access Point + Station. The ESP Access Point + Station connects to a commercial router for internet access while simultaneously providing the ability for stations to connect to it for CSI data. This architechure is also expandable where additional stations can be introduces to connect to the central Access Point + Station.

Getting Started

To use esp_csi_rs in your project, create an ESP no-std project set up using the esp-generate tool (modify the chip/device accordingly):

cargo install esp-generate
esp-generate --chip=esp32c3 your-project

Add the crate to your Cargo.toml. At a minimum, you would need to specify the device and the desired logging framework (println or defmt):

esp-csi-rs = { version = "0.1.0", features = ["esp32c3", "println"] }

‼️ The selected logging framework needs to align with the selected framework for the esp-backtrace dependency

Usage Example

This is the simplest example of how this crate can be used. This example follows a sniffer architechture where only one ESP device is needed. This example sets up the ESP to sniff packets of the surrounding networks and print out CSI data to the console.

use esp_csi_rs::{CSICollector, WiFiMode};

let mut collector = CSICollector::new_with_defaults();
collector.set_op_mode(WiFiMode::Sniffer);
collector.start(10).await;

Everytime CSI data is captured, the resulting output looks like this:

New CSI Data
mac: D6:62:A7:DC:DF:7C
rssi: -79
rate: 9
sig_mode: 0
mcs: 0
cwb: 0
smoothing: 0
not sounding: 0
aggregation: 0
stbc: 0
fec coding: 0
sgi: 0
noise floor: 160
ampdu cnt: 0
channel: 1
secondary channel: 1
timestamp: 26123538
ant: 0
sig len: 28
rx state: 0
data length: 128
csi raw data:
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, -12, 9, -13, 8, -13, 6, -13, 4, -12, 2, -10, 2, -7, 2, -6, 2, -3, 3, -1, 4, 1, 6, 2, 8, 2, 10, 3, 11, 6, 13, 6, 14, 4, 14, 2, 15, 1, 14, 1, 13, 2, 11, 2, 8, 3, 4, 4, 0, 6, -4, 6, -5, 0, 0, 10, -11, 12, -11, 13, -12, 13, -12, 10, -11, 7, -12, 5, -12, 4, -11, 1, -11, -2, -11, -2, -11, -3, -11, -3, -10, -3, -8, -4, -5, -6, -3, -7, -1, -8, 0, -12, 2, -14, 4, -16, 3, -18, 1, -20, 0, -18, -2, -15, -4, -13, -5, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0]

More Examples

The repository contains an example folder that contains examples for various device configurations. To run any of the examples enter the following to your command line:

cargo run --example <example-name>

Just replace example-name with the file name of any of the examples.

Documentation

You can find full documentation on docs.rs.

Development

This crate is still in early development and currently supports no-std only. Contributions and suggestions are welcome!

License

Copyright 2025 The Embedded Rustacean

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Made with 🦀 for ESP chips
