ESC/POS Rust implementation
This crate implements a subset of Epson's ESC/POS protocol for thermal receipt printers. It allows you to generate and print documents with basic text formatting, cutting, barcodes, QR codes and raster images on a compatible printer. It also provides a way to check the printer status.

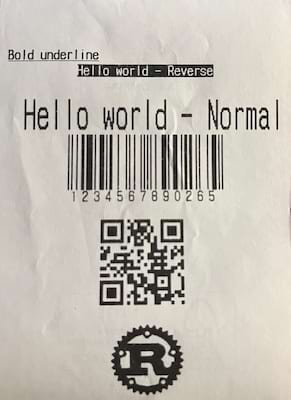

Printed on Aures ODP 333
This project is strongly inspired by recibo (Rust), escposify (Rust) and escpos (Go).
Installation
For standard functionalities (e.g. printing text), no additional dependencies are required:
[dependencies]
escpos = "0.13.1"
If you need all features, you can use the full
feature:
[dependencies]
escpos = { version = "0.13.1", features = ["full"] }
Or you can use cargo add
command:
cargo add escpos
cargo add escpos -F full
Code coverage
Tool used: tarpaulin
cargo install cargo-tarpaulin
cargo tarpaulin --all-features
Results:
- [2024-10-14]
57.75% coverage, 1121/1941 lines covered
Features list
Name | Description | Default |
---|---|---|
barcodes |
Print barcodes (UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF or CODABAR) | ✅ |
codes_2d |
Print 2D codes (QR Code, PDF417, GS1 DataBar, DataMatrix, Aztec, etc.) | ✅ |
graphics |
Print raster images | ❌ |
usb |
Enable USB feature | ❌ |
native_usb |
Enable native USB feature | ❌ |
hidapi |
Enable HidApi feature | ❌ |
serial_port |
Enable Serial port feature | ❌ |
full |
Enable all features | ❌ |
Examples
The examples
folder contains various examples of how to use escpos
.
The docs (will) also provide lots of code snippets and examples.
To launch an example, use the following command:
RUST_LOG=debug cargo run --example full --features full

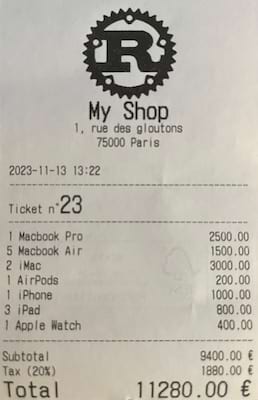

RUST_LOG=debug cargo run --example receipt -F full
RUST_LOG=debug cargo run --example codes
RUST_LOG=debug cargo run --example debug
RUST_LOG=debug cargo run --example page_codes
RUST_LOG=debug cargo run --example usb --features usb
RUST_LOG=debug cargo run --example native_usb --features native_usb
RUST_LOG=debug cargo run --example hidapi --features hidapi
RUST_LOG=debug cargo run --example serial_port --features serial_port
RUST_LOG=debug cargo run --example status --all-features
Simple text formatting
use escpos::printer::Printer;
use escpos::printer_options::PrinterOptions;
use escpos::utils::*;
use escpos::{driver::*, errors::Result};
fn main() -> Result<()> {
env_logger::init();
let driver = NetworkDriver::open("192.168.1.248", 9100, None)?;
Printer::new(driver, Protocol::default(), Some(PrinterOptions::default()))
.debug_mode(Some(DebugMode::Dec))
.init()?
.smoothing(true)?
.bold(true)?
.underline(UnderlineMode::Single)?
.writeln("Bold underline")?
.justify(JustifyMode::CENTER)?
.reverse(true)?
.bold(false)?
.writeln("Hello world - Reverse")?
.feed()?
.justify(JustifyMode::RIGHT)?
.reverse(false)?
.underline(UnderlineMode::None)?
.size(2, 3)?
.writeln("Hello world - Normal")?
.print_cut()?;
Ok(())
}
EAN13
use escpos::printer::Printer;
use escpos::utils::*;
use escpos::{driver::*, errors::Result};
fn main() -> Result<()> {
env_logger::init();
let driver = ConsoleDriver::open(true);
Printer::new(driver, Protocol::default(), None)
.debug_mode(Some(DebugMode::Hex))
.init()?
.ean13_option(
"1234567890265",
BarcodeOption::new(
BarcodeWidth::M,
BarcodeHeight::S,
BarcodeFont::A,
BarcodePosition::Below,
)
)?
.feed()?
.print_cut()?;
Ok(())
}
QR Code
use escpos::printer::Printer;
use escpos::utils::*;
use escpos::{driver::*, errors::Result};
fn main() -> Result<()> {
env_logger::init();
let driver = ConsoleDriver::open(true);
Printer::new(driver, Protocol::default(), None)
.debug_mode(Some(DebugMode::Hex))
.init()?
.qrcode_option(
"https://www.google.com",
QRCodeOption::new(QRCodeModel::Model1, 6, QRCodeCorrectionLevel::M),
)?
.feed()?
.print_cut()?;
Ok(())
}
Bit image (with graphics
feature enabled)
use escpos::printer::Printer;
use escpos::utils::*;
use escpos::{driver::*, errors::Result};
fn main() -> Result<()> {
env_logger::init();
let driver = ConsoleDriver::open(true);
let mut printer = Printer::new(driver, Protocol::default(), None);
printer.debug_mode(Some(DebugMode::Hex))
.init()?
.bit_image_option(
"./resources/images/rust-logo-small.png",
BitImageOption::new(Some(128), None, BitImageSize::Normal)?,
)?
.feed()?
.print_cut()?;
Ok(())
}
Check printer status
use escpos::printer::Printer;
use escpos::utils::*;
use escpos::{driver::*, errors::Result};
fn main() -> Result<()> {
env_logger::init();
let driver = ConsoleDriver::open(true);
Printer::new(driver.clone(), Protocol::default(), None)
.debug_mode(Some(DebugMode::Dec))
.real_time_status(RealTimeStatusRequest::Printer)?
.real_time_status(RealTimeStatusRequest::RollPaperSensor)?
.send_status()?;
let mut buf = [0; 1];
driver.read(&mut buf)?;
let status = RealTimeStatusResponse::parse(RealTimeStatusRequest::Printer, buf[0])?;
println!(
"Printer online: {}",
status.get(&RealTimeStatusResponse::Online).unwrap_or(&false)
);
Ok(())
}
Commands list
Status | Command | Description | Feature |
---|---|---|---|
✅ | init() |
Initialize printer (ESC @ ) |
|
✅ | print() |
Print document | |
✅ | reset() |
Hardware reset (ESC ? LF 0 ) |
|
✅ | cut() |
Paper cut (GS V A 0 ) |
|
✅ | partial_cut() |
Partial paper cut (GS V A 1 ) |
|
✅ | print_cut() |
Print and paper cut | |
✅ | page_code() |
Select character code table (ESC t ) |
|
✅ | character_set() |
Select an international character set (ESC R ) |
|
✅ | bold() |
Text bold (ESC E ) |
|
✅ | underline() |
Text underline (ESC - ) |
|
✅ | double_strike() |
Text double strike (ESC G ) |
|
✅ | font() |
Text font (ESC M ) |
|
✅ | flip() |
Text flip (ESC V ) |
|
✅ | justify() |
Text justify (ESC a ) |
|
✅ | reserve() |
Text reserve color (GS B ) |
|
✅ | size() |
Text size (GS ! ) |
|
✅ | reset_size() |
Reset text size (GS ! ) |
|
✅ | smoothing() |
Smoothing mode (GS b ) |
|
✅ | feed() |
Line feed (ESC d ) |
|
✅ | feeds() |
Multiple lines feed (ESC d ) |
|
✅ | line_spacing() |
Line spacing (ESC 3 ) |
|
✅ | reset_line_spacing() |
Reset line spacing (ESC 2 ) |
|
✅ | upside_down() |
Upside-down mode (ESC { ) |
|
✅ | cash_drawer() |
Generate pulse (ESC p ) |
|
✅ | write() |
Write text | |
✅ | writeln() |
Write text and line feed | |
✅ | custom() |
Custom command | |
✅ | custom_with_page_code() |
Custom command with page code | |
✅ | motion_units() |
Set horizontal and vertical motion units (GS P ) |
|
✅ | ean13() |
Print EAN13 with default option | barcode |
✅ | ean13_option() |
Print EAN13 with custom option | barcode |
✅ | ean8() |
Print EAN8 with default option | barcode |
✅ | ean8_option() |
Print EAN8 with custom option | barcode |
✅ | upca() |
Print UPC-A with default option | barcode |
✅ | upca_option() |
Print UPC-A with custom option | barcode |
✅ | upce() |
Print UPC-E with default option | barcode |
✅ | upce_option() |
Print UPC-E with custom option | barcode |
✅ | code39() |
Print CODE 39 with default option | barcode |
✅ | code39_option() |
Print CODE 39 with custom option | barcode |
✅ | codabar() |
Print CODABAR with default option | barcode |
✅ | codabar_option() |
Print CODABAR with custom option | barcode |
✅ | itf() |
Print ITF with default option | barcode |
✅ | itf_option() |
Print ITF with custom option | barcode |
✅ | qrcode() |
Print QR code with default option | codes_2d |
✅ | qrcode_option() |
Print QR code with custom option | codes_2d |
✅ | bit_image() |
Print raster bit image with default option | graphics |
✅ | bit_image_option() |
Print raster bit image with custom option | graphics |
✅ | bit_image_from_bytes() |
Print raster bit image from bytes with default option | graphics |
✅ | bit_image_from_bytes_option() |
Print raster bit image from bytes with custom option | graphics |
✅ | gs1_databar_2d |
Print 2D GS1 DataBar with default option | codes_2d |
✅ | gs1_databar_2d_option |
Print 2D GS1 DataBar with custom option | codes_2d |
✅ | pdf417 |
Print PDF417 with default option | codes_2d |
✅ | pdf417_option |
Print PDF417 with custom option | codes_2d |
✅ | maxi_code |
Print MaxiCode with default option | codes_2d |
✅ | maxi_code_option |
Print MaxiCode with custom option | codes_2d |
✅ | data_matrix |
Print DataMatrix with default option | codes_2d |
✅ | data_matrix_option |
Print DataMatrix with custom option | codes_2d |
✅ | aztec |
Print Aztec code with default option | codes_2d |
✅ | aztec_option |
Print Aztec code with custom option | codes_2d |
🚧 | graphic() |
Print raster graphic with default option | graphics |
🚧 | graphic_option() |
Print raster graphic with custom option | graphics |
- ✅ Done
- 🚧 In progress
- ❌ To do
Page codes list
Code | Implemented? |
---|---|
PC437 | ✅ |
Katakana | ✅ |
PC850 | ✅ |
PC860 | ✅ |
PC863 | ✅ |
PC865 | ✅ |
Hiragana | ❌ |
PC851 | ✅ |
PC853 | ✅ |
PC857 | ✅ |
PC737 | ✅ |
ISO8859_7 | ✅ |
WPC1252 | ✅ |
PC866 | ✅ |
PC852 | ✅ |
PC858 | ✅ |
PC720 | ❌ |
WPC775 | ✅ |
PC855 | ✅ |
PC861 | ✅ |
PC862 | ✅ |
PC864 | ❌ |
PC869 | ✅ |
ISO8859_2 | ✅ |
ISO8859_15 | ✅ |
PC1098 | ❌ |
PC1118 | ✅ |
PC1119 | ✅ |
PC1125 | ✅ |
WPC1250 | ✅ |
WPC1251 | ✅ |
WPC1253 | ✅ |
WPC1254 | ✅ |
WPC1255 | ❌ |
WPC1256 | ❌ |
WPC1257 | ✅ |
WPC1258 | ❌ |
KZ1048 | ✅ |
