csv2svg

Build a SVG graph from a csv document.

Installation

You must have Rust installed. Do

cargo install csv2svg

Usage

Viewing the SVG graph in a browser

If you don't pipe the output of csv2svg, the graph is automatically displayed in your browser. For increasing readability the graph reacts to mouse hovering.

app_whose_output_is_csv | csv2svg

csv2svg < some/file.csv

Making a file from the SVG graph

app_whose_output_is_csv | csv2svg > some/file.svg

csv2svg < some/file.csv > some/file.svg

Example

The examples/irregular-times.csv files contains this:

time,something,another thing,a third one,whatever,bof
2020-12-25T11:24:49Z,580,,798,,
2020-12-26T12:00:20Z,200,2784,,,
2020-12-27T12:00:22Z,300,,7398,,826
2020-12-28T12:21:27Z,400,4282,,,1125
2020-12-29T16:13:49Z,220,4720,1409,6885,3162
2020-12-29T17:36:38Z,700,4920,1209,6730,4228
2020-12-29T21:43:01Z,800,4320,401,6737,2328
2020-12-30T06:42:39Z,920,4134,209,6856,2222
2020-12-30T07:41:22Z,1200,4136,410,6937,2481
2020-12-30T21:43:01Z,1300,2322,414,,4272

It may be used with no configuration:

csv2svg < examples/irregular-times.csv

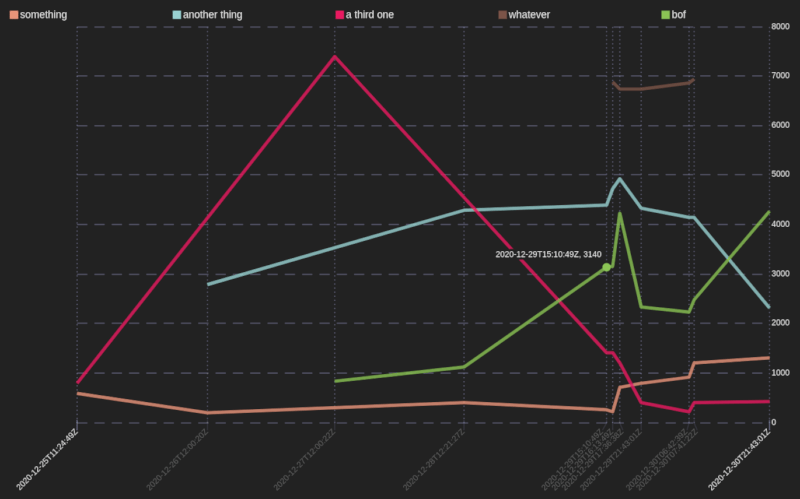

which produces this:

Progress

Warning: still a work in project, expect disappointment

• most basic features
• time abscissa
• integer abscissa
• time stripes
• bar graph on discrete non-time x
• float abscissa
• float y values
• disjoint scales
• Windows compatibility (if somebody really wants it)
