Bevy Fog of War

中文文档 | English

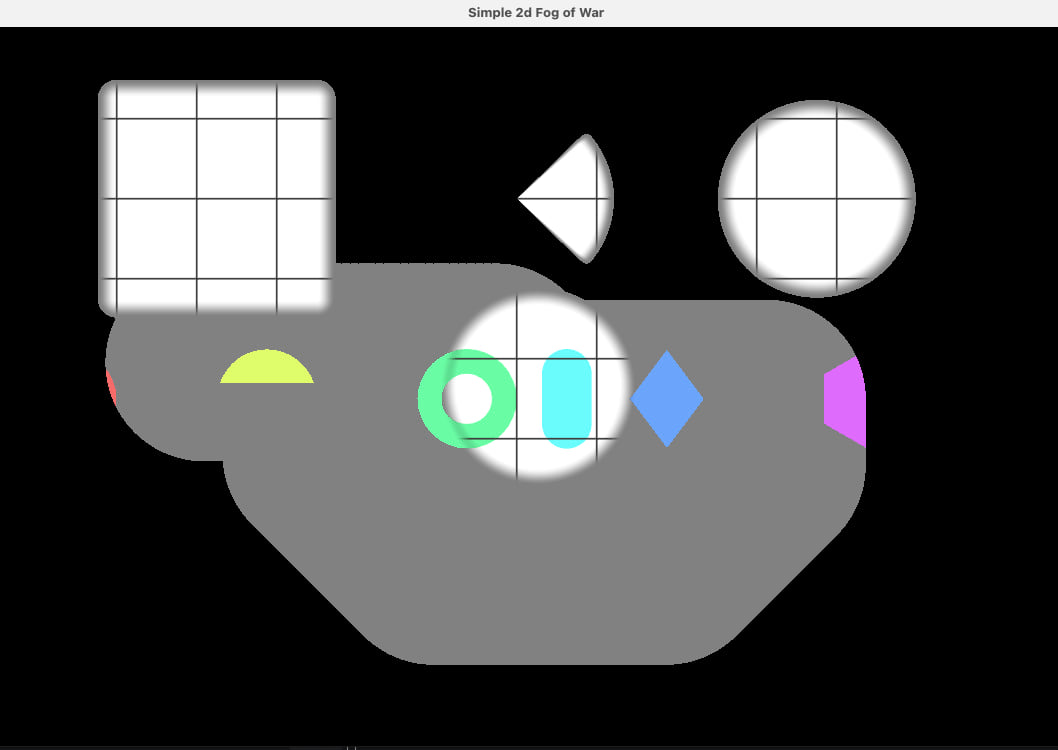

A fog of war implementation for the Bevy game engine. This crate provides a simple way to add fog of war effects to your 2D games, with support for multiple light sources, smooth transitions, and explored area tracking.

Features

• 2D fog of war with smooth transitions and customizable colors.
• Support for multiple dynamic vision sources with various shapes.
• Explored area tracking, with options for how explored areas remain visible.
• Chunk-based map processing for efficient updates, suitable for large maps.
• Snapshot system for persisting explored fog data.
• Atomic fog reset functionality with success/failure event notifications.
• Highly configurable via the FogMapSettings resource.
• Efficient GPU-based implementation using WGSL compute shaders.

Usage

To use bevy_fog_of_war in your project, follow these steps:

(You can import most commonly used items via use bevy_fog_of_war::prelude::*;)

1. Add the plugin to your app:

   Add the FogOfWarPlugin to your Bevy App:

   use bevy::prelude::*;
   use bevy_fog_of_war::FogOfWarPlugin;

   fn main() {
       App::new()
           .add_plugins(DefaultPlugins)
           .add_plugins(FogOfWarPlugin) // Add the fog of war plugin
           // ... other setup ...
           .run();
   }


2. Add FogOfWarCamera to your camera:

   The plugin needs to know which camera is used for the fog of war effect. Add the FogOfWarCamera component to your main 2D camera entity.

   use bevy::prelude::*;
   use bevy_fog_of_war::prelude::FogOfWarCamera;

   fn setup(mut commands: Commands) {
       commands.spawn((Camera2d, FogOfWarCamera));
   }


3. Add VisionSource to entities:

   Entities that should reveal the map need a VisionSource component. You can create different shapes for the vision area, such as circles, squares, or cones.

   use bevy::prelude::*;
   use bevy_fog_of_war::prelude::VisionSource;

   fn setup_entities(mut commands: Commands) {
       // Spawn an entity with a circular vision source
       commands.spawn((Transform::from_xyz(0.0, 0.0, 0.0), VisionSource::circle(200.0)));

       // Spawn another entity with a square vision source
       commands.spawn((Transform::from_xyz(100.0, 50.0, 0.0), VisionSource::square(150.0)));
   }


4. (Optional) Add Capturable to entities:

   If you have entities that should only become visible when a VisionSource overlaps them (and remain visible once discovered, depending on your fog settings), add the Capturable component to them.

   use bevy::prelude::*;
   use bevy_fog_of_war::prelude::Capturable;

   fn setup_objects(mut commands: Commands) {
       commands.spawn((
           Sprite {
                color: Color::srgb(0.2, 0.8, 0.8),
                custom_size: Some(Vec2::new(60.0, 60.0)),
                ..default()
           },
           Capturable, // This entity will be revealed by vision sources
       ));
   }


5. Customize FogMapSettings (Optional):

   You can customize the fog of war behavior by inserting a FogMapSettings resource. Here's an example of how to configure it:

   use bevy::prelude::*;
   use bevy_fog_of_war::prelude::*;
   use bevy::render::render_resource::TextureFormat;

   fn setup_fog_settings(mut commands: Commands) {
       commands.insert_resource(FogMapSettings {
           enabled: true,  // Enable/disable fog of war effect
           chunk_size: UVec2::new(256, 256),  // Size of each chunk in world units
           texture_resolution_per_chunk: UVec2::new(512, 512),  // Texture resolution per chunk
           fog_color_unexplored: Color::rgba(0.1, 0.1, 0.1, 0.9),  // Color for unexplored areas
           fog_color_explored: Color::rgba(0.3, 0.3, 0.3, 0.5),   // Color for explored but not visible areas
           vision_clear_color: Color::NONE,  // Clear color for visible areas (usually transparent)
           fog_texture_format: TextureFormat::R8Unorm,  // Texture format for fog
           snapshot_texture_format: TextureFormat::R8Unorm  // Texture format for snapshots
       });
   }


   Then add the system to your app:

   .add_systems(Startup, setup_fog_settings)


Check the examples directory for more detailed usage scenarios, including dynamic vision sources and different vision shapes.

Resetting Fog of War

You can programmatically reset all fog of war data (explored areas, visibility states, and texture data) without despawning entities or cameras. This is useful when changing scenes or restarting levels:

use bevy::prelude::*;
use bevy_fog_of_war::prelude::*;

fn reset_on_keypress(
    keyboard_input: Res<ButtonInput<KeyCode>>,
    mut reset_events: EventWriter<ResetFogOfWarEvent>,
) {
    if keyboard_input.just_pressed(KeyCode::KeyR) {
        // Reset all fog of war data
        reset_events.write(ResetFogOfWarEvent);
    }
}

// Add this system to your app
fn main() {
    App::new()
        .add_plugins(DefaultPlugins)
        .add_plugins(FogOfWarPlugin)
        .add_systems(Update, reset_on_keypress)
        .run();
}

Reset Event Notifications

The plugin provides events to notify you when reset operations complete:

use bevy::prelude::*;
use bevy_fog_of_war::prelude::*;

fn handle_fog_reset_events(
    mut success_events: EventReader<FogResetSuccessEvent>,
    mut failure_events: EventReader<FogResetFailedEvent>,
) {
    for event in success_events.read() {
        info!("✅ Fog reset completed successfully! Duration: {}ms, Chunks reset: {}",
              event.duration_ms, event.chunks_reset);
    }

    for event in failure_events.read() {
        error!("❌ Fog reset failed! Duration: {}ms, Error: {}",
               event.duration_ms, event.error);
    }
}

// Add the event handler to your app
fn main() {
    App::new()
        .add_plugins(DefaultPlugins)
        .add_plugins(FogOfWarPlugin)
        .add_systems(Update, (reset_on_keypress, handle_fog_reset_events))
        .run();
}

The reset functionality:

• Clears all explored areas
• Resets all chunk visibility states to unexplored
• Resets texture data to initial state
• Preserves all entities, cameras, and vision sources
• Allows for seamless scene transitions
• Provides success/failure events with timing information
• Includes automatic rollback on failure

Check the playground.rs and simple_2d.rs examples for complete demonstrations.

Compatibility

License

This project is licensed under either of

• Apache License, Version 2.0, (LICENSE-APACHE or https://www.apache.org/licenses/LICENSE-2.0)
• MIT license (LICENSE-MIT or https://opensource.org/licenses/MIT)

at your option.

Contributing

Unless you explicitly state otherwise, any contribution intentionally submitted for inclusion in the work by you, as defined in the Apache-2.0 license, shall be dual licensed as above, without any additional terms or conditions.
