ROS2 Client

This is a Rust native client library for ROS2. It does not link to rcl, rclcpp, or any non-Rust DDS library. RustDDS is used for communication.

Architecture Ideas

The intetion is that this is a medium-level library between lower-level DDS and a higher-level library. The (yet-to-be-written) higher-level library should provide an event loop, Actions, and possibly an async API. These are to be implemented as a separate crate on top of this one.

Example: turtle_teleop

The included example program should be able to communicate with out-of-the-box ROS2 turtlesim example.

Install ROS2 and start the simulator by ros2 run turtlesim turtlesim_node. Then run the turtle_teleop example to control the simulator.

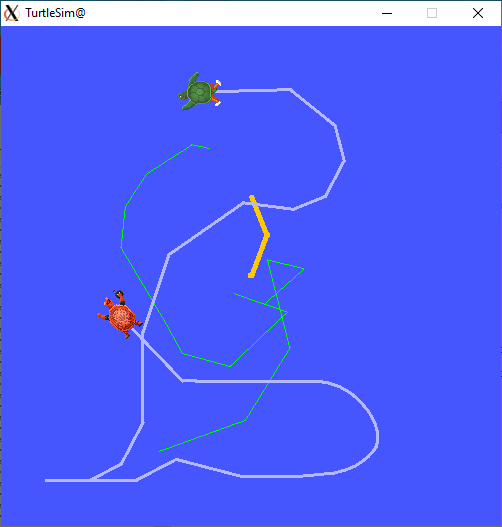

Turtlesim screenshot

Teleop example program currently has the following keyboard commands:

  • Cursor keys: Move turtle
  • q or Ctrl-C: quit
  • r: reset simulator
  • p: change pen color (for turtle1 only)
  • a/b : spawn turtle1 / turtle2
  • A/B : kill turtle1 / turtle2
  • 1/2 : switch control between turtle1 / turtle2

Example: ros2_service_server

Install ROS2. This has been tested to work against "Galactic" release, using either eProsima FastDDS or RTI Connext DDS (rmw_connextdds, not rmw_connext_cpp).

Start server: cargo run --example=ros2_service_server

In another terminal or computer, run a client: ros2 run examples_rclpy_minimal_client client

Example: ros2_service_client

Similar to above.

Start server: ros2 run examples_rclpy_minimal_service service

Run client: cargo run --example=ros2_service_client

Status

This is a work-in-progress.

  • ros2_rust is closest(?) to an official ROS2 client library. It links to ROS2 rcl library written in C.
  • rclrust is another ROS2 client library for Rust. It supports also ROS2 Services in addition to Topics. It links to ROS2 libraries, e.g. rcl and rmw.
  • rus2 exists, but appears to be inactive since September 2020.

License

Copyright 2022 Atostek Oy

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Acknowledgements

This crate is developed and open-source licensed by Atostek Oy.
