MyIP

A clean, intuitive terminal UI for network interface monitoring.

Features • Installation • Usage • Interface Details • Contributing

Features

• Intuitive Terminal UI: Color-coded interface built with TUI-rs and Crossterm
• Real-time Interface Monitoring: Updates every 500ms
• Network Information Display:
  • Interface status (up/down)
  • IPv4 and IPv6 addresses
  • MAC addresses
  • MTU and link speed (when available)
  • Traffic statistics (received and transmitted bytes)
• Traffic Visualization: Real-time graphs showing RX/TX activity
• Public IP Detection: Attempts to fetch your public IP from multiple services
• Debug Information Panel: Shows detected interfaces and diagnostic details
• Cross-Platform Support: Works on Linux, macOS, and Windows
• Smart Interface Detection: Skips loopback interfaces automatically

Table of Contents

• MyIP
  • Features
  • Table of Contents
  • Installation
    • Prerequisites
    • Using Cargo (Recommended)
    • Setting up PATH
  • Usage
    • Keyboard Controls
  • Interface Details
    • Main Screen Elements
    • Network Traffic Graphs
    • Public IP Detection
  • Building from Source
    • Dependencies
  • Troubleshooting
    • Common Issues
  • Contributing
  • License
  • Acknowledgements

Installation

Prerequisites

• Rust toolchain (1.70 or later)
• Network connectivity (for public IP detection)

Using Cargo (Recommended)

# Install the latest version
cargo install myip-tui

# Or specify a version
cargo install myip-tui@0.2.0

Setting up PATH

After installation, make sure your Rust binary directory is in your PATH:

# For Bash users (add to ~/.bashrc)
echo 'export PATH=$PATH:'"$HOME"'/.cargo/bin' >> ~/.bashrc
source ~/.bashrc

# For Zsh users (add to ~/.zshrc)
echo 'export PATH=$PATH:'"$HOME"'/.cargo/bin' >> ~/.zshrc
source ~/.zshrc

# For Zsh users (if .zshrc is not working)
echo 'export PATH="$HOME/.cargo/bin:$PATH"' >> ~/.zshenv
source ~/.zshenv

# Verify installation
myip

Usage

Simply run the application from your terminal:

myip

Keyboard Controls

Interface Details

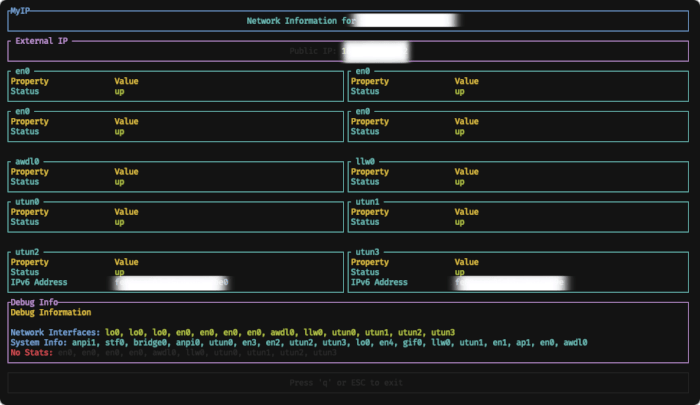

MyIP provides a detailed view of your network interfaces in a clean, organized terminal UI:

Main Screen Elements

1. Header: Displays your hostname
2. Public IP: Shows your external IP address (fetched from online services)
3. Interface Panels: Each network interface is displayed with:
   • Status (up/down)
   • IPv4 and IPv6 addresses
   • MAC address (when available)
   • MTU and link speed (when available)
   • RX/TX traffic statistics
   • Real-time traffic graph
4. Debug Panel: Shows detected interfaces and diagnostic information
5. Footer: Displays keyboard controls

Network Traffic Graphs

Each interface panel includes a real-time graph that visualizes:

• RX (Download): Shown in green
• TX (Upload): Shown in red

The graph automatically scales based on traffic volume and provides meaningful units (B/s, KB/s, MB/s).

Public IP Detection

MyIP attempts to fetch your public IP address from multiple services:

• api.ipify.org
• ifconfig.me/ip
• icanhazip.com
• ipinfo.io/ip
• myexternalip.com/raw

The application uses a 5-second timeout to ensure responsiveness even if connectivity is limited.

Building from Source

MyIP is built with Rust and uses several key dependencies:

• ratatui: Terminal user interface library
• crossterm: Terminal control and input handling
• tokio: Asynchronous runtime
• reqwest: HTTP client for fetching public IP
• sysinfo: System information gathering
• local-ip-address: Network interface detection

To build from source:

# Clone the repository
git clone https://github.com/yourusername/myip.git
cd myip

# Build in release mode
cargo build --release

# The binary will be available at
./target/release/myip

Dependencies

MyIP requires the following dependencies:

[dependencies]
ratatui = "0.20"
crossterm = "0.25"
anyhow = "1.0"
local-ip-address = "0.5.1"
tokio = { version = "1", features = ["full"] }
sysinfo = "0.27.8"
nix = "0.26.2"
futures = "0.3"
gethostname = "0.4.1"
reqwest = { version = "0.11", features = ["json", "default-tls"] }

Troubleshooting

Common Issues

No Public IP Displayed

• Check your internet connection
• The application tries multiple services, so one may be blocked
• Ensure you have the default-tls feature enabled in reqwest

Missing Network Statistics

• Some interfaces may not provide statistics through sysinfo
• The application attempts to fall back to using the netstat command
• Check the debug panel for interfaces with missing statistics

Network Interfaces Not Showing

• Ensure you're running with appropriate permissions
• Some virtual interfaces or non-standard interfaces may not be detected
• Check the debug panel to see which interfaces were detected

Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

1. Fork the project
2. Create your feature branch (git checkout -b feature/amazing-feature)
3. Commit your changes (git commit -m 'Add some amazing feature')
4. Push to the branch (git push origin feature/amazing-feature)
5. Open a Pull Request

License

This project is licensed under the GNU General Public License v3.0 (GPL-3.0) - see the LICENSE file for details.

Acknowledgements

• ratatui for the terminal interface library
• Crossterm for terminal control
• Tokio for async runtime
• Sysinfo for system information
• local-ip-address for network interface detection
• Reqwest for HTTP requests
