#spline #interpolation #akima

makima_spline

An implementation of the modified akima spline interpolation

8 stable releases

1.1.3 Oct 28, 2020
1.1.1 Oct 27, 2020
1.1.0 Oct 22, 2020
1.0.4 Oct 18, 2020
1.0.2 Oct 17, 2020

#127 in Math

Download history 2/week @ 2021-05-30 10/week @ 2021-06-06 2/week @ 2021-06-13 1/week @ 2021-06-27 3/week @ 2021-07-04 2/week @ 2021-07-11 11/week @ 2021-07-18 32/week @ 2021-07-25 83/week @ 2021-08-01 76/week @ 2021-08-08 82/week @ 2021-08-15 75/week @ 2021-08-22 19/week @ 2021-08-29 27/week @ 2021-09-05 253/week @ 2021-09-12

89 downloads per month

MIT license

13KB
229 lines

makima_spline

A implementation of the modified akima interpolation
+ linear extrapolation
+ 1., 2., and 3. order derivatives
+ bicubic interpolation as a feature

HowTo

use makima_spline::Spline;

your data is in some format

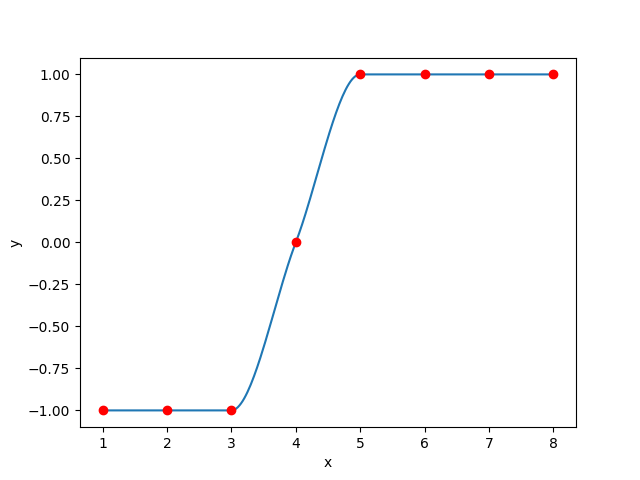

let x = vec![1., 2., 3., 4., 5., 6., 7., 8.];
let y = vec![-1., -1., -1., 0.0, 1., 1., 1., 1.];

convert to the type used by the spline Vec<(f64, f64)>

let points = makima_spline::vec_to_points(&x, &y);

build the spline from the data-points

let spline = Spline::from_vec(points);

To sample do this:

let y = spline.sample(x);

2d interpolation

Based on the bicubic crate it is possible to interpolate in two dimensions.

Create points

let x = vec![-1.0, 0.0, 2.0];
let y = vec![-0.0, 1.0];
let f = vec![5.0, 4.0, 5.0, 1.0, 1.0, 1.0];

construct Bicubic Struct

let bci = makima_spline::n_dimensional::bicubic_from_grid(&x, &y, &f);

The submodule is called n_dimensional in case higher dimensions will be supported in the future, but currently there is only 2d interpolation

Dependencies
