the big-O-test crate

big-o-test GitHub Actions big-o-test on crates.io big-o-test on docs.rs

The big-O-test crate dynamically analyzes algorithms for space and time resource consumption, allowing tests to enforce a maximum complexity -- detecting, as soon as possible, eventual performance regressions.

Browse the Docs.

It is able to operate both on regular and iterator algorithms -- the later being useful to test CRUD operations.

Reports are issued using the Big O Notation (hence the name) and it works by measuring how the algorithm's CPU times & RAM space requirements grow in relation to the amount of data or number of elements that it is applied on.

By using this crate on tests, you are enforcing -- through real measurements -- how your program should behave in regard to resource consumption -- allowing you to foresee, when in production, the resource requirements and, eventually, helping in the process of optimization, as you are free to do changes that are sure to cause a test failure when regressions in space or time complexities are introduced.

Furthermore, this crate is specially useful to analyse complex algorithms on complex execution scenarios, when a tradicional manual analysis is impossible to be done: a carefully crafted Big O Performance Test is able to investigate/enforce what inputs make up the worse acceptable performance case, best case and how, on average, the algorithm should perform on excerpts of real data.

This crate is, thus, meant to work as a development tool, alongside with tests & benchmarks.

A distinction is made between regular, non-iterator Algorithms and Iterator Algorithms. The latter encompasses algorithms that operate on a single element per call; they may fit into the following categories:

  • those that alter the amount of data they operate on -- such as inserts, deletes, extractions and loads (EtL)
  • those that operate on a constant data set -- such as queries and data transformations (eTl)

A special method is provided to test CRUD operations, as in the example bellow:

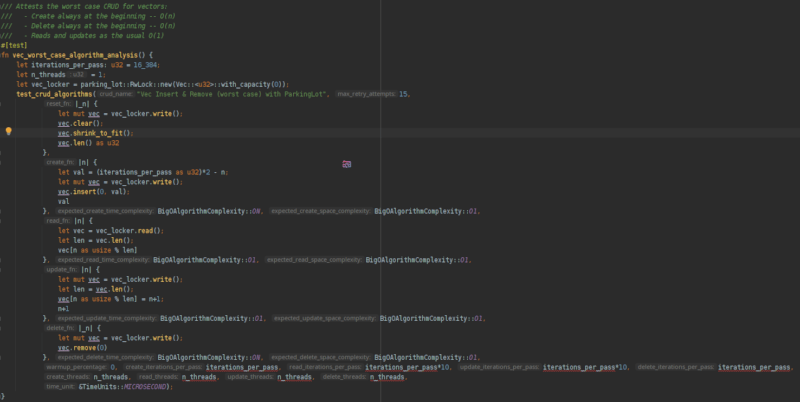

CRUD test example


The optional measurement output issued by this test:

Vec Insert & Remove (worst case) with ParkingLot CRUD Algorithm Complexity Analysis:
  First Pass (create: 8090µs/+64.42KiB, read: 15254µs/+432.00b, update: 13948µs/+432.00b); Second Pass (create: 22440µs/+64.42KiB, read: 15232µs/+432.00b, update: 13839µs/+432.00b):

'Create' set resizing algorithm measurements:
pass          Δt              Δs            Σn            t⁻
1)        8090µs       +64.42KiB         16384         0.494µs
2)       22440µs       +64.42KiB         32768         1.370µs
--> Algorithm  Time Analysis: O(n)
--> Algorithm Space Analysis: O(1) (allocated: 128.20KiB; auxiliary used space: 656.00b)


'Read' constant set algorithm measurements:
pass          Δt              Δs            Σn            ⊆r            t⁻
1)       15254µs        +432.00b         16384        163840         0.093µs
2)       15232µs        +432.00b         32768        163840         0.093µs
--> Algorithm  Time Analysis: O(1)
--> Algorithm Space Analysis: O(1) (allocated: 208.00b; auxiliary used space: 656.00b)


'Update' constant set algorithm measurements:
pass          Δt              Δs            Σn            ⊆r            t⁻
1)       13948µs        +432.00b         16384        163840         0.085µs
2)       13839µs        +432.00b         32768        163840         0.084µs
--> Algorithm  Time Analysis: O(1)
--> Algorithm Space Analysis: O(1) (allocated: 208.00b; auxiliary used space: 656.00b)


Delete Passes (2nd: 23365µs/+432.00b; 1st: 7744µs/+432.00b) r=262144:
'Delete' set resizing algorithm measurements:
pass          Δt              Δs            Σn            t⁻
1)        7744µs        +432.00b         16384         0.473µs
2)       23365µs        +432.00b         32768         1.426µs
--> Algorithm  Time Analysis: O(n)
--> Algorithm Space Analysis: O(1) (allocated: 208.00b; auxiliary used space: 656.00b)

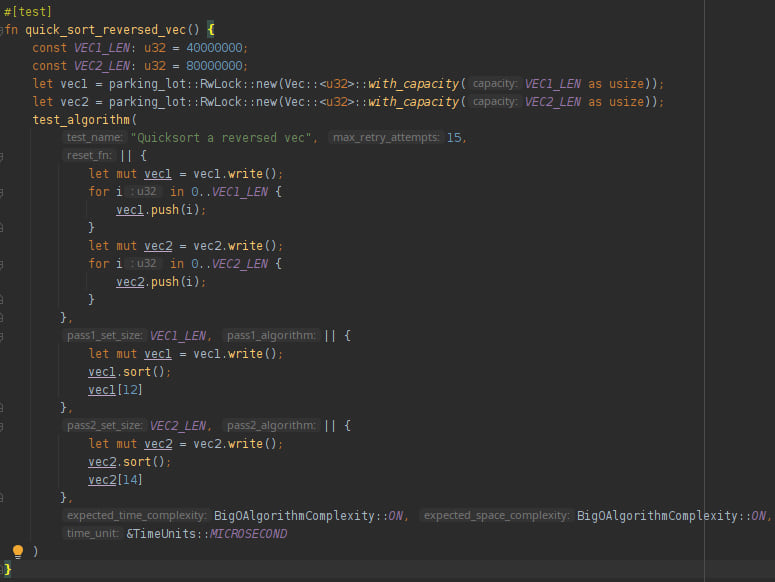

Regular algorithm example

A regular, non-iterator algorithm is run only once for each pass -- in the example bellow, this algorithm is vec::sort():


The optional measurement output issued by this test:

Running 'Quicksort a reversed vec' algorithm:
  Resetting: 3406857µs/+768.00MiB; Pass 1: 658484µs/76.29MiB; Pass 2: 1315255µs/152.59MiB

'Quicksort a reversed vec' regular-algorithm measurements:
pass          Δt              Δs             n            s⁻           t⁻
1)      658484µs        76.29MiB      40000000            2b         0.016µs
2)     1315255µs       152.59MiB      80000000            2b         0.016µs
--> Algorithm  Time Analysis: O(n)
--> Algorithm Space Analysis: O(n) (allocated: 0.00b; auxiliary used space: 228.88MiB)

Usage in projects

Add this to your Cargo.toml:

[dev-dependencies]
ctor = "0.1"
big-o-test = "0.2"

Then create an Integration Test, setting it up to execute tests linearly -- see tests/big_o_tests.rs for an example on how this may be easily achieved.

Disabling the Rust's default Parallel Test Runner is crucial for accurately measuring time & memory -- nonetheless, special care was taken to avoid flaky tests: an automatic retrying mechanism kicks in when the time complexity analysis doesn't match the maximum accepted value.

Note

To measure the space resource requirements, this crate sets a custom Global Allocator capable of gathering allocation metrics. It only affects tests, but still imposes a non-negligible overhead -- each allocation / de-allocation updates a dozen atomic counters.
