#lighting #bevy #screen #space #bevy-plugin #2d #2d-game

bevy_2d_screen_space_lightmaps

Lighting plugin for 2D games made in the Bevy engine. This plugin uses the screen space lightmaps technique

3 unstable releases

0.14.0 Jul 4, 2024
0.13.1 Apr 25, 2024
0.13.0 Feb 20, 2024

#456 in Game dev

Custom license

32KB
422 lines

2D Screen Space Lightmaps for Bevy

Screen space light maps are one of the simplest lighting techniques for 2D. Despite being simple, it can work really well for certain types of 2D games.

This library provides an implementation of this technique for the Bevy engine. The library is made as a Bevy plugin.

You can find more details about the technique here: https://slembcke.github.io/2D-Lighting-Overview

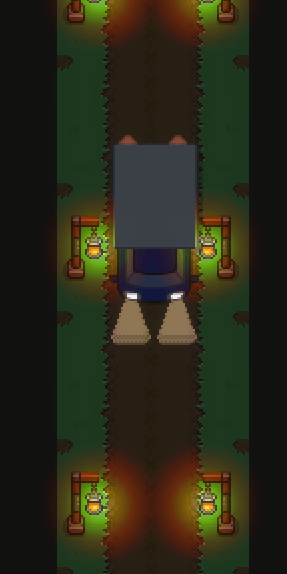

Screenshot from the example code:

sample_screenshot

Technical Details

The plugin uses three cameras:

  1. One for rendering normal sprites.
  2. One for rendering the light map.
  3. One for the final image.

The first two cameras render to a texture. These two textures are then multiply-blended and used as the material for a rectangle that fits the screen space. This rectangle is rendered to the screen by the third camera.

To use the plugin, you just need to:

  1. Attach all your normal sprites to the CAMERA_LAYER_SPRITE render layer.
  2. Attach your light sprites to the CAMERA_LAYER_LIGHT render layer.

Note that the clear color set on the light camera determines the level of ambient light in your scene. The plugin provides a resource LightmapPluginSettings with which you can change the ambient light setting, the clear color on the sprite camera as well as the bloom intensity.

See the example code in examples/moving_truck.rs for details.
Note that in the example you can zoom in-out using the mouse wheel.
To run the example use: cargo run --example moving_truck

Bevy Compatibility

Bevy bevy_2d_screen_space_lightmaps
0.14.x 0.14.0
0.13.x 0.13.1
0.13.0 0.13.0

Credits

Some of the code was borrowed from https://github.com/zaycev/bevy-magic-light-2d

The sample uses some assets made by beeler, Gif and Icons8.

Dependencies

~39–76MB
~1.5M SLoC
