TFHE-hpu-backend

Brief

The tfhe-hpu-backend holds the code to interface with the HPU accelerator of TFHE. It contains a HpuDevice abstraction that enables easy configuration and dispatching of TFHE operations on the HPU accelerator.

The user API exposes the following functions for hardware setup:

• HpuDevice::new, HpuDevice::from_config: Instantiates abstraction device from configuration file.
• HpuDevice::init: Configures and uploads the required public material.
• new_var_from: Creates a HPU ciphertext from tfhe-rs ciphertext.

HPU device could also be used from integer with the help of the following function:

• tfhe::integer::hpu::init_device: Init given HPU device with server key.
• tfhe::integer::hpu::ciphertext::HpuRadixCiphertext::from_radix_ciphertext: Convert a CpuRadixCiphertext in it's HPU counterpart.

HPU device could also be used seamlessly from hl-api by setting up a thread-local HPU server key:

• tfhe::Config::from_hpu_device: Extract hl-api configuration from HpuDevice.
• tfhe::set_server_key: Register the Hpu server key in the current thread.

HPU variables could also be created from a high-level-api object, with the help of the hw-xfer feature. This implements a trait that enables clone_on, mv_on FheUint object on the HPU accelerator, and cast back from them.

These objects implement the std::ops trait and could be used to dispatch operations on HPU hardware.

Backend structure

tfhe-hpu-backend is split in various modules:

• entities: Defines structure handled by HPU accelerator. Conversion traits from/into those objects are implemented in tfhe-rs.
• asm: Describes assembly-like language for the HPU. It enables abstract HPU behavior and easily updates it through micro-code.
• fw: Abstraction to help the micro-code designer. Uses a simple rust program for describing new HPU operations. Helps with register/heap management.
• interface:
  • device: High-level structure that exposes the User API.
  • backend: Inner private structure that contains HPU modules
  • variable: Wraps HPU ciphertexts. It enables to hook an hardware object lifetime within the rust borrow-checker.
  • memory: Handles on-board memory allocation and synchronization
  • config: Helps to configure HPU accelerator through a TOML configuration file
  • cmd: Translates operation over variable in concrete HPU commands
  • regmap: Communicates with the HPU internal register with ease.
  • rtl: Defines concrete rust structure populated from HPU's status/configuration registers

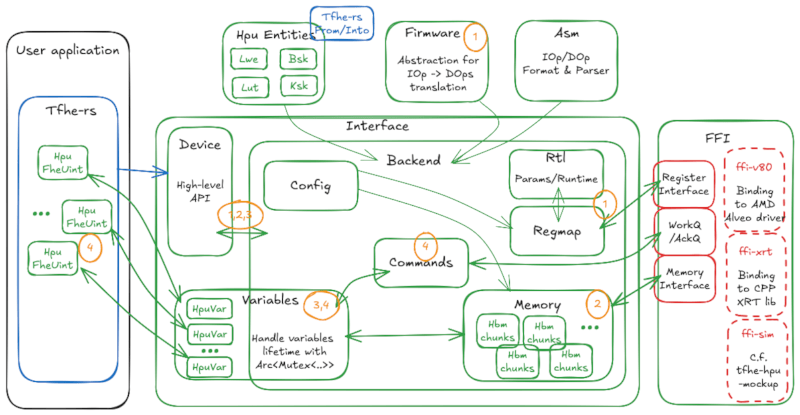

Below is an overview of the internal structure of the Backend.

This picture depicts the internal modules of tfhe-hpu-backend, Device is the main entry point for the user. Its lifecycle is as follows:

1. Create HpuDevice, open link with the associated FPGA. Configure associated drivers and upload the bitstream. Read FPGA registers to extract supported configuration and features. Build Firmware conversion table (IOp -> DOps stream).

2. Allocate required memory chunks in the on-board memory. Upload public material required by TFHE computation.

3. Create HPU variables that handle TFHE Ciphertexts. It wraps TFHE Ciphertext with required internal resources and enforces the correct lifetime management. This abstraction enforces that during the variable lifecycle all required resources are valid.

4. Users could trigger HPU operation from the HPU variable. Variable abstraction enforces that required objects are correctly synced on the hardware and converts each operation in a concrete HPU command. When HPU operation is acknowledged by the hardware, the internal state of the associated variable is updated. This mechanism enables asynchronous operation and minimal amount of Host to/from HW memory transfer. This mechanism also enables offloading a computation graph to the HPU and requires a synchronization only on the final results.

Example

Configuration file

HPU configuration knobs are gathered in a TOML configuration file. This file describes the targeted FPGA with its associated configuration:

[fpga] # FPGA target
  # Register layout in the FPGA
  regmap=["${HPU_BACKEND_DIR}/config_store/${HPU_CONFIG}/hpu_regif_core_cfg_1in3.toml",
          "${HPU_BACKEND_DIR}/config_store/${HPU_CONFIG}/hpu_regif_core_cfg_3in3.toml",
          "${HPU_BACKEND_DIR}/config_store/${HPU_CONFIG}/hpu_regif_core_prc_1in3.toml",
          "${HPU_BACKEND_DIR}/config_store/${HPU_CONFIG}/hpu_regif_core_prc_3in3.toml"]
  polling_us=10
[fpga.ffi.V80] # Hardware properties
  ami_dev="/dev/ami1" # Name of ami device
  qdma_h2c="/dev/qdma${V80_PCIE_DEV}001-MM-0" # QDma host to card device
  qdma_c2h="/dev/qdma${V80_PCIE_DEV}001-MM-1" # QDma card to host device

[rtl] # RTL option
  bpip_used = true # BPIP/IPIP mode
  bpip_use_opportunism = false # Use strict flush paradigm
  bpip_timeout = 100_000 # BPIP timeout in clock `cycles`

[board] # Board configuration
  ct_mem = 32768 # Number of allocated ciphertext
  ct_pc = [ # Memory used for ciphertext
    {Hbm= {pc=32}},
    {Hbm= {pc=33}},
  ]
  heap_size = 16384 # Number of slots reserved for heap

  lut_mem = 256 # Number of allocated LUT table
  lut_pc = {Hbm={pc=34}} # Memory used for LUT

  fw_size= 16777216 # Size in byte of the Firmware translation table
  fw_pc = {Ddr= {offset= 0x3900_0000}} # Memory used for firmware translation table

  bsk_pc = [ # Memory used for Bootstrapping key
    {Hbm={pc=8}},
    {Hbm={pc=12}},
    {Hbm={pc=24}},
    {Hbm={pc=28}},
    {Hbm={pc=40}},
    {Hbm={pc=44}},
    {Hbm={pc=56}},
    {Hbm={pc=60}}
  ]

  ksk_pc = [ # Memory used for Keyswitching key
    {Hbm={pc=0}},
    {Hbm={pc=1}},
    {Hbm={pc=2}},
    {Hbm={pc=3}},
    {Hbm={pc=4}},
    {Hbm={pc=5}},
    {Hbm={pc=6}},
    {Hbm={pc=7}},
    {Hbm={pc=16}},
    {Hbm={pc=17}},
    {Hbm={pc=18}},
    {Hbm={pc=19}},
    {Hbm={pc=20}},
    {Hbm={pc=21}},
    {Hbm={pc=22}},
    {Hbm={pc=23}}
  ]

  trace_pc = {Hbm={pc=35}} # Memory used for trace log
  trace_depth = 32 # Size of Memory in MiB allocated for trace log

[firmware] # Firmware properties
  implementation = "Llt" # Firmware flavor to use
  integer_w=[4,6,8,10,12,14,16,32,64,128] # List of supported IOp width
  min_batch_size = 11 # Minimum batch size for maximum throughput
  kogge_cfg            = "${HPU_BACKEND_DIR}/config_store/${HPU_CONFIG}/kogge_cfg.toml"
  custom_iop.'IOP[0]'  = "${HPU_BACKEND_DIR}/config_store/${HPU_CONFIG}/custom_iop/cust_0.asm"

# Default firmware configuration. Could be edited on per-IOp basis
[firmware.op_cfg.default]
  fill_batch_fifo = true
  min_batch_size = false
  use_tiers = false
  flush_behaviour = "Patient"
  flush = true

Device setup

Following code snippet shows how to instantiate and configure a HpuDevice:

    // Following code snippets used the HighLevelApi abstraction
    // Instantiate HpuDevice --------------------------------------------------
    let hpu_device = HpuDevice::from_config(&args.config.expand());

    // Generate keys ----------------------------------------------------------
    let config = Config::from_hpu_device(&hpu_device);

    let cks = ClientKey::generate(config);
    let csks = CompressedServerKey::new(&cks);

    // Register HpuDevice and key as thread-local engine
    set_server_key((hpu_device, csks));

Clone CPU ciphertext on HPU

Following code snippet shows how to convert CPU ciphertext in HPU one:

    // Draw random value as input
    let a = rand::thread_rng().gen_range(0..u8::MAX);

    // Encrypt them on Cpu side
    let a_fhe = FheUint8::encrypt(a, &cks);

    // Clone a ciphertext and move them in HpuWorld
    // NB: Data doesn't move over Pcie at this stage
    //     Data are only arranged in Hpu ordered an copy in the host internal buffer
    let a_hpu = a_fhe.clone_on(&hpu_device);

Dispatch operation on HPU

Once registered as thread-local engine, HighLevel FheUint are converted in Hpu format. Following code snippets show how to start operation on HPU:

  // Sum -------------------------------------------------------------
  // Generate random inputs value and compute expected result
  let in_a = rng.gen_range(0..u64::max_value());
  let in_b = rng.gen_range(0..u64::max_value());
  let clear_sum_ab = in_a.wrapping_add(in_b);

  // Encrypt input value
  let fhe_a = FheUint64::encrypt(in_a, cks);
  let fhe_b = FheUint64::encrypt(in_b, cks);

  // Triggered operation on HPU through hl_api
  let fhe_sum_ab = fhe_a+fhe_b;

  // Decrypt values
  let dec_sum_ab: u64 = fhe_sum_ab.decrypt(cks);

Pre-made Examples

There are some example applications already available in tfhe/examples/hpu:

• hpu_hlapi: Depict the used of HPU device through HighLevelApi.
• hpu_bench: Depict the used of HPU device through Integer abstraction level.

In order to run those applications on hardware, user must build from the project root (i.e tfhe-rs-internal) with hpu-v80 features:

NB: Running examples required to have correctly pulled the .pdi files. Those files, due to their size, are backed by git-lfs and disabled by default. In order to retrieve them, use the following command:

git lfs pull --include="*" --exclude=""

cargo build --release --features="hpu-v80" --example hpu_hlapi --example hpu_bench
# Correctly setup environment with setup_hpu.sh script
source setup_hpu.sh --config v80 --init-qdma
./target/release/examples/hpu_bench --integer-w 64 --integer-w 32 --iop MUL --iter 10
./target/release/examples/hpu_hlapi

Test framework

There is also a set of tests backed in tfhe-rs. Tests are gather in testbundle over various integer width. Those tests have 5 sub-kind:

• alu: Run and check all ct x ct IOp
• alus: Run and check all ct x scalar IOp
• bitwise: Run and check all bitwise IOp
• cmp: Run and check all comparison IOp
• ternary: Run and check ternary operation
• algo: Run and check IOp dedicated to offload small algorithms

Snippets below give some example of command that could be used for testing:

# Correctly setup environment with setup_hpu.sh script
source setup_hpu.sh --config v80 --init-qdma

# Run all sub-kind for 64b integer width
cargo test --release --features="hpu-v80" --test hpu -- u64

# Run only `bitwise` sub-kind for all integer width IOp
cargo test --release --features="hpu-v80" --test hpu -- bitwise

Benches framework

HPU is completely integrated in tfhe benchmark system. Performances results could be extracted from HighLevelApi or Integer Api. Three benchmarks could be started, through the following Makefile target for simplicity:

# Do not forget to correctly set environment before hand
source setup_hpu.sh --config v80 --init-qdma

# Run hlapi benches
make test_high_level_api_hpu

# Run hlapi erc20 benches
make bench_hlapi_erc20_hpu

# Run integer level benches
