rstrace

rstrace is a Rust implementation of strace for x86 Linux. It allows the user to trace system calls of a process or command.

Unlike strace it can introspect NVIDIA CUDA system calls.

Install

[!NOTE] Currently only x86 Linux is supported. aarch64 support is planned, but MacOS support is out-of-scope.

Binary download

curl -LsSf https://rstrace.xyz/install.sh | sh

Cargo

cargo install rstrace

Usage

rstrace ls /tmp/

To get a quick overview, use rstrace --help

Usage: rstrace [OPTIONS] [ARGS]...

Arguments:
  [ARGS]...  Arguments for the program to trace. e.g. 'ls /tmp/'

Options:
  -o, --output <OUTPUT>  send trace output to FILE instead of stderr
  -t, --timestamp...     Print absolute timestamp. -tt includes microseconds, -ttt uses UNIX timestamps
  -c, --summary-only     Count time, calls, and errors for each syscall and report summary
  -C, --summary          like -c, but also print the regular output
  -j, --summary-json     Count time, calls, and errors for each syscall and report summary in JSON format
      --tef              Emit Trace Event Format (TEF) trace data as output
      --verbose          Output human readable information about CUDA ioctls.
      --cuda             Enable CUDA ioctl sniffing. [Requires 'cuda_sniff' feature]
      --cuda-only        Enable CUDA ioctl sniffing and disable all other output. [Requires 'cuda_sniff' feature]
  -p, --attach <PID>     Attach to the process with the process ID pid and begin tracing.
  -f, --follow-forks     Trace child processes as they are created by currently traced processes as a result of the fork(2), vfork(2) and clone(2) system calls.
      --color            Enable colored output (default)
  -h, --help             Print help
  -V, --version          Print version

cuda_sniff extension

cuda_sniff is an extension to rstrace that allows the user to trace CUDA API calls. It is based on https://github.com/geohot/cuda_ioctl_sniffer by George Hotz.

gvisor has an alternative implementation called ioct_sniffer which uses LD_PRELOAD to intercept calls, unlike rstrace which uses ptrace.

Trace Event Format (TEF)

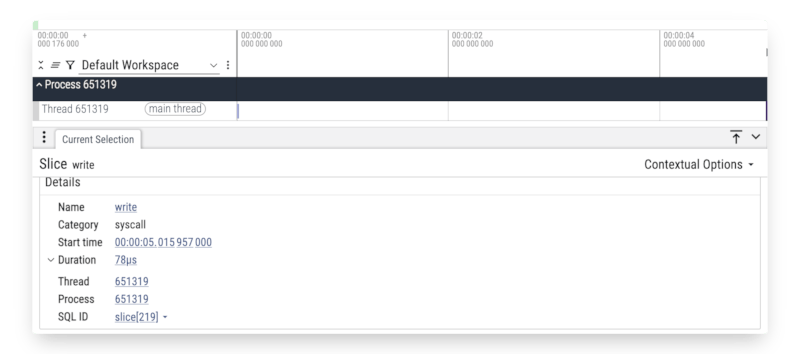

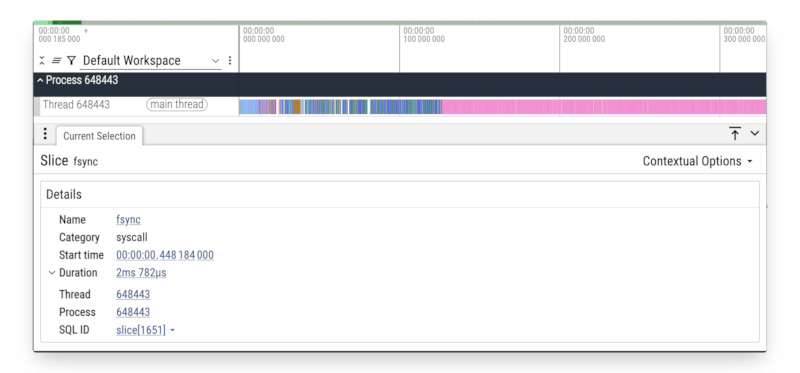

rstrace can emit basic tracing data which can be loaded into the Google Perfetto trace viewer.

e.g. rstrace --output in-kernel.tef.json --tef python userspace.py

Kernel	Userspace

import os, time
deadline = time.monotonic() + 5
fd = os.open("tmp.bin", os.O_CREAT | os.O_RDWR, 0o600)
buf = b"\0" * 4096
while time.monotonic() < deadline:
    os.pwrite(fd, buf, 0)
    os.fsync(fd)
os.close(fd)

use std::time::{Duration, Instant};
fn main() {
    let start = Instant::now();
    let mut x: u64 = 0;
    while start.elapsed() < Duration::from_secs(5) {
        for _ in 0..1_000_000 {
            // LCG-style math to burn CPU; wrapping avoids UB
            x = x.wrapping_mul(1664525).wrapping_add(1013904223);
        }
    }
    println!("{}", x); // prevents optimizing away the loop
}

Alternatives

• https://github.com/JakWai01/lurk

• https://github.com/strace/strace

• https://github.com/bpftrace/bpftrace

  • Don't use rstrace/strace in production. Where feasible use bpftrace which is a more powerful tracing tool with much lower overhead.
