pilgrimage

This is a Rust implementation of a distributed messaging system. It uses a simple design inspired by Apache Kafka. It simply records messages to local files.

Current Pilgrimage supports At-least-once.

Security

When using Pilgramage as a Crate, client authentication is implemented, but at present, authentication is not implemented for message sending and receiving from the CLI and web client. You can find a sample of authentication with Crate examples/auth-example.rs, examples/auth-send-recv.rs.

Features

• Topic-based pub/sub model
• Scalability through partitioning
• Persistent messages (log file based)
• Leader/Follower Replication
• Fault Detection and Automatic Recovery
• Delivery guaranteed by acknowledgement (ACK)
• Fully implemented leader selection mechanism
• Partition Replication
• Persistent messages
• Schema Registry for managing message schemas and ensuring compatibility
• Automatic Scaling
• Broker Clustering
• Message processing in parallel
• Authentication and Authorization Mechanisms
• Data Encryption
• CLI based console
• WEB based console

Basic Usage

Dependency

• Rust 1.51.0 or later

Functionality Implemented

• Message Queue: Efficient message queue implementation using Mutex and VecDeque.
• Broker: Core broker functionality including message handling, node management, and leader election.
• Consumer Groups: Support for consumer groups to allow multiple consumers to read from the same topic.
• Leader Election: Mechanism for electing a leader among brokers to manage partitions and replication.
• Storage: Persistent storage of messages using local files.
• Replication: Replication of messages across multiple brokers for fault tolerance.
• Schema Registry: Management of message schemas to ensure compatibility between producers and consumers.
• Benchmarking: Comprehensive benchmarking tests to measure performance of various components.
• Automatic Scaling: Automatically scale the number of instances based on load.
• Log Compressions: Compress and optimize logs.

Basic usage

use pilgrimage::broker::Broker;
use pilgrimage::message::message::Message;
use pilgrimage::schema::registry::SchemaRegistry;
use std::sync::{Arc, Mutex};
use std::thread;
use std::time::Duration;

fn main() {
    // Create a schema registry
    let schema_registry = SchemaRegistry::new();
    let schema_def = r#"{"type":"record","name":"test","fields":[{"name":"id","type":"string"}]}"#;
    schema_registry
        .register_schema("test_topic", schema_def)
        .unwrap();

    // Create a broker
    let broker = Arc::new(Mutex::new(Broker::new("broker1", 3, 2, "logs")));

    // Create a topic
    {
        let mut broker = broker.lock().unwrap();
        broker.create_topic("test_topic", Some(1)).unwrap();
    }

    // Create a subscriber
    let broker_clone = Arc::clone(&broker);
    let _subscriber = thread::spawn(move || {
        loop {
            let broker = broker_clone.lock().unwrap();
            if let Some(message) = broker.receive_message() {
                println!("Received: ID={}, Content={}", message.id, message.content);
            }
            thread::sleep(Duration::from_millis(100));
        }
    });

    // Send a message
    {
        let broker = broker.lock().unwrap();
        let message = Message::new("Hello, world!".to_string());
        println!("Send: ID={}, Content={}", message.id, message.content);
        broker.send_message(message).unwrap();
    }

    // Give the remaining messages in the inbox time to process.
    thread::sleep(Duration::from_secs(1));
}

Examples

To execute a basic example, use the following command:

cargo run --example ack-mulch-transaction
cargo run --example ack-send-recv
cargo run --example auth-example
cargo run --example auth-send-recv
cargo run --example idempotency
cargo run --example persistant-ack
cargo run --example simple-send-recv
cargo run --example thread-send-recv
cargo run --example transaction-send-recv

Bench

If the allocated memory is small, it may fail.

Gnuplot not found, using plotters backend
send_message            time:   [849.75 ns 851.33 ns 853.18 ns]
                        change: [-23.318% -20.131% -18.021%] (p = 0.00 < 0.05)
                        Performance has improved.
Found 1 outliers among 100 measurements (1.00%)
  1 (1.00%) high mild

send_benchmark_message  time:   [850.69 ns 852.08 ns 853.67 ns]
                        change: [-33.444% -26.669% -22.423%] (p = 0.00 < 0.05)
                        Performance has improved.
Found 2 outliers among 100 measurements (2.00%)
  2 (2.00%) high mild

cargo bench

CLI Features

Pilgrimage offers a comprehensive Command-Line Interface (CLI) to manage and interact with your message brokers efficiently. Below are the available commands along with their descriptions and usage examples.

start

Description: Starts the broker with the specified configurations.

Usage:

pilgrimage start --id <BROKER_ID> --partitions <NUMBER_OF_PARTITIONS> --replication <REPLICATION_FACTOR> --storage <STORAGE_PATH> [--test-mode]

Options:

• --id, -i (required): Sets the broker ID.
• --partitions, -p (required): Sets the number of partitions.
• --replication, -r (required): Sets the replication factor.
• --storage, -s (required): Sets the storage path.
• --test-mode: Runs the broker in test mode, which breaks out of the main loop quickly for testing purposes.

Example:

pilgrimage start --id broker1 --partitions 3 --replication 2 --storage /data/broker1 --test-mode

stop

Description: Stops the specified broker.

Usage

pilgrimage stop --id <BROKER_ID>

Options:

• --id, -i (required): Sets the broker ID.

Example

pilgrimage stop --id broker1

send

Description:

Sends a message to the specified broker.

Usage

pilgrimage send <BROKER_ID> <MESSAGE>

Arguments:

• <BROKER_ID> (required): The ID of the broker to send the message to.
• <MESSAGE> (required): The message content to send.

Example

pilgrimage send broker1 "Hello, World!"

consume

Description:

Consumes messages from the specified broker.

Usage

pilgrimage consume <BROKER_ID>

Arguments:

• <BROKER_ID> (required): The ID of the broker to consume messages from.

Example:

pilgrimage consume broker1

status

Description:

Checks the status of the specified broker.

Usage:

pilgrimage status --id <BROKER_ID>

Options:

• --id, -i (required): Sets the broker ID.

Example:

pilgrimage status --id broker1

Additional Information

• Help Command: To view all available commands and options, use the help command:

pilgrimage help

• Version Information: To check the current version of Pilgrimage, use:

pilgrimage --version

Running the CLI

To start the web server:

cargo run --bin pilgrimage

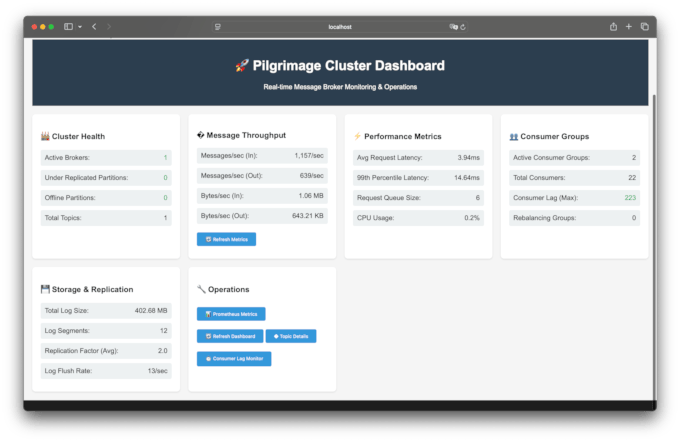

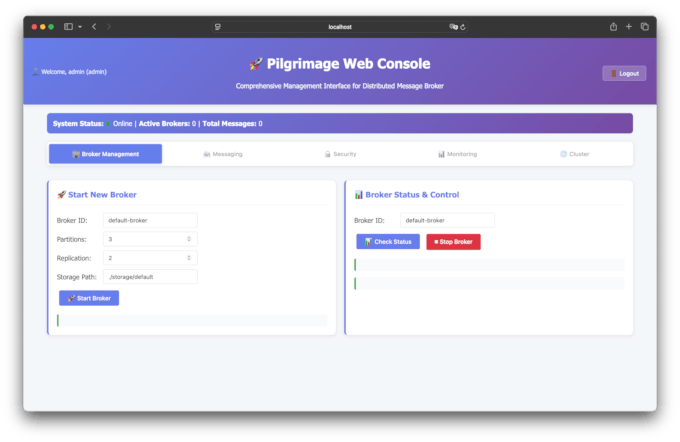

Web Console API

Pilgrimage provides a REST API for managing brokers through HTTP requests. The server runs on http://localhost:8080 by default.

Available Endpoints

Start Broker

Starts a new broker instance.

Endpoint: POST /start Request:

{
    "id": "broker1",
    "partitions": 3,
    "replication": 2,
    "storage": "/tmp/broker1"
}

Example:

curl -X POST http://localhost:8080/start \
  -H "Content-Type: application/json" \
  -d '{
    "id": "broker1",
    "partitions": 3,
    "replication": 2,
    "storage": "/tmp/broker1"
  }'

Stop Broker

Stops a running broker instance.

Endpoint: POST /stop Request:

{
    "id": "broker1"
}

Example:

curl -X POST http://localhost:8080/stop \
  -H "Content-Type: application/json" \
  -d '{
    "id": "broker1"
  }'

Send Message

Sends a message to the broker.

Endpoint: POST /send Request:

{
    "id": "broker1",
    "message": "Hello, World!"
}

Example:

curl -X POST http://localhost:8080/send \
  -H "Content-Type: application/json" \
  -d '{
    "id": "broker1",
    "message": "Hello, World!"
  }'

Consume Messages

Consumes messages from the broker.

Endpoint: POST /consume

Request:

{
    "id": "broker1"
}

Example:

curl -X POST http://localhost:8080/consume \
  -H "Content-Type: application/json" \
  -d '{
    "id": "broker1"
  }'

Check Status

Checks the status of the broker.

Endpoint: POST /status

Request:

{
    "id": "broker1"
}

Example:

curl -X POST http://localhost:8080/status \
  -H "Content-Type: application/json" \
  -d '{
    "id": "broker1"
  }'

Running the Web Server

To start the web server:

cargo run --bin web

The server will be available at http://localhost:8080.

Version increment on release

• The commit message is parsed and the version of either major, minor or patch is incremented.
• The version of Cargo.toml is updated.
• The updated Cargo.toml is committed and a new tag is created.
• The changes and tag are pushed to the remote repository.

The version is automatically incremented based on the commit message. Here, we treat feat as minor, fix as patch, and BREAKING CHANGE as major.

License

MIT
