OSM Geo Mapper

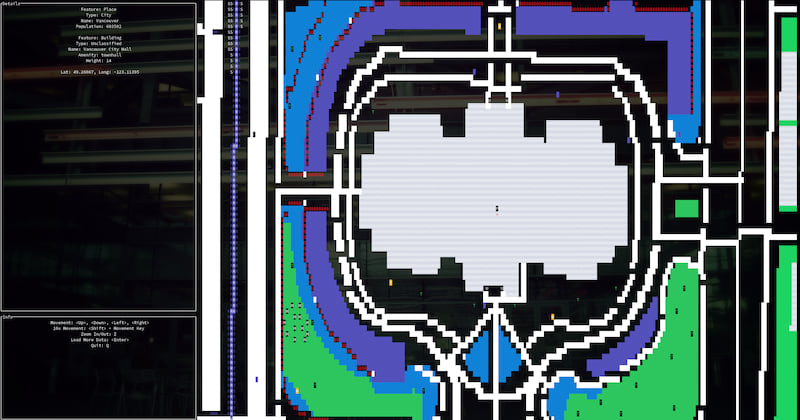

Rust library for querying OpenStreetMap data by coordinates and a terminal application to browse OpenStreeMap data in the terminal. Will fetch OSM data using the address or latitude/longitude provided, convert to GeoJSON (requires dependencies), and display the resulting lines/points/polygons in the terminal.

You can optionally provide a GeoJSON file directly for viewing.

Allows for moving around the map:

  • Arrow keys for directional movement (also supports vi keys h,j,k,l)
  • 'z' to zoom in/out
  • Hold 'Shift' to move 10x faster
  • 'Enter' to load more data at your current location (uses previously chosen radius)
  • 'q' or Esc to quit

But Why

I had an idea for a terminal-based zombie survival game set wherever on earth the player chooses.

Turns out, just parsing and enumerating all types of OpenStreetMap data is a significant amount of work and worth it's own library.

This library exposes a thread-safe data structure used for querying OSM data by 2D coordinates roughly mimicking latitude and longitude degrees.

Usage

CLI

./osm-geo-mapper --help

Will fetch OpenStreetMap data, convert to GeoJSON, and display the resulting lines/points/polygons in the terminal.

USAGE:
    osm-geo-mapper [FLAGS] [OPTIONS]

FLAGS:
        --show-amenities     Display all amenities - can take a while and cover up overlapping features like buildings
        --show-boundaries    Display all boundaries - can take a while and cover up overlapping features like roads
    -h, --help               Prints help information
        --show-landuse       Display all landuse areas - can take a while and cover up overlapping features like buildings
        --show-leisure       Display all leisure areas - can cover up overlapping features like buildings
    -V, --version            Prints version information

OPTIONS:
    -a, --address <address>              The address that will be used when fetching OpenStreetMap data
    -g, --geojson-file <geojson-file>    Optionally provide a geojson file directly to be parsed and displayed in the terminal
        --latitude <latitude>            The latitude that will be used when fetching OpenStreetMap data (ignored if address is provided)
        --longitude <longitude>          The longitude that will be used when fetching OpenStreetMap data (ignored if address is provided)
    -r, --radius <radius>                The radius of the area of land to retrieve in 100,000th of a lat/lon degree (roughly a meter at the equator) - defaults to 200 (0.002 degrees or ~200m). Significantly impacts loading times

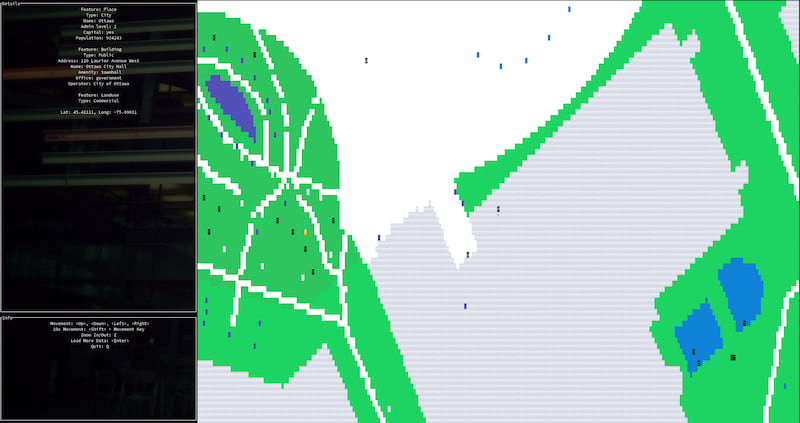

./osm-geo-mapper --address "110 laurier avenue west ottawa ontario"

OSM Geo Mapper

Library

See the tests/ folder for example usage, but it boils down to the following OSMGeoMapper methods:

use osm_geo_mapper::interface::{ OSMGeoMapper, Location };

OSMGeoMapper::from_address(address: String, radius: Option<u32>) -> Result<OSMGeoMapper, Box<dyn std::error::Error>>

OSMGeoMapper::from_address takes an address string and optionally a radius (in 100,000th of a degree, or roughly a meter at the equator) and returns an OSMGeoMapper object.

OSMGeoMapper::from_lat_lon(latitude: f64, longitude: f64, radius: Option<u32>) -> Result<OSMGeoMapper, Box<dyn std::error::Error>>

OSMGeoMapper::from_lat_lon does the same thing as above except it takes a latitude and longitude instead of an address.

OSMGeoMapper::from_geojson_file(geojson_file: String, location: Option<Location>) -> Result<OSMGeoMapper, Box<dyn std::error::Error>>

OSMGeoMapper::from_geojson_file takes a geojson file path directly and also returns a OSMGeoMapper object. The location optional parameter is not useful yet.

The OSMGeoMapper type is defined as follows:

pub struct OSMGeoMapper {
    pub data_structure: Arc<RwLock<HashMap<geo_types::Coordinate<i32>, Arc<GeoTile>>>>,
    pub coordinates: geo_types::Coordinate<i32>,
    pub radius: u32
}

data_structure is used to access the various GeoTiles by coordinates. This data structure is thread-safe due to the Arc<RwLock<>> wrapper. Use OSMGeoMapper::atomic_clone(&self) or OSMGeoMapper.data_structure.clone() directly when sending it to another thread. Use OSMGeoMapper::get/get_real() or data_structure.read()/try_read() or data_structure.write()/try_write() to lock the resource for read/write purposes.

coordinates holds x/y coordinates of the address (if OSMGeoMapper::from_address was used) or to the lat/lon initially provided. They are no longer in the original lat/lon format but in the data structure's coordinate system (each step is 100,000th of a degree, or roughly one meter at the equator).

radius is the chosen radius for the original fetching of data (if OSMGeoMapper::from_address or OSMGeoMapper::from_lat_lon was used).

If you wanted to get the GeoTile at the real-world lat/lon of -75.6903082/45.4211063, you would use the following method call - OSMGeoMapper::get_real(45.4211063, -75.6903082). Note that granularity is only to 6 decimal places. The method call above is the same as OSMGeoMapper::get(45421106, -75690308)

You can also get GeoTiles directly from the OSMGeoMapper.data_structure field (once read-locked) like this: data_structure.get(geo_types::Coordinate { x: -7569031, y: 4542111 })

You can convert to/from real and OSMGeoMapper coordinates using the following helper functions: osm_geo_mapper::operations::to_tile_scale(f64) -> i32 and osm_geo_mapper::operations::from_tile_scale(i32) -> f64.

A GeoTile can be many many things - see features.rs.

You can also load more data into your OSMGeoMapper.data_structure using one of the following three helper methods:

OSMGeoMapper::load_more_from_lat_lon(&mut self, latitude: f64, longitude: f64, radius: Option<u32>) -> Result<(), Box<dyn std::error::Error>>

OSMGeoMapper::load_more_from_address(&mut self, address: String, radius: Option<u32>) -> Result<(), Box<dyn std::error::Error>>

OSMGeoMapper::load_more_from_geojson_file(&mut self, geojson_file: String) -> Result<(), Box<dyn std::error::Error>>

See the test_multiple_threads() test function in tests/lib_tests.rs to see an example of loading data in multiple threads simultaneously.

TODO

  • Implement vector of GeoTiles at each coordinate (multiple feature types per tile)
  • Implement logic to choose a lat/lon in the middle of a geojson file if none is provided via command line
  • Implement (binary?) serialization of map data to be loaded/cached
  • Continue tweaking the themes
  • Need logic to handle rate-limited Overpass API calls (need to parse XML response)

ISSUES

Shift + Movement doesn't work in certain terminal emulators (confirmed in urxvt).
