macro-machines

State machine macros with logging and graphviz dotfile generation

Documentation

Current features

  • Macros for creating state machines with and without Debug and Default:
    • def_machine! -- state machine implementing Default construction
    • def_machine_debug! -- state machine implementing Default construction and deriving Debug
    • def_machine_nodefault! -- state machine requiring initialization arguments
    • def_machine_nodefault_debug! -- state machine requiring initialization arguments and deriving Debug
  • Specified initial (required) and terminal (optional) states with (optional) initialization and termination actions
  • States may have local state variables and state machines may have extended state variables
  • Events with optional associated parameters and actions in which extended state variables may be modified:
    • External events -- transition from a specific source state to a specific target state
    • Internal events -- an event that is additionally allowed to modify local state variables and leaves the current state unchanged
    • Universal events -- transition from any source state to a specific target state
  • Syntax allowing use of constrained type parameters in the types of extended state variables
  • Logging using the log logging API
  • Graphviz DOT file generation of state machine transition diagrams

Current limitations

  • Only trace-level messages are currently logged

Usage

Define and use a minimal state machine:

use macro_machines::def_machine_debug;
def_machine_debug!{
  machine M {
    STATES [
      state S ()
      state T ()
    ]
    EVENTS [
      event A <S> => <T> ()
    ]
    EXTENDED []
    initial_state: S
  }
}

fn main () {
  use macro_machines::HandleEventException;

  let mut m = M::initial();
  m.handle_event (EventId::A.into()).unwrap();
  assert_eq!(m.handle_event (EventId::A.into()), Err (HandleEventException::WrongState));
}

Generate a dotfile and write to file:

  use std::io::Write;
  use macro_machines::MachineDotfile;
  let mut f = std::fs::File::create ("minimal.dot").unwrap();
  f.write_all (M::dotfile().as_bytes()).unwrap();
  drop (f);

Rendered as PNG with $ dot -Tpng minimal.dot > minimal.png:

For examples of more complex state machines, see the ./examples/ directory.

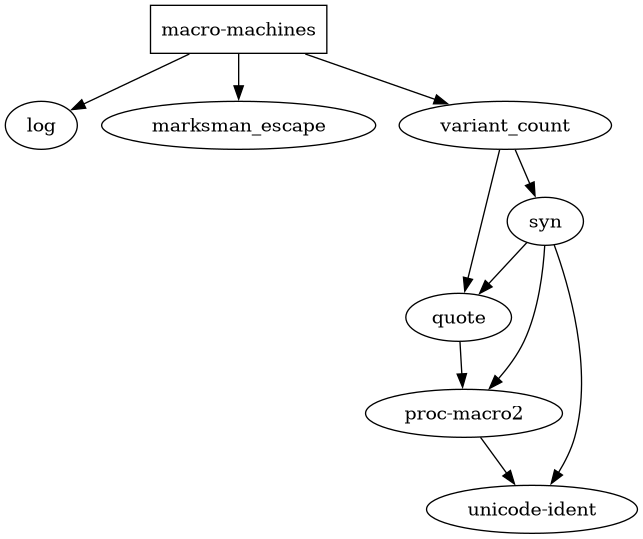

Dependencies

Dependencies

~2MB
~35K SLoC
