EasyTier

GitHub GitHub last commit GitHub issues GitHub actions

简体中文 | English

EasyTier is a simple, safe and decentralized VPN networking solution implemented with the Rust language and Tokio framework.

Features

  • Decentralized: No need to rely on centralized services, nodes are equal and independent.
  • Safe: Use WireGuard protocol to encrypt data.
  • High Performance: Full-link zero-copy, with performance comparable to mainstream networking software.
  • Cross-platform: Supports MacOS/Linux/Windows, will support IOS and Android in the future. The executable file is statically linked, making deployment simple.
  • Networking without public IP: Supports networking using shared public nodes, refer to Configuration Guide
  • NAT traversal: Supports UDP-based NAT traversal, able to establish stable connections even in complex network environments.
  • Subnet Proxy (Point-to-Network): Nodes can expose accessible network segments as proxies to the VPN subnet, allowing other nodes to access these subnets through the node.
  • Smart Routing: Selects links based on traffic to reduce latency and increase throughput.
  • TCP Support: Provides reliable data transmission through concurrent TCP links when UDP is limited, optimizing performance.
  • High Availability: Supports multi-path and switches to healthy paths when high packet loss or network errors are detected.
  • IPv6 Support: Supports networking using IPv6.

Installation

  1. Download the precompiled binary file

    Visit the GitHub Release page to download the binary file suitable for your operating system. Release includes both command-line programs and GUI programs in the compressed package.

  2. Install via crates.io

    cargo install easytier

  3. Install from source code

    cargo install --git https://github.com/KKRainbow/EasyTier.git


Quick Start

The following text only describes the use of the command-line tool; the GUI program can be configured by referring to the following concepts.

Make sure EasyTier is installed according to the Installation Guide, and both easytier-core and easytier-cli commands are available.

Two-node Networking

Assuming the network topology of the two nodes is as follows

flowchart LR

subgraph Node A IP 22.1.1.1
nodea[EasyTier\n10.144.144.1]
end

subgraph Node B
nodeb[EasyTier\n10.144.144.2]
end

nodea <-----> nodeb

  1. Execute on Node A:

    sudo easytier-core --ipv4 10.144.144.1

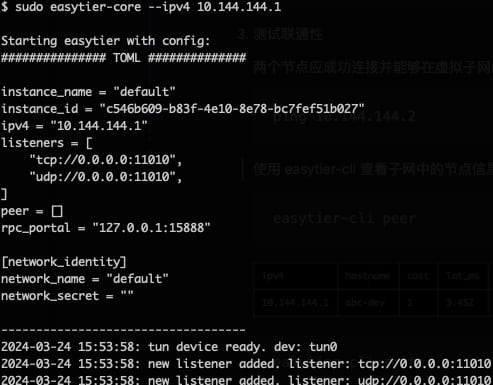

    Successful execution of the command will print the following.

    alt text

  2. Execute on Node B

    sudo easytier-core --ipv4 10.144.144.2 --peers udp://22.1.1.1:11010

  3. Test Connectivity

    The two nodes should connect successfully and be able to communicate within the virtual subnet

    ping 10.144.144.2


    Use easytier-cli to view node information in the subnet

    easytier-cli peer


    alt text

    easytier-cli route


    alt text


Multi-node Networking

Based on the two-node networking example just now, if more nodes need to join the virtual network, you can use the following command.

sudo easytier-core --ipv4 10.144.144.2 --peers udp://22.1.1.1:11010

The --peers parameter can fill in the listening address of any node already in the virtual network.


Subnet Proxy (Point-to-Network) Configuration

Assuming the network topology is as follows, Node B wants to share its accessible subnet 10.1.1.0/24 with other nodes.

flowchart LR

subgraph Node A IP 22.1.1.1
nodea[EasyTier\n10.144.144.1]
end

subgraph Node B
nodeb[EasyTier\n10.144.144.2]
end

id1[[10.1.1.0/24]]

nodea <--> nodeb <-.-> id1

Then the startup parameters for Node B's easytier are (new -n parameter)

sudo easytier-core --ipv4 10.144.144.2 -n 10.1.1.0/24

Subnet proxy information will automatically sync to each node in the virtual network, and each node will automatically configure the corresponding route. Node A can check whether the subnet proxy is effective through the following command.

  1. Check whether the routing information has been synchronized, the proxy_cidrs column shows the proxied subnets.

    easytier-cli route


    alt text

  2. Test whether Node A can access nodes under the proxied subnet

    ping 10.1.1.2


Networking without Public IP

EasyTier supports networking using shared public nodes. The currently deployed shared public node is tcp://easytier.public.kkrainbow.top:11010.

When using shared nodes, each node entering the network needs to provide the same --network-name and --network-secret parameters as the unique identifier of the network.

Taking two nodes as an example, Node A executes:

sudo easytier-core -i 10.144.144.1 --network-name abc --network-secret abc -e tcp://easytier.public.kkrainbow.top:11010

Node B executes

sudo easytier-core --ipv4 10.144.144.2 --network-name abc --network-secret abc -e tcp://easytier.public.kkrainbow.top:11010

After the command is successfully executed, Node A can access Node B through the virtual IP 10.144.144.2.

Use EasyTier with WireGuard Client

EasyTier can be used as a WireGuard server to allow any device with WireGuard client installed to access the EasyTier network. For platforms currently unsupported by EasyTier (such as iOS, Android, etc.), this method can be used to connect to the EasyTier network.

Assuming the network topology is as follows:

flowchart LR

ios[[iPhone \n WireGuard Installed]]

subgraph Node A IP 22.1.1.1
nodea[EasyTier\n10.144.144.1]
end

subgraph Node B
nodeb[EasyTier\n10.144.144.2]
end

id1[[10.1.1.0/24]]

ios <-.-> nodea <--> nodeb <-.-> id1

To enable an iPhone to access the EasyTier network through Node A, the following configuration can be applied:

Include the --vpn-portal parameter in the easytier-core command on Node A to specify the port that the WireGuard service listens on and the subnet used by the WireGuard network.

# The following parameters mean: listen on port 0.0.0.0:11013, and use the 10.14.14.0/24 subnet for WireGuard
sudo easytier-core --ipv4 10.144.144.1 --vpn-portal wg://0.0.0.0:11013/10.14.14.0/24

After successfully starting easytier-core, use easytier-cli to obtain the WireGuard client configuration.

$> easytier-cli vpn-portal
portal_name: wireguard

client_config:
[Interface]
PrivateKey = 9VDvlaIC9XHUvRuE06hD2CEDrtGF+0lDthgr9SZfIho=
Address = 10.14.14.0/24 # should assign an ip from this cidr manually

[Peer]
PublicKey = zhrZQg4QdPZs8CajT3r4fmzcNsWpBL9ImQCUsnlXyGM=
AllowedIPs = 192.168.80.0/20,10.147.223.0/24,10.144.144.0/24
Endpoint = 0.0.0.0:11013 # should be the public ip of the vpn server

connected_clients:
[]

Before using the Client Config, you need to modify the Interface Address and Peer Endpoint to the client's IP and the IP of the EasyTier node, respectively. Import the configuration file into the WireGuard client to access the EasyTier network.

Configurations

You can use easytier-core --help to view all configuration items

Roadmap

  • Improve documentation and user guides.
  • Support features such as encryption, TCP hole punching, etc.
  • Support Android, IOS and other mobile platforms.
  • Support Web configuration management.

Community and Contribution

We welcome and encourage community contributions! If you want to get involved, please submit a GitHub PR. Detailed contribution guidelines can be found in CONTRIBUTING.md.

Related Projects and Resources

  • ZeroTier: A global virtual network for connecting devices.
  • TailScale: A VPN solution aimed at simplifying network configuration.
  • vpncloud: A P2P Mesh VPN

License

EasyTier is released under the Apache License 2.0.
