Cosmian KMS

The Cosmian KMS is a high-performance, open-source FIPS 140-3 compliant server application written in Rust.

Online documentation

The Cosmian KMS presents some unique features, such as:

• large scale encryption and decryption of data see this documentation
• the ability to confidentially run in a public cloud, or any zero-trust environment, using Cosmian VM. See our cloud-ready confidential KMS on the Azure, GCP, and AWS marketplaces our deployment guide
• support of state-of-the-art authentication mechanisms (see authentication)
• out-of-the-box support of Google Workspace Client Side Encryption (CSE)
• out-of-the-box support of Microsoft Double Key Encryption (DKE)
• support for the Proteccio adn Utimaco HSMs with KMS keys wrapped by the HSM
• Veracrypt and LUKS disk encryption support
• FIPS 140-3 mode gated behind the feature fips
• a binary and JSON KMIP 1.0-1.4 and 2.0-2.1 compliant interface
• Oracle DB TDE support
• VMWare vCenter Trust Key Provider integration
• User Defined Functions for Big Data including snowflake

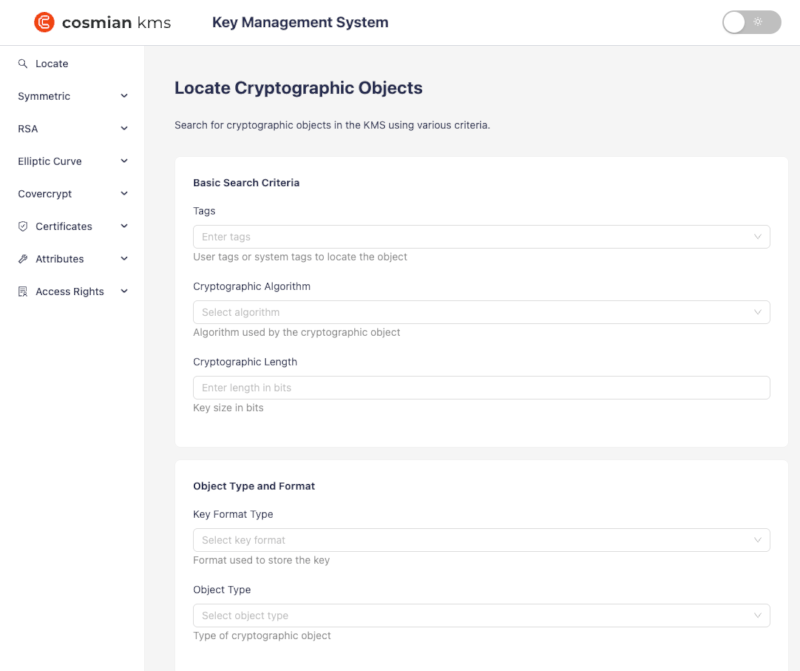

• a full-featured client command line and graphical interface
• a high-availability mode with simple horizontal scaling
• a support of Python, JavaScript, Dart, Rust, C/C++, and Java clients (see the cloudproof libraries on Cosmian Github)
• integrated with OpenTelemetry

The Cosmian KMS is both a Key Management System and a Public Key Infrastructure. As a KMS, it is designed to manage the lifecycle of keys and provide scalable cryptographic services such as on-the-fly key generation, encryption, and decryption operations.

The Cosmian KMS supports all the standard NIST cryptographic algorithms as well as advanced post-quantum cryptography algorithms such as Covercrypt. Please refer to the list of supported algorithms.

As a PKI it can manage root and intermediate certificates, sign and verify certificates, use their public keys to encrypt and decrypt data. Certificates can be exported under various formats, including PKCS#12 modern and legacy flavor, to be used in various applications, such as in S/MIME encrypted emails.

The KMS has extensive online documentation

• Quick start
  • Example
• Repository content
• Building the KMS
  • Linux or MacOS (CPU Intel or MacOS ARM)
  • Windows
  • Build the KMS
  • Build the Docker Ubuntu container
• Running the unit and integration tests
• Development: running the server with cargo
• Server parameters
• Use the KMS inside a Cosmian VM on SEV/TDX
• Releases
• Benchmarks

Quick start

Pre-built binaries are available for Linux, MacOS, and Windows, as well as Docker images. To run the server binary, OpenSSL must be available in your path (see "building the KMS" below for details); other binaries do not have this requirement.

Using Docker to quick-start a Cosmian KMS server on http://localhost:9998 that stores its data inside the container, run the following command:

docker run -p 9998:9998 --name kms ghcr.io/cosmian/kms:latest

Then, use the CLI to issue commands to the KMS. The CLI, called cosmian, can be either downloaded from Cosmian packages or built and launched from this GitHub project by running

cargo run --bin cosmian -- --help

Example

1. Create a 256-bit symmetric key

   ➜ cargo run --bin cosmian -- sym keys create --number-of-bits 256 --algorithm aes --tag my-key-file
   ...
   The symmetric key was successfully generated.
     Unique identifier: 87e9e2a8-4538-4701-aa8c-e3af94e44a9e

     Tags:
       - my-key-file


2. Encrypt the image.png file with AES GCM using the key

   ➜ cargo run --bin cosmian -- sym encrypt --tag my-key-file --output-file image.enc image.png
   ...
   The encrypted file is available at "image.enc"


3. Decrypt the image.enc file using the key

   ➜ cargo run --bin cosmian -- sym decrypt --tag my-key-file --output-file image2.png image.enc
   ...
   The decrypted file is available at "image2.png"


See the documentation for more.

Repository content

The server is written in Rust and is broken down into several binaries:

• A server (cosmian_kms) which is the KMS itself
• A CLI (cosmian) to interact with this server

And also some crates:

• access to handle permissions
• client to query the server
• interfaces to handle the interfaces with storage and encryption oracles
• kmip which is an implementation of the KMIP standard
• server_database to handle the database
• pkcs11_* to handle PKCS11 support
• test_kms_server which is a library to instantiate programmatically the KMS server.

Please refer to the README of the inner directories to have more information.

Find the public documentation of the KMS in the documentation directory.

Building the KMS

First, pull the git submodule for client requirements such as CLI and UI:

git submodule update --recursive --init

Then, OpenSSL v3.2.0 is required to build the KMS.

Linux or MacOS (CPU Intel or MacOs ARM)

Retrieve OpenSSL v3.2.0 (already built) with the following commands:

export OPENSSL_DIR=/usr/local/openssl
sudo mkdir -p ${OPENSSL_DIR}
sudo chown -R $USER ${OPENSSL_DIR}
bash .github/scripts/get_openssl_binaries.sh

Windows

1. Install Visual Studio Community with the C++ workload and clang support.

2. Install Strawberry Perl.

3. Install vcpkg following these instructions

4. Then install OpenSSL 3.2.0:

The files vcpkg.json and vcpkg_fips.json are provided in the repository to install OpenSSL v3.2.0:

vcpkg install --triplet x64-windows-static # arm64-windows-static for ARM64

vcpkg integrate install
$env:OPENSSL_DIR = "$env:VCPKG_INSTALLATION_ROOT\packages\openssl_x64-windows-static" # openssl_arm64-windows-static for ARM64

For a FIPS compliant build, use the following commands (to build fips.dll), also run:

Copy-Item -Path "vcpkg_fips.json" -Destination "vcpkg.json"
vcpkg install
vcpkg integrate install

Build the KMS

Once OpenSSL is installed, you can build the KMS. To avoid the additive feature issues, the main artifacts - the CLI, the KMS server and the PKCS11 provider should be directly built using cargo build --release within their crate, not from the project root.

Build the server and CLI binaries:

cd crate/server
cargo build --release
cd ../..
cd cli/crate/cli
cargo build --release

Build the Docker Ubuntu container

You can build a Docker containing the KMS server as follows:

docker build . --network=host -t kms

Or:

# Example with FIPS support
docker build . --network=host \
               --build-arg FEATURES="--features=fips" \
               -t kms

Running the unit and integration tests

By default, tests are run using cargo test and an SQLCipher backend (called sqlite). This can be influenced by setting the KMS_TEST_DB environment variable to

• sqlite, for plain SQLite
• mysql (requires a running MySQL or MariaDB server connected using a "mysql://kms:kms@localhost:3306/kms" URL)
• postgresql (requires a running PostgreSQL server connected using a "postgresql://kms:kms@127.0.0.1:5432/kms"URL)
• redis-findex (requires a running Redis server connected using a "redis://localhost:6379" URL)

Example: testing with a plain SQLite and some logging

RUST_LOG="error,cosmian_kms_server=info,cosmian_kms_cli=info" KMS_TEST_DB=sqlite cargo test

Alternatively, when writing a test or running a test from your IDE, the following can be inserted at the top of the test:

unsafe {
set_var("RUST_LOG", "error,cosmian_kms_server=debug,cosmian_kms_cli=info");
set_var("RUST_BACKTRACE", "1");
set_var("KMS_TEST_DB", "redis-findex");
}
log_init(option_env!("RUST_LOG"));

Development: running the server with cargo

To run the server with cargo, you need to set the RUST_LOG environment variable to the desired log level and select the correct backend (which defaults to sqlite).

RUST_LOG="info,cosmian_kms_server=debug" \
cargo run --bin cosmian_kms -- \
--database-type redis-findex --database-url redis://localhost:6379 \
--redis-master-password secret --redis-findex-label label

Server parameters

If a configuration file is provided, parameters are set following this order:

• conf file (env variable COSMIAN_KMS_CONF set by default to /etc/cosmian/kms.toml)
• default (set on struct)

Otherwise, the parameters are set following this order:

• args in the command line
• env var
• default (set on struct)

Use the KMS inside a Cosmian VM on SEV/TDX

See the Marketplace guide for more details about Cosmian VM.

Releases

All releases can be found in the public URL package.cosmian.com.

Benchmarks

To run benchmarks, go to the crate/test_server directory and run:

cargo bench

Typical values for single-threaded HTTP KMIP 2.1 requests (zero network latency) are as follows

- RSA PKCSv1.5:
    - encrypt
            - 2048 bits: 128 microseconds
            - 4096 bits: 175 microseconds
    - decrypt
            - 2048 bits: 830 microseconds
            - 4096 bits: 4120 microseconds
- RSA PKCS OAEP:
    - encrypt
            - 2048 bits: 134 microseconds
            - 4096 bits: 173 microseconds
    - decrypt
            - 2048 bits: 849 microseconds
            - 4096 bits: 3823 microseconds
- RSA PKCS KEY WRP (AES):
    - encrypt
            - 2048 bits: 142 microseconds
            - 4096 bits: 198 microseconds
    - decrypt
            - 2048 bits: 824 microseconds
            - 4096 bits: 3768 microseconds
- RSA Keypair creation (saved in KMS DB)
    -  2048 bits: 33 milliseconds
    -  4096 bits: 322 milliseconds
