Package sdml-core

Rust in-Memory model of the Simple Domain Modeling Language (SDML).

This package is part of the Rust SDML project and specifically defines the in-memory model of an SDML module. The project's intent is to provide an idiomatic implementation of the in-memory model, parser, generators, and the CLI tool.

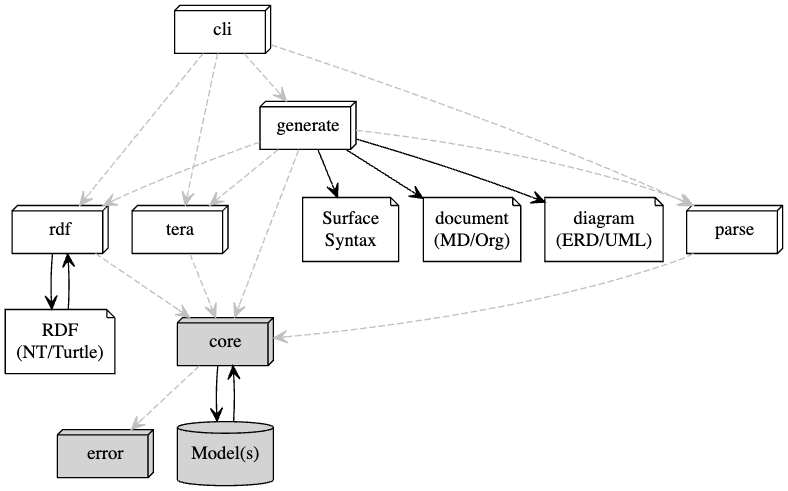

The following figure demonstrates this package in the broader project context.

Note that other tools can use the =sdml_core= API to create or manipulate models.

Changes

Version 0.4.0

The primary aim of this release is to introduce a new definition type, a dimension. This may be seen as a violation of SDML's goal of being technology or implementation independent however it is a pragmatic decision based on usage experience. Modeling the data managed by a business in terms of entities solves many operational purposes but ignores a major purpose of this data -- reporting.

module example is

  import [ sales stores xsd ]

  dimension Region is
    ;; define an identifier for this dimension
    identity region -> long

    ;; add members
    name -> string
  end

  dimension Location is
    ;; tightly bind this dimension to the Sale entity
    source sales:Sale

    ;; define a hierarchy by noting one or more parent dimensions
    parent region -> Region

    ;; reuse members from the source entity
    store from sales:Sale
    city from sales:Sale

    ;; add additional members not on the source entity
    state -> stores:State
    country -> stores:Country
  end

end

Detailed Changes:

• Add new DimensionDef to the model which has a source clause, set of parents and set of members.
• Add a source claused based on, but extending, the one on an event definition.
• Add new DimensionParent structure with name and entity name reference.

The new syntax for the source keyword also allows the inclusion of members from the source entity rather than requiring duplicate members. This new source clause has been added to the event definition as a part of the body of an event thus allowing incomplete event definitions.

module example is

  entity Thing is
    identity id -> long
    name -> string
  end

  event Empty

  event NewThing is
    source Thing with name
  end

end

Additionally, this version of the grammar allows module's to rename imports,
both modules and members. This allows then client module to avoid always using
qualified names, and to use short, or more meaningful, names as appropriate.

``` sdml
module example is

  import rentals_billing as billing

  import billing:Invoice as Invoice

end

Version 0.3.1

• Feature: move use of tree-sitter crate behind a feature.
• Feature: added iterators to trait ModuleStore.

Version 0.3.0

• Feature: update for the latest grammar.
  • Updated Member to be a union of MemberDef and IdentifierReference~
  • Updated entity identity to be just a Member.
  • Updated PropertyDef to be a wrapper around MemberDef.
  • Fixed corresponding validation rules.
• Refactor: simplified the walker/visitor to pass model members rather than de-constructing them.
• Refactor: renamed and made some changes in the cache (now store) and load modules.

Version 0.2.17

• Feature: inverted the logic for determining whether a definition is incomplete.
  • Rename: trait MaybeInvalid to MaybeIncomplete.
• Feature: added method has_source to the trait ModuleLoader.
• Feature: added implementation of FromStrfor bothQualifiedReferenceandIdentifierReference`.
• Build: bump version of sdml-errors.

Version 0.2.16

• Fix: sdml:srcLabel lacks surrounding quotation in Turtle serialization (#11).

Version 0.2.15

• Fix: Identifier::from_str should allow type names.

Version 0.2.14

• Feature: add new ModuleStore trait, implemented by ModuleCache.

While not advantageous immediately, it mirrors the separation of trait and implementation that worked well for ModuleLoader and ModuleResolver.

Version 0.2.13

• Feature: add new validation for IdentifierNotPreferredCase, to enforce case conventions.

Version 0.2.12

• Feature: more term validation, mainly to reduce the number of todo! panics.

Version 0.2.11

• Refactor: moved errors and diagnostics to new crate sdml_error.
• Feature: started on diagnostics and verification, working but incomplete.
• Added: =deprecated= terminology validation.

Version 0.2.10

• Feature: Add new stdlib modules iso_3166 for country codes, and iso_4217 for currency codes.
• Style: Shortened stdlib constant names for readability.
• Fix: Correct the regex for identifiers, now in sync with the grammar.

Version 0.2.9

• Fix: Cardinality parser set incorrect default values.
  • Update: the with_ constructors on Cardinality to take option types.

Version 0.2.8

• Feature: Add more to the SDML standard library module as needed for RDF generator.

Version 0.2.7

Clean-up release.

• Added new import! macro for stdlib modules.
• Removed debugging println! calls.
• Fixed compiler warnings and fmt issues.

Version 0.2.6

• Feat: Added more to the sdml stdlib module.
• Feat: Added helpers is_stdlib_property and is_datatype_facet to AnnotationProperty.
• Feat: Added new AnnotationBuilder trait and impls on most definitions to allow easy adding of annotation properties.
• Feat: Added helper methods to ModuleCache to make it more collection-like.

Version 0.2.5

• Feature: Implemented the core standard library modules.
  • dc (elements) -- Complete.
  • dc_terms -- Not started.
  • dc_am -- Not started.
  • dc_type -- Not started.
  • owl -- Complete.
  • rdf -- Complete.
  • rdfs -- Complete.
  • sdml -- Mostly complete.
  • skos -- Complete.
  • xsd (part 2) -- Complete.

This change affects the =ModuleCache= as well, it's with_stdlib constructor will include all the library modules and their definitions. This can be checked out with the command-line tool to either draw diagrams of the standard library modules or convert into s-expressions, etc.

Version 0.2.4

• Feature: add new stdlib modules with standard layout.
• Feature: minor refactor of cache and loader.

Version 0.2.3

• Feature: Update to latest grammar for version URIs and RDF definitions.

Version 0.2.2

• Feature: Add initial support for versioned modules.
  • Remove base keyword.
  • Add new optional version keyword after module URI with:
    • optional version string that becomes owl:versionInfo.
    • version URI that becomes owl:verionIRI.
• Feature: Add new RDF structure/property definitions.
  • Add new keyword rdf followed by either =structure= or =property= with name and annotation body.
  • Extended SimpleModuleWalker with support for RDF class/property definitions.

Version 0.2.1

• Feature: Remove member groups.

Version 0.2.0

• Feature: Update to latest grammar.
  • Remove Value Variant numeric values.
  • Update formal constraints.
  • Add type classes.

Version 0.1.11

• Feature: Update Cardinality::to_uml_string to output constraints.
• Fix: Missing features in mapping types and values.

Version 0.1.10

• Feature: Added support for mapping_type and mapping_value rules.

Version 0.1.9

• Style: Run Cargo format and clippy.

Version 0.1.8

• Feature: Made the name for constraints required, not Option.
• Style: Remove most macros from the model.

Version 0.1.7

• Fix: Minor fixes.

Version 0.1.6

• Build: Updated parser with grammar changes in =tree-sitter-sdml= version 0.1.29

Version 0.1.6

• Build: Updated parser with grammar changes in =tree-sitter-sdml= version 0.1.26

Version 0.1.5

• Created a stdlib module and moved all the SDML and relevant RDF files into it.
• Updated model to the same level as tree-sitter-sdml version 0.1.21.
• Updated tree-sitter-sdml dependency with updated constraints.
  • Renamed TypeDefinition to =Definition= to address the fact that property definitions aren't types.
  • Renamed EnumVariant to ValueVariant to align with TypeVariant on unions. This required change to walker methods.

Version 0.1.4

Previously part of a single crate sdml.
