Krokiet

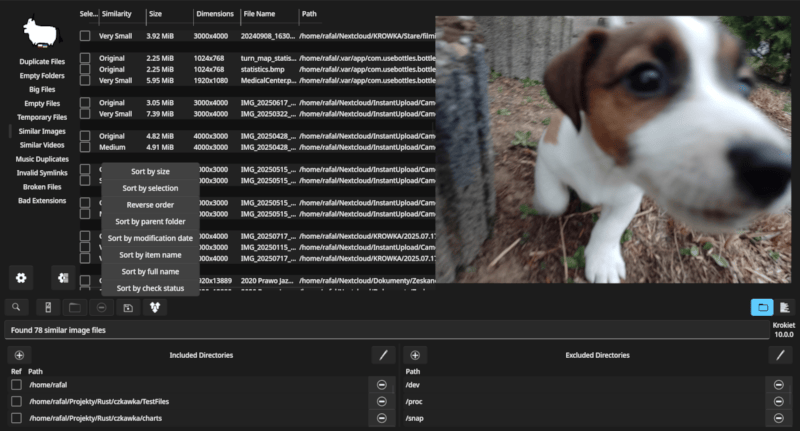

Krokiet is new Czkawka frontend written in Slint, which uses Rust in opposite to Gtk 4 frontend which uses mostly C code.

Krokiet

Different toolkit means different look, limitations and features, so you should not expect same features like in Gtk 4 frontend(but of course I want implement most of the features from other project).

Usage

Krokiet should not have any special runtime requirements - it should work on almost any device non-antic device.

Prebuild binaries should work on Windows 10,11, Mac, Ubuntu 22.04/20.04 and similar(libheif version and czkawka_gui requires Ubuntu 22.04+, rest Ubuntu 20.04) - https://github.com/qarmin/czkawka/releases/

Compilation

On Ubuntu you need to install this dependencies:

sudo apt install libfontconfig-dev libfreetype-dev

Default compilation is done by cargo build --release and should work on most systems.

You need the latest available version of Rust to compile it, because Krokiet aims to support the latest slint versions, that should provide best experience.

The only exception is building skia renderer which is non default feature that can be enabled manually if you want to use it, that require on windows msvc compiler(not sure how to exactly install it).

Also skia renderer is written in C++ and uses on platforms like x86_64 and arm64 prebuild binaries, so if you are using different architecture, this library will be build from source, which can take a lot of time and require additional dependencies.

Additional Renderers

By default, only femtovg(opengl) and software renderer are enabled, but you can enable more renderers by compiling app with additional features.

Most of the users will want to use app with windowing system/compositor, so features starting with winit in name are recommended.

E.g.

cargo build --release --features "winit_skia_opengl"
cargo build --release --features "winit_software"

to run app with different renderers you need to use it, by adding SLINT_BACKEND environment

SLINT_BACKEND=winit-femtovg ./target/release/krokiet
SLINT_BACKEND=software ./target/release/krokiet
SLINT_BACKEND=skia ./target/release/krokiet # This uses now opengl - https://github.com/slint-ui/slint/discussions/3799

when you will use invalid/non-existing backend, app will show warning

slint winit: unrecognized renderer skia, falling back to FemtoVG

to check what is really used, add SLINT_DEBUG_PERFORMANCE=refresh_lazy,console,overlay env

SLINT_DEBUG_PERFORMANCE=refresh_lazy,console,overlay cargo run

should print something like

Slint: Build config: debug; Backend: software

Different theme

App was created with dark fluent theme in mind, but is possible to use light theme by setting SLINT_STYLE environment variable to fluent-light during compilation e.g.

SLINT_STYLE=fluent-light cargo run -- --path .

Slint supports also other themes, but they are not officially supported by this app and may be broken(but looks that cupertino looks quite good with current style).

SLINT_STYLE=cupertino-light cargo run -- --path .
SLINT_STYLE=cupertino-dark cargo run -- --path .
SLINT_STYLE=material-light cargo run -- --path .
SLINT_STYLE=material-dark cargo run -- --path .

How to help?

  • Suggesting possible design changes in the gui - of course, they should be possible to be simply implemented in the slint keeping in mind the performance aspect as well
  • Modifying user interface - gui is written in simple language similar to qml, that can be modified in vscode/web with live preview - slint live preview example
  • Improving app rust code

Why Slint?

There are multiple reasons why I decided to use Slint as toolkit for Krokiet over other toolkits.

Toolkit Pros Cons
Gtk 4 - Good Linux support
- Cambalache can be used to create graphically gui
- Good gtk4-rs bindings(but sometimes not really intuitive)
- Hard compilation/cross compilation and bundling all required libraries - mostly on windows
- Forcing the use of a specific gui creation style
- Strange crashes, not working basic features, etc.(again, mostly on windows)
- Forcing to use bugged/outdated but dynamically loaded version of libraries on linux (e.g. 4.6 on Ubuntu 22.04) - not all fixes are backported
Qt - QML support - simplify creating of gui from code it is easy to use and powerful
- Very flexible framework
- Typescript/javascript <=> qml interoperability
- Probably the most mature GUI library
- New and limited qt bindings
- Hard to cross-compile
- Very easy to create and use invalid state in QML(unexpected null/undefined values, messed properties bindings etc.)
- Commercial license or GPL
Slint - Internal language is compiled to native code
- Live gui preview with Vscode/Vscodium without needing to use rust
- Full rust solution - easy to compile/cross compile, minimal runtime requirements
- Static type checks in slint files
- Internal .slint language is more limited than QML
- Out of bounds and similar errors are quietly being corrected instead printing error - this can lead to hard to debug problems
- Only GPL is only available open-source license
- Popup windows almost not exists
- Internal widgets are almost not customizable and usually quite limited
Iced - ~100% rust code - so compilation is simple
- Elm architecture - simple to understand
- Mostly maintained by one person - slows down fixing bugs and implementing new features
- GUI can be created only from rust code, which really is bad for creating complex GUIs(mostly due rust compile times)
- Docs are almost non-existent
Tauri - Easy to create ui(at least for web developers) - uses html/css/js
- Quite portable
- Webview dependency - it is not really lightweight and can be hard to compile on some platforms and on Linux e.g. webRTC not working
- Cannot select directory - file chooser only can choose files - small thing but important for me
- Not very performant Rust <=> Javascript communication (less problematic with Tauri 2 )

Since I don't have time to create really complex and good looking GUI, I needed a helper tool to create GUI not from Rust(I don't want to use different language, because this will make communication with czkawka_core harder) so I decided to not look at Iced which only allows to create GUI from Rust.

GTK and QT also I throw away due cross compilation problems caused mostly by using C/C++ internally. Using GTK in Czkawka was a reason why I started to find other toolkits.

Tauri - I don't really like to use Javascript because I already used it with Qt(C++) + QML + Typescript combination and I found that creating ui in such language may be simple at start but later any bigger changes cause a lot of runtime errors.

So only Slint left with its cons and pros.

License

Code is licensed under MIT license but entire project is licensed under GPL-3.0 license, due Slint license restrictions.

Name

Why Krokiet(eng. Croquette)?
Because I like croquettes(Polish version), the ones with meat, mushrooms wrapped in breadcrumbs... it makes my mouth water.
I considered also other dishes which I like to eat like pierogi, żurek, pączek, schabowy or zapiekanka.
This name should be a lot of easier to remember than czkawka or szyszka.
