Customizable Performance/Debug Overlay for Bevy UI

Sponsor me:

GitHub Sponsors

Bevy Compatibility:

This crate provides an implementation of an in-game performance/debug UI overlay for the Bevy game engine.

The goal of this crate is to make it as useful as possible for any Bevy project:

• Made with Bevy UI (not egui or any other 3rd-party UI solution)

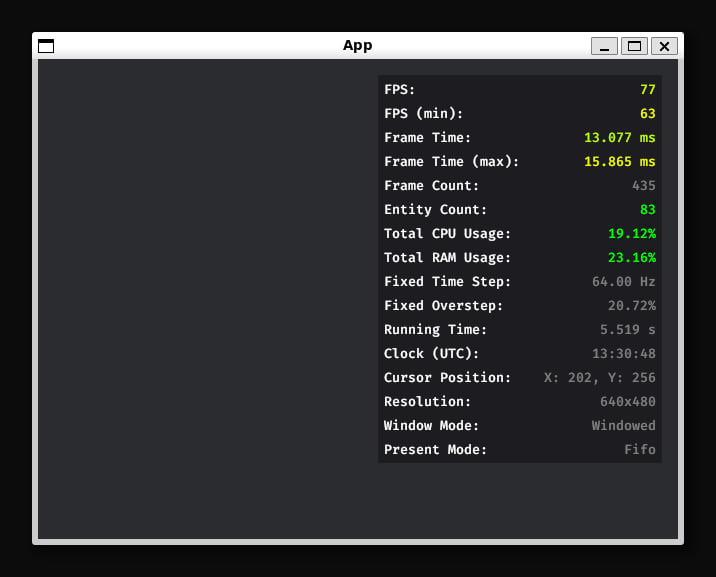

• Easy to set up (see simple example)
• Modular! You decide what info you want to display!
  • Choose any combination of predefined entries (see specific_entries example):
    • Framerate (FPS), Frame Time, Frame Count, ECS Entity Count, CPU Usage, RAM Usage, Wall Clock, Running Time, Fixed Time Step, Fixed Overstep, Cursor Position, Window Resolution, Window Scale Factor, Window Mode, Present Mode
  • Implement your own custom entries to display anything you like!
    • (see custom_minimal and custom examples)

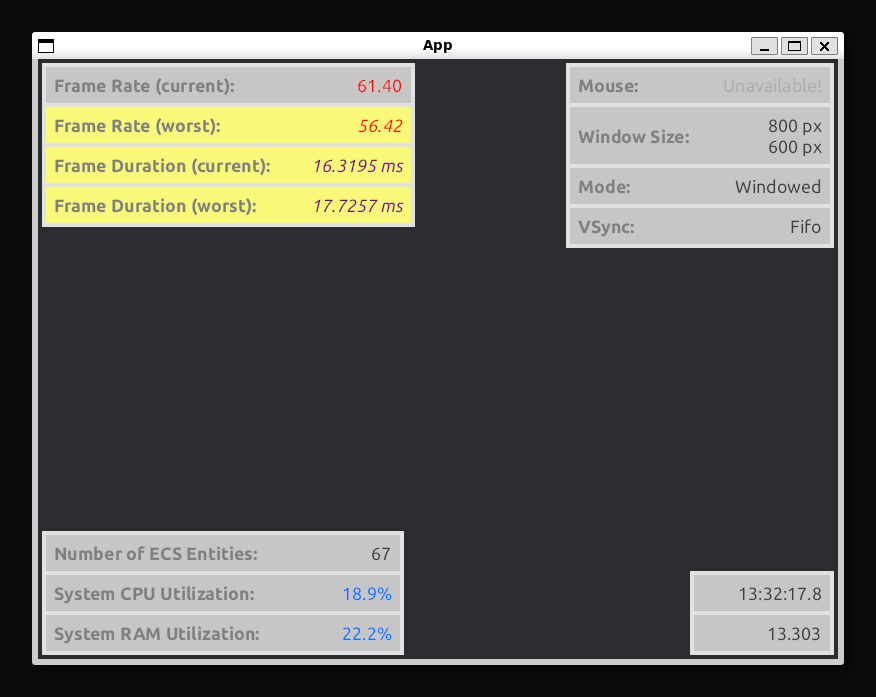

• Customizable appearance/styling (see settings, fps_minimalist examples)
• Support for highlighting values using a custom font or color!
  • Allows you to quickly notice if something demands your attention.

Spawning a Perf UI can be as simple as:

commands.spawn(PerfUiBundle::default());

This creates a Perf UI with a curated selection of entries, which are in my opinion the most useful out of everything provided in this crate.

If you want a UI with all the available entries (not recommended due to performance overhead):

commands.spawn(PerfUiCompleteBundle::default());

If you want to create a Perf UI with specific entries of your choice, just spawn an entity with PerfUiRoot + your desired entries, instead of using the above bundles.

commands.spawn((
   PerfUiRoot::default(),
   PerfUiEntryFPS::default(),
   PerfUiEntryClock::default(),
   // ...
));

There are also some bundles to help you add some common groups of entries:

commands.spawn((
   PerfUiRoot::default(),
   // Contains everything related to FPS and frame time
   PerfUiFramerateEntries::default(),
   // Contains everything related to the window and cursor
   PerfUiWindowEntries::default(),
   // Contains everything related to system diagnostics (CPU, RAM)
   PerfUiSystemEntries::default(),
   // Contains everything related to fixed timestep
   PerfUiFixedTimeEntries::default(),
   // ...
));

If you want to customize the appearance, set the various fields in each of the structs, instead of using default().

Fancy Widgets

It is possible to visualize the value in other ways, not just display it as text.

iyes_perf_ui currently provides one such widget implementation: Bar. To use it, wrap your entries in PerfUiWidgetBar.

For example, to display FPS as a Bar:

commands.spawn((
   PerfUiRoot::default(),
   PerfUiWidgetBar::new(PerfUiEntryFPS::default()),
   // ...
));

If you want to create your own custom widgets, have a look at implementing the PerfUiWidget trait.

Performance Warning!

This crate is somewhere in-between "a useful diagnostic/dev tool" and "a tech demo".

Unfortunately, it does introduce significant overhead to your app, especially if you spawn a "complete" UI with lots of entries/widgets.

Please keep this in mind: your game will run faster when you don't have a Perf UI spawned. Silver lining: If your performance seems good with the Perf UI, it will be even better without. ;)

To make it more representative of your actual performance, consider spawning a more minimal Perf UI with just a few entries that are most useful to you (for example: fps, frame time), instead of a "complete" UI.

I know it is ironic that a tool intended to help you measure your performance ends up significantly degrading your performance. I am thinking about ways to reduce the overhead.

From my own measurements, most of the overhead comes from bevy_ui's layout system struggling to update the complex layout of the Perf UI, not from any of the actual code in iyes_perf_ui. So, to improve perfomance, I will need to come up with a way to simplify the UI and make it easier for Bevy to process. Or Bevy will have to get better at UI layout. ;)
