Few Word Do Trick (fwdt)

Few Word Do Trick (fwdt) is a cross-platform general purpose fast logger for humans that supports incomplete csvs for a better data entry experience.

alternate text


Two Laws Of Human Data Entry

First Law: To prevent data entry errors, never enter data.

Second Law: When First Law is not possible only enter changes.


alternate text

Personal Anecdote

Data entry by humans is error prone. I know this from first hand experience. Though I do not have the evidence in front of me I assume that the average person can't generate flawless entries especially as the number of those entries increase to larger numbers.

Recently I stumbled across a ham radio data logger fle. It is a domain specific language (DSL) which allows data entry with minimal repetition. This command line utility is similar in spirit, but does not invent its own Amature Radio specific DSL. It uses incomplete csv files as the data input and outputs complete csv files.

Getting Started

The command used to go from a fl file to a csv file, which is comma separated, is:

# get the data
wget https://raw.githubusercontent.com/alexhallam/fwdt/main/test/data/radio_log_small.csv
# output the imputed csv file
fwdt -s, test/data/radio_log_small.csv

The output is

date,group,mycall,operator,received,sent,freq,time,call
2022-08-08,cw,wq8R,wq8R,599,599,7.2230,1107,qr3e
2022-08-08,cw,wq8R,wq8R,599,599,7.2230,1113,kn6h
2022-08-08,cw,wq8R,wq8R,599,599,7.2230,1127,ae0bc
2022-08-08,cw,wq8R,wq8R,599,599,7.2230,1207,ae4bc
2022-08-08,cw,wq8R,wq8R,599,599,14.223,1207,qr3e
2022-08-08,cw,wq8R,wq8R,599,599,14.223,1213,kn6h
2022-08-08,cw,wq8R,wq8R,599,599,14.223,1217,a8rat
2022-08-08,cw,wq8R,wq8R,599,599,14.223,1217,ko7rqq

Automatic Updates

I prefer immediate feedback. It is possible to pipe the output of fwdt to tidy-viewer. If entr is used then previews of data changes can be made each time the file is saved!

alternate text

find . | entr sh -c 'fwdt -s, radio_log_small.csv | tidy-viewer'

Details

Assume a user has the final dataset in mind. Using wc -m The character count is 453.

        date       group mycall operator received sent freq    time call
     1  2022-08-08 cw    wq8R   wq8R     599      599   7.2230 1107 qr3e
     2  2022-08-08 cw    wq8R   wq8R     599      599   7.2230 1113 kn6h
     3  2022-08-08 cw    wq8R   wq8R     599      599   7.2230 1127 ae0bc
     4  2022-08-08 cw    wq8R   wq8R     599      599   7.2230 1207 ae4bc
     5  2022-08-08 cw    wq8R   wq8R     599      599  14.223  1207 qr3e
     6  2022-08-08 cw    wq8R   wq8R     599      599  14.223  1213 kn6h
     7  2022-08-08 cw    wq8R   wq8R     599      599  14.223  1217 a2rat
     8  2022-08-08 cw    wq8R   wq8R     599      599  14.223  1217 ko7rqq

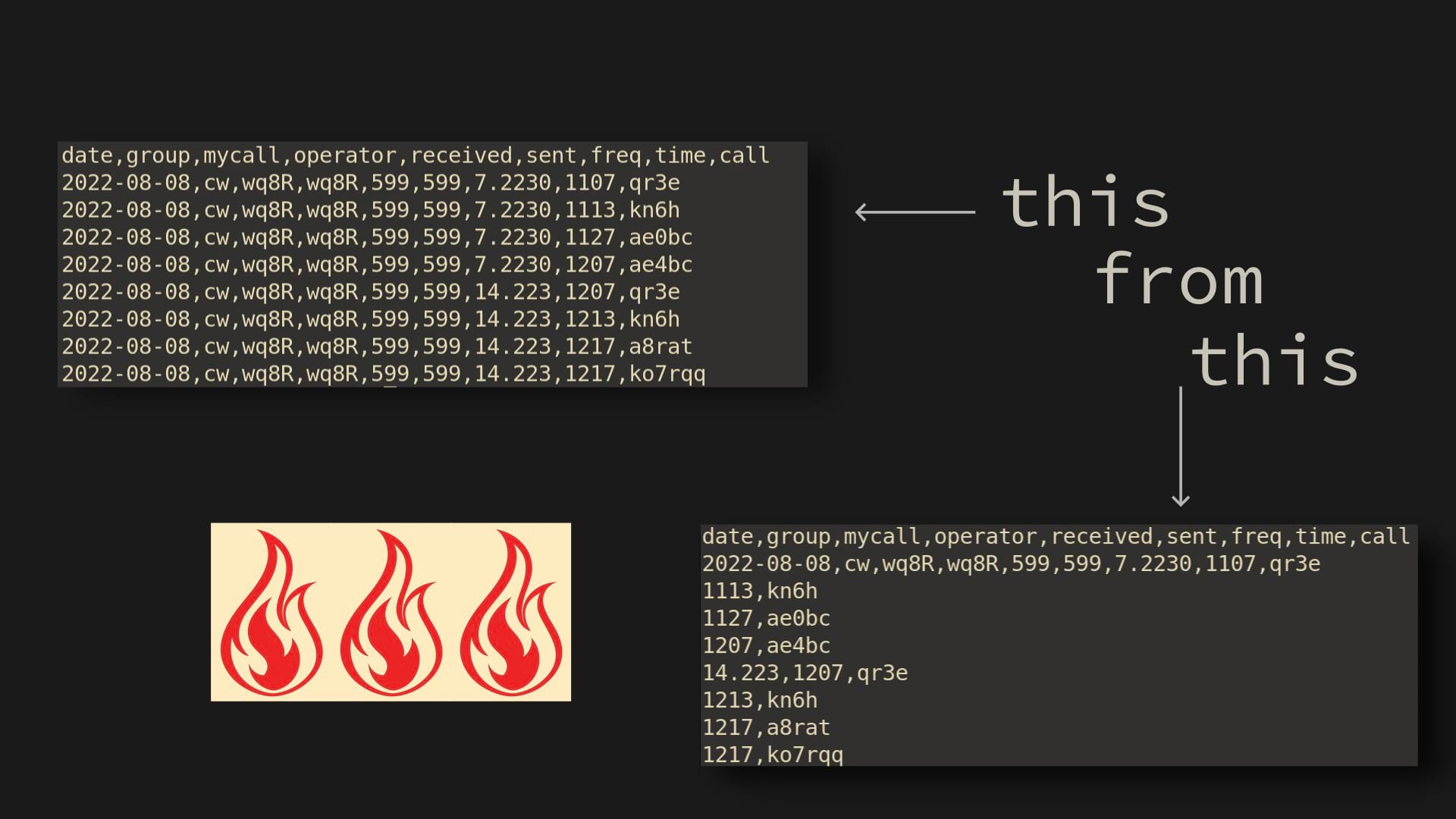

If a user erases the repetitive data, the character count may be reduced to 187. The only data the user must enter is shown below. I will refer to these incomplete csv files as fast logged (fl) files.

date,group,mycall,operator,received,sent,freq,time,call
2022-08-08,cw,wq8R,wq8R,599,599,7.2230,1107,qr3e
1113,kn6h
1127,ae0bc
1207,ae4bc
14.223,1207,qr3e
1213,kn6h
1217,a8rat
1217,ko7rqq

If this were mapped to the original formatting it would be easier to see what was erased.

        date       group mycall operator received sent freq  time call
     1  2022-08-08 cw    wq8R   wq8R     599      599   7.22 1107 qr3e
     2  NA         NA    NA     NA       NA       NA   NA    1113 kn6h
     3  NA         NA    NA     NA       NA       NA   NA    1127 ae0bc
     4  NA         NA    NA     NA       NA       NA   NA    1207 ae4bc
     5  NA         NA    NA     NA       NA       NA   14.2  1207 qr3e
     6  NA         NA    NA     NA       NA       NA   NA    1213 kn6h
     7  NA         NA    NA     NA       NA       NA   NA    1217 a8rat
     8  NA         NA    NA     NA       NA       NA   NA    1217 ko7rqq

How to make a valid fast log file

The rules are very simple.

  1. The first two lines (column headers and the first line of data) must be complete. The first line of data is the "mother line". This is the base for future recursive data imputation when data is not present.
  2. All subsequent lines are replaced by the right most column. (Put columns that change the most frequently to the right).

Install

cargo install fwdt

Scorch

How do I know when to use fl files over csv?

Scorch is defined as [1 - (fl_word_count/csv_word_count)]. Using the example at the top of the page fl_word_count=187 and csv_word_count=453, so 1 - (187/453) ~ 59%. This is an uncommonly high scorch. It represents the percent of text saved by using a fl file over a complete csv. Even if scorch is smaller, 5%, that is still 5% that will not have to entered by hand thus will be error free.

Help

fwdt 0.1.0
📝🔥 Few Word Do Trick (fwdt) is a fast data logger 📝🔥

    Example Usage:
    fwdt -s, data.csv

USAGE:
    fwdt [FLAGS] [OPTIONS] [FILE]

FLAGS:
    -d, --debug-mode    Print object details to make it easier for the maintainer to find and resolve bugs.
    -h, --help          Prints help information
    -V, --version       Prints version information

OPTIONS:
    -s, --delimiter <delimiter>    The delimiter separating the columns. Example #1 `fwdt -s ' '
                                   test/data/power_lift.csv`. Example #2 `fwdt -s, test/data/radio_log_small.csv`

ARGS:
    <FILE>    Data file to process
