CloudMapper: Open-source tool to map and visualize your cloud storage landscape.

MIT License Crates.io Repository Downloads

WinDirStat for the cloud - Understand your scattered cloud storage at a glance

[!IMPORTANT] CloudMapper operates in a read-only manner regarding your cloud storage. It does not have direct access to your cloud storage providers. All interactions with your cloud services are performed by invoking the rclone command-line tool. CloudMapper cannot write to, delete from, or modify your cloud storage in any way. Its operations are limited to listing files/folders and querying storage usage information via rclone. Any report suggesting potential savings (e.g., from duplicates) is for informational purposes only; actions to modify cloud data must be taken by you, typically using rclone or your cloud provider's interface directly.

CloudMapper is a command-line utility designed to help you understand and Analyse your cloud storage. It uses rclone to interface with various cloud storage providers, gathers information about your files and their structure, and then generates several insightful reports, including:

  • A detailed text tree view of your files and folders (for Single/Remotes modes) or a mirrored local directory structure with placeholders for the actual files (for Folders mode).
  • A report on duplicate files (based on hashes).
  • A summary of file extensions and their storage consumption.
  • A size usage report per remote and overall.
  • A report listing the N largest files found across all remotes.
  • An interactive HTML treemap visualization of your storage.
  • Simple installation (cargo install cloudmapper) or see Installation for more options.

Example Output

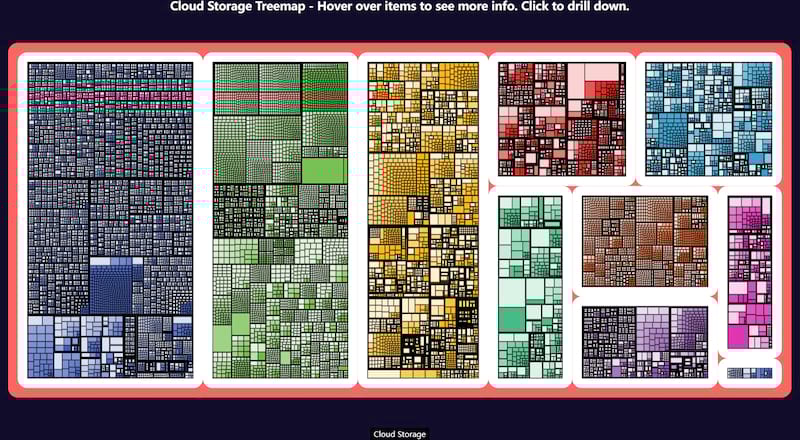

treemap.html: (For an similar, interactive example, click here)

Treemap

files.txt (In Single mode, or the content file like _MyRemote files.txt in Remotes mode, or the content file within each directory in Folders mode):

☁️ my-gdrive: 15.21 GiB
  📁 Documents 💽 5.1 GiB 📆 2023-10-26T10:00:00Z
    📄 report.docx 💽 1.2 MiB 📆 2023-10-25T09:00:00Z
    📁 Old Reports 💽 4.8 GiB 📆 2023-01-10T15:30:00Z
      📄 old_report_2022.pdf 💽 10.5 MiB 📆 2023-01-09T11:00:00Z
      ...
  📁 Photos 💽 10.11 GiB 📆 2023-10-27T11:00:00Z
    📄 IMG_0001.JPG 💽 4.5 MiB 📆 2023-09-01T14:00:00Z
    ...

duplicates.txt:

Total size occupied by all files identified as duplicates: 2.5 GiB
Found 5 sets of files with matching hashes.
Total potential disk space saving by removing duplicates (keeping one copy of each): 1.5 GiB

Duplicates found with size: 1 GiB (2 files, potential saving: 1 GiB)
  - my-gdrive:backups/archive.zip
  - my-s3:important-backups/archive.zip
  Matching Hashes: SHA-1: abc..., MD5: def...

Duplicates found with size: 500 MiB (3 files, potential saving: 1 GiB)
  - my-dropbox:shared/project_data.dat
  - my-gdrive:project_x/data/project_data.dat
  - my-onedrive:archive/project_data.dat
  Matching Hashes: SHA-256: 123..., QuickXorHash: 456...
...

extensions.txt:

Total Files Found: 12345 (Total Size: 55.8 GiB)
-------------------------------------
Extension       |      Total Size |   File Count |  % Size |  % Count
--------------------------------------------------------------------
.mkv            |       25.2 GiB |          150 |  45.16% |   1.22%
.zip            |       10.1 GiB |         1200 |  18.10% |   9.72%
.jpg            |        8.5 GiB |         8500 |  15.23% |  68.85%
.pdf            |        2.0 GiB |          500 |   3.58% |   4.05%
[no extension]  |      500.0 MiB |           25 |   0.88% |   0.20%
...

largest_files.txt:

Top 100 Largest Files (across all remotes):
----------------------------------------------------------------------
Rank  |            Size | Path (Service:File)
----------------------------------------------------------------------
1     |       12.5 GiB | my-gdrive:videos/archive/holiday_movie_compilation.mkv
2     |        8.2 GiB | my-s3:backups-large/vm_image_backup.vmdk
3     |        5.0 GiB | my-onedrive:iso_files/linux_distro_latest.iso
...

Features

  • Comprehensive Analysis: Leverages rclone lsjson and rclone about for detailed data.
  • Multiple Output Modes:
    • single: A single text file for all remotes.
    • remotes: One text file per remote.
    • folders: A local directory structure mirroring your remotes, with placeholders for the actual files.
  • Insightful Reports:
    • File/Folder tree structure with sizes and modification dates.
    • Duplicate file detection across remotes.
    • File extension statistics (count, total size, percentages).
    • List of N largest files across all remotes.
    • Overall and per-remote size usage.
    • rclone about summary.
  • Interactive Visualization: Generates an HTML treemap using ECharts for a visual overview of storage distribution.
  • Configurable: Control which reports are generated, rclone path, config file, and output location.
  • Parallel Processing: Utilizes Rayon for faster processing of multiple remotes.

Prerequisites

  • rclone: rclone must be installed and configured with the remotes you want to Analyse. CloudMapper will attempt to use rclone from your system's PATH, or you can specify a path to the executable.
  • Rust (for building from source or installing via Cargo): Ensure you have Rust installed. You can get it from rustup.rs.

Installation

There are several ways to install CloudMapper:

If you have Rust and Cargo installed, you can install CloudMapper directly from crates.io:

cargo install cloudmapper

This will download the source, compile it, and install the cloudmapper binary in your Cargo binary directory (e.g., ~/.cargo/bin/). Ensure this directory is in your system's PATH.

2. From GitHub Releases (Pre-compiled binaries)

Pre-compiled binaries for common platforms (Linux, macOS, Windows) are available on the GitHub Releases page.

  1. Go to the Releases page.
  2. Download the appropriate release for your operating system and architecture
  3. (Optional but recommended) Move the executable to a directory in your system's PATH for easier access (e.g., ~/.local/bin/ on Linux/macOS, or a custom directory on Windows that you've added to PATH).

3. Building from Source

If you prefer to build from the latest source code or make modifications:

  1. Clone the repository:

    git clone https://github.com/tesserato/CloudMapper.git
    cd CloudMapper

  2. Build the project:

    cargo build --release


    The executable will be located at target/release/cloudmapper (or target\release\cloudmapper.exe on Windows).

  3. (Optional) Add to PATH: You can copy the built executable to a directory in your system's PATH.

Usage

Once installed, you can run CloudMapper from your terminal:

cloudmapper [OPTIONS]

Common Options:

  • -r, --rclone-path <RCLONE_PATH>: Path to a specific rclone executable.
  • -c, --rclone-config <RCLONE_CONFIG>: Path to a specific rclone configuration file.
  • -o, --output-path <OUTPUT_PATH>: Directory for generated reports (default: ./cloud).
  • -m, --output-mode <OUTPUT_MODE>: Output structure for the file list report (single, remotes, folders; default: folders).
  • -d, --duplicates <true|false>: Enable duplicate file report (default: true).
  • -e, --extensions-report <true|false>: Enable file extensions report (default: true).
  • -a, --about-report <true|false>: Enable 'rclone about' report (default: true).
  • -l, --largest-files <COUNT>: Number of largest files to report (default: 100, 0 to disable).
  • -t, --html-treemap <true|false>: Enable HTML treemap report (default: true).
  • -k, --clean-output <true|false>: Clean output directory before generating reports (default: true).
  • --help: Show help message.
  • --version: Show version information.

Example:

# Analyse all configured rclone remotes and save reports to the default './cloud' directory
cloudmapper

# Analyse remotes, save to a custom directory, and only generate the treemap and size reports
cloudmapper -o ./my_cloud_analysis --duplicates false --extensions-report false --about-report false

# Use a specific rclone binary and config, output in single file mode
cloudmapper --rclone-path /opt/rclone/rclone --rclone-config ~/.config/rclone/rclone.conf -m single

For detailed options, run cloudmapper --help.

Reports Generated

By default, CloudMapper generates the following files in the specified output directory (e.g., ./cloud/):

  • File Structure Report(s):
    • files.txt (in Single mode, and as the content summary file within each directory in Folders mode. For Folders mode, if a service has root-level files, they will be listed in a files.txt within the output_dir/<service_name>/ directory.)
    • _<RemoteName> files.txt (in Remotes mode, one per remote)
  • duplicates.txt: Lists files with identical hashes.
  • extensions.txt: Summarizes file counts and total sizes per extension.
  • largest_files.txt: Lists the N largest files found, with their sizes and paths.
  • size_used.txt: Reports calculated total size per remote and grand total.
  • about.txt: Summarizes storage usage from rclone about.
  • treemap.html: An interactive HTML treemap visualization.

License

This project is licensed under the MIT License. See the LICENSE file for details.

Contributing

Contributions are welcome! Please feel free to submit issues, fork the repository and send pull requests.
