Bevy Card3d Kit

Notes: 项目实验性内容，版本更新较快。不分特新不兼容。

使用方法

基本卡片渲染

1. 引入插件

fn main() {
    App::new()
        .add_plugins((
            DefaultPlugins,
            // 添加这个插件
            Card3DPlugins))
        // .add_plugins(WorldInspectorPlugin::new())
        .add_systems(Startup, setup)
        .add_systems(Update, rotate_entities)
        .run();
}

2. 建立数据类型 并实现正反面的方法

#[derive(Component, Clone)]
pub struct CardInfo {
    pub name: String,
}

impl CardMaterialGetter for CardInfo {
    fn get_face_mal(
        &self,
        materials: &mut ResMut<Assets<StandardMaterial>>,
        asset_server: &Res<AssetServer>,
    ) -> Handle<StandardMaterial> {
        materials.add(StandardMaterial {
            base_color: Color::WHITE,
            unlit: true,
            base_color_texture: Some(asset_server.load(format!("cards/{}.png", self.name))),
            alpha_mode: AlphaMode::Blend,
            ..Default::default()
        })
    }

    fn get_back_mal(
        &self,
        materials: &mut ResMut<Assets<StandardMaterial>>,
        asset_server: &Res<AssetServer>,
    ) -> Handle<StandardMaterial> {
        materials.add(StandardMaterial {
            base_color: Color::WHITE,
            unlit: true,
            base_color_texture: Some(asset_server.load(format!("cards/{}.png", "back"))),
            alpha_mode: AlphaMode::Blend,
            ..Default::default()
        })
    }
}


pub struct SimplePlugin;

impl Plugin for SimplePlugin {
    fn build(&self, app: &mut App) {
        bind_card_render::<CardInfo>(app);
    }
}

3. 之后即可使用

fn setup(mut commands: Commands) {
    // 相机
    commands.spawn((
        SharkCamera,
        Camera3d::default(),
        Transform::from_xyz(0., 0., 15.).looking_at(Vec3::ZERO, Vec3::Y),
    ));

    // 光源
    commands.spawn((
        PointLight {
            shadows_enabled: true,
            ..default()
        },
        Transform::from_xyz(0.0, 0.0, 10.0),
    ));
    commands.spawn((
        Rotating,
        CardInfo {
            name: "NAAI-A-001".to_string(),
        },
        Card {
            origin: Transform::from_xyz(0.0, 0.0, HAND_CARD_LEVEL),
        },
    ));
}

使用手牌

使用 CardLine组件创建手牌线实体 然后再手牌上挂载HandCard实体

fn setup(mut commands: Commands) {
    // 相机
    commands.spawn((
        SharkCamera,
        Camera3d::default(),
        Transform::from_xyz(0., 0., 25.).looking_at(Vec3::ZERO, Vec3::Y),
    ));

    // 光源
    commands.spawn((
        PointLight {
            shadows_enabled: true,
            ..default()
        },
        Transform::from_xyz(0.0, 0.0, 10.0),
    ));
    let card_list = [
        "NAAI-A-001",
        "NAAI-A-001",
        "NAAI-A-001",
        "S001-A-001",
        "S001-A-001",
        // "S001-A-001",
    ];
    let card_line_entity = commands
        .spawn(CardLine {
            transform: Transform::from_xyz(0.0, -6.7, HAND_CARD_LEVEL),
            card_list: vec![],
        })
        .id();

    // 加载手卡
    card_list.iter().for_each(|name| {
        commands.spawn((
            Card {
                origin: Transform::default(),
            },
            CardInfo {
                name: name.to_string(),
            },
            Moveable,
            HandCard {
                belong_to_card_line: Some(card_line_entity),
            },
        ));
    });
}

场地

定义一个场地类型

#[derive(Clone, Debug, Component)]
enum CardZone {
    TypeA,
    TypeB,
}

impl ZoneMaterialGetter for CardZone {
    fn get_mal(
        &self,
        materials: &mut ResMut<Assets<StandardMaterial>>,
        _asset_server: &Res<AssetServer>,
    ) -> Handle<StandardMaterial> {
        match self {
            CardZone::TypeA => materials.add(Color::BLACK),
            CardZone::TypeB => materials.add(Color::WHITE),
        }
    }
}

bind 类型到渲染插件中

fn main() {
    App::new()
        .add_plugins((DefaultPlugins, Card3DPlugins))
        // .add_plugins(WorldInspectorPlugin::new())
        .add_systems(Startup, setup)
        .add_plugins(|app: &mut App| {
            ///!!!!!! 这里！
            bind_zone_render::<CardZone>(app);
        })
        .run();
}

之后直接只用Zone组件和 我们新电影的组件CardZone即可

/// 行数 列数 和 正方形的宽 生成列表
fn render_gen_zone_render(commands: &mut Commands, row: usize, col: usize, a: f32) {
    for r in 0..row {
        for c in 0..col {
            let center = Transform::from_xyz(
                c as f32 * a - (col - 1) as f32 * a / 2.0,
                r as f32 * a - (row - 1) as f32 * a / 2.0,
                0.0,
            );
            commands.spawn((
                Zone {
                    // 位置
                    center,
                    // 大小
                    size: Vec2::new(a, a),
                },
                if ((r + c * a.floor() as usize) % 2) == 0 {
                    CardZone::TypeB
                } else {
                    CardZone::TypeA
                },
            ));
        }
    }
}

示例

simple.rs

https://github.com/user-attachments/assets/892158c5-2788-4906-a22a-7fca0f820ec9

hand_card.rs

https://github.com/user-attachments/assets/124294e4-1d45-40a7-8c49-8dcf29eaf198

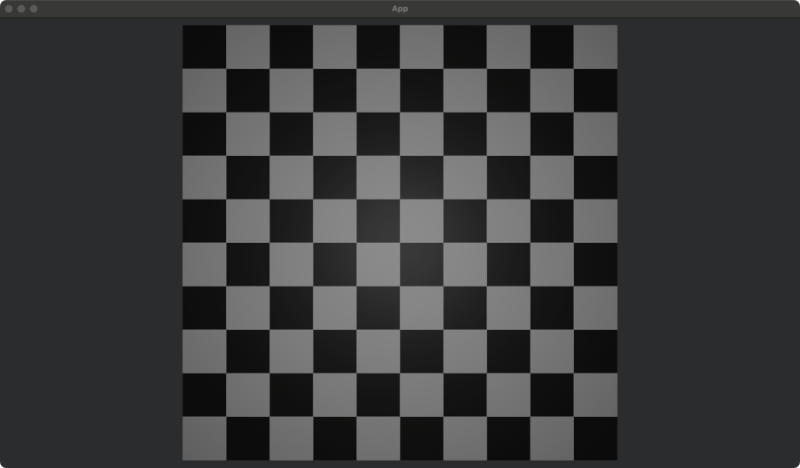

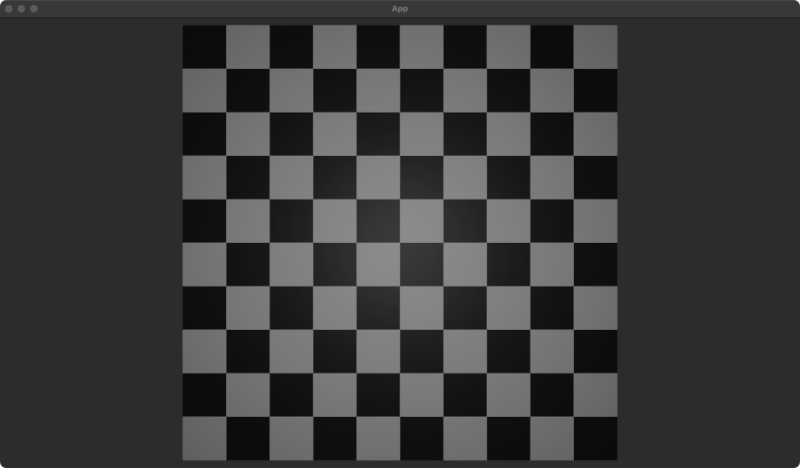

zone.rs

card_on_zone.rs 简单的实例 拖拽到不同的位置进行不同的处理。

https://github.com/user-attachments/assets/4490abbf-29ee-4af9-824a-74af213052c3

版本

鸣谢

感谢 Wechat群Bevy引擎学习交流 感谢 Rabbival 和它的仓库 bevy_play_card 如果你要开发2d的卡片游戏可以参考他的项目 https://github.com/Rabbival/bevy_play_card

Change Log

• 0.1.2
• featrue 支撑HandCard的数据驱动
• 新增了Desk相关代码【实验性】
• Fix 手牌更新位置时bug
• 0.1.1
• featrue Card 和 Zone 数据驱动
• 0.1.0 Init
