axum-tracing-opentelemetry

Middlewares and tools to integrate axum + tracing + opentelemetry.

• Read OpenTelemetry header from incoming request
• Start a new trace if no trace found in the incoming request
• Trace is attached into tracing'span

For examples, you can look at:

• the examples folder
• davidB/sandbox_axum_observability: Sandbox to experiment axum and observability. This example shows also propagation of the trace between tracing span and service (via reqwest).

//...
use axum_tracing_opentelemetry::opentelemetry_tracing_layer;

#[tokio::main]
async fn main() -> Result<(), axum::BoxError> {
    // very opinionated init of tracing, look as is source to make your own
    axum_tracing_opentelemetry::tracing_subscriber_ext::init_subscribers()?;

    let app = app();
    // run it
    let addr = &"0.0.0.0:3000".parse::<SocketAddr>()?;
    tracing::warn!("listening on {}", addr);
    axum::Server::bind(&addr)
        .serve(app.into_make_service())
        .with_graceful_shutdown(shutdown_signal())
        .await?;
    Ok(())
}

fn app() -> Router {
    // build our application with a route
    Router::new()
        .route("/", get(health)) // request processed inside span
        // opentelemetry_tracing_layer setup `TraceLayer`, that is provided by tower-http so you have to add that as a dependency.
        .layer(opentelemetry_tracing_layer())
        .route("/health", get(health)) // request processed without span / trace
}

async fn shutdown_signal() {
    //...
    opentelemetry::global::shutdown_tracer_provider();
}

To configure opentelemetry tracer & tracing, you can use function fom axum_tracing_opentelemetry::tracing_subscriber_ext, but they are very opinionated (and WIP to make them more customizable and friendly), so we recommend to make your own composition, but look at the code (to avoid some issue) and share your feedback.

pub fn build_loglevel_filter_layer() -> tracing_subscriber::filter::EnvFilter {
    // filter what is output on log (fmt)
    // std::env::set_var("RUST_LOG", "warn,axum_tracing_opentelemetry=info,otel=debug");
    std::env::set_var(
        "RUST_LOG",
        format!(
            // `axum_tracing_opentelemetry` should be a level info to emit opentelemetry trace & span
            // `otel::setup` set to debug to log detected resources, configuration read and infered
            "{},axum_tracing_opentelemetry=info,otel=debug",
            std::env::var("RUST_LOG")
                .or_else(|_| std::env::var("OTEL_LOG_LEVEL"))
                .unwrap_or_else(|_| "info".to_string())
        ),
    );
    EnvFilter::from_default_env()
}

pub fn build_otel_layer<S>() -> Result<OpenTelemetryLayer<S, Tracer>, BoxError>
where
    S: Subscriber + for<'a> LookupSpan<'a>,
{
    use crate::{
        init_propagator, //stdio,
        otlp,
        resource::DetectResource,
    };
    let otel_rsrc = DetectResource::default()
        //.with_fallback_service_name(env!("CARGO_PKG_NAME"))
        //.with_fallback_service_version(env!("CARGO_PKG_VERSION"))
        .build();
    let otel_tracer = otlp::init_tracer(otel_rsrc, otlp::identity)?;
    // to not send trace somewhere, but continue to create and propagate,...
    // then send them to `axum_tracing_opentelemetry::stdio::WriteNoWhere::default()`
    // or to `std::io::stdout()` to print
    //
    // let otel_tracer =
    //     stdio::init_tracer(otel_rsrc, stdio::identity, stdio::WriteNoWhere::default())?;
    init_propagator()?;
    Ok(tracing_opentelemetry::layer().with_tracer(otel_tracer))
}

To retrieve the current trace_id (eg to add it into error message (as header or attributes))

  let trace_id = axum_tracing_opentelemetry::find_current_trace_id();
  json!({ "error" :  "xxxxxx", "trace_id": trace_id})

To also inject the trace id into the response (could be useful for debugging) uses the layer response_with_trace_layer

    // build our application with a route
    Router::new()
        ...
        // include trace context as header into the response
        .layer(response_with_trace_layer())

Configuration based on environment variable

To ease setup and compliancy with Opentelemetry SDK configuration, the configuration can be done with the following environment variables (see sample init_tracing() above):

• OTEL_EXPORTER_OTLP_TRACES_ENDPOINT fallback to OTEL_EXPORTER_OTLP_ENDPOINT for the url of the exporter / collector
• OTEL_EXPORTER_OTLP_TRACES_PROTOCOL fallback to OTEL_EXPORTER_OTLP_PROTOCOL, fallback to auto-detection based on ENDPOINT port
• OTEL_SERVICE_NAME for the name of the service
• OTEL_PROPAGATORS for the configuration of propagator
• OTEL_TRACES_SAMPLER & OTEL_TRACES_SAMPLER_ARG for configuration of the sampler

In the context of kubernetes, the above environment variable can be injected by the Opentelemetry operator (via inject-sdk):

apiVersion: apps/v1
kind: Deployment
spec:
  template:
    metadata:
      annotations:
        # to inject environment variables only by opentelemetry-operator
        instrumentation.opentelemetry.io/inject-sdk: "opentelemetry-operator/instrumentation"
        instrumentation.opentelemetry.io/container-names: "app"
      containers:
        - name: app

Or if you don't setup inject-sdk, you can manually set the environment variable eg

apiVersion: apps/v1
kind: Deployment
spec:
  template:
    metadata:
      containers:
        - name: app
          env:
            - name: OTEL_SERVICE_NAME
              value: "app"
            - name: OTEL_EXPORTER_OTLP_PROTOCOL
              value: "grpc"
            # for otel collector in `deployment` mode, use the name of the service
            # - name: OTEL_EXPORTER_OTLP_ENDPOINT
            #   value: "http://opentelemetry-collector.opentelemetry-collector:4317"
            # for otel collector in sidecar mode (imply to deploy a sidecar CR per namespace)
            - name: OTEL_EXPORTER_OTLP_ENDPOINT
              value: "http://localhost:4317"
            # for `daemonset` mode: need to use the local daemonset (value interpolated by k8s: `$(...)`)
            # - name: OTEL_EXPORTER_OTLP_ENDPOINT
            #   value: "http://$(HOST_IP):4317"
            # - name: HOST_IP
            #   valueFrom:
            #     fieldRef:
            #       fieldPath: status.hostIP

examples/otlp

In a terminal, run

❯ cd examples/otlp
> # or direnv allow
❯ export OTEL_EXPORTER_OTLP_TRACES_ENDPOINT=http://localhost:4317
❯ export OTEL_TRACES_SAMPLER=always_on
❯ cargo run
warning: `axum-tracing-opentelemetry` (lib) generated 1 warning
   Compiling examples-otlp v0.1.0 (/home/david/src/github.com/davidB/axum-tracing-opentelemetry/examples/otlp)
    Finished dev [unoptimized + debuginfo] target(s) in 2.38s
      Running `/home/david/src/github.com/davidB/axum-tracing-opentelemetry/examples/target/debug/examples-otlp`
      0.000043962s  INFO axum_tracing_opentelemetry::tools::tracing_subscriber_ext: init logging & tracing
    at /home/david/src/github.com/davidB/axum-tracing-opentelemetry/src/tools/tracing_subscriber_ext.rs:82 on main

      0.000472423s DEBUG otel::resource: key: service.name, value: unknown_service
    at /home/david/src/github.com/davidB/axum-tracing-opentelemetry/src/tools/resource.rs:84 on main

     0.000213920s  INFO examples_otlp: try to call `curl -i http://127.0.0.1:3003/health` (with NO trace)
    at src/main.rs:72 on main
      0.000501468s DEBUG otel::resource: key: os.type, value: linux
    at /home/david/src/github.com/davidB/axum-tracing-opentelemetry/src/tools/resource.rs:84 on main

      0.000549097s DEBUG otel::setup: OTEL_EXPORTER_OTLP_TRACES_ENDPOINT: "http://localhost:4317"
    at /home/david/src/github.com/davidB/axum-tracing-opentelemetry/src/tools/otlp.rs:22 on main

      0.000570727s DEBUG otel::setup: OTEL_EXPORTER_OTLP_TRACES_PROTOCOL: "grpc"
    at /home/david/src/github.com/davidB/axum-tracing-opentelemetry/src/tools/otlp.rs:23 on main

      0.000623135s DEBUG otel::setup: OTEL_TRACES_SAMPLER: "always_on"
    at /home/david/src/github.com/davidB/axum-tracing-opentelemetry/src/tools/otlp.rs:80 on main

      0.000928215s DEBUG otel::setup: OTEL_PROPAGATORS: "tracecontext,baggage"
    at /home/david/src/github.com/davidB/axum-tracing-opentelemetry/src/tools/mod.rs:94 on main

      0.000190306s  WARN examples_otlp: listening on 0.0.0.0:3003
    at otlp/src/main.rs:15 on main

      0.000222566s  INFO examples_otlp: try to call `curl -i http://127.0.0.1:3003/` (with trace)
    at otlp/src/main.rs:16 on main

      0.000240970s  INFO examples_otlp: try to call `curl -i http://127.0.0.1:3003/heatlh` (with NO trace)
    at otlp/src/main.rs:17 on main
...

Into an other terminal, call the / (endpoint with opentelemetry_tracing_layer and response_with_trace_layer)

❯ curl -i http://127.0.0.1:3003/
HTTP/1.1 200 OK
content-type: application/json
content-length: 50
traceparent: 00-b2611246a58fd7ea623d2264c5a1e226-b2c9b811f2f424af-01
tracestate:
date: Wed, 28 Dec 2022 17:04:59 GMT

{"my_trace_id":"b2611246a58fd7ea623d2264c5a1e226"}

call the /health (endpoint with NO layer)

❯ curl -i http://127.0.0.1:3003/health
HTTP/1.1 200 OK
content-type: application/json
content-length: 15
date: Wed, 28 Dec 2022 17:14:07 GMT

{"status":"UP"}

For local dev / demo

To collect and visualize trace on local, one of the simplest solution:

# launch Jaeger with OpenTelemetry, Jaeger, Zipking,... mode.
# see https://www.jaegertracing.io/docs/1.41/getting-started/#all-in-one

# nerctl or docker or any container runner
nerdctl run --rm --name jaeger \
  -e COLLECTOR_ZIPKIN_HOST_PORT:9411 \
  -e COLLECTOR_OTLP_ENABLED:true \
  -p 6831:6831/udp \
  -p 6832:6832/udp \
  -p 5778:5778 \
  -p 16686:16686 \
  -p 4317:4317 \
  -p 4318:4318 \
  -p 14250:14250 \
  -p 14268:14268 \
  -p 14269:14269 \
  -p 9411:9411 \
  jaegertracing/all-in-one:1.41

open http://localhost:16686

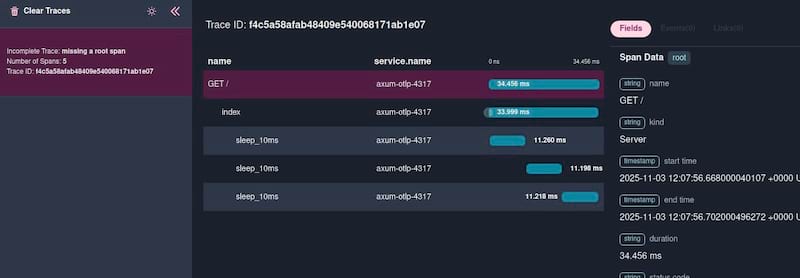

Then :

• setup env variable (or not), (eg see .envrc)
• launch your server
• send the request
• copy trace_id from log (or response header)
• paste into Jaeger web UI

Compatibility

Changelog - History

0.10

• 💥 default configuration for otlp Sampler is no longer hardcoded to always_on, but read environment variables OTEL_TRACES_SAMPLER, OTEL_TRACES_SAMPLER_ARG
• ✨ provide opinionated tracing_subscriber_ext
• ✨ log under target otel::setup detected configuration by otel setup tools
• ✨ add a axum layer for gRPC (#36) (wip)

0.9

• add DetectResource builder to help detection for Resource Semantic Conventions | OpenTelemetry

0.8

• add init_propagator to configure the global propagator based on content of the env variable OTEL_PROPAGATORS

0.7

• add a layerresponse_with_trace_layer to have traceparent injected into response
• improve discovery of otlp configuration based on OTEL_EXPORTER_OTLP_TRACES_ENDPOINT, OTEL_EXPORTER_OTLP_ENDPOINT, OTEL_EXPORTER_OTLP_TRACES_PROTOCOL, OTEL_EXPORTER_OTLP_PROTOCOL

0.6

• upgrade to axum 0.6

0.5

• upgrade to opentelemetry 0.18
• breaking change: upgrade opentelemetry-jaeger to 0.17 (switch from PipelineBuiler to AgentPipeline)

0.4

• allow customization of tracer
• add tracer to export on stdout or stderr
• add tracer to export to nowhere (like /dev/null) to allow to have trace_id and the opentelemetry span & metadata on log and http response (without collector)

0.3

• Allow customization of exporter pipeline
• Fix name of the root span (#6)

0.2

• First public release as a crate

0.1

• Code originally created at part of axum-extra Add OpenTelemetry middleware by davidpdrsn · Pull Request #769 · tokio-rs/axum
• Code copied and modified as part of davidB/sandbox_axum_observability: Sandbox to experiment axum and observability
• Published as a standalone crate with OK from original author
