wasmut

License: MIT CI Coverage Status

wasmut is a mutation testing tool for WebAssembly WASI modules.

Table of Content

Installation

Currently, wasmut officially supports Linux and Windows. macOS should also mostly work, however I cannot guarantee anything, since I do not have access to a Mac.

Pre-built binaries

For Linux and Windows, pre-built binaries for the amd64 architecture can be found on the releases pages of this repository.

Installation using Cargo

wasmut is implemented in Rust, thus you need the Rust toolchain to compile the project. The minimum supported Rust version (MSRV) is 1.67.

To install the latest wasmut release from crates.io run the following command:

> cargo install wasmut

This will install wasmut to $HOME/.cargo/bin by default. Make sure that this path is included in our $PATH variable.

Development

If you want to hack on wasmut, simply check out the repository. Be sure to include the testdata submodule.

> git clone --recursive https://github.com/lwagner94/wasmut

Once the repository is cloned, you can run the test-suite using the test command.

cargo test

You may want to run wasmut as a release build. In development builds, running mutants takes a a lot more time.

cargo run --release -- mutate testdata/simple_go/test.wasm -C

You can use the coverage.sh script to generate a test-coverage report. Make sure that grcov and the nightly version of the Rust compiler are installed.

./coverage.sh

Quick start

Once installed, you can start using wasmut. To start off, you can try out some of the examples in the testdata folder. If you want to use wasmut with any of your own modules, please be sure to check out the WebAssembly Module Requirements chapter.

If you run the mutate command without any flags, wasmut will try to load a file called wasmut.toml in the current directory and will fall back to default options if it cannot find it.

> # Run wasmut using default options (no filtering, all operators)
> wasmut mutate testdata/simple_add/test.wasm
[INFO ] No configuration file found or specified, using default config
[INFO ] Using 8 workers
[INFO ] Generated 37 mutations
...

Using the -C/-c flags, you can instruct wasmut to load a configuration file from a different path. The -C flag will try to load wasmut.toml from the same directory as the module, while -c allows you to provide the full path to the configuration file.

> wasmut mutate testdata/simple_add/test.wasm -C
[INFO ] Loading configuration file from module directory: "testdata/simple_add/wasmut.toml"
[INFO ] Using 8 workers
[INFO ] Generated 1 mutations
[INFO ] Original module executed in 40 cycles
[INFO ] Setting timeout to 80 cycles
/home/lukas/Repos/wasmut/testdata/simple_add/simple_add.c:3:14:
KILLED: binop_add_to_sub: Replaced I32Add with I32Sub
    return a + b;
              ^

ALIVE           0
TIMEOUT         0
ERROR           0
KILLED          1
Mutation score  100%

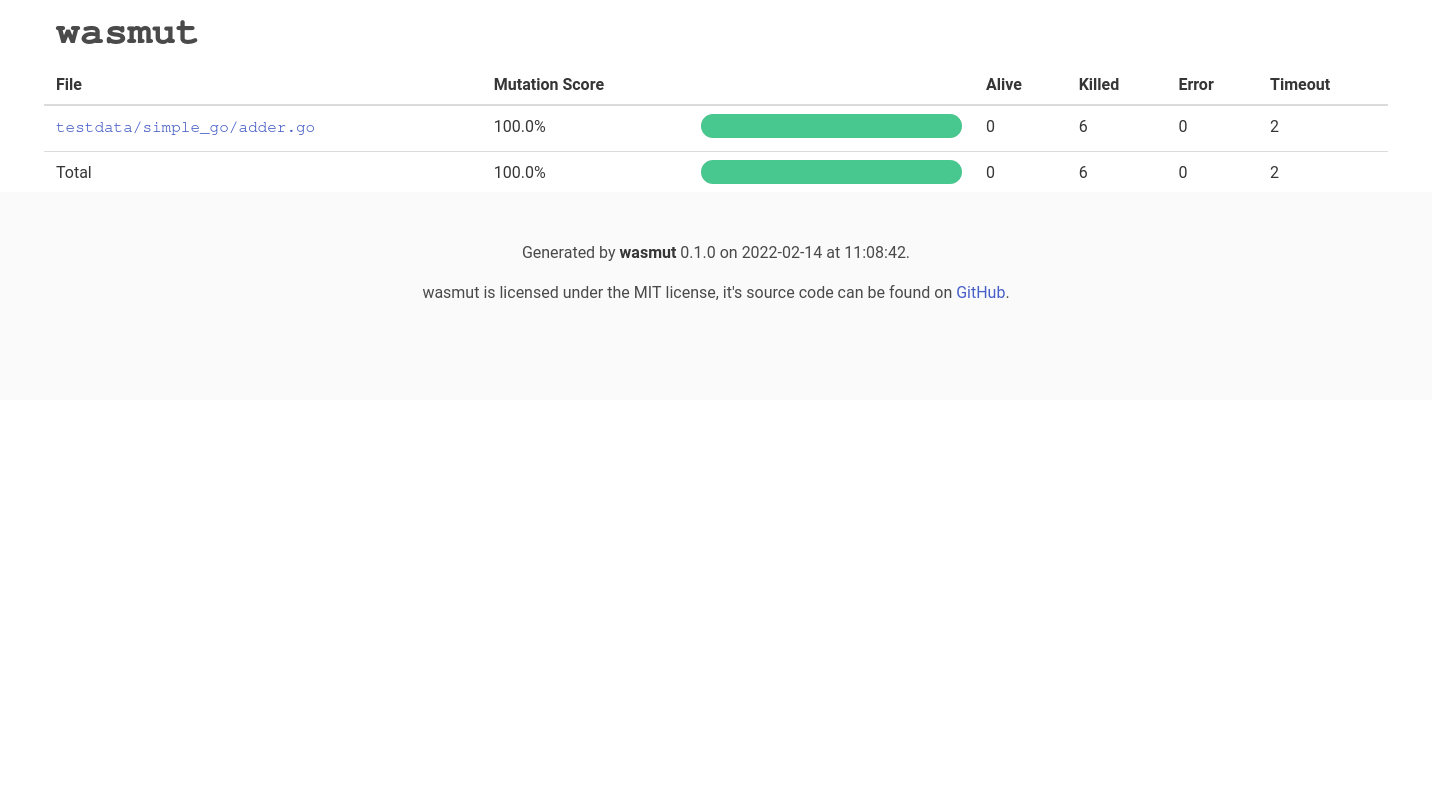

By default, wasmut will print the results to the console - as shown above. If you add the --report html option, wasmut will create a HTML report in the wasmut-report folder.

> wasmut mutate testdata/simple_go/test.wasm -C --report html
[INFO ] Loading configuration file from module directory: "testdata/simple_go/wasmut.toml"
[INFO ] Using 8 workers
...

Command Line Interface

help

Display the help menu

list-files

List all files of the binary.

If a config is provided, this command will also show whether the file is allowed to be mutated. By
default, wasmut will try to load a wasmut.toml file from the current directory

USAGE:
    wasmut list-files [OPTIONS] <WASMFILE>

ARGS:
    <WASMFILE>
            Path to the wasm module

OPTIONS:
    -c, --config <CONFIG>
            Load wasmut.toml configuration file from the provided path

    -C, --config-samedir
            Attempt to load wasmut.toml from the same directory as the wasm module

    -h, --help
            Print help information

    -V, --version
            Print version information

list-functions

List all functions of the binary.

If a config is provided, this command will also show whether the function is allowed to be mutated.
By default, wasmut will try to load a wasmut.toml file from the current directory

USAGE:
    wasmut list-functions [OPTIONS] <WASMFILE>

ARGS:
    <WASMFILE>
            Path to the wasm module

OPTIONS:
    -c, --config <CONFIG>
            Load wasmut.toml configuration file from the provided path

    -C, --config-samedir
            Attempt to load wasmut.toml from the same directory as the wasm module

    -h, --help
            Print help information

    -V, --version
            Print version information

list-operators

List all available mutation operators.

If a config is provided, this command will also show whether the operator is enabled or not. By
default, wasmut will try to load a wasmut.toml file from the current directory

USAGE:
    wasmut list-operators [OPTIONS] [WASMFILE]

ARGS:
    <WASMFILE>
            Path to the wasm module

OPTIONS:
    -c, --config <CONFIG>
            Load wasmut.toml configuration file from the provided path

    -C, --config-samedir
            Attempt to load wasmut.toml from the same directory as the wasm module

    -h, --help
            Print help information

    -V, --version
            Print version information

mutate

Generate and run mutants.

Given a (possibly default) configuration, wasmut will attempt to discover mutants and subsequently
execute them. After that, a report will be generated

USAGE:
    wasmut mutate [OPTIONS] <WASMFILE>

ARGS:
    <WASMFILE>
            Path to the wasm module

OPTIONS:
    -c, --config <CONFIG>
            Load wasmut.toml configuration file from the provided path

    -C, --config-samedir
            Attempt to load wasmut.toml from the same directory as the wasm module

    -h, --help
            Print help information

    -o, --output <OUTPUT>
            Output directory for reports

            [default: wasmut-report]

    -r, --report <REPORT>
            Report output format

            [default: console]
            [possible values: console, html]

    -t, --threads <THREADS>
            Number of threads to use when executing mutants

    -V, --version
            Print version information

new-config

Create new configuration file

USAGE:
    wasmut new-config [PATH]

ARGS:
    <PATH>    Path to the new configuration file

OPTIONS:
    -h, --help       Print help information
    -V, --version    Print version information

run

Run module without any mutations

USAGE:
    wasmut run [OPTIONS] <WASMFILE>

ARGS:
    <WASMFILE>    Path to the wasm module

OPTIONS:
    -c, --config <CONFIG>    Load wasmut.toml configuration file from the provided path
    -C, --config-samedir     Attempt to load wasmut.toml from the same directory as the wasm module
    -h, --help               Print help information
    -V, --version            Print version information

WebAssembly module requirements

wasmut currently supports WebAssembly modules using the WebAssembly System Interface (WASI). wasmut will execute the _start function as an entry point into the module and will use the module's exit code (set by the return value of main or explicit calls to exit) to determine the outcome of the module's tests - 0 indicating success, and any non-zero exit code as a failure.

wasmut makes heavy use of DWARF debug information for mutant filtering and report generation. Make sure to compile the WebAssembly module using the correct compiler flags to ensure that debug information is embedded into the module.

Furthermore, compiler optimizations have a strong influence on wasmut's performance. Some more experiments have to be done to give any recommendations, but for now simply refer to the examples in the testdata directory for any hints on what compiler options to use.

Configuration options

[engine] section

  • timeout_multiplier: Before executing mutants, wasmut will run the wasm module without any mutations and measure the number of cycles it takes to execute. Mutants then are allowed to execute with a timeout of timeout = original_cycles * timeout_multiplier

    timeout_multiplier = 2.0

  • map_dirs: Map directories into the WebAssembly runtime. By default, modules cannot access the host's filesystem. If your module needs to access any files, you can use the map_dirs option to define path mappings.

    # Map testdata/count_words/files to /files
    map_dirs = [["testdata/count_words/files", "files"],]

  • coverage_based_execution: Before executing mutants, wasmut will run the wasm module without any mutations and generate coverage information. If coverage_based_execution is enabled, the execution of mutants where the mutated instruction was never executed will be skipped. Defaults to true.

    coverage_based_execution = true

  • meta_mutant: If meta_mutant is enabled, a single mutant containing all mutations will be generated. During execution, mutations are activated by setting a flag. The benefit of this is that only a single mutant needs to be compiled by the WebAssembly runtime, and thus the execution time is reduced significantly. Defaults to true.

    meta_mutant = true


[filter] section

  • allowed_function/allowed_file: By default, all files and functions are allowed, which means that every WebAssembly instruction can potentially be mutated. This is not very practical, so it possible to specify and allowlist for functions and/or files. In allowed_functions and allowed_files, you can specify a list of regular expressions that are used to match the function and file names. A wasm-instruction is allowed to be mutated if its function or file matches at least one of the corresponding regular expressions. An empty regular expression also matches everything. Use the wasmut list-files or wasmut list-functions commands to get a list of all functions and files in the wasm module.

    allowed_functions = ["^add"]
    allowed_files = ["src/add.c", "src/main.c"]


[operators] section

  • enabled_operators: By default, all operators are allowed. If this is not what you want, you can use the enabled_operators option to specify which operators should be enabled. The option is a list of regular expressions. Use the wasmut list-operators command or consult the documentation to get a list of all operators.

    # Enable binop_sub_to_add and all relop_* operators
    enabled_operators = ["binop_sub_to_add", "relop"]


[report] section

  • path_rewrite: When rendering reports, wasmut needs to have access to the original source files. wasmut uses DWARF debug information embedded in the WebAssembly modules to locate them. As DWARF embeds absolute paths for the source files into the module, it can be problematic if you want to want to create reports for WebAssembly modules that where build on another host. The path_rewrite option allows to specify a regular expression and a replacement that will be applied to any source file path before creating the report. Internally, Rust's Regex::replace is used. Consult the documentation for any advanced replacement scenarios.

    # Replace /home/user/wasmut/ with "build"
    # e.g. /home/user/test/main.c ->
    #      build/test/main.c
    path_rewrite = ["^/home/user/", "build"]


Full example

[engine]
timeout_multiplier = 4.0
map_dirs = [["testdata/count_words/files", "files"],]
coverage_based_execution = true
meta_mutant = true

[filter]
allowed_functions = ["^count_words"]
#allowed_files = [""]

[operators]
enabled_operators = ["binop_sub_to_add", "relop"]

[report]
path_rewrite = ["^.*/wasmut/", ""]

Supported Mutation operators

The mutation operators available in wasmut are for now mainly based on mull's operators

Name Description
binop_sub_to_add Replace subtraction with addition
binop_add_to_sub Replace addition with subtraction
binop_mul_to_div Replace multiplication with signed/unsigned division
binop_div_to_mul Replace signed/unsigned division by multiplication
binop_shl_to_shr Replace bitwise left-shift with signed/unsigned right-shift
binop_shr_to_shl Replace signed/unsigned right-shift with left-shift
binop_rem_to_div Replace remainder with division of the same signedness
binop_div_to_rem Replace division with remainder of the same signedness
binop_and_to_or Replace and with or
binop_or_to_and Replace or with and
binop_xor_to_or Replace xor with or
binop_or_to_xor Replace or with xor
binop_rotl_to_rotr Replace bitwise left-rotation with right-rotation
binop_rotr_to_rotl Replace bitwise right-rotation with left-rotation
unop_neg_to_nop Replace unary negation with nop
relop_eq_to_ne Replace equality test with not-equal
relop_ne_to_eq Replace not-equal test with equality
relop_le_to_gt Replace less-equal with greater-than of the same signedness
relop_le_to_lt Replace less-equal with less-than of the same signedness
relop_lt_to_ge Replace less-than with greater-equal of the same signedness
relop_lt_to_le Replace less-than with less-equal of the same signedness
relop_ge_to_gt Replace greater-equal with greater-than of the same signedness
relop_ge_to_lt Replace greater-than with less-than of the same signedness
relop_gt_to_ge Replace greater-than with greater-equal of the same signedness
relop_gt_to_le Replace greater-than with less-equal of the same signedness
const_replace_zero Replace zero constants with 42
const_replace_nonzero Replace non-zero constants with 0
call_remove_void_call Remove calls to functions that do not have a return value
call_remove_scalar_call Remove calls to functions that return a single scalar with the value of 42

Authors

wasmut was developed by Lukas Wagner.

License

Copyright © 2021-2022 Lukas Wagner.

All code is licensed under the MIT license. See LICENSE.txt file for more information.
