ANSI terminal handling for Stakker

This is a work-in-progress. Only UNIX and the first three levels described below are supported for now.

This provides several levels of abstraction at which the application may interface to the terminal, from lowest to highest:

Output buffering, input decoding, resizes and features

This can be used for applications which prefer to generate the ANSI output sequences themselves directly, for example a pager or a simple editor. The application has maximum control and can use specific ANSI features to optimise its output (for example scroll regions).

The input handling decodes keypress sequences and forwards them to application code. Terminal resizes are detected and notified as soon as they occur. Terminal features such as 256 colour support are detected and notified to the application. Terminal raw mode and input handling can be paused and resumed to allow external tools to be called.

Full-screen page buffering and minimised updates

The application code keeps one or more full-screen pages in memory which it updates locally, and the terminal code keeps its own page which represents what is currently displayed on the terminal. When the application code wishes to update the terminal, the terminal code compares the two pages and sends a minimised update.

Input handling, resizes and features are handled the same as above.

Tile-based distributed updates

On resize or relayout, the application splits the display into non-overlapping tiles, and may pass different tiles to different actors. Those actors are then free to draw on those tiles whenever they like without any central coordination. Updates from the tiles to the terminal are done automatically in the background via a lazy! handler, batched up and optimised using the page-update mechanism. On the next relayout, old tiles become non-functioning, and the app top-level code must send out new tiles to the actors that require them.

Fields and widgets (NYI)

Possibly this could be layered on top of tiles.

How to use

• In your app's main actor's init method, create a Terminal actor, and provide it with callbacks to handle input and to accept a TermShare into your application once output has been set up.

• On receiving a TermShare store it somewhere and do output via that TermShare whenever necessary according to your application's logic, for example in response to receiving input keys or other events.

There are various levels of output from the most low-level to the highest level:

• For simple direct ANSI output, use TermShare::output to get access to the Output instance and use it to build up your output byte by byte or with predefined ANSI calls, and then flush it to the terminal using Output::flush.

• For direct page-based output (like curses), use TermShare::page to create one or more Page instances, and then use Region instances derived from the page (using Page::full or Page::region) to draw onto the page. Then finally write the Page you want to display to the terminal using TermShare::update, which will send only the minimum changes required to update the terminal.

• To split the display up into various tiles which can be then passed to other actors and updated independently of each other, use TermShare::tile to create a new top-level tile each time you need to resize or relayout. Then break that tile up according to the layout of your application, and pass the resulting tiles to where they are needed. To draw, get a Region instance from the tile using Tile::full or Tile::region. This allows writing to the Page which backs the tiles, and automatically schedules an update via Stakker's lazy! queue which groups updates from various tiles which are made at the same time.

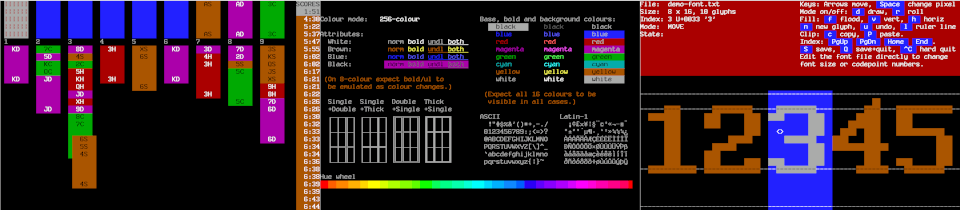

Examples

There are several examples available. See cargo run --example in a checkout to get a list.

ANSI terminal handling for Stakker

This is a work-in-progress. Only UNIX is supported at the moment: output buffering, input key decoding and window resize detection, minimized updates (like curses) and tile-based layouts.

Documentation

See the crate documentation.

License

This project is licensed under either the Apache License version 2 or the MIT license, at your option. (See LICENSE-APACHE and LICENSE-MIT).

Contribution

Unless you explicitly state otherwise, any contribution intentionally submitted for inclusion in this crate by you, as defined in the Apache-2.0 license, shall be dual licensed as above, without any additional terms or conditions.
