Rough Plotters SVG

A rough/sketchy style wrapper around the plotters-svg backend for the Plotters plotting library. This crate provides a DrawingBackend implementation that intercepts drawing calls and applies rough, hand-drawn style transformations to geometric primitives like lines, rectangles, circles, and paths.

Features

• Drop-in replacement for plotters-svg::SVGBackend
• Rough styling applied to all geometric primitives
• Configurable roughness with full control over rough options
• Multiple fill styles including hachure, cross-hatch, zigzag, and more
• Compatible with the entire Plotters ecosystem

Quick Start

Add this to your Cargo.toml:

[dependencies]
rough_plotters_svg = "0.0.0"
plotters = "0.3"
roughr = "0.13"

Basic Usage

use rough_plotters_svg::RoughSVGBackend;
use plotters::prelude::*;
use roughr::core::{FillStyle, Options};

fn main() -> Result<(), Box<dyn std::error::Error>> {
    // Configure rough styling
    let mut options = Options::default();
    options.fill_style = Some(FillStyle::Hachure);
    options.roughness = Some(2.0);
    options.stroke_width = Some(1.5);

    // Create backend with rough styling

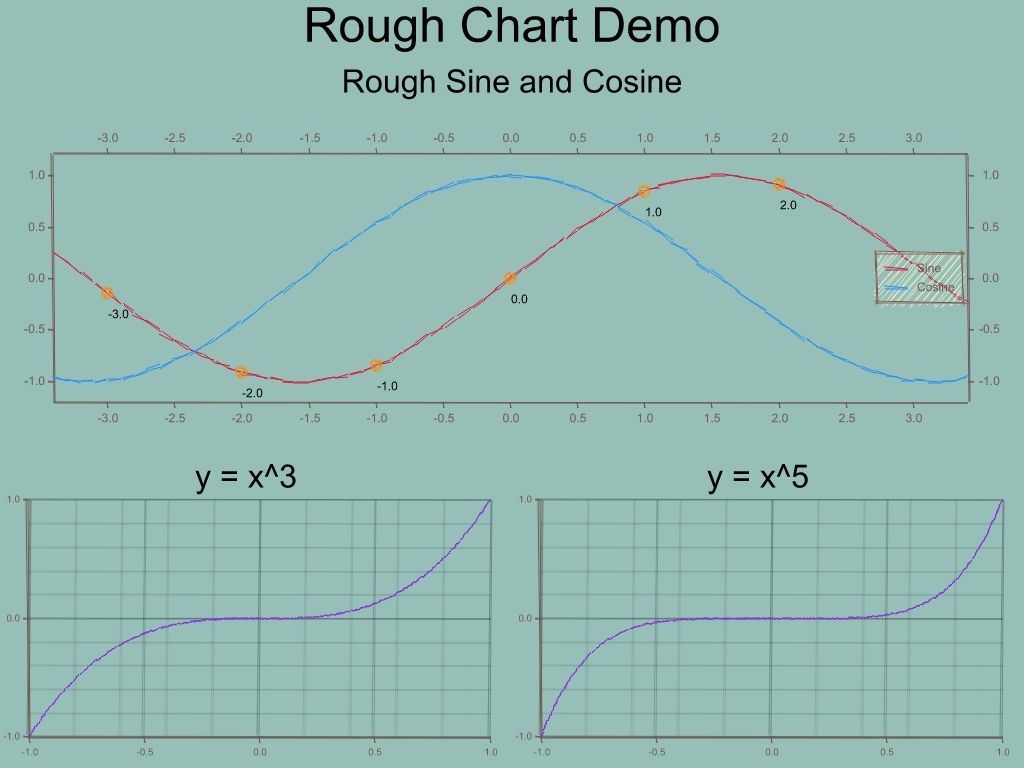

    let backend = RoughSVGBackend::with_options("chart.svg", (800, 600), options);
    let root = backend.into_drawing_area();
    root.fill(&WHITE)?;

    // Use with plotters as normal - all shapes will be rough styled
    let mut chart = ChartBuilder::on(&root)
        .caption("Rough Chart", ("serif", 40))
        .margin(20)
        .x_label_area_size(40)
        .y_label_area_size(50)
        .build_cartesian_2d(0f32..10f32, 0f32..100f32)?;

    chart.configure_mesh().draw()?;

    chart.draw_series(
        (0..10).map(|x| Rectangle::new([(x as f32, 0f32), (x as f32 + 0.8, x as f32 * 10f32)], RED.filled()))
    )?;

    root.present()?;
    Ok(())
}

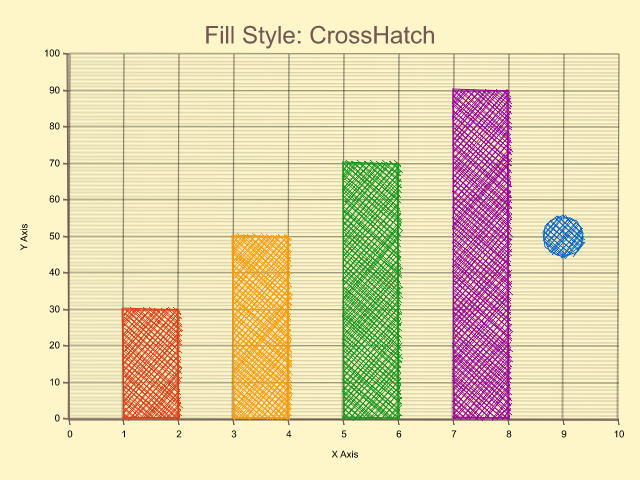

Fill Styles Showcase

Working with Fill Styles

use rough_plotters_svg::RoughSVGBackend;
use plotters::prelude::*;
use roughr::core::{FillStyle, Options};

fn create_chart_with_fill_style(fill_style: FillStyle, filename: &str) -> Result<(), Box<dyn std::error::Error>> {
    let mut options = Options::default();
    options.fill_style = Some(fill_style);
    options.stroke_width = Some(2.0);
    options.roughness = Some(1.0);

    let backend = RoughSVGBackend::with_options(filename, (400, 300), options);
    let root = backend.into_drawing_area();
    root.fill(&RGBColor(254, 246, 201))?; // Cream background

    let mut chart = ChartBuilder::on(&root)
        .caption(&format!("Fill Style: {:?}", fill_style), ("Arial", 20))
        .margin(10)
        .build_cartesian_2d(0..10, 0..100)?;

    chart.configure_mesh().draw()?;

    // Draw some shapes with the fill style
    chart.draw_series(
        [(2, 30), (4, 50), (6, 70), (8, 90)]
            .iter()
            .map(|(x, y)| Rectangle::new([(*x, 0), (*x + 1, *y)], BLUE.filled()))
    )?;

    chart.draw_series(
        std::iter::once(Circle::new((5, 50), 15, RED.filled()))
    )?;

    root.present()?;
    Ok(())
}

Available Fill Styles

• FillStyle::Solid - Solid color fill
• FillStyle::Hachure - Parallel line hatching (default)
• FillStyle::ZigZag - Zigzag pattern fill
• FillStyle::CrossHatch - Cross-hatched pattern
• FillStyle::Dots - Dotted pattern fill
• FillStyle::Dashed - Dashed line pattern
• FillStyle::ZigZagLine - Zigzag line pattern

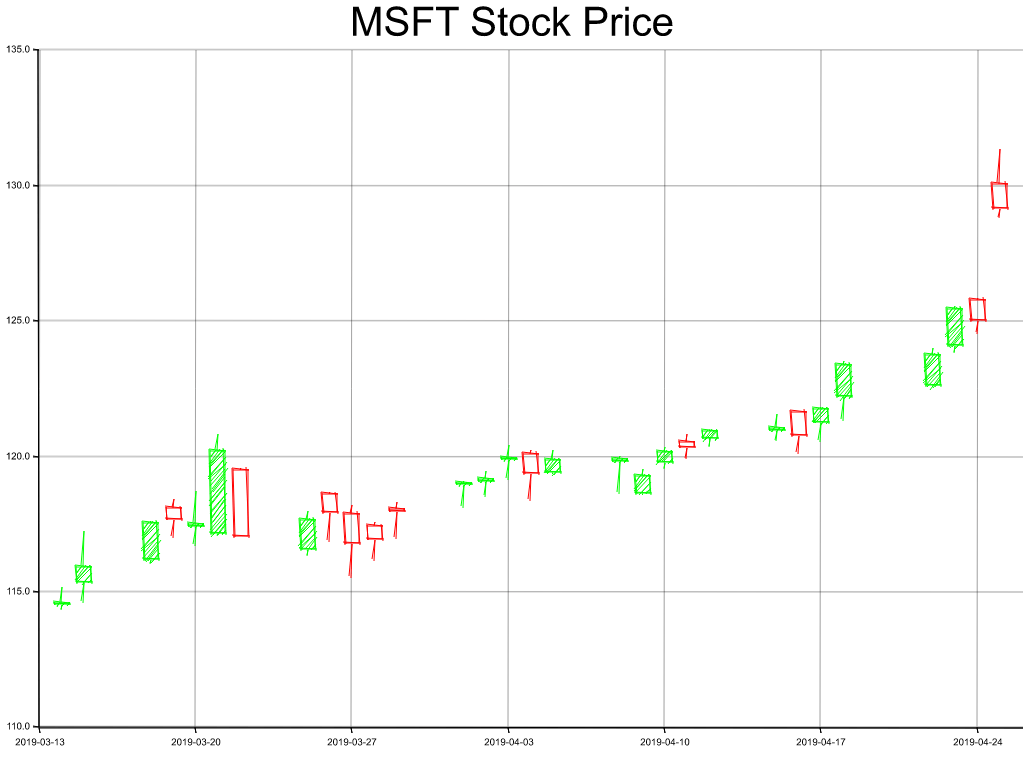

Stock Chart Example

Rough styling works great with financial charts:

String-based Backend

For in-memory SVG generation:

use rough_plotters_svg::RoughSVGBackend;
use roughr::core::Options;

let mut svg_string = String::new();
let backend = RoughSVGBackend::with_string_and_options(&mut svg_string, (640, 480), Options::default());
// ... use backend normally ...
// svg_string now contains the generated SVG

🔭 Examples

For more examples have a look at the examples folder.

You can run examples with:

cargo run --example chart
cargo run --example showcase
cargo run --example all_fill_styles
cargo run --example stock
