Pipewerk

A compute graph visualiser with a tracer for gstreamer pipelines.

Disclaimer: this is still very much a work in progress :)

Features:

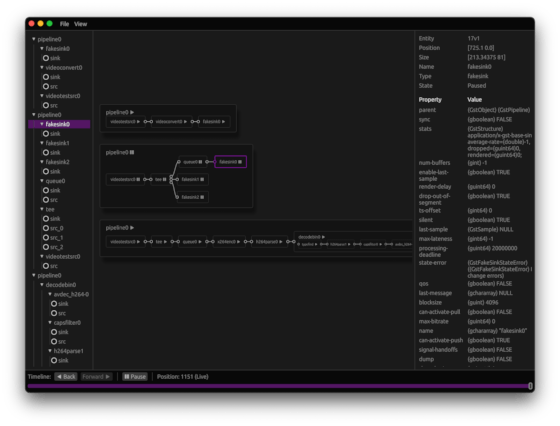

• Pipeline's complete graph with bins subgraphs
• Attach the tracer to any gstreamer-based application
• Timeline of events with topology changes
• Live view of pads content for known caps

For a variation of this that works with rerun, have a look at gst-rerun.

Quick Start

To use it with your gstreamer pipeline: build all the targets, launch the app (cargo run --release) and start your program with the custom tracer:

export GST_PLUGIN_PATH=$PWD/target/release/
GST_TRACERS="pipewerktracing" gst-launch-1.0 videotestsrc ! identity ! fakesink

If needed, change the ip and port to use for connecting to the app with GST_TRACERS="pipewerktracing(ip=$IP,port=$PORT)".

The quickest way to try the UI is to load demo_save.ron from the top menu. No gstreamer required.

Development

The viewer app itself doesn't depend on gstreamer and tries to be agnostic about the kind of compute graph it's visualising. The goal is to be able to support other frameworks like vector or mediapipe.

The graph layouting is done by a Sugiyama-style algorithm, it still requires extensive work and may or may not result in a pretty output for your use case.

The app's data model is an ECS that should allow for maximum flexibility when used to view the content of different frameworks. The tracer embedded in the actual gstreamer program sends atomic updates to be performed on entities displayed by the app: an element is an entity with a node component, a name, a state etc. and once it reaches the app a size and a position can be added.

The code is split in-between the following crates:

• app the entry point to the app, can dynamically reload the ui crate during development when working on the rendering
• ui contains (almost) all the egui-related code
• tracer is the gstreamer tracer
• common contains everything else, in particular the components definitions

Upgrading gstreamer

The CI uses the tarballs in the repo to install gstreamer. If the version has changed, use the Dockerfile to build them, install buildx and do:

docker buildx build \
    --platform linux/arm64,linux/amd64 \
    --target=artifact \
    --output type=local,dest=$(pwd) .
