PerOXO Server

An actor-based WebSocket server written in Rust for handling real-time direct messaging between users. This server manages WebSocket connections, handles user registration and deregistration, routes messages, and tracks user presence efficiently using Tokio's async and message-passing capabilities.

📦 Features

• Full-duplex WebSocket support using axum and tokio-tungstenite
• User session management with actor-style components
• Direct messaging between users
• Concurrency-safe message routing using tokio::mpsc and oneshot
• Clean modular architecture (ConnectionManager, UserSession, MessageRouter)

🛠️ Architecture Overview

Client
  ↓ WebSocket
dm_socket (Axum Handler)
  ↓
ConnectionManager
  ↓ initializes
UserSession (per user)
  ↓ register + send/receive
MessageRouter (central actor)
  ↑ server-to-client messages

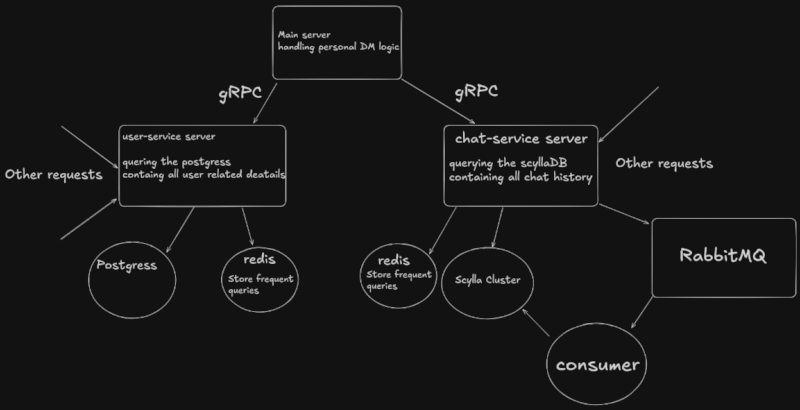

Overall Architecture (In development)

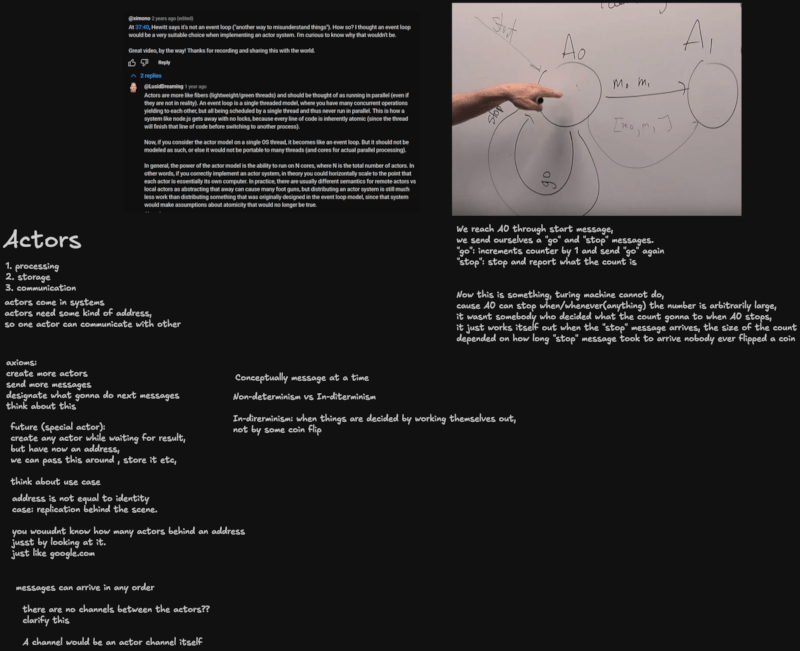

How the Actor Model is Implemented

1. MessageRouter Actor

• Purpose: Central hub for routing messages between users
• State: Maintains HashMap<i32, mpsc::Sender> for active users and online user list
• Message Types: RegisterUser, UnregisterUser, SendDirectMessage, GetOnlineUsers, GetChatHistory
• Runs: Continuous loop processing messages from mpsc::UnboundedReceiver

2. UserSession Actor

• Purpose: Manages individual WebSocket connections
• State: User ID, WebSocket connection, channels for communication
• Responsibilities: Handles incoming WebSocket messages, sends outgoing messages, manages connection lifecycle
• Runs: Two concurrent tasks - one for sending, one for receiving

3. PersistenceActor

• Purpose: Handles database persistence via gRPC calls
• State: gRPC client connection
• Message Types: PersistDirectMessage, GetPaginatedMessages
• Runs: Processes persistence requests with retry logic

Lock Elimination

1. Message Passing Instead of Shared State

• No shared mutable data structures
• Each actor owns its state exclusively
• Communication only through channels (mpsc::channel, oneshot::channel)

2.Actor Isolation

• Each actor runs in its own task with private state
• No direct memory sharing between actors
• Tokio's async runtime handles task scheduling
