pcapture-rs

A new generation of traffic capture library based on libpnet.

This library requires root permissions.

Advantages compared to other libraries

pcap

Why not use pcap to capture packets?

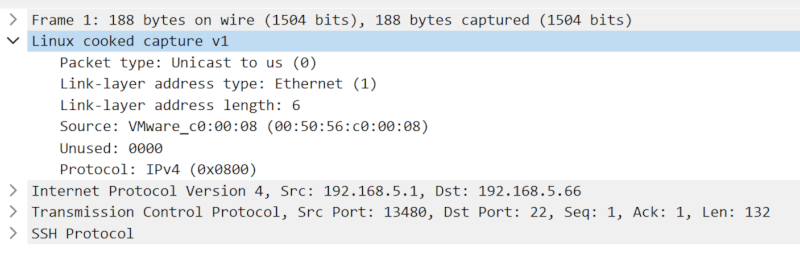

The first is that when capturing from the "any" device, or from one of those other devices, in Linux, the pcap doesn't supply the link-layer header for the real "hardware protocol" like Ethernet, but instead supplies a fake link-layer header for this pseudo-protocol. The reference 1 and reference 2.

I have tried running the software from root, but the pseudo header still exists, so I gave up using the pcap library and turned to writing my own.

It is undeniable that libpcap is indeed a very powerful library, but its rust encapsulation pcap seems a bit unsatisfactory.

Secondly, this pcap library does not support filters, which is easy to understand. In order to implement packet filtering, we have to implement these functions ourselves (it will be very uncomfortable to use).

The third is that you need to install additional libraries (libpcap & libpcap-dev) to use the pcap library.

pcap-parser

The disadvantage of this library is very obvious, because it only supports processing pcap and pcapng files, and does not support capturing traffic.

pcap-file-gsg

Same as above.

Platform

Usage

The pcapng format only (default).

pcapture = "^0"

Or

pcapture = { version = "^0", features = ["pcapng"] }

The pcap format only.

pcapture = { version = "^0", features = ["pcap"] }

Examples

Very simple way to capture the packets as pcapng format

use pcapture::PcapByteOrder;
use pcapture::Capture;
use pcapture::pcapng::PcapNg; // for read pcapng file

fn main() {
    let path = "test.pcapng";
    let pbo = PcapByteOrder::WiresharkDefault;
    /// You must specify the interface, the 'all' option is not supported.
    let mut cap = Capture::new("ens33").unwrap();
    // This step will generate the pcapng headers.
    let mut pcapng = cap.gen_pcapng(pbo);
    for _ in 0..5 {
        let block = cap.next_with_pcapng().unwrap();
        pcapng.append(block);
    }
    /// write all capture data to test.pcapng
    pcapng.write_all(path).unwrap();

    let read_pcapng = PcapNg::read_all(path, pbo).unwrap();
    /// By default, epb (EnhancedPacketBlock) is used to store data instead of spb (SimplePacketBlock).
    /// 1 shb (header) + 1 idb (header) + 5 epb (traffic data) = 7
    assert_eq!(read_pcapng.blocks.len(), 7);
}

And also the pcap format

Since pcap uses a 16-bit timestamp, it will be exhausted in 2038 (although it sounds far away), so it is recommended to use pcapng now.

use pcapture::PcapByteOrder;
use pcapture::Capture;
use pcapture::pcap::Pcap; // for read pcap file

fn main() {
    let path = "test.pcap";
    let pbo = PcapByteOrder::WiresharkDefault;

    let mut cap = Capture::new("ens33").unwrap();
    let mut pcap = cap.gen_pcap(pbo);
    for _ in 0..5 {
        let record = cap.next_with_pcap().unwrap();
        pcap.append(record);
    }
    /// write all capture data to test.pcap
    pcap.write_all(path).unwrap();

    let read_pcap = Pcap::read_all(path, pbo).unwrap();
    /// The pcap file format and the pcapng file have completely different structures.
    /// And pcap has only one file header,
    /// but pcapng can have various headers with different functions.
    /// 5 records, you can access the file header through 'read_pcap.header'.
    assert_eq!(read_pcap.records.len(), 5);
}

Same the pcapture support capture packet as row format

use pcapture::Capture;

fn main() {
    let mut packets: Vec<Vec<u8>> = Vec::new();
    let mut cap = Capture::new("ens33").unwrap();
    for _ in 0..5 {
        let packet_raw = cap.next_with_raw().unwrap();
        packets.push(packet_raw)
    }
}

And the most important filter features

I implemented a simple expression filter using the Shunting Yard algorithm.

use pcapture::PcapByteOrder;
use pcapture::Capture;

fn main() {
    let path = "test.pcapng";
    let pbo = PcapByteOrder::WiresharkDefault;
    /// Building filters is very simple and easy to understand.
    /// And support protocol filtering.
    let filter_str = "tcp and (ip=192.168.1.1 and port=80)";
    /// Only support this bracket '(' in expression, but 'AND' and 'OR' support both uppercase and lowercase.
    /// More examples:
    // let filter_str = "tcp and (ip=192.168.1.1 or port=80)";
    // let filter_str = "icmp and ip=192.168.1.1";
    // let filter_str = "!icmp and ip=192.168.1.1"; // ! means not include any icmp packet
    // let filter_str = "icmp and ip!=192.168.1.1"; // != means not include any packet which addr is 192.168.1.1
    /// Other valid values:
    /// [mac, srcmac, dstmac, ip, addr, srcip, srcaddr, dstip, dstaddr, port, srcport, dstport]
    /// Note: the expression ip=192.168.1.1 is equal to addr=192.168.1.1

    /// You can use the following code to print all supported protocols.
    // use pcapture::filter;
    // let valid_procotol = filter::valid_protocol();
    // println!("{:?}", valid_procotol);

    let mut cap = Capture::new_with_filters("ens33", filter_str).unwrap();
    let mut pcapng = cap.gen_pcapng(pbo);
    for _ in 0..5 {
        let block = cap.next_with_pcapng().unwrap();
        pcapng.append(block);
    }
    pcapng.write_all(path).unwrap();
}

Sometimes you just wanna write the packet to the disk immediately

The above examples all store the captured packets in memory and then write them to disk at once use write_all function, but this is not acceptable in practice, because this will cause a lot of memory usage on the server.

use std::fs::File;
use pcapture::PcapByteOrder;
use pcapture::Capture;

fn main() {
    let path = "test.pcapng";
    let pbo = PcapByteOrder::WiresharkDefault;
    let fs = File::create(path).unwrap();

    let mut cap = Capture::new("ens33").unwrap();
    let mut pcapng = cap.gen_pcapng(pbo);
    /// Write the pcapng headers to disk.
    pcapng.write(fs).unwrap();

    for _ in 0..5 {
        let block = cap.next_with_pcapng().unwrap();
        /// Accept one and write one.
        block.write(fs, pbo).unwrap();
    }
}
