Pay10ad Dumper

Feature-rich Android OTA payload dumper written in Rust.

What is Payload? Android payload is a file that contains ROM partitions like boot, system, vendor and others. Payload Dumper extracts these partitions from the payload.bin file.

🪄 Features

• Extract partitions selectively (Specify via -p/--partitions)
• Extract from local payload.bin or ROM zip file without decompressing the whole archive
• Extract from HTTP(S) URL (payload.bin or zip) without downloading the whole file (Need server support)
• Verify output partitions
• Parallelism to maximize speed (Customizable via --no-parallel/--threads)
• Tiny: < 1M compressed on all common platforms (Windows, MacOS, Linux)

📥 Installation

Using binstall

cargo binstall pay10ad-dumper

Downloading from Releases

Navigate to the Releases page and download respective binary for your platform. Make sure to give it execute permissions.

Compiling from Source

cargo install pay10ad-dumper

📖 Usage

Common Usage

• Extract all partitions from payload.bin: pay10ad-dumper payload.bin

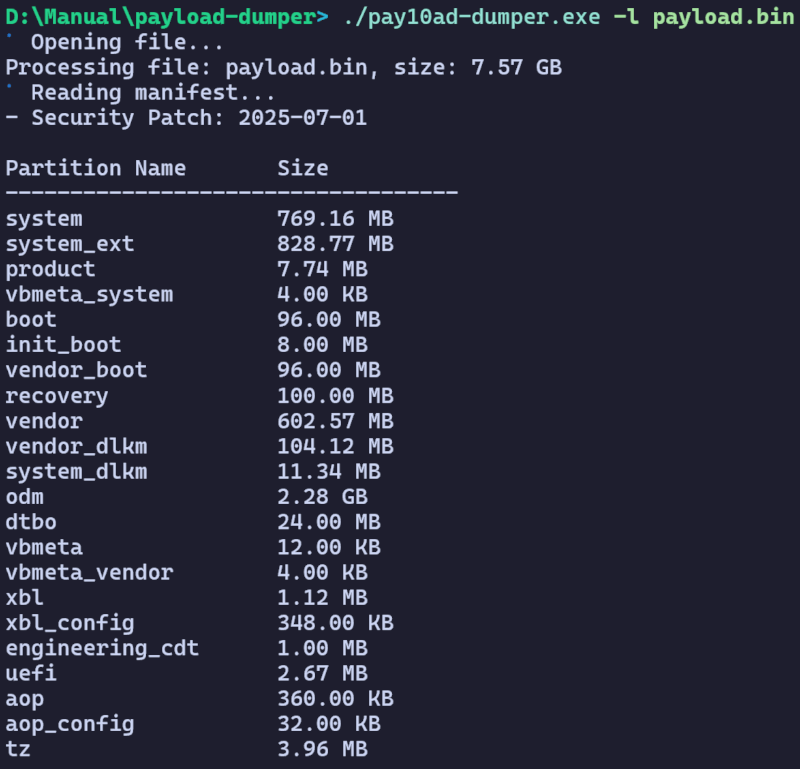

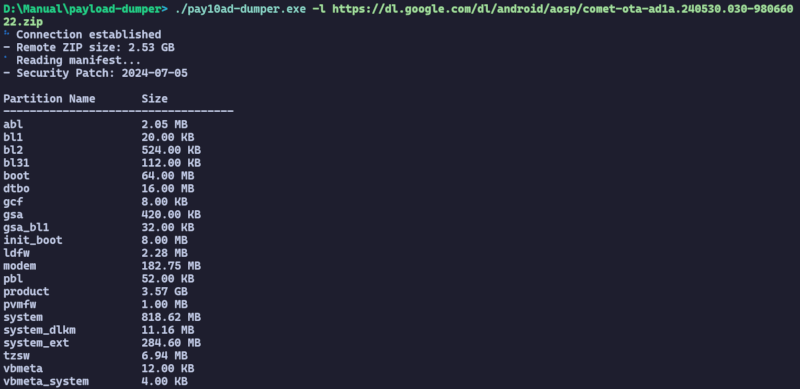

• List partitions from ota.zip: pay10ad-dumper -l ota.zip

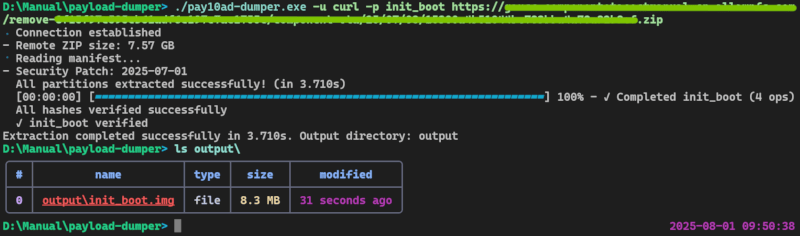

• Extract boot & init_boot from <URL>: pay10ad-dumper -p boot -p init_boot <URL>

CLI Reference

$ pay10ad-dumper --help
Usage: pay10ad-dumper <payload_path> [-o <out>] [--diff] [--old <old>] [--partitions <partitions...>] [--threads <threads>] [--list] [--metadata] [--no-parallel] [--no-verify] [-u <user-agent>]

Feature-rich Android OTA payload dumper written in Rust

Positional Arguments:
  payload_path      path or URL to your payload

Options:
  -o, --out         output directory for extracted partitions
  --diff            enable differential OTA mode (requires --old)
  --old             path to the directory containing old partition images
                    (required for --diff)
  --partitions      list of partition names to extract
  --threads         number of threads to use for parallel processing
  --list            list available partitions in the payload
  --metadata        save complete metadata as JSON (use --out - to write to
                    stdout)
  --no-parallel     disable parallel extraction
  --no-verify       skip hash verification
  -u, --user-agent  the User-Agent to use if extracting from URL (Defaults to a
                    representative browser UA)
  --help, help      display usage information

🤔 Comparison

🛣️ Todo

• Async
• Better errors
• Use another CLI parser
• Customize HTTP headers

🎉 Credits

• Forked from rhythmcache/payload-dumper-rust to scratch my own itch (Set User-Agent)
