ModTector

ModTector is a high-performance RNA modification detection tool developed in Rust, supporting multi-signal analysis, data normalization, reactivity calculation, and accuracy assessment. Based on pileup analysis, it can detect RNA modification sites from BAM-format sequencing data and generate rich visualization results.

🚀 Key Features

• Multi-signal Analysis: Simultaneous analysis of stop signals (pipeline truncation) and mutation signals (base mutations)
• High-performance Pileup: Robust pileup traversal based on htslib, supporting large file processing
• Batch Processing: Process multiple BAM files sequentially with glob pattern matching
• Single-cell Unified Processing: Unified processing strategy for single-cell data with cell label extraction and splitting

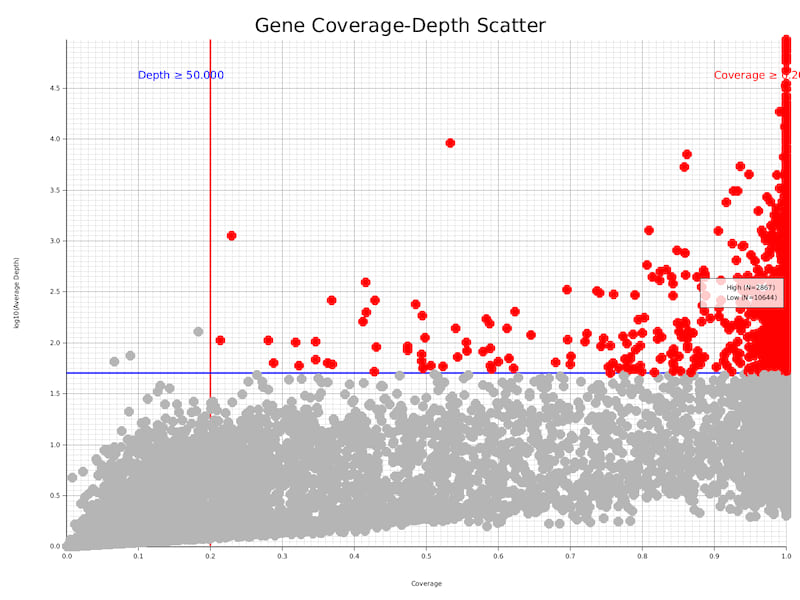

• Data Distribution Optimization: Smart data distribution scanning for efficient processing
• Data Normalization: Signal validity filtering and outlier handling
• Reactivity Calculation: Calculate signal differences between modified and unmodified samples with multi-threading support
• Duet Ensemble Decomposition: Sliding-window inference of dynamic RNA ensembles with global aggregation across overlaps using read-level stop/mutation co-variation

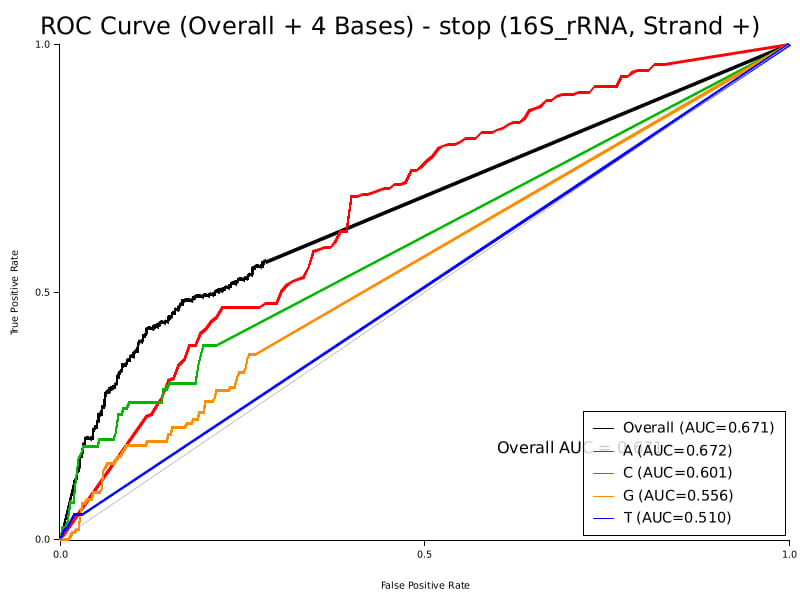

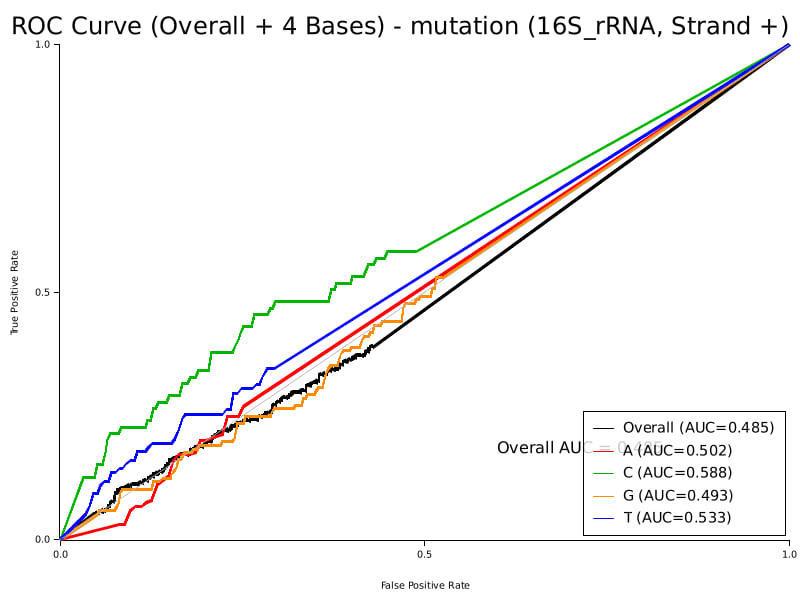

• Accuracy Assessment: AUC, F1-score and other metrics evaluation based on secondary structure with auto-shift correction
• Rich Visualization: Signal distribution plots, reactivity plots, ROC/PR curves, and RNA structure SVG plots
• Multi-threading: Parallel processing and plotting for improved efficiency
• Complete Workflow: One-stop solution from raw data to final evaluation
• Base Matching: Intelligent base matching algorithm handling T/U equivalence
• Auto-alignment: Auto-shift correction for sequence length differences

🔄 Complete Workflow

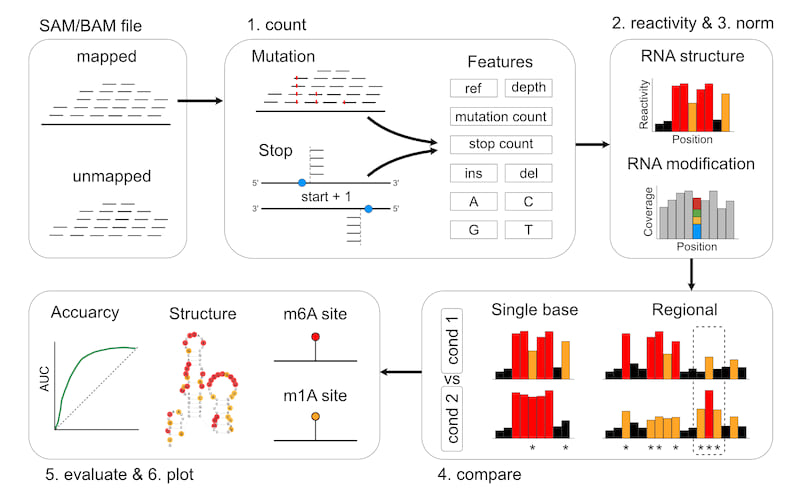

The following diagram shows the complete ModTector workflow from raw data to evaluation results:

ModTector provides a complete workflow from raw BAM data to final evaluation results:

1. Data Input: BAM files (modified/unmodified samples), FASTA reference sequences, secondary structure files
2. Statistical Analysis: Pileup traversal, counting stop and mutation signals
3. Reactivity Calculation: Calculate signal differences between modified and unmodified samples, generate reactivity data
4. Data Normalization: Normalize reactivity signals, signal filtering, outlier handling, background correction
5. Duet Ensemble Decomposition: Infer alternative RNA conformations from normalized reactivity with read-level evidence
6. Comparative Analysis: Compare modified vs unmodified samples, identify differential modification sites
7. Visualization: Generate signal distribution plots, reactivity plots, and RNA structure SVG plots
8. Accuracy Assessment: Performance evaluation based on secondary structure

🔧 Installation

System Requirements

• Operating System: Linux, macOS, or Windows
• Memory: 4 GB RAM (8 GB recommended for large datasets)
• Storage: 2 GB free space
• CPU: Multi-core processor recommended for parallel processing

Required Dependencies

• Rust: Version 1.70 or higher
• Cargo: Included with Rust installation

Installing Rust

Linux/macOS

curl --proto '=https' --tlsv1.2 -sSf https://sh.rustup.rs | sh
source ~/.cargo/env

Windows

Download and run the rustup installer from https://rustup.rs/

Installing ModTector

From crates.io (Recommended)

cargo install modtector

From Source

git clone https://github.com/TongZhou2017/ModTector.git
cd ModTector
cargo build --release

System Dependencies

ModTector requires the following system libraries:

Linux (Ubuntu/Debian)

sudo apt-get update
sudo apt-get install build-essential pkg-config libssl-dev libhts-dev

Linux (CentOS/RHEL)

sudo yum groupinstall "Development Tools"
sudo yum install pkgconfig openssl-devel htslib-devel

macOS

xcode-select --install
brew install htslib

Rust Dependencies

ModTector uses the following Rust crates:

[dependencies]
rust-htslib = "0.47.0"    # BAM file processing
bio = "2.0.1"             # Bioinformatics utilities
plotters = { version = "0.3", features = ["svg_backend", "bitmap_backend"] }  # Plotting and visualization
csv = "1.3"               # CSV file handling
rayon = "1.8"             # Parallel processing
clap = { version = "4.5", features = ["derive"] }  # Command-line argument parsing
chrono = "0.4"            # Date and time handling
rand = "0.8"              # Random number generation
quick-xml = "0.36"        # XML/SVG parsing
regex = "1.11"            # Regular expressions

📋 Command Line Usage

Quick Start

# Generate pileup data from BAM files
modtector count -b sample.bam -f reference.fa -o output.csv

# Calculate reactivity scores
modtector reactivity -M mod_sample.csv -U unmod_sample.csv -O reactivity.csv
# (Optional) For workflows without an unmodified control, omit -U to run in mod-only mode
# modtector reactivity -M smartshape_mod.csv -O reactivity.csv

# Normalize reactivity signals
modtector norm -i reactivity.csv -o normalized_reactivity.csv -m winsor90

# Compare samples and identify differences
modtector compare -m mod_sample.csv -u unmod_sample.csv -o comparison.csv

# Generate visualizations
modtector plot -M mod_sample.csv -U unmod_sample.csv -o plots/ -r normalized_reactivity.csv

# Generate RNA structure SVG plots
modtector plot -o svg_output/ --svg-template rna_structure.svg --reactivity normalized_reactivity.csv

# Evaluate accuracy
modtector evaluate -r normalized_reactivity.csv -s structure.dp -o results/ -g gene_id

# Duet ensemble decomposition (Stop + Mutation co-variation, 100-nt windows)
modtector duet \
  -i normalized_reactivity.csv \
  -b sample.sort.bam \
  -f reference.fa \
  -o duet_windows.csv \
  --epsilon 0.8 \
  --min-samples 8 \
  --window-size 100 \
  --window-step 50 \
  -t 16

1. Count - Data Processing

Generate pileup data from BAM files by counting stop and mutation signals.

modtector count [OPTIONS] --bam <BAM> --fasta <FASTA> --output <OUTPUT>

Parameters:

• -b, --bam: Input BAM file path (must be sorted and indexed), or glob pattern for batch/single-cell mode
• -f, --fasta: Reference FASTA file path
• -o, --output: Output CSV file path (or directory for batch/single-cell mode)
• -s, --strand: Optional strand filter (+, -, or +/-; default +/-)
• -t, --threads: Number of parallel threads (default: 1)
• -w, --window: Window size for genome segmentation in bases (optional)
• -l, --log: Log file path (optional)
• --batch: Enable batch mode for sequential file processing (use glob pattern)
• --single-cell: Enable single-cell unified processing mode (use glob pattern, unified processing with cell labels)

Input File Requirements:

• BAM files: Must be sorted and indexed. Use samtools for sorting and indexing:

  samtools sort input.bam -o sorted.bam
  samtools index sorted.bam


• FASTA files: Reference genome sequence file, sequence IDs must match chromosome names in BAM file

Example:

# Standard mode: process single BAM file
modtector count \
  -b data/mod_sample.bam \
  -f data/reference.fa \
  -o result/mod.csv \
  -t 8

# Batch mode: process multiple BAM files sequentially
modtector count --batch \
  -b "/path/to/bam/*sort.bam" \
  -f data/reference.fa \
  -o result/batch_output/ \
  -t 8 \
  -w 10000

# Single-cell unified mode: unified processing with cell labels
modtector count --single-cell \
  -b "/path/to/single_cell/*sort.bam" \
  -f data/reference.fa \
  -o result/single_cell_output/ \
  -t 8 \
  -w 10000

Batch and Single-cell Modes:

• Batch mode (--batch): Processes multiple BAM files sequentially, each file independently. Suitable for scenarios where files need separate processing.
• Single-cell unified mode (--single-cell): True unified processing strategy that:
  • Reads all BAM files at once for each window
  • Collects all reads from all files, unified pileup processing
  • Tracks cell labels during processing, splits results by cell
  • Provides 2-3x performance improvement by:
    • Skipping data distribution scanning (direct processing of all reference sequences)
    • Unified read collection and pileup (reduces I/O overhead)
    • Better parallelization efficiency (cross-file parallel processing)
    • Window-based memory management (prevents memory accumulation)

Cell Label Extraction:

• Automatically extracts cell labels from BAM filenames
• Supports RHX pattern (e.g., *RHX672.sort.bam → RHX672)
• Falls back to last underscore-separated part if RHX not found
• Example: in_vivo_single_cell_Mut_transfected_RNAs_in_HEK293T_DMSO_RHX672.sort.bam → RHX672

Progress Reporting:

• Real-time progress display: chunks processed, percentage, processing speed
• Estimated time remaining (ETA) based on current processing speed
• CPU usage recommendations based on BAM file count
• Automatic suggestions for optimal thread count

Output Format (CSV):

ChrID,Strand,Position,RefBase,StopCount,MutationCount,Depth,InsertionCount,DeletionCount,BaseA,BaseC,BaseG,BaseT

2. Norm - Data Normalization

Normalize and filter signals to remove noise and outliers.

modtector norm [OPTIONS] --input <INPUT> --output <OUTPUT>

Parameters:

• -i, --input: Input CSV file
• -o, --output: Output normalized CSV file
• -m, --method: Normalization method (winsor90, percentile28, boxplot)
• --bases: Target bases for analysis (e.g., AC for A and C bases)
• --coverage-threshold: Coverage threshold (default: 0.2)
• --depth-threshold: Depth threshold (default: 50)

Example:

modtector norm \
  -i result/mod.csv \
  -o result/mod_norm.csv \
  -m winsor90 \
  --bases AC \
  --coverage-threshold 0.2 \
  --depth-threshold 50

3. Reactivity - Reactivity Calculation

Calculate reactivity scores by comparing modified and unmodified samples.

modtector reactivity [OPTIONS] --mod-csv <MOD_CSV> --unmod-csv <UNMOD_CSV> --output <OUTPUT>

Parameters:

• -M, --mod-csv: Modified sample CSV
• -U, --unmod-csv: Unmodified sample CSV
• -O, --output: Output reactivity file
• -s, --stop-method: Stop signal method (current, ding, rouskin)
• -m, --mutation-method: Mutation signal method (current, siegfried, zubradt)
• -t, --threads: Number of parallel threads (default: 8)
• --pseudocount: Pseudocount parameter for Ding method (default: 1.0)
• --maxscore: Maximum score limit for Ding method (default: 10.0)

Stop Signal Methods:

• current: k-factor correction method (default)
• ding: Ding et al., 2014 logarithmic processing method
• rouskin: Uses only modified sample stop signal

Mutation Signal Methods:

• current: k-factor correction method (default)
• siegfried: Siegfried method for mutation signal processing
• zubradt: Uses only modified sample mutation signal

Example:

# Using default method
modtector reactivity \
  -M result/mod.csv \
  -U result/unmod.csv \
  -O result/reactivity.csv \
  -t 24

# Using Ding method for stop signal
modtector reactivity \
  -M result/mod.csv \
  -U result/unmod.csv \
  -O result/reactivity.csv \
  -t 24 \
  -s ding \
  --pseudocount 1.0 \
  --maxscore 10.0

Output Format (CSV):

ChrID,Strand,Position,RefBase,Reactivity

4. Compare - Sample Comparison

Compare modified and unmodified samples to identify differential modification sites.

modtector compare [OPTIONS] --mod-csv <MOD_CSV> --unmod-csv <UNMOD_CSV> --output <OUTPUT>

Parameters:

• -m, --mod-csv: Modified sample CSV
• -u, --unmod-csv: Unmodified sample CSV
• -o, --output: Output comparison CSV file
• --min-depth: Minimum depth threshold (default: 10)
• --min-fold: Minimum fold change threshold (default: 2.0)

Example:

modtector compare \
  -m result/mod.csv \
  -u result/unmod.csv \
  -o result/comparison.csv \
  --min-depth 10 \
  --min-fold 2.0

Output Format (CSV):

ChrID,Strand,Position,RefBase,ModStop,ModMutation,ModDepth,UnmodStop,UnmodMutation,UnmodDepth,StopFoldChange,MutationFoldChange,ModificationScore

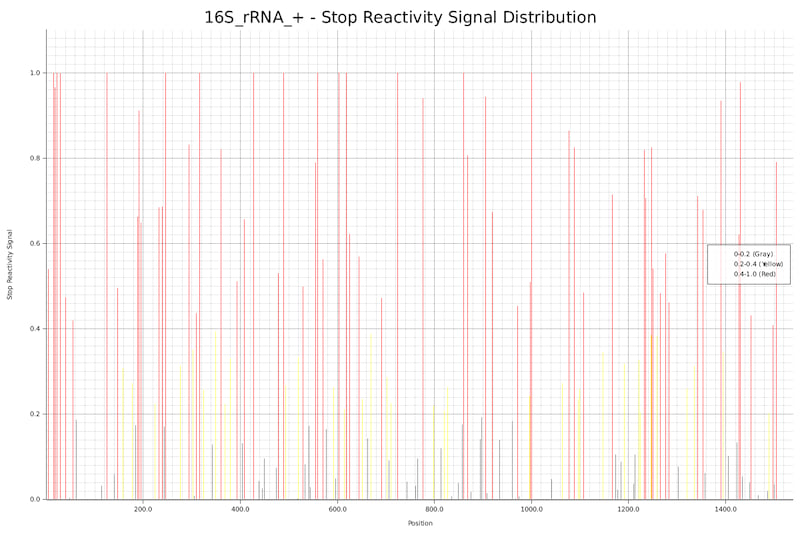

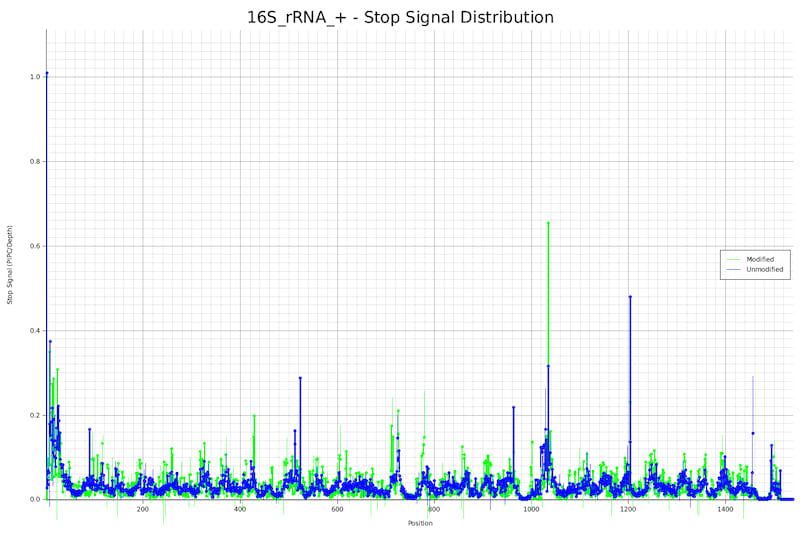

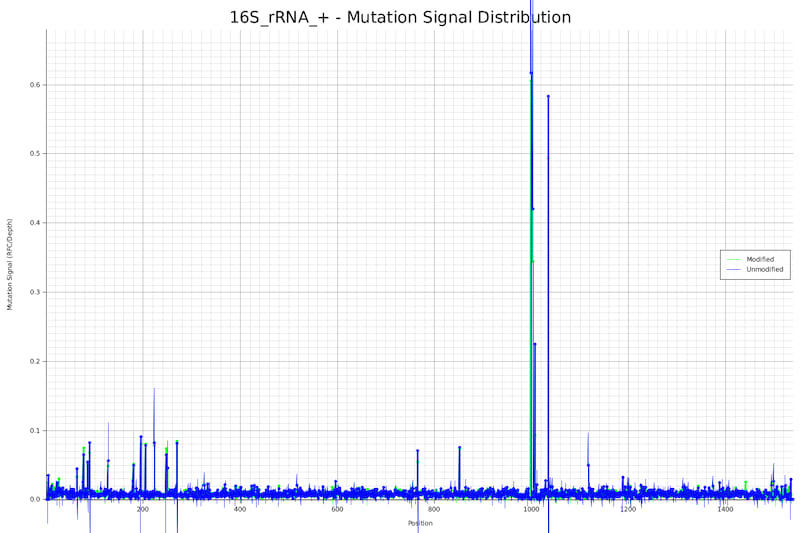

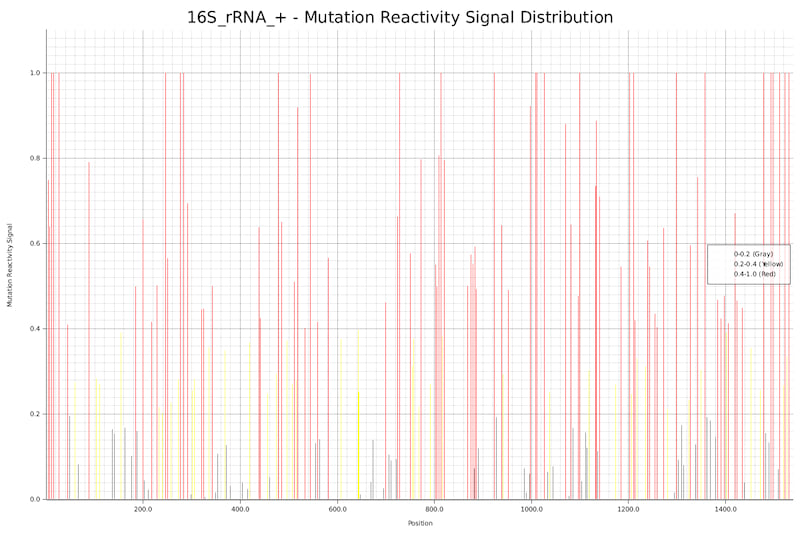

5. Plot - Visualization

Generate visualization plots including signal distributions and RNA structure SVG plots.

modtector plot [OPTIONS] --mod-csv <MOD_CSV> --unmod-csv <UNMOD_CSV> --output <OUTPUT>

Parameters:

• -M, --mod-csv: Modified sample CSV (optional for SVG-only mode)
• -U, --unmod-csv: Unmodified sample CSV (optional for SVG-only mode)
• -o, --output: Output directory
• -r, --reactivity: Reactivity file (optional)
• -t, --threads: Number of parallel threads (default: 8)
• --coverage-threshold: Coverage threshold (default: 0.2)
• --depth-threshold: Depth threshold (default: 50)

SVG Plotting Options:

• --svg-template: SVG template file path
• --svg-bases: Bases to plot (default: ATGC)
• --svg-signal: Signal type to plot (stop, mutation, all)
• --svg-strand: Strand to include (+, -, both)
• --svg-ref: Reference sequence file for alignment
• --svg-max-shift: Maximum shift for alignment (default: 50)

Example:

# Regular plotting
modtector plot \
  -M result/mod.csv \
  -U result/unmod.csv \
  -o result/plots \
  -r result/reactivity.csv \
  -t 8

# SVG-only mode
modtector plot \
  -o svg_output/ \
  --svg-template rna_structure.svg \
  --reactivity result/reactivity.csv \
  --svg-signal all \
  --svg-strand +

# Combined mode (regular + SVG)
modtector plot \
  -M result/mod.csv \
  -U result/unmod.csv \
  -o result/plots \
  --svg-template rna_structure.svg \
  --reactivity result/reactivity.csv

6. Evaluate - Accuracy Assessment

Evaluate the accuracy of results using known secondary structure.

modtector evaluate [OPTIONS] --reactivity-file <REACTIVITY_FILE> --structure-file <STRUCTURE_FILE> --output-dir <OUTPUT_DIR>

Parameters:

• -r, --reactivity-file: Reactivity CSV file (stop or mutation type)
• -s, --structure-file: Secondary structure file (.dp format)
• -o, --output-dir: Output directory
• -g, --gene-id: Gene ID (optional, for base matching)
• -S, --strand: Strand information (optional, default: +)
• --signal-type: Signal type (stop or mutation)

Example:

# Evaluate stop signal accuracy
modtector evaluate \
  --reactivity-file result/reactivity_stop.csv \
  --structure-file data/structure.dp \
  --output-dir result/eval \
  --signal-type stop \
  --gene-id gene_id

# Evaluate mutation signal accuracy
modtector evaluate \
  --reactivity-file result/reactivity_mutation.csv \
  --structure-file data/structure.dp \
  --output-dir result/eval \
  --signal-type mutation \
  --gene-id gene_id

Evaluation Metrics:

• AUC: ROC curve area under curve (0.5-1.0, higher is better)
• F1-score: Harmonic mean of precision and recall (0-1, higher is better)
• Sensitivity: True positive rate (0-1, higher is better)
• Specificity: True negative rate (0-1, higher is better)
• Precision: Positive predictive value (0-1, higher is better)
• Recall: True positive rate (0-1, higher is better)
• Accuracy: Proportion of correct classifications (0-1, higher is better)

7. Duet - Dynamic Ensemble Decomposition

Duet performs a sliding-window analysis (default 100-nt windows with 50-nt step) that jointly examines normalized stop/mutation reactivities and read-level co-variation to determine whether multiple conformations coexist within each genomic segment. Clustering is carried out per window via DBSCAN on read-level stop/mutation co-occurrence features, eliminating the need to predefine the number of ensembles.

modtector duet [OPTIONS] --input <INPUT> --bam <BAM> --fasta <FASTA> --output <OUTPUT>

Key Parameters:

• -i, --input: Normalized reactivity CSV file (output from modtector norm)
• -b, --bam: Sorted BAM alignment for the same sample
• -f, --fasta: Reference FASTA used for alignment
• -o, --output: Window-level CSV summarising ensemble detection
• --epsilon: DBSCAN radius in standardized feature space (default: 0.75)
• --min-samples: Minimum neighbours for a DBSCAN core read (default: 5)
• --window-size: Sliding-window size in nucleotides (default: 100)
• --window-step: Sliding-window step in nucleotides (default: 50)
• -t, --threads: Number of threads for parallel processing (default: system CPU count)
• --summary-output: Optional per-window/per-ensemble CSV path (default <output>_summary.csv)
• -l, --log: Log file path (optional)

Example:

# Infer window-level ensembles (100-nt windows, 50-nt step, 16 threads)
modtector duet \
  -i signal/03_norm/iso-1_rep-1_norm.csv \
  -b signal/00_bam/iso-1_rep-1.sort.bam \
  -f reference/PDL1.fa \
  -o signal/04_duet/iso-1_rep-1_windows.csv \
  --epsilon 0.85 \
  --min-samples 8 \
  --window-size 100 \
  --window-step 50 \
  -t 16

Progress Reporting: During execution, duet provides detailed statistics:

• Number and percentage of reads with dual signals (both stop and mutation)
• Number and percentage of positions assigned high confidence (reactivity >= 0.7)
• Average position confidence and total positions analyzed

Window CSV Columns:

• ChrID,Strand,WindowStart,WindowEnd: Genomic window coordinates
• Status: OK, InsufficientReads, or LowDensity
• ReadCount: Number of reads contributing stop/mutation signals inside the window
• EnsembleCount: Number of DBSCAN ensembles (noise excluded)
• PrimaryEnsembleID / PrimaryOccupancy: Highest-occupancy ensemble (if any)
• NoiseFraction: Fraction of reads classified as DBSCAN noise
• DualSignalFraction: Fraction of reads in the window carrying both stop and mutation evidence
• MeanStopReactivity / MeanMutationReactivity: Average normalized reactivity values across positions in the window
• ClusterSummary: Concise per-ensemble occupancy/ confidence/ signal statistics
• GlobalEnsembles: Mapping from window-local cluster IDs to global ensemble IDs (e.g., c1->E1|E2)

Summary CSV Columns:

• Window coordinates and status (mirroring the main CSV)
• EnsembleID / GlobalEnsembleID / IsNoise / Members / Occupancy
• ClusterConfidence: Confidence score for the window-level cluster (0-1)
• MeanStopCount / MeanMutationCount / DualSignalFraction
• Window-level mean reactivities for convenience

Global Ensemble CSV (<output>_global.csv) Columns:

• ChrID,Strand,GlobalEnsembleID: Transcript and ensemble identifier
• WindowCount / ClusterCount: Number of contributing windows and window-clusters
• ReadCount: Total reads assigned to the global ensemble
• TotalStopReads / TotalMutationReads: Aggregated stop/mutation read counts
• DualSignalReads: Reads exhibiting both stop and mutation signals inside the ensemble
• UniquePositions: Number of distinct positions linked to the ensemble
• Confidence: Global ensemble confidence score derived from supporting clusters

Global Per-base CSV (<output>_global_per_base.csv) Columns:

• ChrID,Strand,Position,GlobalEnsembleID: Genomic coordinate annotated with global ensemble ID
• StopReads / MutationReads: Read support contributed by the ensemble at the position
• StopReactivity / MutationReactivity: Normalized reactivity values inherited from the window input
• PositionConfidence: Confidence score for the ensemble assignment at this base

📊 Representative Visualization Results

The following shows typical visualization results generated by ModTector:

Overall Signal Distribution Scatter Plot: Shows signal comparison between modified and unmodified groups at all positions

ROC Curve Evaluation Results: Accuracy assessment based on 16S rRNA secondary structure

Stop Signal ROC Curve	Mutation Signal ROC Curve

Signal Distribution Plots: Display stop and mutation signal distribution across gene positions

Stop Signal Distribution	Mutation Signal Distribution

Reactivity Plots: Bar charts showing reactivity intensity of modification sites

Stop Signal Reactivity	Mutation Signal Reactivity

🧪 Example Dataset

To help you get started quickly, we provide a minimal example dataset that can be used to test ModTector functionality. This dataset is available at Zenodo (10.5281/zenodo.17316476).

Download and Setup

1. Download the example dataset from Zenodo:

   wget https://zenodo.org/record/17316476/files/modtector_example_dataset.zip
   unzip modtector_example_dataset.zip
   cd modtector_example_dataset


2. Run the example script:

   bash test_modtector_v0.10.0.sh


This script will run a complete ModTector workflow on a small example dataset, demonstrating all major functionality including pileup processing, reactivity calculation, normalization, Duet sliding-window ensemble analysis, visualization, and evaluation.

Expected Results

After running the example script, you will see output files in the signal_v0.5.6/ directory, organized by processing step:

• 01_count/ - Pileup count results
• 02_reactivity/ - Reactivity calculation results
• 03_norm/ - Normalized reactivity data
• 04_duet/ - Duet sliding-window ensemble analysis results (window/summary CSVs plus <name>_global.csv and <name>_global_per_base.csv)
• 05_plot/ - Visualization plots
• 06_evaluate/ - Accuracy evaluation results
• logs/ - Processing logs

📈 Performance Optimization

• Multi-threading Support: Reactivity and plot commands support multi-threaded parallel processing
• Memory Optimization: Pileup analysis uses stream processing to reduce memory consumption
• Boundary Checking: Enhanced data validity validation for improved stability
• Progress Reporting: Detailed processing progress, timing reports, and statistical summaries (dual-signal reads, high-confidence positions)

⚠️ Important Notes

• Ensure BAM files are properly sorted and indexed
• Sequence IDs in FASTA files must match chromosome names in BAM files
• Use multi-threading parameters when processing large files
• Evaluation function only analyzes genes with secondary structure information
• Recommend using sufficient memory for processing large datasets

🔬 Technical Features

• Based on stone project: Added complete workflow on top of the stone project
• Rust High Performance: Leverages Rust's memory safety and concurrency features
• htslib Integration: Uses mature htslib library for BAM file processing
• Modular Design: Independent functional modules for easy maintenance and extension

📄 License

This project is licensed under the MIT License.

🤝 Contributing

Issues and Pull Requests are welcome to improve ModTector.

📚 Documentation

• Installation Guide - Detailed installation instructions
• Quick Start Guide - Get started in minutes
• User Guide - Comprehensive usage guide
• Command Reference - Complete command documentation
• Examples - Practical examples and tutorials
• Troubleshooting - Common issues and solutions

📞 Contact

For questions or suggestions, please contact us through GitHub Issues.

Version Information

• Current Version: v0.14.0
• Release Date: 2025-01-XX
• License: MIT

v0.14.0 New Features

• Base Quality Filtering: Added per-base quality filtering for mutation detection in modtector count command
  • New --min-base-qual parameter (default: 0, recommended: 20)
  • Filters mutations by base quality score to improve signal-to-noise ratio
  • Filters ~15% of low-quality mutations with min-base-qual=20
  • Minimal performance overhead (<1%)
  • Integrated into Snakefile workflow

v0.12.1 Bug Fixes

• Critical Fix: Fixed NaN value handling in evaluate command
  • Fixed panic when processing reactivity files containing NaN values
  • Properly handles NaN values in sorting and statistical calculations
  • Fixes evaluate_bamreadcount rule failure in Snakefile workflow

v0.12.0 New Features

• Bamreadcount Convert Command: Native Rust implementation for converting bamreadcount format to modtector pileup CSV format
  • New convert command: modtector convert -i input.txt -o output.csv -s +
  • Replaces Python script with high-performance Rust module
  • Streaming processing supports large files (tested up to 35GB)
  • Integrated into modtector toolchain for consistency
• Bamreadcount Reactivity Support: Added workflow support for reactivity calculation using bamreadcount-derived pileup files
  • New reactivity_bamreadcount rule in Snakefile
  • Maintains compatibility with existing modtector pileup workflow

v0.11.1 Bug Fixes

• Critical Fix: Corrected stop signal position correction for reverse-strand reads
  • Forward strand: start_position - 1 (upstream correction)
  • Reverse strand: start_position + 1 (downstream correction)
  • Ensures accurate genomic position assignment according to theoretical principles
• Documentation: Updated signal correction documentation to reflect strand-specific correction formulas

v0.11.0 New Features

• Batch Processing Mode: Process multiple BAM files sequentially with glob pattern matching
• Single-cell Unified Processing: Unified processing strategy for single-cell data with automatic cell label extraction
• Performance Optimization: 2-3x speedup for single-cell data processing
• Data Distribution Scanning: Optimized unified scanning reduces processing time significantly

Citation

If you use ModTector in your research, please cite:

[Add citation information when available]
