Gridline ✨

Gridline is a terminal spreadsheet with Rhai support. Cells can contain numbers, text, or formulas powered by the Rhai scripting language. Your sheet lives in a plain text file, and your reusable logic can live in a separate .rhai functions file.

Interfaces: TUI is the default and primary experience (cargo run, cargo install gridline) and is fairly mature. The GUI is behind a feature flag, still experimental, and subject to breaking changes as the vision evolves. webui is a planned future interface.

What you get (today):

• TUI grid with a formula bar and command mode
• A1-style references in formulas (=A1 + B2) and range functions (=SUM(A1:B5))
• Dependency tracking and recalculation with undo/redo support
• Load/reload user functions from a .rhai file (-f at startup, :source at runtime)
• Vim keybindings by default, optional Emacs keymap
• Regex cell search (/pattern, :find, n/N)
• Vim-style key sequences (gg, dd, yy, cc, zf/zF) with count prefixes (5j, 3p)
• Custom keymaps via TOML (optional override)
• Plain text storage format (one cell per line)
• CSV import/export (:import, :export)
• Markdown export with ASCII charts (-o flag or command mode)
• Command-line evaluation mode (-c flag)
• Row/column insertion and deletion
• Simple plotting in a modal (bar/line/scatter)
• Interactive help system (:help)

Why it's fun:

• 🧾 Plain-text sheets you can diff and version
• 🧠 Formulas are real Rhai scripts (with spreadsheet sugar)
• 📈 Quick plots right in the terminal

Screenshots

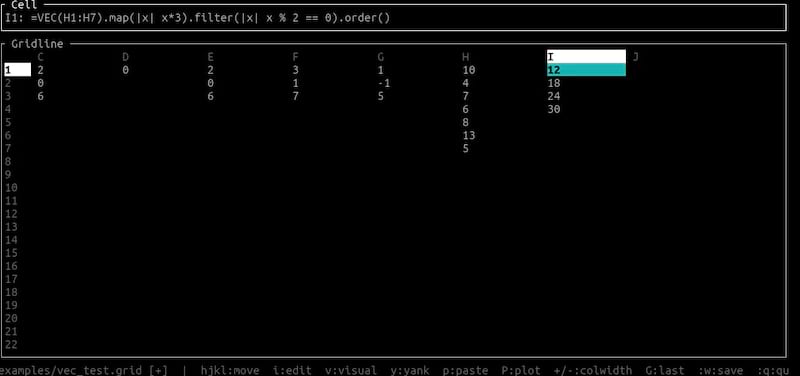

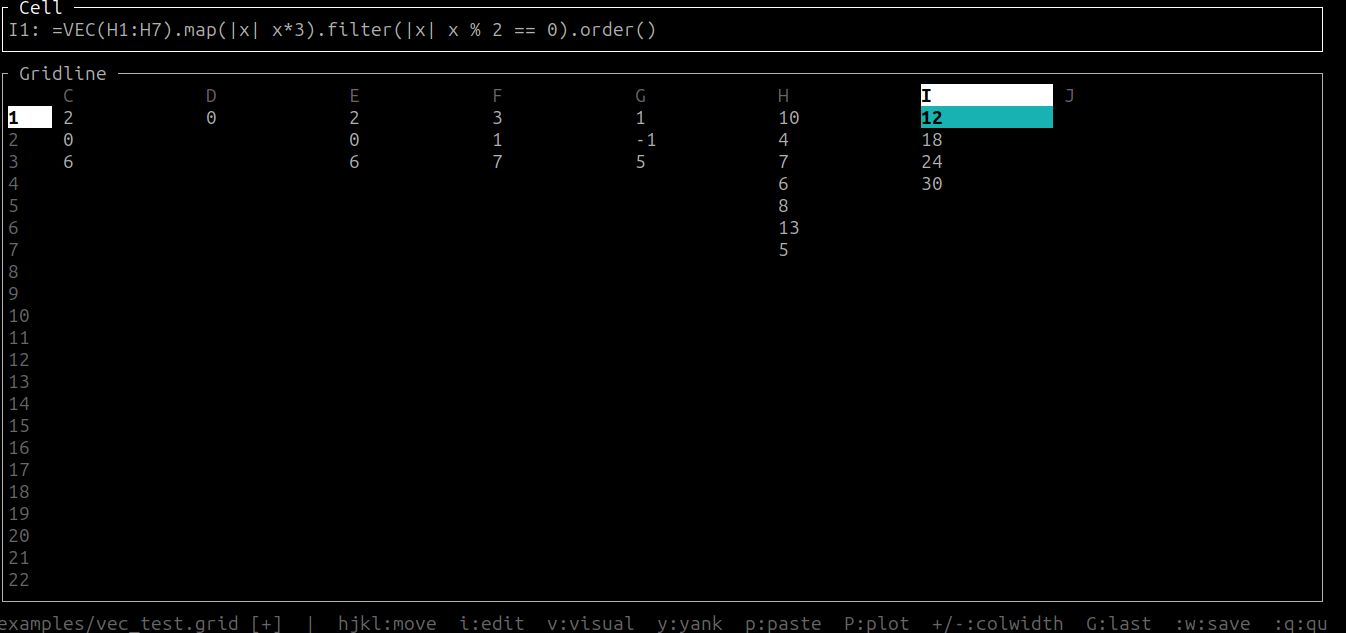

_{Fast, keyboard-first spreadsheets in your terminal: formulas, ranges, and a real formula bar.}

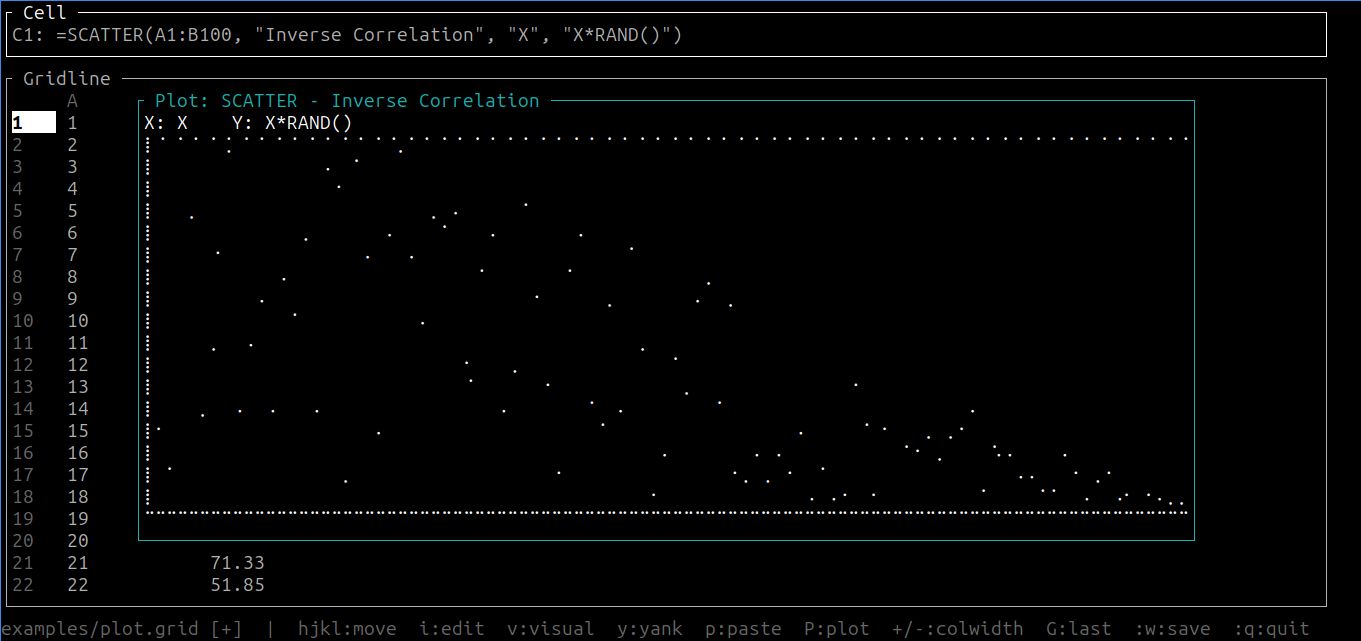

_{Turn data into insight without context-switching: quick plots right where you work.}

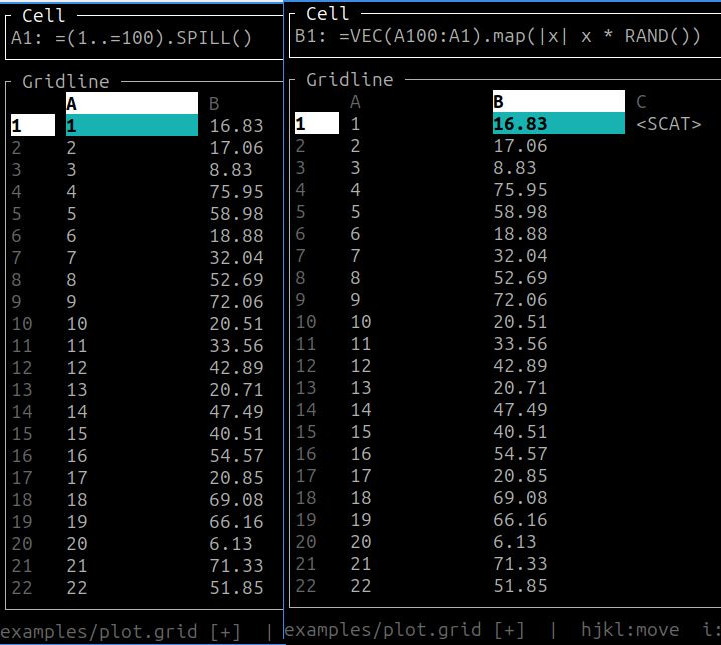

_{Go beyond cell-by-cell: SPILL + Rhai lets you generate and reshape tables with reusable logic.}

Quick Start 🚀

Build and run:

cargo run

Open an example file:

cargo run -- examples/plot.grid

# GUI (experimental, breaking changes expected)
cargo run --features gui --bin gridline-gui -- examples/plot.grid

# WebUI (stub / future)
cargo run --features webui --bin gridline-webui

Command-line Evaluation

Evaluate formulas without opening the TUI:

# Evaluate and print to stdout
cargo run -- -c "SUM(0..100)"

# Evaluate and export to markdown
cargo run -- -c "VEC(1..20).map(|x| POW(x, 2))" -o squares.md

# Export existing file to markdown
cargo run -- examples/plot.grid -o plot.md

Loading Functions

Load custom Rhai functions at startup (can specify multiple files):

cargo run -- -f examples/default.rhai examples/plot.grid
cargo run -- -f lib1.rhai -f lib2.rhai examples/plot.grid

Recommended default setup:

• Gridline looks for default.rhai in your OS config directory on startup.
• Linux: typically ~/.config/gridline/default.rhai
• If missing, Gridline prints the path it tried to stderr.
• Gridline still works without it, but this file is the intended baseline defaults.
• Disable auto-lookup with --no-default-functions.

Install the repo's default file (Linux):

mkdir -p ~/.config/gridline
cp examples/default.rhai ~/.config/gridline/default.rhai

Load or reload functions at runtime:

:source examples/default.rhai
:so                                 # reload all loaded files

Cell Input Rules 🧾

Gridline interprets cell input like this:

• empty / whitespace => empty cell
• leading = => formula (Rhai script; stored without the =)
• quoted "text" => text (quotes stripped)
• otherwise, parseable as f64 => number
• else => text

Examples:

A1: 10
A2: "hello"
A3: =A1 * 2
A4: =SUM(A1:A3)

Formulas (Rhai + Spreadsheet Sugar) 🧠

Inside formulas:

• A1 becomes cell(0, 0) (0-indexed internally)
• @A1 becomes value(0, 0) (typed access: numbers/text/bools)
• SUM(A1:B5) becomes sum_range(0, 0, 4, 1)

Arrays "spill" down the column. If you need to do an in-place operation that returns () (like Rhai's Array.sort()), use OUTPUT:

A1: 30
A2: 10
A3: 20
B1: =OUTPUT(VEC(A1:A3), |v| { v.sort(); v })

Typed refs are useful when a referenced cell contains text (or a formula that returns text):

B1: =if C1 > 100 { "expensive" } else { "cheap" }
A1: =len(@B1)

Built-in range functions (ALL CAPS):

• SUM, AVG, COUNT, MIN, MAX
• SUMIF(range, |x| condition) - sum values where predicate is true
• COUNTIF(range, |x| condition) - count cells where predicate is true
• VEC (convert a range to an array; respects direction: VEC(A3:A1) returns [A3, A2, A1])
• SPILL(arr) or SPILL(range) - convert ranges/arrays to spillable arrays (also available as method: arr.SPILL())
• Chart functions: BARCHART, LINECHART, SCATTER (support optional title and axis labels)

Other built-ins:

• ROW() - current cell's row (1-indexed)
• COL() - current cell's column (1-indexed)
• RAND() - random float in [0.0, 1.0)
• RANDINT(min, max) - random integer in [min, max] inclusive
• POW(base, exp) - exponentiation (base^exp)
• SQRT(x) - square root
• FIXED(n, decimals) - format number with fixed decimal places (returns text)
• MONEY(n, symbol[, decimals]) - format as currency like "£15.04" (returns text)
• OUTPUT(value, fn) - apply function to value and return result (useful for in-place operations like sort())

Custom Functions Example 🧩

Create a .rhai file:

fn fib(n) {
  if n < 2 { n } else { fib(n - 1) + fib(n - 2) }
}

Load it (either -f or :source), then use it in a cell:

A1: "Fibonacci"
B1: 10
C1: =fib(B1)

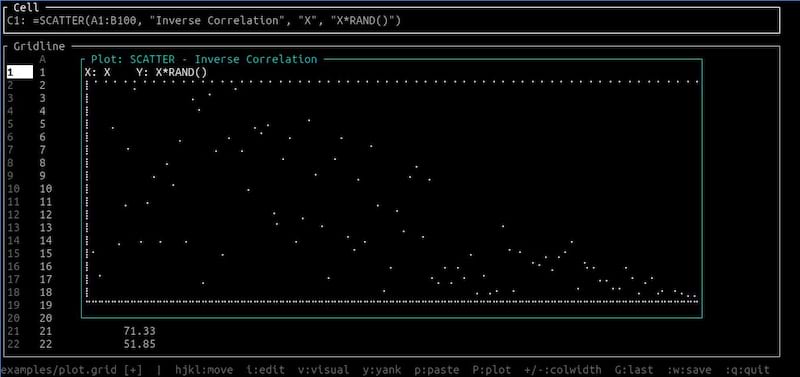

Plotting 📈

Plotting works by making a formula cell return a tagged plot spec. The grid shows a placeholder (e.g. <BAR>), and you can open the plot modal.

Example (examples/plot.grid):

C1: =SCATTER(A1:B5, "title", "xaxis", "yaxis")
D1: =BARCHART(B1:B5)

Open the plot modal:

• Vim keymap: P
• Emacs keymap: M-p

Commands ⌨️

Command mode:

• Vim: :
• Emacs: M-x

File Operations

• :w or :w <path> (alias :save) - save
• :q - quit (warns if modified)
• :q! - force quit
• :wq - save and quit
• :new - create a new empty document (warns if modified)
• :new! - create a new document and discard unsaved changes
• :e <path> (alias :open, :load) - open file
• :import <file.csv> - import CSV data at current cursor position
• :export <file.csv> - export grid to CSV format

Navigation

• :goto A100 (alias :g A100) - jump to a cell

Search

• /pattern - regex search by displayed cell text (case-insensitive by default)
• :find <pattern> (alias :search <pattern>) - run regex search
• n / N (Vim keymap) - next / previous match

Grid Editing

• :ir or :insertrow - insert row above current row
• :dr or :deleterow - delete current row
• :ic or :insertcol - insert column to the left of current column
• :dc or :deletecol - delete current column
• :freeze (alias :fr) - freeze formula/spill at cursor to current value
• :freezeall (alias :fa) - freeze all formulas/spills to current values
• :colwidth 15 (alias :cw) - set current column width
• :colwidth A 15 - set a specific column width

Functions and Help

• :source <file.rhai> (alias :so) - load functions; :so with no args reloads all loaded files
• :call <expr> - execute a Rhai function/script expression in sheet context
• :rhai <expr> - execute an arbitrary Rhai expression in sheet context
• :help or :h - open help modal

Keymaps 🗺️

Select keybindings:

gridline --keymap vim
gridline --keymap emacs
gridline --keymap vim --keymap-file /path/to/keymaps.toml

Keymap files (optional):

• Default location: config directory gridline/keymaps.toml (platform-specific)
• Override with --keymap-file <path>
• If a keymap name is not found in the file, Gridline falls back to the built-in map (vim or emacs)
  • Linux: ~/.config/gridline/keymaps.toml
  • macOS: ~/Library/Application Support/gridline/keymaps.toml
  • Windows: %APPDATA%\\gridline\\keymaps.toml

Sample keymap file:

• examples/keymaps.toml

Status bar has an always-on cheat sheet, but the core controls are:

Vim Mode (default)

• hjkl - move cursor
• [count]hjkl - move by count (5j, 12l, etc.)
• Tab / Shift+Tab - move right / left
• g then any non-g key - open :goto prompt
• gg / G - jump to first cell / last row with data
• / - open regex search prompt
• n / N - next / previous search result
• i or Enter - edit cell
• I - edit cell with cursor at start
• cc or S - clear cell and enter edit mode
• x or Delete - clear current cell
• Esc - cancel edit
• v - visual select (start range selection)
• V - select current row
• y - yank (copy)
• yy - yank current row
• p - paste
• [count]p - paste repeatedly
• dd - delete current row
• zf - freeze formula/spill at cursor
• zF - freeze all formulas/spills
• u - undo
• Ctrl+r - redo
• > or + - increase column width
• < or - - decrease column width
• P - open plot modal
• :w - save
• :q - quit
• :help - open help modal

Emacs Mode (experimental)

Note: Emacs mode is incomplete and must be enabled with --keymap emacs. Some documented keybindings may not work as expected.

• C-n/p/f/b - move cursor (next/previous/forward/back)
• C-v / M-v - page down / up
• C-a / C-e - first / last column
• M-g - open goto prompt
• Enter - edit cell
• C-g - cancel edit
• C-d or Delete - clear current cell
• C-SPC - set mark (start visual selection)
• M-w - copy
• C-y - paste
• M-s or / - open search prompt
• M-r - next search result
• M-p - open plot modal
• M-x - command mode

Use :w and :q in command mode for save/quit operations.

File Formats 📁

Grid Files (.grd / .grid)

Plain text format with one cell per line:

CELLREF: VALUE

Comments start with #. Values follow the same input rules as interactive editing.

CSV Import/Export

Import CSV data into your grid:

# In command mode
:import data.csv

Export grid to CSV:

# In command mode
:export output.csv

CSV features:

• Preserves leading zeros in numeric strings
• Handles quoted fields and escaped quotes
• Imports at current cursor position

Markdown Export

Export your grid as a markdown table with ASCII charts:

# Command-line export
cargo run -- examples/plot.grid -o output.md

# Or evaluate formula and export
cargo run -- -c "VEC(1..10).map(|x| x * x)" -o squares.md

The markdown export includes:

• Grid data as a markdown table
• ASCII renderings of any charts
• Row and column labels

Development 🔧

cargo fmt
cargo clippy --all-targets -- -D warnings
cargo test

License 📜

Licensed under either of:

• Apache License, Version 2.0 (LICENSE-APACHE)
• MIT license (LICENSE-MIT)
