Greentic OAuth Broker

Greentic OAuth stitches together the greentic-oauth-broker, SDKs, and worker tooling used by Greentic products to manage delegated access to third-party APIs. The broker performs OAuth handshakes, stores encrypted credentials, and exposes HTTP, NATS, WIT, and SDK contracts so other services can initiate flows, await results, and issue signed requests on behalf of tenants and teams.

OAuth Conformance CI Incoming — automated checks now run cargo fmt, cargo clippy, cargo build, and cargo test on every pull request so regressions are caught early.

Interface bindings

Hosts should import capabilities through the curated bindings crates:

• greentic-interfaces-host for host-side interfaces (secrets/state/session/oauth/http/telemetry)
• greentic-interfaces-wasmtime for Wasmtime linker helpers

Guest components (wasm32-wasip2) should depend on greentic-interfaces-guest. Direct WIT/bindgen usage is being phased out in favour of these crates.

See docs/bindings-migration.md for migration notes.

Toolchain

This workspace targets the Rust 2024 edition. Until the edition stabilises, you need the nightly toolchain:

rustup toolchain install nightly

The included rust-toolchain.toml pins CI and local commands to nightly (with rustfmt and clippy components), so cargo … will automatically use the correct compiler once it is installed.

To mirror CI locally, run:

make check

PKCE & custom OAuth parameters

greentic-oauth-core now surfaces the optional PKCE verifier and any provider-specific parameters collected during initiation. Providers implementing Provider::exchange_code receive a pkce_verifier: Option<&str> hint so they can forward S256 verifiers to upstream token endpoints when required. The OAuthFlowRequest type also exposes an extra_params map for whitelisted authorization or token request tweaks (for example prompt=select_account or login_hint=user@example.com). The core crate does not validate these entries; brokers and SDKs are responsible for enforcing allow-lists appropriate for each provider. The broker sanitises and allow-lists the keys for each integration (prompt, login_hint, etc.) before forwarding them. Set BROKER_ALLOW_EXTRA_PARAMS=0 in deployments that must reject all dynamic query overrides—the handler will log and drop any user-supplied values in that mode.

Admin provisioning (preview)

Tenant administrators can bootstrap OAuth applications directly from the broker via the /admin/providers/* endpoints or the greentic-oauth-admin CLI. Provisioners advertise their ProvisionCaps so callers know whether app creation, redirect management, secret generation, webhook installation, or scope grants happen automatically or require a guided hand-off. All writes flow through greentic-secrets using the standard key layout:

Supported providers & capability matrix

If the required environment variables are missing the provisioner transparently falls back to mock mode so CI/tests remain hermetic.

CLI workflow

The admin CLI wraps the HTTP endpoints:

# List compiled-in provisioners and their capabilities
cargo run -p greentic-oauth-broker --bin greentic-oauth-admin -- providers

# Start an admin authorization flow (automated providers only)
cargo run -p greentic-oauth-broker --bin greentic-oauth-admin -- \
  start --provider msgraph --tenant global

# Apply a desired state document (see examples/desired_app/*.json)
cargo run -p greentic-oauth-broker --bin greentic-oauth-admin -- \
  ensure --provider okta --tenant acme \
  --file examples/desired_app/okta_tenant_guided.json

# Preview changes without writing secrets or patching remote apps
cargo run -p greentic-oauth-broker --bin greentic-oauth-admin -- \
  plan --provider okta --tenant acme \
  --file examples/desired_app/okta_tenant_guided.json

ensure accepts the JSON payload described by DesiredAppRequest. For guided providers, populate the resulting OAuth credentials under desired.extra_params:

The broker sanitises and stores those values under messaging/tenant/{tenant}/{provider}/*, making them available to the runtime token handlers without exposing secrets in logs or responses. Audit events fire for every secret write and resource change, so the operator trail remains complete even when provisioning happens through the CLI.

Microsoft Teams tenants: describe each tenant’s desired state in a spec file and send it through the dedicated Teams endpoints (or the greentic-oauth-admin teams ... subcommands). The schema matches examples/desired_app/teams_tenant.json:

{
  "tenant_key": "acme",
  "provider_tenant_id": "00000000-0000-0000-0000-000000000000",
  "requested_scopes": ["ChannelMessage.Read.Group"],
  "resources": [
    { "kind": "team", "id": "19:abc@thread.tacv2", "display_name": "Support" },
    { "kind": "channel", "id": "19:abc@thread.tacv2|19:general", "display_name": "General" }
  ],
  "credential_policy": { "ClientSecret": { "rotate_days": 180 } }
}

Plan/dry-run the diff:

cargo run -p greentic-oauth-broker --bin greentic-oauth-admin -- \
  teams plan --tenant acme \
  --file examples/desired_app/teams_tenant.json

Apply it (install app, probe RSC, reconcile subscriptions):

cargo run -p greentic-oauth-broker --bin greentic-oauth-admin -- \
  teams ensure --tenant acme \
  --file examples/desired_app/teams_tenant.json

The broker stores the normalized resources at messaging/tenant/{tenant}/teams/teams.json, tracks active tenants in messaging/global/teams/tenants.json, and reacts to Microsoft Graph notifications received at /ingress/ms/graph/notify/{tenant}. Set MS_WEBHOOK_NOTIFICATION_URL (or ensure PUBLIC_HOST is resolvable) so the provisioner can register those subscriptions.

The CLI mirrors the REST endpoints:

# preview changes with a summary table + JSON payload
greentic-oauth-admin teams plan --tenant acme --file teams.json

# apply the desired state
greentic-oauth-admin teams ensure --tenant acme --file teams.json

# fetch the currently stored spec (for editing)
greentic-oauth-admin teams get-spec --tenant acme

# install or remove a single team without touching other teams
greentic-oauth-admin teams install --tenant acme --team-id 19:team
greentic-oauth-admin teams remove-team --tenant acme --team-id 19:team

teams plan now prints a quick summary (team action plus channel-level subscriptions) before dumping the full JSON plan. The REST responses are the same shape, so runners can consume the structured TeamsPlanReport directly.

Self-describing OAuth

The broker now publishes a discovery surface so agents and digital workers can enumerate providers, inspect tenant-scoped requirements, and kick off flows without out-of-band documentation. Every discovery response is cache-friendly (ETag, Cache-Control: max-age=60) and, when configured, signed with the broker's discovery key so callers can verify integrity.

Key artifacts:

• /.well-known/greentic-oauth – feature manifest (capabilities, JWKS URI, linked indexes)
• /oauth/discovery/providers – provider catalog
• /oauth/discovery/{tenant}/providers/{provider} – merged descriptor with signature
• /oauth/discovery/{tenant}/providers/{provider}/requirements – flow requirements per grant type
• /oauth/discovery/{tenant}/providers/{provider}/blueprint – blueprint for the next action in a flow

👉 See docs/discovery.md for complete endpoint summaries, curl walkthroughs for Microsoft Graph and Slack, and guidance for MCP/WIT callers.

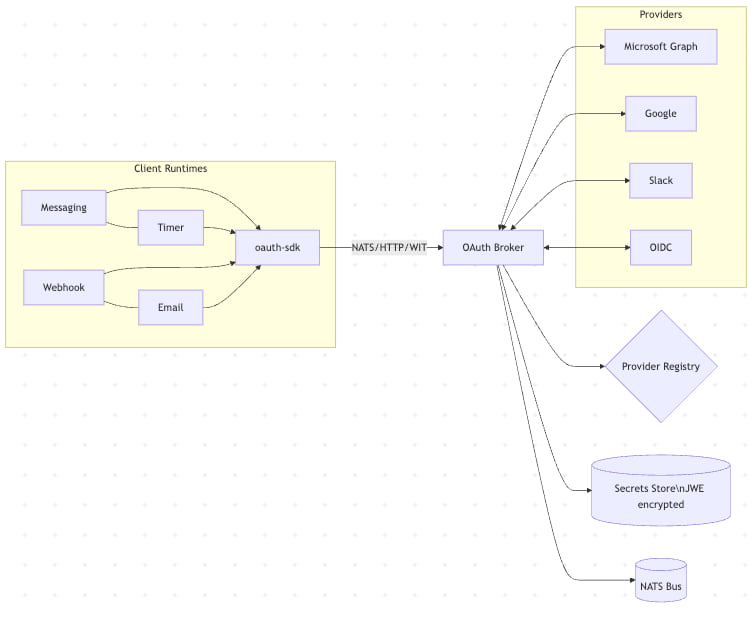

Architecture

1. Client / UI – requests a flow for a specific tenant/team and redirects the user to the provider consent screen.
2. OAuth Broker (crates/greentic-oauth-broker) – published as greentic-oauth-broker; exposes HTTP + NATS APIs, orchestrates provider flows, signs token handles (JWS), encrypts secrets (JWE), and publishes audit/NATS events.
3. Secrets Manager – default EnvSecretsManager persists encrypted payloads using keys like oauth:env:{env}:tenant:{tenant}:team:{team}:owner:{kind}:{id}:provider:{provider}.json.
4. Provider integrations – pluggable providers (Microsoft Graph, Generic OIDC today) registered via env-driven config.
5. Worker / SDKs – oauth-worker (Cloudflare Worker example) and greentic-oauth-sdk (Rust SDK + WIT bindings) consume broker APIs for automation and WASM embedding.

HTTP API Contract

All endpoints live under the broker root (default 0.0.0.0:8080). Path segments follow {env}/{tenant}/{provider} with optional team query parameters.

Additional behaviours:

• /start and /callback enforce in-memory rate limiting (RateLimiter) keyed by {env,tenant,team?,provider}.
• Errors such as missing/invalid state, provider failures, or rate limits emit structured audit events (oauth.audit.*) before returning 4xx/5xx.
• Optional test-only helpers (/_test/refresh, /_test/signed-fetch) can be enabled via --enable-test-endpoints or OAUTH_ENABLE_TEST_ENDPOINTS=true. They proxy refresh grants and simple bearer requests for local conformance tooling and should remain disabled in production.

Resource token example (HTTP)

curl -s -X POST http://localhost:8080/resource-token \
  -H "content-type: application/json" \
  -d '{
    "env": "dev",
    "tenant": "acme",
    "team": "ops",
    "resource_id": "msgraph-email",
    "scopes": ["https://graph.microsoft.com/.default"]
  }'

How It Works

sequenceDiagram
    participant App as App / SDK
    participant Broker
    participant Provider
    App->>Broker: POST /oauth/start (tenant, provider, owner…)
    Broker-->>App: start_url (authorize/{sid})
    App->>Provider: Redirect user to provider authorize URL
    Provider-->>Broker: GET /oauth/callback?code&state
    Broker->>Broker: Verify signed state + nonce (session)
    Broker->>Provider: Exchange code + PKCE verifier
    Broker->>Broker: Encrypt tokens, persist via SecretsManager
    Broker-->>Events: auth.success/auth.failure
    Broker-->>App: Redirect back to configured success/failure URL

Live OAuth Conformance

The conformance_live example exercises real providers without browser interaction to validate discovery, JWKS, client credentials, refresh grants, revocation, and a basic bearer API call. Interactive flows (authorization code + PKCE) remain the domain of apps/oauth-testharness and are intentionally excluded from CI.

To run against an OIDC provider locally:

export OIDC_ISSUER=https://auth.example.com/realms/ci
export OIDC_CLIENT_ID=your-client-id
export OIDC_CLIENT_SECRET=your-client-secret
export OIDC_REFRESH_TOKEN_SEEDED=optional-seeded-refresh
export OIDC_AUDIENCE=optional-audience
cargo run -p greentic-oauth-broker --example conformance_live -- \
  --provider oidc \
  --checks discovery,jwks,client_credentials,signed_fetch,refresh,revocation

For Microsoft Graph set MS_TENANT_ID, MS_CLIENT_ID, MS_CLIENT_SECRET, and optionally MS_REFRESH_TOKEN_SEEDED, then run with --provider msgraph.

Seeded refresh tokens make it possible to exercise refresh/rotation in CI. Generate one via an auth-code flow (for example with apps/oauth-testharness) and store it as *_REFRESH_TOKEN_SEEDED in the live-oauth environment. The runner logs and skips refresh or revocation checks when endpoints are absent/invalid or when no seeded token is configured—revocation is always best-effort and should not fail the suite.

NATS Contract

The broker optionally connects to NATS (NATS_URL, NATS_TLS_DOMAIN). Requests are published to wildcard subscription oauth.> and responses are sent via the supplied inbox subject.

Start flow request

• Subject: oauth.req.{tenant}.{env}.{teamSegment}.{provider}.{flowId} (use _ when team is absent).
• Payload:

{
  "owner_kind": "user",
  "owner_id": "user-123",
  "scopes": ["offline_access", "Mail.Read"],
  "visibility": "team",
  "redirect_uri": "https://app.greentic.ai/oauth/callback"
}

• Response (sent to reply subject):

{
  "flow_id": "flow-abc",
  "redirect_url": "https://login.microsoftonline.com/...&state=...",
  "state": "eyJmbG93X2lkIjoiZmxvdy1hYmMifQ=="
}

Token retrieval

• Subject: oauth.token.get
• Payload: { "token_handle": "<jws>", "force_refresh": false }
• Response: { "access_token": "...", "expires_at": 1700000000 }

Resource token

• Subject: oauth.token.resource
• Payload:

{
  "env": "dev",
  "tenant": "acme",
  "team": "ops",
  "resource_id": "msgraph-email",
  "scopes": ["https://graph.microsoft.com/.default"]
}

• Response: { "access_token": "...", "expires_at": 1700000000 }

Signed fetch

• Subject: oauth.fetch.signed
• Payload:

{
  "token_handle": "<jws>",
  "method": "POST",
  "url": "https://graph.microsoft.com/v1.0/me/sendMail",
  "headers": [{ "name": "content-type", "value": "application/json" }],
  "body": "eyJzdWJqZWN0IjoiSGkuLi4ifQ==",
  "body_encoding": "base64"
}

• Response: { "status": 202, "headers": [{ "name": "...", "value": "..." }], "body": "<base64>", "body_encoding": "base64" }

Emitted events

• oauth.res.{tenant}.{env}.{teamSegment}.{provider}.{flowId} – success payloads after /callback.
• oauth.audit.{env}.{tenant}.{teamSegment}.{provider}.{action} – structured audit events for started, callback_success, callback_error, refresh, revoke, signed_fetch, etc.
• auth.success / auth.failure – domain events summarising callback outcomes (tenant, team, user/service subject, provider, expiry, reason).

WIT Contract

The greentic:oauth-broker@1.0.0 package lives in the greentic-interfaces-* crates; this repo no longer carries a local WIT copy. Bindings come from greentic-interfaces-host / greentic-interfaces-wasmtime, and the Rust SDK exposes host-side helpers or you can call the broker HTTP/NATS client directly.

Migration note

• Legacy greentic:oauth@0.1.0 bindings have been removed. Use greentic:oauth-broker@1.0.0 and the host-side helpers (e.g., request_git_token, request_oci_token, request_scanner_token, request_repo_token, request_distributor_token) for token acquisition.
• The canonical greentic:oauth-broker@1.0.0 WIT lives in the greentic-interfaces-* crates. This repo no longer carries a local oauth WIT; consume bindings from greentic-interfaces-host / greentic-interfaces-wasmtime (or guest bindings if needed).
• The broker world exports the minimal functions (get-consent-url, exchange-code, get-token) with provider IDs, subjects, scopes, and redirect paths only—no provider-specific fields are baked into the interface.
• Resource-scoped tokens are now provided by the broker service over HTTP (POST /resource-token) and NATS (oauth.token.resource). Clients should call this via greentic-oauth-sdk::Client::request_resource_token (used by the host helper wrappers) with TenantCtx + resource_id + scopes.

Multi-tenant & Team Model

• Environment (env) – logical deployment (e.g., prod, staging).
• Tenant (tenant) – customer identifier; required for every flow.
• Team (team) – optional subdivision within a tenant. The broker normalises team into subjects (_ sentinel when absent), rate limits, and storage paths.
• Owner – OwnerKind::User or OwnerKind::Service with associated owner_id. Team-level tokens are typically modelled as OwnerKind::Service scoped via the team field.
• Secret layout – encrypted payloads are written to envs/{env}/tenants/{tenant}/[teams/{team}/]providers/{provider}/{owner_kind}-{owner_id}.json. Visibility determines whether connections are returned to a team (team), tenant (tenant), or just the owner (private).

Secrets & Security

• Token handles – compact JWS signed via SecurityConfig::jws so downstream systems can verify origin/claims.
• Secret storage – token sets are encrypted with SecurityConfig::jwe before being persisted through the configured SecretsManager (default filesystem wrapper).
• CSRF/state – /start issues a CSRF-protected state token sealed with SecurityConfig::csrf.
• Rate limiting & auditing – in-memory RateLimiter bounds /start and /callback; all key actions emit structured audit logs and NATS events for downstream SIEM ingestion.
• Redirect whitelisting – RedirectGuard enforces the allowed redirect URIs supplied via OAUTH_REDIRECT_WHITELIST.

Telemetry

The broker emits OpenTelemetry traces and JSON logs through greentic-telemetry. Configure exporters via environment variables:

Set TELEMETRY_EXPORT=json-stdout during local development to stream structured logs containing service.name=greentic-oauth-broker, service.environment, and the default tenant/team context.

Broker-specific metrics include:

• auth.start.created – counter incremented for every POST /oauth/start.
• auth.callback.success / auth.callback.failure – tagged by provider + HTTP status.
• auth.callback.latency_ms – histogram measuring wall clock from /oauth/start to /oauth/callback.

Troubleshooting

• oauth base url not configured – POST /oauth/start requires OAUTH_BASE_URL so the broker can mint https://…/authorize/{sid} links. Set it to the externally reachable HTTPS origin (include the trailing slash).
• redirect_uri not permitted – ensure the target origin is present in OAUTH_REDIRECT_WHITELIST (comma-separated list). The broker refuses unlisted origins even when a provider manifest allows them.
• authorization session expired / session_not_found – /oauth/start sessions expire after OAUTH_SESSION_TTL_SECS (default 900s) and are single-use. Re-run the start request if the user takes too long or reuses the callback URL.
• state validation failed – indicates a mismatch between the signed state payload and the stored session (tenant/team/user/nonce). Typically caused by mixing start URLs across tenants or reusing stale browser tabs.
• rate limit exceeded – both /oauth/start and /oauth/callback enforce {env,tenant,team?,provider} quotas. Tune OAUTH_RATE_LIMIT_MAX / OAUTH_RATE_LIMIT_WINDOW_SECS for high-volume tenants or retry with exponential backoff.

Releases & Publishing

Crate versions are taken directly from each Cargo.toml. When you push to master, the CI pipeline inspects all crates via cargo metadata:

• If a crate’s manifest changed and no tag exists yet, a tag <crate-name>-v<semver> is created and pushed automatically.
• The publish workflow runs after lint/build/test, using katyo/publish-crates@v2 to publish every crate whose version bumped. The step is idempotent and succeeds even when a version is already on crates.io.
• For single-crate repos the tag format collapses to <repo-name>-v<semver>, matching the crate name.

Trigger the workflow manually via “Run workflow” if you need to republish; an existing version simply results in a no-op.

Provider Onboarding Guide

1. Register credentials with the upstream provider and obtain client IDs/secrets.
2. Configure environment variables on the broker host:
   • Microsoft Graph: MSGRAPH_CLIENT_ID, MSGRAPH_CLIENT_SECRET, MSGRAPH_TENANT_MODE (common, organizations, consumers, or single:<tenantId>), MSGRAPH_REDIRECT_URI, optional MSGRAPH_DEFAULT_SCOPES, optional MSGRAPH_RESOURCE.
   • Generic OIDC: OIDC_CLIENT_ID, OIDC_CLIENT_SECRET, OIDC_AUTH_URL, OIDC_TOKEN_URL, OIDC_REDIRECT_URI, optional OIDC_DEFAULT_SCOPES.
   • Broker runtime: OAUTH_BASE_URL (public URL for /authorize/{id}), optional OAUTH_SESSION_TTL_SECS, and either OAUTH_HMAC_SECRET_BASE64 or OAUTH_HMAC_SECRET for state signing.
3. Whitelist redirects via OAUTH_REDIRECT_WHITELIST=https://app.greentic.ai/.
4. Expose secret storage (SECRETS_DIR) and ensure volume durability & access controls.
5. Enable NATS (optional) by setting NATS_URL (+ NATS_TLS_DOMAIN when using TLS). The broker will publish/resubscribe automatically.
6. Deploy SDK/worker consumers so applications can initiate flows and use issued token handles.

Add new providers by implementing the greentic_oauth_core::provider::Provider trait, packaging it under crates/greentic-oauth-broker/src/providers, registering it in ProviderRegistry, and supplying appropriate env wiring.

SDK & Examples

• Rust SDK: crates/greentic-oauth-sdk ships as greentic-oauth-sdk and exposes a high-level Client plus component host bindings for WASM environments.
• HTTP helper: crates/greentic-oauth-client provides a lightweight REST client (Client::start) and provider presets (providers::resolve("microsoft")) for services that just need to kick off interactive flows.
• Worker Example: oauth-worker demonstrates how to expose HTTP routes in a serverless edge runtime using the SDK.
• Tests: Integration suites under crates/greentic-oauth-broker/tests show end-to-end HTTP and NATS flows, including audit assertions.

Quick Usage Flow (pseudo)

let client = greentic_oauth_sdk::Client::new_from_env();
let start = client.initiate_auth(Init {
    env: "prod",
    tenant: "acme",
    team: Some("netops"),
    provider: "msgraph",
    flow_id: "7f9c",
    scopes: vec!["Chat.ReadWrite".into()],
    owner_kind: OwnerKind::Team,
    owner_id: Some("netops".into()),
    redirect: Some("https://app.greentic.ai/callback".into()),
})?;

// Send start.url to user via chat button...

let res = client.await_result("acme","prod",Some("netops"),"msgraph","7f9c").await?;
let handle = res.token_handle.unwrap();

let resp = client.signed_fetch(&handle, "GET", "https://graph.microsoft.com/v1.0/me", None).await?;

Note: Current SDK owner kinds are User and Service; team-scoped flows are typically modelled as OwnerKind::Service combined with the team field.

Additional Examples

• Resolve an access token directly:

let token = client.get_access_token(&handle, false).await?;
println!("token expires at {}", token.expires_at);

• Invoke the WIT component from WASM:

use greentic_oauth_sdk::wit::{BrokerHost, broker};

let mut host = BrokerHost { client };
let response = broker::initiate_auth(&mut host, broker::InitiateRequest {
    flow_id: "flow-7f9c".into(),
    owner_kind: broker::OwnerKind::User,
    owner_id: "user-42".into(),
    scopes: vec!["Files.Read".into()],
    redirect_uri: Some("https://app.greentic.ai/callback".into()),
    visibility: Some(broker::Visibility::Private),
})?;

With these contracts in place, backend services, workers, and WASM components can orchestrate OAuth flows, audit activity, and perform delegated API calls using a consistent multi-tenant model.

Multi-Tenancy & Secrets Schema

Every broker instance resolves configuration using the tuple {env, tenant, team?, user?}. Provider manifests live under configs/providers/<provider>.yaml; tenant/team/user overlays are merged deterministically (env → tenant → team → user) from configs/tenants/<tenant>/**/<provider>.yaml. Secrets are persisted using the derived storage path defined in FlowState::secret_path, producing keys such as oauth:env:prod:tenant:acme:team:platform:owner:user:user-1:provider:microsoft-graph.json. The default EnvSecretsManager stores a StoredToken envelope containing encrypted bytes plus an optional expires_at so that background refresh jobs can operate without re-reading token handles.

Providers & Scopes

Manifests declare default scopes (scopes) and optional presets (metadata.default_scope_sets). The Microsoft Graph manifest, for example, exposes bundles for delegated mail, Teams collaboration, calendar ingestion, and OneDrive. HTTP start requests that omit scopes inherit the manifest defaults, ensuring flows succeed even for new tenants. The discovery API surfaces these same presets so workers can programmatically select the minimum permission set.

PKCE + Secure State (JWT)

/start generates a fresh PKCE verifier (S256) per flow and stashes the corresponding challenge in the outbound redirect. The opaque state returned to clients is a JWT signed by the broker (SecurityConfig::csrf), embedding the flow metadata and PKCE verifier. During the callback we verify the signature, hydrate the flow state, and reject replays or tampering before exchanging the authorization code.

Token Storage & Refresh

Successful callbacks JWE-encrypt the provider TokenSet and write it under the computed secret path. A signed token handle (JWS) is returned to callers and contains the tenant context, owner kind, and expiry. POST /token and the signed fetch repeater both call resolve_access_token, which transparently refreshes near-expiry tokens (using provider refresh endpoints) and emits structured audit events (oauth.audit.*.refresh). Optional background refresh is gated behind the refresh-worker feature flag.

Tracing Telemetry (gt.*)

All request handlers attach tenant metadata to the current tracing span (gt.env, gt.tenant, gt.team, gt.provider). Set OTEL_EXPORTER_OTLP_ENDPOINT to emit spans via greentic-telemetry; tracing output can also fall back to structured JSON (gt.message, gt.flow_id, gt.status) via json-stdout. The example Axum app below shows how to initialise tracing with tracing-subscriber and propagate the tenant context for demo flows.

Examples Directory

The repository now ships a minimal Axum integration under examples/axum-app/. The sample uses mock implementations so it runs without a live broker, but the handlers mirror the real SDK calls:

• POST /oauth/start fabricates an InitiateAuthRequest and returns a redirect URL/state pair.
• GET /oauth/callback hydrates a FlowResult similar to the broker’s NATS payload.
• POST /oauth/token and POST /oauth/signed-fetch demonstrate token exchange and signed fetch wiring.

Copy .env.example to .env and cargo run -p greentic-axum-example to exercise the happy path locally. Mock secrets for Google, Microsoft, and GitHub live under examples/axum-app/secrets/ to illustrate the expected JSON shape for local development.
