godot-ksni

A Godot 4 GDExtension that provides system tray icon functionality for Linux desktop environments using the StatusNotifierItem specification.

Overview

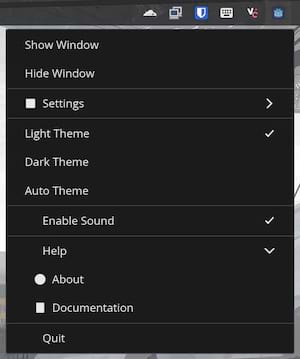

godot-ksni wraps the iovxw/ksni Rust library to bring native system tray support to Godot 4 projects on Linux. It exposes a TrayIcon node that can be used to create tray icons with menus, checkboxes, radio buttons, submenus, and custom icons.

Features

• System tray icon with custom images or system icon names
• Menu items with icons, enabled/disabled states, and visibility control
• Checkmark items that can be toggled
• Radio button groups for mutually exclusive options
• Submenus for organizing complex menus
• Signals for handling user interactions
• Support for Godot's resource system (works with exported games)
• Thread-safe state management

Environment Support

This library currently supports Linux desktop environments that implement the StatusNotifierItem specification, including:

• KDE Plasma
• GNOME (with AppIndicator extension)
• COSMIC
• Other freedesktop-compliant environments

Requirements

• Godot 4.5 or later
• Rust and Cargo for compiling the GDExtension

Installation

Method 1: As a Standalone GDExtension

Use this method if you want to add godot-ksni as a separate GDExtension to your Godot project.

1. Add godot-ksni as a submodule or clone to your project:

git submodule add https://github.com/yuna0x0/godot-ksni.git
git submodule update --init --recursive

# Or clone directly
git clone https://github.com/yuna0x0/godot-ksni.git

2. Build the library with default features (includes gdextension feature):

cd godot-ksni

# Debug build
cargo build

# Release build
cargo build --release

3. Assuming your project structure is like this:

.
├── godot
│   ├── GodotKsni.gdextension
│   ├── project.godot
│   └── ...
└── godot-ksni
    ├── Cargo.toml
    ├── src
    ├── target
    └── ...

4. Create a GodotKsni.gdextension file in your Godot project directory (e.g., godot/GodotKsni.gdextension) with the following content:

[configuration]
entry_symbol = "gdext_rust_init"
compatibility_minimum = 4.5
reloadable = true

[libraries]
linux.debug.x86_64 = "res://../godot-ksni/target/debug/libgodot_ksni.so"
linux.release.x86_64 = "res://../godot-ksni/target/release/libgodot_ksni.so"

5. The TrayIcon node will be available in your Godot project.

Method 2: As a Rust Dependency (for GDExtension developers)

Use this method if you're building your own Rust GDExtension and want to include godot-ksni's functionality within it.

1. Add godot-ksni as a dependency with default features disabled:

cargo add godot-ksni --no-default-features

Important: You must disable default features with --no-default-features to prevent duplicate gdext_rust_init symbols. The gdextension feature (enabled by default) is only needed when building godot-ksni as its own standalone GDExtension (Method 1).

2. In your lib.rs, re-export the TrayIcon to ensure it gets linked:

use godot::prelude::*;

// Re-export TrayIcon so it's registered with Godot
pub use godot_ksni::TrayIcon;

struct MyExtension;

#[gdextension]
unsafe impl ExtensionLibrary for MyExtension {}

3. The TrayIcon node will be automatically registered when your extension loads.

Quick Start

extends Node

var tray_icon: TrayIcon

func _ready():
    # Create the TrayIcon node
    tray_icon = TrayIcon.new()
    add_child(tray_icon)

    # Configure the tray
    tray_icon.set_tray_id("my_application")
    tray_icon.set_title("My Application")
    tray_icon.set_icon_from_path("res://icon.svg")
    tray_icon.set_tooltip("My App", "Running in background", "")

    # Build menu
    tray_icon.add_menu_item("show", "Show Window", "", true, true)
    tray_icon.add_separator()
    tray_icon.add_menu_item("quit", "Quit", "application-exit", true, true)

    # Connect signals
    tray_icon.menu_activated.connect(_on_menu_activated)

    # Spawn the tray icon
    if tray_icon.spawn_tray():
        print("Tray icon created successfully")

func _on_menu_activated(id: String):
    match id:
        "show":
            get_window().visible = true
        "quit":
            get_tree().quit()

Setting Icons

# Method 1: System icon (simplest, but limited selection)
tray_icon.set_icon_name("application-x-executable")

# Method 2: From resource path (recommended for custom icons)
if tray_icon.set_icon_from_path("res://icon.svg"):
    print("Icon loaded")

# Method 3: From texture resource
var texture = load("res://icon.svg")
if texture:
    tray_icon.set_icon_from_texture(texture)

# Method 4: From image (for image manipulation)
var texture = load("res://icon.svg")
if texture:
    var image = texture.get_image()
    tray_icon.set_icon_from_image(image)

Building Complex Menus

func build_menu():
    tray_icon.clear_menu()

    # Standard items
    tray_icon.add_menu_item("open", "Open", "", true, true)
    tray_icon.add_separator()

    # Checkmark
    tray_icon.add_checkmark_item("autostart", "Start on Boot", "", false, true, true)
    tray_icon.add_separator()

    # Radio group
    tray_icon.add_radio_group("theme", 0)
    tray_icon.add_radio_option("theme", "light", "Light", "", true, true)
    tray_icon.add_radio_option("theme", "dark", "Dark", "", true, true)
    tray_icon.add_separator()

    # Submenu
    tray_icon.begin_submenu("Settings", "preferences-system", true, true)
    tray_icon.add_submenu_item("Settings", "prefs", "Preferences", "", true, true)
    tray_icon.add_submenu_checkmark("Settings", "notify", "Notifications", "", true, true, true)
    tray_icon.add_separator()

    tray_icon.add_menu_item("quit", "Quit", "application-exit", true, true)

Examples

The examples/ directory contains the following examples:

• tray_example.gd - Example demonstrating all features (menu items, checkmarks, radio groups, submenus)

Troubleshooting

Tray icon not appearing

• Ensure your desktop environment supports StatusNotifierItem (SNI)
• On GNOME, install the AppIndicator extension
• Check console output for error messages

Icon not loading

• Verify the icon path is correct (use res:// for Godot resources)
• Ensure the image format is supported by Godot (PNG, SVG, etc.)
• Fall back to system icon names if custom icons fail

License

This project is licensed under the MIT License. See the LICENSE file for details.
