DartUniFrac: Approximate UniFrac via Weighted MinHash

This crate provides an efficient implementation of the newly invented DartUniFrac algorithm for large-scale UniFrac computation (weighted and unweighted). We named this new algorithm DartUniFrac because the key step is to use DartMinHash or Efficient Rejection Sampling (or ERS) on branches and the DartMinHash/ERS is about "Among the first r darts thrown, return those hitting $x_i$".

Quick install and usage

On Linux or MacOS

conda install -c bioconda -c conda-forge dartunifrac

Run on example data

wget https://github.com/jianshu93/DartUniFrac/releases/download/v0.2.3/GWMC_16S_otutab.biom
wget https://github.com/jianshu93/DartUniFrac/releases/download/v0.2.3/GWMC_rep_seqs_all.tre
dartunifrac -t ./GWMC_rep_seqs_all.tre -b ./GWMC_16S_otutab.biom -m dmh -s 3072 -o unifrac_unweighted.tsv
dartunifrac -t ./GWMC_rep_seqs_all.tre -b ./GWMC_16S_otutab.biom --weighted -m dmh -s 3072 -o unifrac_weighted.tsv


### obtain the truth via striped unifrac algorithm (SIMD supported), extremely slow at the million-sample scale
striped_unifrac -t ./GWMC_rep_seqs_all.tre -m ./GWMC_16S_otutab.biom --weighted -o unifrac_weighted_striped.tsv

Overview

Unweighted UniFrac

UniFrac (unweighted) can be simply described as unique branches that differ two samples over shared branches (see original UniFrac paper here). Here, each sample has some taxa (or features) that are in the phylogenetic tree.

If we reformulate UniFrac in math, it can be descriped below:

$$D_{UniFrac}(A,B) = \frac{\displaystyle \sum_{i\in E} \ell_i \cdot |\max_{j\in {Desc}(i)} x_j(A) - \max_{j\in {Desc}(i)} x_j(B)|}{\displaystyle \sum_{i\in E} \ell_i \cdot \max(\max_{j\in {Desc}(i)} x_j(A), \max_{j\in {Desc}(i)} x_j(B) )}$$ $$x_j(S) = \begin{cases} 1, & \text{if taxon } j \text{ is present in sample } S,\ 0, & \text{otherwise.} \end{cases}$$ where Desc(i) are all the descendents of branch i. since: $$\displaystyle \sum_{i\in E} \ell_i \cdot |\max_{j\in {Desc}(i)} x_j(A) - \max_{j\in {Desc}(i)} x_j(B)| = \displaystyle \sum_{i\in E} \ell_i \cdot \max(\max_{j\in {Desc}(i)} x_j(A), \max_{j\in {Desc}(i)} x_j(B)) - \displaystyle \sum_{i\in E} \ell_i \cdot \min(\max_{j\in {Desc}(i)} x_j(A), \max_{j\in {Desc}(i)} x_j(B)) $$

Therefore:

$$D_{UniFrac}(A,B)=1-\frac{\displaystyle \sum_{i\in E} \ell_i \cdot \min(\max_{j\in {Desc}(i)} x_j(A), \max_{j\in {Desc}(i)} x_j(B))}{\displaystyle \sum_{i\in E} \ell_i \cdot \max(\max_{j\in {Desc}(i)} x_j(A), \max_{j\in {Desc}(i)} x_j(B) )}$$

since $\displaystyle \ell_i$ can be moved inside max and min (same for sample A and B) and $\max_{j\in {Desc}(i)} x_j(A)$ and $\max_{j\in {Desc}(i)} x_j(B)$ are either 1 or 0. Therefore, it can be rewritten as: $$D_{UniFrac}(x,y)=1-J_w(x,y) = 1- \frac{\sum_{i=1}^n \min(x_i, y_i)}{\sum_{i=1}^n \max(x_i, y_i)}$$

here, $\displaystyle J_w(x,y)$ is Weighted Jaccard Similarity, which can be efficiently estimated via Weighted MinHash, a sketching algorithm that is widely used for large-scale text mining. We chose DartMinHash and Efficient Rejection Sampling due to their speed for sparse and dense data, respectively. In practice, large-scale studies are always sparse, so DartMinHash will be more appropriate because it is both fast and more accurate in this case. However, for cases where there are so many samples but not sparse (e.g., synthetic communities), ERS should be used. See "Choosing L for Efficent Rejection Sampling (ERS)" section for details.

In summary, unweighted UniFrac distance can be considered as weighted Jaccard distance on branches. A fast PCoA on the resulting DartUniFrac distance can also be computed. We rely on fixed rank subspace iteration style randomized SVD, see below.

Weighted Unifrac

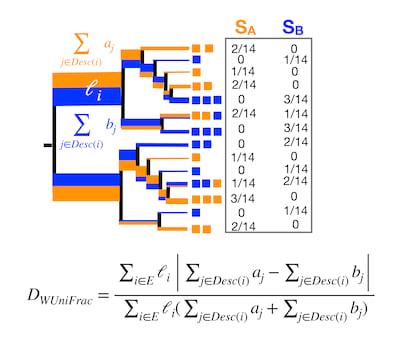

Weighted UniFrac measuers the mass accumulate (taxa weight) over branches(see here). Here, Weighted UniFrac is the normalized weighted UniFrac. A similar idea can be used to derive that Weighted UniFrac is a simple transformation from weighted Jaccard $$D_{WUnifrac}=\frac{1-J_w}{1+J_w}$$

where $J_w$ is:

$$J_w(x,y)=\frac{\sum_{i=1}^n \min(x_i, y_i)}{\sum_{i=1}^n \max(x_i, y_i)}$$

$x_i$ and $y_i$ here represent the product of branch lengh and accumulated mass from taxa weight of 2 samples:

$$x_i=\ell_i*\sum_{j \in Desc(i)} a_j$$

Libraries

We first created a few libraries for the best performance of DartUniFrac implementation.

1.Optimal representation of balanced parenthesis for phylogenetic trees via succparen

2.Implementation of DartMinHash and Efficient Rejection Sampling algorithms can be found here.

3.SIMD-aware Hamming similarity for computing hash collision probability of sketches, anndists

4.A fast, in-memory Principle Coordinate Analysis (PCoA) based on randomized SVD (subspace iteration type SVD), fpcoa

Install

Pre-compiled on Linux (x86-64)

wget https://github.com/jianshu93/DartUniFrac/releases/download/v0.2.3/dartunifrac_Linux_x86-64_v0.2.3.zip
unzip dartunifrac_Linux_x86-64_v0.2.3.zip
chmod a+x ./dartunifrac
./dartunifrac -h

### Rust implementation of striped UniFrac algorithm
wget https://github.com/jianshu93/DartUniFrac/releases/download/v0.2.3/striped_unifrac_Linux_v0.2.3.zip
unzip striped_unifrac_Linux_v0.2.3.zip
chmod a+x ./striped_unifrac
./striped_unifrac -h

macOS via Homebrew:

## install homebrew first: https://brew.sh
brew tap jianshu93/DartUniFrac
brew install DartUniFrac
dartunifrac -h

from source

CMake needs to be installed first, see guidance here

git clone https://github.com/jianshu93/DartUniFrac.git
cd DartUniFrac
#### You must have CMake installed to compile HDF5 from source. This is for BIOM format input. You also need zstd installed and library files in system path for compression.
### Linux
cargo build --release --features intel-mkl-static,stdsimd
### macos
cargo build --release --features macos-accelerate,stdsimd

Usage

DartUniFrac will use all availble CPU cores/threads via Rayon by default.

$ ./target/release/dartunifrac -h


 ************** initializing logger *****************

DartUniFrac: Approximate unweighted UniFrac via Weighted MinHash 🎯🎯🎯

Usage: dartunifrac [OPTIONS] --tree <tree> <--input <input>|--biom <biom>>

Options:
  -t, --tree <tree>           Input tree in Newick format
  -i, --input <input>         OTU/Feature table in TSV format
  -b, --biom <biom>           OTU/Feature table in BIOM (HDF5) format
  -o, --output <output>       Output distance matrix in TSV format [default: unifrac.tsv]
      --weighted              Weighted UniFrac (normalized)
  -s, --sketch <sketch-size>  Sketch size for Weighted MinHash (DartMinHash or ERS) [default: 2048]
  -m, --method <method>       Sketching method: dmh (DartMinHash) or ers (Efficient Rejection Sampling) [default: dmh] [possible values: dmh, ers]
  -l, --length <seq-length>   Per-hash independent random sequence length for ERS, must be >= 1024 [default: 4096]
  -T, --threads <threads>     Number of threads, default all logical cores
      --seed <seed>           Random seed for reproducibility [default: 1337]
      --compress              Compress output with zstd, .zst suffix will be added to the output file name
      --pcoa                  Fast Principle Coordinate Analysis based on Randomized SVD (subspace iteration), output saved to pcoa.txt/ordination.txt
      --streaming             Streaming the distance matrix while computing (zstd-compressed)
      --block <block>         Number of rows per chunk, streaming mode only
  -h, --help                  Print help
  -V, --version               Print version

### DartMinHash, biom format input, unweighted
dartunifrac -t ./ASVs_aligned.tre -b ./ASVs_counts.biom -m dmh -s 2048 -o unifrac_dmh_dist.csv

### DartMinHash, biom format input, weighted
dartunifrac -t ./ASVs_aligned.tre -b ./ASVs_counts.biom --weighted -m dmh -s 2048 -o unifrac_dmh_dist.csv

### tsv/txt tabular input
dartunifrac -t ./data/ASVs_aligned.tre -i ./data/ASVs_counts.txt -m dmh -s 2048 -o unifrac_dmh_dist.csv

### Efficient Rejection Sampling
dartunifrac -t ./data/ASVs_aligned.tre -b ./data/ASVs_counts.biom -m ers -s 2048 -l 4096 -o unifrac_ers_dist.csv

### dartMinHash with pcoa and compressed output distance matrix
dartunifrac -t ./data/ASVs_aligned.tre -b ./data/ASVs_counts.biom -m dmh -s 2048 -o unifrac_dmh_dist.tsv --pcoa --compress

### Streaming mode (reduce memory requirement) for large number of samples. Block size is normally 1/50 to 1/5 of sample size
dartunifrac -t ./data/ASVs_aligned.tre -b ./data/ASVs_counts.biom -m dmh -s 2048 -o unifrac_dmh_dist.tsv --streaming --block 8192

GPU support

We provide Nvidia GPU support via CUDA (CUDA v0.12.0 or later must be installed and in system library path) on Linux (x86-64 tested). It will fall back to CPU if GPU device is detected. Only the Hamming distance computation step benefits from GPU.

### get the binary
wegt https://github.com/jianshu93/DartUniFrac/releases/download/v0.2.3/dartunifrac-cuda_Linux_x86-64_v0.2.3.zip
unzip dartunifrac-cuda_Linux_x86-64_v0.2.3.zip
chmod a+x ./dartunifrac-cuda
RUST_LOG=info ./dartunifrac-cuda -t ./GWMC_rep_seqs_all.tre -b ./GWMC_16S_otutab.biom -m dmh -s 3072 --weighted -o unifrac_weighted.cuda.tsv

A better way is to compile from source.

git clone --branch DartUniFrac-GPU https://github.com/jianshu93/DartUniFrac.git
cd DartUniFrac
cargo build --release --features intel-mkl-static,stdsimd,cuda
./target/release/dartunifrac -h

Output

1.A distance matrix (see also benchmark section) and pcoa stype output. Distance matrix:

2.pcoa.txt (simple):

3.ordination.txt (scikit-bio/qiime format):

Eigvals 6
0.18261610725439215     0.0850720143777559      0.07711060939718065     0.059556599124712034    0.027020650223156684    0.0

Proportion explained    6
0.42333397212962964     0.19721082825095754     0.17875499078496382     0.13806192702856435     0.06263828180588471     0.0

Species 0       0

Site    6       6
Orwoll_BI0023_BI        -0.12912805176115583    -0.1347814593084449     0.04238053055492221     0.1733835565799069      -0.0034312879062869286  0.0
Orwoll_BI0056_BI        -0.09201950670064456    0.23750165032060455     -0.030767869352506142   0.05365540164234891     -0.0413567658374681     0.0
Orwoll_BI0131_BI        -0.18672940644255914    -0.018808722565638855   0.15163198033883318     -0.14087186936334042    0.013611393370684503    0.0
Orwoll_BI0153_BI        0.06843838458354136     -0.0979176640563503     -0.1238107874402007     -0.07508375468747673    -0.104161306687115      0.0
Orwoll_BI0215_BI        -0.003937706919220702   -0.008149706603797708   -0.15251179756497782    -0.028692966865033843   0.11819355132475592     0.0
Orwoll_BI0353_BI        0.3433762872400386      0.02215590221362715     0.11307794346392917     0.017609632693595185    0.017144415735429578    0.0

Biplot  0       0

Site constraints        0       0

the ordination.txt file can be imported into qiime2 like this:

qiime tools import --input-path ordination.txt --type 'PCoAResults' --output-path pcoa.qza

You can then visulize it via qiime emperor plot.

Benchmark

We use Striped UniFrac algorithm as the ground truth, which is an exact and efficient algorithm for large number of samples. A pure Rust implementaion, as a supporting crate for this one, can be found here, also included as a binary in this crate.

Unweighted

For the testing data (ASVs_count.tsv and ASV_aligned.tre), the truth from Striped UniFrac (unweighted) is:

DartUniFrac estimation (DartMinHash, unweighted) is:

DartUniFrac estimation (Efficient Rejection Sampling, uniweghted) is:

Weighted

For the testing data (ASVs_count.tsv and ASV_aligned.tre), the truth from Striped UniFrac (weighted_normalized) is:

DartUniFrac estimation (DartMinHash, weighted) is:

DartUniFrac estimation (ERS, weighted) is:

Choosing L for Efficent Rejection Sampling (ERS)

The best L for achiving a given accuracy is related to the sparsity of the data (see ERS paper here). The author recommended an equation for L: $l=\frac{\alpha}{s}$, where s is the sparsity of the data while $\alpha$ is a constant, normally 0.5 to 5. If you have a large dataset, you can randomly choose several samples to check the sparsity (relevant branches). You can obtain $\alpha$ using the Striped UniFrac binary:

RUST_LOG=info ./target/release/striped_unifrac -t ./data/ASVs_aligned.tre -i ./data/AS
Vs_counts.txt -o ASVs_striped_unifac_dist.tsv

You will see some log like this:

 ************** initializing logger *****************

[2025-08-21T20:12:38Z INFO  striped_unifrac] logger initialized from default environment
[2025-08-21T20:12:38Z INFO  striped_unifrac] Total branches with positive length: 923
[2025-08-21T20:12:38Z INFO  striped_unifrac] Start parsing input.
[2025-08-21T20:12:38Z INFO  striped_unifrac] phase-1 masks built      0 ms
[2025-08-21T20:12:38Z INFO  striped_unifrac] sample 0: relevant branches = 689 / 923
[2025-08-21T20:12:38Z INFO  striped_unifrac] sample 1: relevant branches = 594 / 923
[2025-08-21T20:12:38Z INFO  striped_unifrac] sample 2: relevant branches = 646 / 923
[2025-08-21T20:12:38Z INFO  striped_unifrac] sample 3: relevant branches = 584 / 923
[2025-08-21T20:12:38Z INFO  striped_unifrac] sample 4: relevant branches = 647 / 923
[2025-08-21T20:12:38Z INFO  striped_unifrac] sample 5: relevant branches = 468 / 923
[2025-08-21T20:12:38Z INFO  striped_unifrac] phase-2 sparse lists built (1 strips)
[2025-08-21T20:12:38Z INFO  striped_unifrac] phase-3 block pass      0 ms
[2025-08-21T20:12:38Z INFO  striped_unifrac] Start writing output.

This is a dense example where $\alpha$ is almost 75% so L can be small. For real-world large-scale datasets, $\alpha$ can be as small as 0.001, so a default L=4096 should cover average sparsity around 0.001. In practice, ERS should not be used for very sparse data because as L increases, it is signigicantly slower than DartMinHash.

Acknowledgements

We want to thank Otmar Ertl and Xiaoyun Li for their helpful comments on DartMinHash and Efficient Rejection Sampling, respectively. We want to thank Yuhan(Sherlyn) Weng for helping with DartUniFrac logo design.
