ascii-dag

Graph layout engine. Zero dependencies. no_std ready.

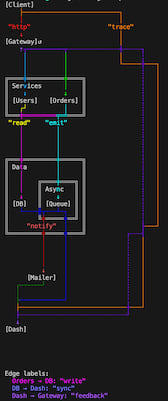

Nested subgraphs, edge labels, reversed edges (┊ dashed), self-cycle, skip-level routing, colored edges — all from ~35 lines of Rust. Run it: cargo run --example hero (plain) or cargo run --example hero -- --color (ANSI colors + legend)

ascii-dag is a high-performance layout engine for placing nodes and routing edges in a fixed-width grid.

Why?

• Zero Dependencies: Drop it into any no_std, WASM, or embedded project.
• Visual Error Chains: Show users why their build failed (Cycle detected? Dependency missing?).
• Fast: ~4ms for 200-node diamond, ~9ms for 500-node fan (heap)

Features

• Tiny: ~39KB WASM (arena), ~93KB (full) — after wasm-opt -Oz
• Fast: Sugiyama layout with configurable crossing reduction
• Headless: Layout IR for custom renderers (Canvas, SVG, TUI)
• Robust: Handles diamonds, cycles, skip-level edges

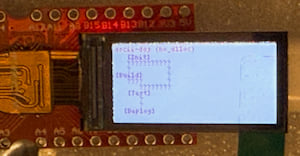

• Embedded: no_std, no-alloc (Arena mode)
• Colored Edges: Up to 8 colors with automatic greedy coloring
• Edge Labels: Inline labels displayed along edge paths
• Subgraphs / Clusters: Group nodes into labeled, nestable double-line boxes
• Configurable Pipeline: SugiyamaConfig with presets (fast, standard, quality) or full custom control

Use Cases

Tool Authors

• Error diagnostics ("Circular dependency in module X")
• Build systems (task execution graphs)
• Package managers (dependency trees with diamonds)

Systems Engineers

• Data pipelines (ETL, Airflow DAGs)
• Distributed systems (request tracing)

Embedded & Web

• IoT consoles (state machines on devices with no display)
• Headless rendering (Canvas/SVG from Layout IR)

Alternatives Comparison

Use ascii-dag when you want compact, zero-dependency terminal visualization with a built-in layout engine. For heavy graph algorithms use petgraph; for high-fidelity image output and advanced layout options, use Graphviz.

Quick Start

Graph Rendering

use ascii_dag::Graph;

fn main() {
    let dag = Graph::from_edges(
        &[(1, "Error1"), (2, "Error2"), (3, "Error3")],
        &[(1, 2), (2, 3)]
    );

    println!("{}", dag.render());
}

Output:

  [Error1]
   │
   ↓
  [Error2]
   │
   ↓
  [Error3]

Generic Cycle Detection

Detect cycles in any data structure using higher-order functions:

use ascii_dag::algorithms::cycles::generic::detect_cycle_fn;

let get_deps = |package: &str| match package {
    "app" => vec!["lib-a", "lib-b"],
    "lib-a" => vec!["lib-c"],
    "lib-b" => vec!["lib-c"],
    "lib-c" => vec![],
    _ => vec![],
};

let packages = ["app", "lib-a", "lib-b", "lib-c"];
if let Some(cycle) = detect_cycle_fn(&packages, get_deps) {
    panic!("Circular dependency: {:?}", cycle);
} else {
    println!("✓ No cycles detected");
}

Usage

Builder API (Dynamic Construction)

use ascii_dag::Graph;

let mut dag = Graph::new();

dag.add_node(1, "Parse");
dag.add_node(2, "Compile");
dag.add_node(3, "Link");

dag.add_edge(1, 2, None);  // Parse -> Compile
dag.add_edge(2, 3, None);  // Compile -> Link

println!("{}", dag.render());

Batch Construction (Static, Fast)

use ascii_dag::Graph;

let dag = Graph::from_edges(
    &[(1, "A"), (2, "B"), (3, "C"), (4, "D")],
    &[(1, 2), (1, 3), (2, 4), (3, 4)]  // Diamond!
);

println!("{}", dag.render());

Output:

   [A]
    │
 ┌─────┐
 ↓     ↓
[B]   [C]
 │     │
 └─────┘
    ↓
   [D]

Zero-Copy Rendering

let dag = Graph::from_edges(/* ... */);
let mut buffer = String::with_capacity(dag.estimate_size());
dag.render_to(&mut buffer);  // No allocation!

Subgraphs (Clusters)

Group nodes into labeled, double-line bordered boxes (╔═╗║╚═╝). Subgraphs can be nested and the layout engine automatically handles padding and border rendering.

use ascii_dag::Graph;

let mut g = Graph::new();
g.add_node(1, "Web");
g.add_node(2, "API");
g.add_node(3, "DB");
g.add_node(4, "Cache");

g.add_edge(1, 2, None);
g.add_edge(2, 3, None);
g.add_edge(2, 4, None);

// Create clusters
let frontend = g.add_subgraph("Frontend");
g.put_nodes(&[1]).inside(frontend).unwrap();

let backend = g.add_subgraph("Backend");
g.put_nodes(&[2, 3, 4]).inside(backend).unwrap();

let ir = g.compute_layout();
println!("{}", ir.render_scanline());

Features:

• Double-line borders (╔═╗║╚═╝) visually distinct from edges
• Label-inside rendering — cluster label sits inside the top border
• Junction characters (╤ ╧ ╪ ╫ ╞ ╡) where edges cross borders
• Nested clusters — put_subgraphs(&[child]).inside(parent)
• Depth-aware padding — sibling and nested clusters never overlap

Configurable Layout Pipeline

Control every stage of the Sugiyama algorithm via SugiyamaConfig:

use ascii_dag::{Graph, SugiyamaConfig};
use ascii_dag::algorithms::sugiyama::crossing::CrossingReducer;

let dag = Graph::from_edges(
    &[(1, "A"), (2, "B"), (3, "C")],
    &[(1, 2), (2, 3)]
);

// Use a curated preset
let ir = dag.compute_layout_with(&SugiyamaConfig::quality());

// Or build a fully custom config
use ascii_dag::{CycleBreaking, Layering, Positioning, RenderMode};

let cfg = SugiyamaConfig {
    cycle_breaking: CycleBreaking::DepthFirst,
    layering: Layering::LongestPath,
    crossing_pipeline: vec![
        CrossingReducer::Median(6),
        CrossingReducer::AdjacentExchange(2),
    ],
    positioning: Positioning::Compact,
    render_mode: RenderMode::Auto,
};

let ir = dag.compute_layout_with(&cfg);

Presets:

Colored Edges

Render edges with distinct colors to visualize different dependency types:

use ascii_dag::Graph;
use ascii_dag::render::colors::Palette;

let dag = Graph::from_edges(
    &[(1, "Root"), (2, "A"), (3, "B"), (4, "C"), (5, "End")],
    &[(1, 2), (1, 3), (1, 4), (2, 5), (3, 5), (4, 5)]
);

let ir = dag.compute_layout();
let output = ir.render_scanline_colored(Palette::Ansi);
println!("{}", output);

Edge Labels

Add labels to edges to describe relationships:

use ascii_dag::Graph;
use ascii_dag::render::colors::Palette;

let mut dag = Graph::new();
dag.add_node(1, "Parser");
dag.add_node(2, "Lexer");
dag.add_node(3, "AST");

dag.add_edge(1, 2, Some("uses"));
dag.add_edge(1, 3, Some("produces"));
dag.add_edge(2, 3, None);

let ir = dag.compute_layout();
let output = ir.render_scanline_colored_with_legend(Palette::Ansi);
println!("{}", output);

Cycle Handling

Graphs with cycles are handled automatically — back edges are detected via DFS and temporarily reversed for layout, then marked reversed: true in the output IR:

use ascii_dag::Graph;

let mut dag = Graph::new();
dag.add_node(1, "A");
dag.add_node(2, "B");
dag.add_node(3, "C");

dag.add_edge(1, 2, None);
dag.add_edge(2, 3, None);
dag.add_edge(3, 1, None);  // Cycle!

// has_cycle() for validation
assert!(dag.has_cycle());

// But layout still works — cycles are broken automatically
let ir = dag.compute_layout();
println!("{}", ir.render_scanline());

Generic Cycle Detection for Custom Types

Use the trait-based API for cleaner code:

use ascii_dag::algorithms::cycles::generic::CycleDetectable;

struct ErrorRegistry {
    errors: HashMap<usize, Error>,
}

impl CycleDetectable for ErrorRegistry {
    type Id = usize;

    fn get_children(&self, id: &usize) -> Vec<usize> {
        self.errors.get(id)
            .map(|e| e.caused_by.clone())
            .unwrap_or_default()
    }
}

// Now just call:
if registry.has_cycle() {
    panic!("Circular error chain detected!");
}

Root Finding & Impact Analysis

use ascii_dag::algorithms::cycles::generic::roots::find_roots_fn;
use ascii_dag::algorithms::generic::impact::compute_descendants_fn;

let get_deps = |pkg: &&str| match *pkg {
    "app" => vec!["lib-a", "lib-b"],
    "lib-a" => vec!["core"],
    "lib-b" => vec!["core"],
    "core" => vec![],
    _ => vec![],
};

let packages = ["app", "lib-a", "lib-b", "core"];

// Find packages with no dependencies (can build first)
let roots = find_roots_fn(&packages, get_deps);
// roots = ["core"]

// What breaks if "core" changes?
let impacted = compute_descendants_fn(&packages, &"core", get_deps);
// impacted = ["lib-a", "lib-b", "app"]

Graph Metrics

use ascii_dag::algorithms::generic::metrics::GraphMetrics;

let metrics = GraphMetrics::compute(&packages, get_deps);
println!("Total packages: {}", metrics.node_count());
println!("Dependencies: {}", metrics.edge_count());
println!("Max depth: {}", metrics.max_depth());
println!("Avg dependencies: {:.2}", metrics.avg_dependencies());
println!("Is tree: {}", metrics.is_tree());

Supported Patterns

Simple Chain

[A] → [B] → [C]

Diamond (Convergence)

   [A]
    │
 ┌─────┐
 ↓     ↓
[B]   [C]
 │     │
 └─────┘
    ↓
   [D]

Variable-Length Paths

     [Root]
        │
   ┌─────────┐
   ↓         ↓
[Short]   [Long1]
   │         │
   ↓         ↓
   │       [Long2]
   │         │
   └─────────┘
        ↓
      [End]

Multi-Convergence

[E1]   [E2]   [E3]
  │      │      │
  └──────┴──────┘
        ↓
     [Final]

no_std Support

ascii-dag is #![no_std] compatible with two modes:

With alloc — heap-based Graph API, needs #[global_allocator]:

#![no_std]
extern crate alloc;
use ascii_dag::Graph;

Without alloc — pure arena/CSR path, no global allocator needed:

#![no_std]
use ascii_dag::graph::csr::CsrGraphBuilder;
use ascii_dag::algorithms::sugiyama::arena_csr::compute_layout_arena_csr;
use ascii_dag::graph::arena::Arena;
// Build, layout, render — all on caller-provided buffers.

See Feature Flags for the exact Cargo.toml lines.

WASM Integration

use wasm_bindgen::prelude::*;
use ascii_dag::Graph;

#[wasm_bindgen]
pub fn render_errors() -> String {
    let dag = Graph::from_edges(
        &[(1, "Error1"), (2, "Error2")],
        &[(1, 2)]
    );
    dag.render()
}

API Reference

Core Types

use ascii_dag::Graph;              // Main graph type
use ascii_dag::SugiyamaConfig;     // Layout configuration
use ascii_dag::LayoutIR;           // Layout intermediate representation
use ascii_dag::RenderMode;         // Auto / Vertical / Horizontal

// Pipeline stage enums
use ascii_dag::CycleBreaking;      // None | DepthFirst
use ascii_dag::Layering;           // LongestPath
use ascii_dag::Positioning;        // Compact
use ascii_dag::CrossingReducer;    // Median(n) | AdjacentExchange(n)

// Preset crossing pipelines
use ascii_dag::{FAST, STANDARD, QUALITY};

Graph API

impl<'a> Graph<'a> {
    // Construction
    pub fn new() -> Self;
    pub fn from_edges(nodes: &[(usize, &str)], edges: &[(usize, usize)]) -> Self;
    pub fn from_edges_labeled(nodes: &[(usize, &str)], edges: &[(usize, usize, Option<&str>)]) -> Self;

    // Building
    pub fn add_node(&mut self, id: usize, label: &'a str);
    pub fn add_edge(&mut self, from: usize, to: usize, label: Option<&'a str>);

    // Subgraphs
    pub fn add_subgraph(&mut self, label: &'a str) -> usize;
    pub fn put_nodes(&mut self, ids: &[usize]) -> PutNodes;       // .inside(sg_id)
    pub fn put_subgraphs(&mut self, ids: &[usize]) -> PutSubgraphs; // .inside(parent_id)

    // Configuration
    pub fn set_render_mode(&mut self, mode: RenderMode);
    pub fn set_sugiyama_config(&mut self, config: SugiyamaConfig);
    pub fn set_crossing_pipeline(&mut self, pipeline: &[CrossingReducer]);

    // Builder pattern (chainable)
    pub fn with_render_mode(self, mode: RenderMode) -> Self;
    pub fn with_sugiyama_config(self, config: SugiyamaConfig) -> Self;
    pub fn with_crossing_pipeline(self, pipeline: &[CrossingReducer]) -> Self;

    // Layout & Rendering
    pub fn compute_layout(&self) -> LayoutIR;
    pub fn compute_layout_with(&self, config: &SugiyamaConfig) -> LayoutIR;
    pub fn render(&self) -> String;
    pub fn render_to(&self, buf: &mut String);
    pub fn estimate_size(&self) -> usize;

    // Validation
    pub fn has_cycle(&self) -> bool;
}

Module Structure

Migrating to 0.9.0

Renames

Module Paths

Top-level convenience re-exports (ascii_dag::Graph, ascii_dag::LayoutIR, etc.) remain unchanged.

How it Works (Algorithms & Tradeoffs)

This library implements a pragmatic variation of the Sugiyama Layered Graph Layout algorithm, optimized for speed and readability in fixed-width terminals.

Limitations & Design Choices

Rendering

• Grid-based Layout: Positions snapped to character cells. Perfect for terminals, less flexible than pixel-based layouts.
• Unicode box characters: Uses │, └, ─ etc. — requires a Unicode-capable font (Cascadia Code, Fira Code, etc).
• Side-Channel Routing: Skip-level edges (A → D, skipping B/C) are routed along the outer edges of the graph.

What This Crate Does Well

• Error Chain Visualization: The primary use-case.
• CLI Build Tools: Visualizing task dependencies in terminal output.
• Embedded/WASM: Works where heavy layout engines can't run.
• Cluster Visualization: Subgraph borders group related nodes visually.

What To Use Instead

• Graphviz/Dot: If you need SVG export or non-hierarchical layouts.
• Petgraph: If you need complex graph theory algorithms (shortest path, max flow).

Examples

cargo run --example basic            # Simple graph construction + rendering
cargo run --example cycles           # Cycle detection and handling
cargo run --example color_demo       # Colored edge rendering
cargo run --example edge_label_demo  # Edge labels
cargo run --example subgraphs        # Subgraph clusters (simple, nested, siblings)
cargo run --example layout_ir_demo   # Layout IR inspection workflow
cargo run --example benchmark        # Performance benchmarks
cargo run --example stress_test      # Large-scale stress tests with presets
cargo run --example hero_colored     # Hero image generation
cargo run --example lean_render      # Minimal rendering demo
cargo run --example topological_sort # Dependency ordering
cargo run --example dependency_analysis  # Full analysis suite (generic)
cargo run --example git_log          # Git-log style visualization

Performance & Configuration

Feature Flags

Which features do I need?

Bundle Size (WASM, opt-level = "z" + LTO + wasm-opt -Oz):

• Arena Mode (no-alloc): ~39 KB (17 KB gzipped)
• Full Mode (std + generic): ~93 KB (39 KB gzipped)

Benchmark Results (Apple M2 Ultra, ARM64, Release Build)

Chain = linear (best case), Diamond = skip-level edges (stress), WideFan = fan-out/fan-in (crossing worst case)

Embedded Performance (RP2040 / Cortex-M0+ @ 125MHz)

Measured on physical hardware (Raspberry Pi Pico) using examples/rp2040_pico.

Longan Nano (RISC-V, GD32VF103, 20KB RAM) — no_alloc arena mode on LCD:

Embedded Performance (ESP32-S3 / Xtensa LX7 @ 240MHz)

Measured on physical hardware (Seeed XIAO ESP32-S3) using examples/esp32s3.

Scalability (Stress Tests)

Tested on Apple M2 Ultra (ARM64), release build. Wide Fan is worst-case for crossing reduction.

Advanced Usage

Custom Renderers (Layout IR)

Use compute_layout() to get the intermediate representation with calculated positions:

use ascii_dag::Graph;

let dag = Graph::from_edges(
    &[(1, "A"), (2, "B"), (3, "C")],
    &[(1, 2), (1, 3), (2, 3)]
);

let ir = dag.compute_layout();

// Layout dimensions
println!("Canvas: {}x{} chars", ir.width(), ir.height());
println!("Levels: {}", ir.level_count());

// Iterate nodes with full position info
for node in ir.nodes() {
    println!(
        "Node '{}' (id={}) at ({}, {}), width={}, center_x={}",
        node.label, node.id, node.x, node.y, node.width, node.center_x
    );
}

// Iterate edges with routing info
for edge in ir.edges() {
    println!(
        "Edge {} → {}: from ({},{}) to ({},{})",
        edge.from_id, edge.to_id,
        edge.from_x, edge.from_y,
        edge.to_x, edge.to_y
    );

    match &edge.path {
        ascii_dag::ir::EdgePath::Direct => println!("  Route: direct"),
        ascii_dag::ir::EdgePath::Corner { horizontal_y } => {
            println!("  Route: L-shaped at y={}", horizontal_y);
        }
        ascii_dag::ir::EdgePath::SideChannel { channel_x, .. } => {
            println!("  Route: side channel at x={}", channel_x);
        }
        ascii_dag::ir::EdgePath::MultiSegment { waypoints, .. } => {
            println!("  Route: {} waypoints", waypoints.len());
        }
        ascii_dag::ir::EdgePath::Spline { .. } => {
            println!("  Route: spline (Bézier curve)");
        }
    }
}

// Useful helpers
if let Some(node) = ir.node_by_id(2) {       // O(1) lookup
    println!("Found node B at level {}", node.level);
}

for node in ir.nodes_at_level(1) {           // Get nodes at depth 1
    println!("Level 1: {}", node.label);
}

if let Some(node) = ir.node_at(5, 2) {       // Hit testing for mouse interaction
    println!("Clicked on: {}", node.label);
}

Arena Mode (no-alloc, Embedded)

For embedded / no_std environments, use CsrGraph::compute_layout_arena():

use ascii_dag::graph::arena::Arena;
use ascii_dag::graph::csr::CsrGraphBuilder;
use ascii_dag::LayoutConfig;

// Build graph in arena (no heap)
let mut graph_buffer = [0u8; 4096];
let mut graph_arena = Arena::new(&mut graph_buffer);
let mut builder = CsrGraphBuilder::new(&mut graph_arena, 3, 2, 64).expect("arena too small");
let n0 = builder.add_node(0, "A").expect("add A");
let n1 = builder.add_node(1, "B").expect("add B");
let n2 = builder.add_node(2, "C").expect("add C");
builder.add_edge(n0, n1).expect("edge A→B");
builder.add_edge(n1, n2).expect("edge B→C");
let graph = builder.build().expect("build graph");

// Layout + render in arena (no heap)
let mut temp_buffer = [0u8; 16384];
let mut output_buffer = [0u8; 16384];
let mut temp_arena = Arena::new(&mut temp_buffer);
let mut output_arena = Arena::new(&mut output_buffer);

if let Ok(ir) = graph.compute_layout_arena(&LayoutConfig::standard(), &mut temp_arena, &mut output_arena) {
    let mut render_buffer = [0u8; 4096];
    let mut line_buffer = [' '; 256];
    let mut scratch_buffer = [0usize; 256];
    if let Some(bytes) = ir.render_to_buffer(&mut render_buffer, &mut line_buffer, &mut scratch_buffer) {
        // render_buffer[..bytes] contains the UTF-8 output
    }
}

Render Modes

use ascii_dag::graph::RenderMode;

dag.set_render_mode(RenderMode::Auto);        // Default — auto-detect
dag.set_render_mode(RenderMode::Vertical);    // Force vertical
dag.set_render_mode(RenderMode::Horizontal);  // Force horizontal (linear chains only)

Note: Horizontal mode is for linear chains only. On branching graphs it renders only the first child.

License

Licensed under either of:

• Apache License, Version 2.0 (LICENSE-APACHE or http://www.apache.org/licenses/LICENSE-2.0)
• MIT license (LICENSE-MIT or http://opensource.org/licenses/MIT)

at your option.

Contribution

Contributions welcome! This project aims to stay small and focused.

Created by Ash
