anchor-kit

anchor-kit is a lightweight, immediate-mode UI rendering library for non-interactive overlay data visualization. It enables responsive layouts, so users don't have to worry about resizing their elements manually when data changes, while still enabling a simple, immediate-mode rendering framework. This is possible since anchor-kit is purpose-built for non-interactive cases where no user input events are expected.

cargo add anchor-kit-core && cargo add anchor-kit-wgpu

anchor-kit-core crate

anchor-kit-wgpu crate

Video Slide Presentation

https://www.youtube.com/watch?v=cf9ffnPPhQ8

Slides: here.

Video Demo

https://www.youtube.com/watch?v=7skxVpKRIko

Final Report

Team members

Motivation

The primary motivation of anchor-kit is to address a current gap in the Rust ecosystem for a simple, immediate-mode-style rendering framework that also has retained-mode features, such as responsive layouts and automatic element styling. In the current ecosystem, users are forced to choose between having simple-to-integrate, yet unintuitive-to-develop frameworks (pure immediate-mode) or simpler-to-develop, but harder to integrate (pure retained-mode) frameworks. Immediate-mode frameworks like egui are useful because they allow users to create new UIs relatively quickly without having to worry about the overhead of managing state and unexpected behaviour between rendered frames by employing a paradigm of rendering all of the elements and their data every frame. The problem with this, however, is that it becomes almost impossible to develop truly responsive layouts, and users are left with having to manage delicate styling of their elements, which is especially difficult when data changes between frames, which is very common in many data visualization cases (see egui docs for more details on this issue). Our solution to this problem is to specifically target non-interactive, overlay-style use cases for data visualization. By implementing this constraint, we can forgo the need for any event-driven rendering and enable lightweight dynamic sizing/ styling of elements between frames based on only their content. This unique approach allows anchor-kit to provide a framework for creating complex, professional data visualization GUIs without the need for complex, error-prone manual adjustment of element styles by the user, which has previously been very difficult to accomplish for visualizations dealing with dynamic data.

Aside from aiming to create a unique rendering approach to fill this gap in the Rust ecosystem, we also had personal motivations to explore computer graphics and rendering. Before working on this project, neither of us was very familiar with the core concepts involved in computer graphics, and we only had a high-level understanding of the steps involved with rendering. Through developing anchor-kit, we wanted to develop our understanding of the fundamentals of graphics programming, particularly those related to rendering libraries & APIs available in Rust, primarily wgpu and winit.

Objectives

Enable responsive UI elements that work seamlessly with dynamic data:

• We want to enable the retained-mode-like feature of responsive layouts and automatic element resizing, so that users do not have to manually account for changes in the size & format of any dynamic data.
• Responsive layouts and dynamic resizing is enabled by accounting for both the content of rendered elements, alongside any styling attributes that are supplied by the user.

Expose and easy-to-use declarative API:

• anchor-kit should support an easy-to-use and understand declarative API that allows users, particularly those with web development experience, to develop complex and professional GUIs for data visualization in Rust.
• Our API is heavily inspired by existing paradigms in HTML and CSS, which provides a simple and well-known interface for styling. This will enable many users, including those not already familiar with rendering in Rust to get started creating GUIs.

Support extensible integration with common Rust rendering pipelines:

• The core layout and element library (anchor-kit-core) is developed to be rendering-agnostic, meaning that we can hook existing rendering pipelines into anchor-kit, where they consume the renderable primitives using separate integration packages.
• For the scope of this project, we chose to add an integration with wgpu, which is one of the most popular and widely-used graphics APIs in Rust.

Features

Core libraries used

• wgpu
• winit (for windowed rendering)
• glyphon (text rendering in wgpu)

anchor-kit structure

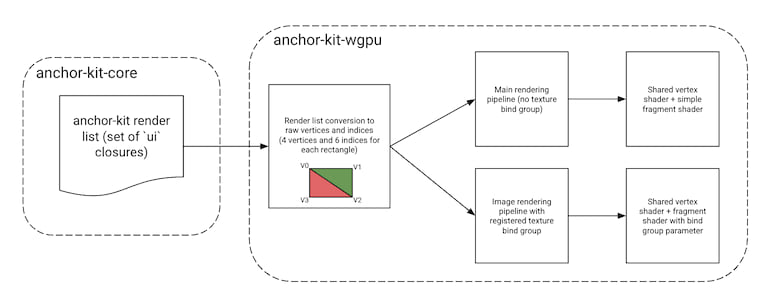

The core functionality behind anchor-kit is the simple API it provides for users to create GUIs using their existing graphics pipelines. In order to actually render the GUI created with anchor-kit, a render_list is created, which consists of anchor-kit primitives, which is then passed into the anchor-kit integration (anchor-kit-wgpu), which handles the actual rendering.

Shaders

Although they aren't written directly in Rust (they are written in wgsl), anchor-kit's shaders make up a core portion of the anchor-kit-wgpu integration package. These shaders are responsible for handing off the vertices created CPU-side to the GPU for actual rendering. Without these shaders enabling GPU-accelerated rendering, anchor-kit would be quite inefficient, and not suitable for real-world applications.

Vertex shader:

The vertex shader implemented in anchor-kit is quite simple. It simply converts our screen-space coordinates into normalized device coordinates, and then flips the y-axis for rendering on the GPU.

Fragment shaders:

The fragment shaders are more complex and interesting, but still relatively simple compared to what can be done with advanced shader implementations. anchor-kit uses two fragment shaders, one for image rendering, which takes in a texture bind group from our image rendering pipeline, and a simpler shader, which has no texture bind grou,p which runs through our main rendering pipeline, and is used for non-textured elements such as pills.

Both of our fragment shaders implement signed distance functions to enable borders and corner rounding, as well as simple anti-aliasing to smooth out element corners. Our fragment shaders were heavily inspired by the wonderful open source tutorial library created by Inigo Quilez.

Layout system:

In anchor-kit, users create their GUI structures (made up of anchor-kit elements) through the use of nested closure functions as parameters to the anchor-kit-core generate_frame function. This function takes the user input tree of element closures and converts it into renderable primitives, which are eventually sent to the GPU for actual rendering.

During the generate_frame function, anchor-kit runs elements through its multi-pass layout system, which is the core logic behind our powerful responsive layouts.

1. Measure pass: Determines each element's size based on its style, content, and any child elements passed into it
2. Layout pass: Uses the measured sizes from the measure pass to determine the absolute position of each element in the frame
3. Render pass: Converts all of the user-defined elements into core renderable primitives which act as the actual data interpreted by the end graphics API

Core generate_frame structure:

let render_list = self.ui_state.generate_frame(ui_frame_info, |ui| { ui.anchor(AnchorPosition::MiddleCenter, Some(Style{...}), |ui| { ui.pill(..., |ui| { ui.text(“hello world!”, …); }); … }); … });

Styling

anchor-kit exposes optional styling attributes that are passed in during element creation in the generate_frame() function. Our styling system was made to resemble a similar structure that exists with CSS styling. The use of these attributes allows for significant visualization changes with just a few lines of additional code passed in by the user.

pub struct Style {
    pub padding: Insets, // top, right, bottom, left padding for the element
    pub margin: Insets, // top, right, bottom, left margin for the element
    pub width: SizingPolicy, // fixed, fill or automatic (based on element content) sizing
    pub height: SizingPolicy, // fixed, fill or automatic (based on element content) sizing
    pub align_x: Align, // element x alignment within parent element (start, middle, end)
    pub align_y: Align, // element y alignment within parent element (start, middle, end)
    pub justify_x: Align, // x alignment of content within the element (start, middle, end)
    pub justify_y: Align, // y alignment of content within the element (start, middle, end)
    pub background_color: Color, // background color for the element (red, green, blue, alpha)
    pub border_color: Color, // border color for the element (red, green, blue, alpha)
    pub border_radius: [f32; 4], // radius for element corner rounding (top-left, top-right, bottom-right, bottom-left)
    pub border_width: f32, // size of the element’s border
}

Elements

Anchor positions:

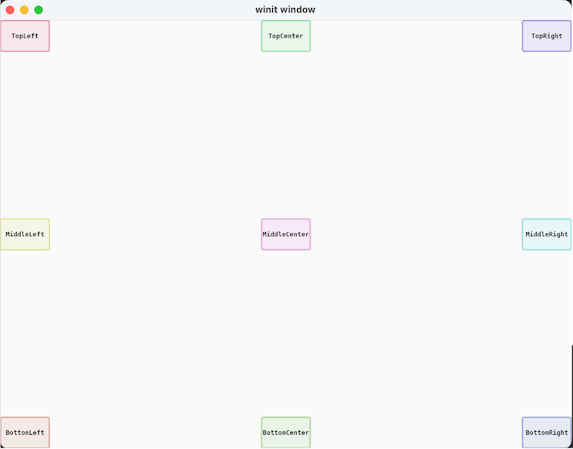

Above are the various options for anchor points within the grid system. Each section you make can be broken down into a 3x3, as shown.

Anchors represent the core layout system for the anchor-kit library (as well as its namesake). All elements in the user-defined layout tree are positioned relative to these anchor positions. Any of the anchor positions can also be nested within each other, allowing for enormous flexibility when aligning elements within anchor-kit GUIs.

ui.anchor(<AnchorPosition>, <Style>, |closure|)

ui.anchor(AnchorPosition::TopCenter, None, |ui| {
    ui.flex_row(...

Flex elements:

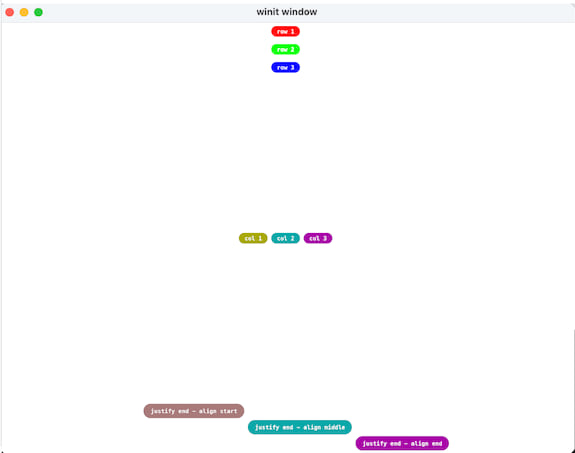

Above are various examples of ways flex_rows and flex_columns can be arranged within an anchor point. On top is a flex_column rendering multiple rows, and in the middle is a flex_row rendering multiple columns. At the bottom is shown how Style options can affect positions of these elements within, specifically showing how align_y takes effect in a flex_row.

Flex elements can justify their child elements to the start, middle and end of their layouts, and children elements themselves and use the align styling attributes to align themselves within the flex elements.

ui.flex_row(<Style>, |closure|);
ui.flex_column(<Style>, |closure|);

ui.flex_row(None, |ui| {
    ui.text("col1".to_string() ...
    ui.text("col2".to_string() ...

Pill elements:

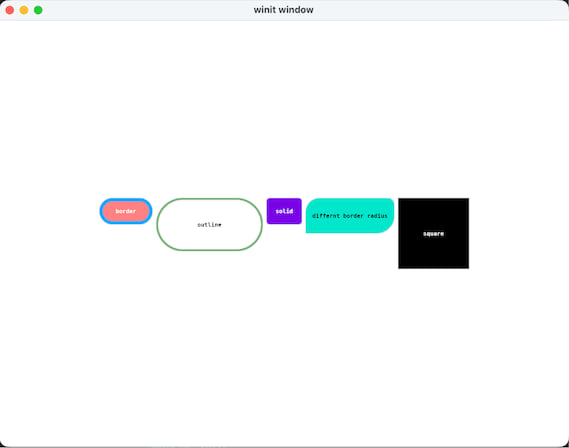

Above shows various permutations of the pill element, a basic shape provided within anchor-kit. This is a flexible element that is programmable with the Style parameter passed in. This element is modifiable by every option within the Style parameter.

In anchor-kit's current state, pill elements act as the primary method to add backgrounds to other elements when not wanting to use a texture (with an image element). Similar to flex elements, pills can also contain children and use the justify_<axis> styling attributes to align their children.

ui.pill(<Style>, |closure|);

ui.pill(
    Some(Style{
        background_color: ... ,
        border_radius: ... ,
        border_color: ... ,
        padding: ... ,
        ..Default::default()
    }),
    |ui| { ... }
);

Image element:

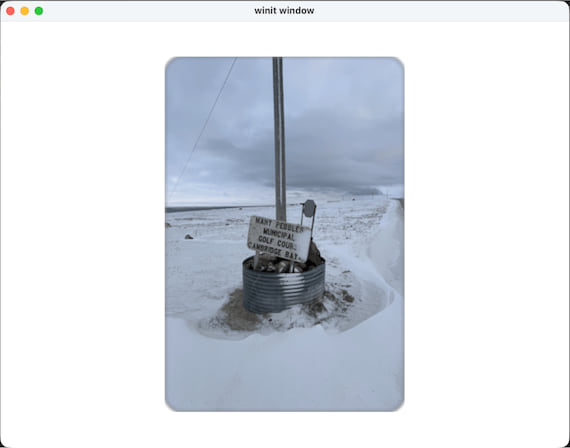

Above shows an example of rendering an image texture onto the window. Displaying these requires a few extra steps before they can be rendered onto a window. First, an image file (texture) has to be read in as bytes, and second, the texture has to be registered using the Renderers get_image_id_from_btyes functions. This generates a Uuid for the image that is then used to render it.

Behind the scenes, image elements also rely on rectangle primitives, which means users can also add styling to images similar to pills (border radius etc.).

ui.image(<Image: Uuid>, <Style>);

let mut renderer = Renderer::new(...);
let diffuse_bytes = include_bytes!("example.png");
let image_uuid = renderer.get_image_id_from_bytes(<Device>, <Queue>, diffuse_bytes);
...
ui.image(
    image_uuid,
    Some(Style {
        width: anchor_kit_core::style::SizingPolicy::Fixed(400),
        height: anchor_kit_core::style::SizingPolicy::Fixed(500),
        border_radius: [40.0, 0.0, 40.0, 0.0],
        ..Default::default()
    })
);

Text elements:

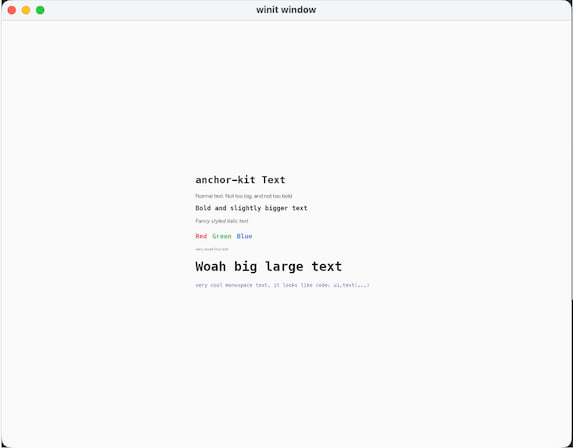

Above shows an example of text rendering with various TextStyles applied to them. TextStyle is a distinct styling parameter from Style that is exclusively used for formatting how text will be output, with various font options and a colour setting.

For the scope of this project, we chose to use the glyphon library to handle text rendering rather than creating our own glyph system. This was primarily done to save time and avoid repeating work that has already been done, since creating a custom glyph/ text rendering engine from scratch is quite complicated. glyphon has a variety of features that are well-suited to anchor-kit, and it natively integrates with wgpu, which fits nicely into our anchor-kit-wgpu integration.

pub struct TextStyle {
    pub font_size: f32,            // Font size
    pub line_height: f32,          // Line height
    pub font_family: FontFamily,   // Select included font family or import your own
    pub font_weight: FontWeight,   // Thin, ExtraLight, Light, Normal, Medium, SemiBold...
    pub font_style: FontStyle,     // Normal, Italic, Bold
    pub text_color: Color,         // Text color
}

ui.text(<Text: String>, <Style>, <TextStyle>);

ui.text(
    "Hello World with Anchor-Kit!".to_string(),
    Some(Style {
        margin: Insets {
            top: 5,
            right: 0,
            bottom: 0,
            left: 0,
        },
        ..Default::default()
    }),
    Some(TextStyle {
        font_size: 16.0,
        line_height: 20.0,
        text_color: anchor_kit_core::primitives::color::Color {
            r: 255,
            g: 255,
            b: 255,
            a: 255,
        },
        font_weight: anchor_kit_core::style::FontWeight::Bold,
        ..Default::default()
    }),
);

Divider elements:

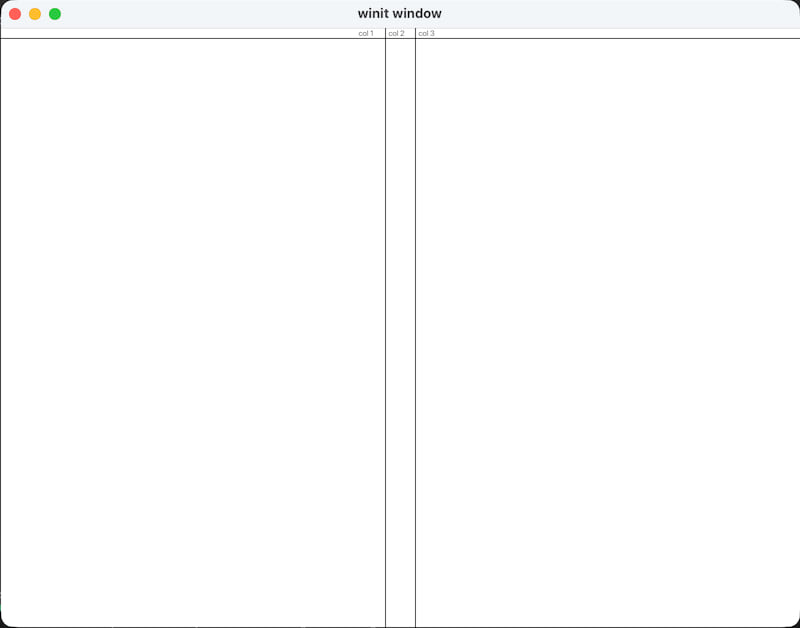

Above shows an example using the divider element. This element can be used to divide up a flex_row or flex_column with lines to create visual separation, such as for a table.

ui.anchor(AnchorPosition::TopCenter, None, |ui| {
    ui.flex_column(
        Some(Style {
            width: SizingPolicy::FillParent,
            height: SizingPolicy::FillParent,
            justify_y: anchor_kit_core::style::Align::Start,
            ..Default::default()
        }),
        |ui| {
            ui.divider(
                anchor_kit_core::element::DividerOrientation::Horizontal,
                2,
                Some(Style {
                    margin: Insets {
                        top: 20,
                        ..Default::default()
                    },
                    ..Default::default()
                }),
            );
        },
    );
});
ui.anchor(AnchorPosition::MiddleCenter, None, |ui| {
    ui.flex_row(None, |ui| {
        ui.text("col 1".to_string(), None, None);
        ui.divider(
            anchor_kit_core::element::DividerOrientation::Vertical,
            2,
            Some(Style {
                margin: Insets {
                    left: 5,
                    right: 5,
                    ..Default::default()
                },
                ..Default::default()
            }),
        );
        ui.text("col 2".to_string(), None, None);
        ui.divider(
            anchor_kit_core::element::DividerOrientation::Vertical,
            2,
            Some(Style {
                margin: Insets {
                    left: 5,
                    right: 5,
                    ..Default::default()
                },
                ..Default::default()
            }),
        );
        ui.text("col 3".to_string(), None, None);
    });
});

Overlay Example:

Putting it all together, here is an example of an overlay data visualization with dynamic sample data representing metrics from a race car. This example demonstrates various anchor-kit elements and their styling, as well as their responsive layouts and automatic resizing.

https://github.com/user-attachments/assets/815acfab-0847-4df1-992b-09b16ae6940d

Developer's Guide

anchor-kit is designed as a set of packages which developers can use to integrate directly into their existing rendering loops. The primary package is anchor-kit-core, which defines the elements, primitives and styling, handles the responsive layout and provides the easy-to-use declarative API for GUI creation. We also have an integration with wgpu (anchor-kit-wgpu), which developers can use to convert the primitives into renderable data and add it to their wgpu frame buffers.

At a high-level, to integrate anchor-kit into a wgpu rendering pipeline, there are three steps:

1. Instantiate a new anchor_kit_wgpu::Renderer (and register textures if required)
2. Call the anchor_kit_core::generate_frame function, passing in the GUI description using the declarative API to get the list of renderable primitives
3. Call the anchor_kit_wgpu::Renderer::render() function, passing in the generated primitives to add the data to the wgpu frame buffers

To get started with anchor-kit:

cargo add anchor-kit-core && cargo add anchor-kit-wgpu

anchor_kit_wgpu::Renderer instantiation:

... (wgpu boilerplate setup)

// get the wgpu device and queue (also boilerplate, not anchor-kit specific)
let (device, queue) = adapter
    .request_device(&wgpu::DeviceDescriptor {
        label: None,
        required_features: wgpu::Features::empty(),
        required_limits: wgpu::Limits::default(),
        memory_hints: Default::default(),
        trace: wgpu::Trace::Off,
    })
    .await?;

// wgpu surface format boilerplate (not anchor-kit specific)
let surface_caps = surface.get_capabilities(&adapter);
let surface_format = surface_caps
    .formats
    .iter()
    .find(|f| f.is_srgb())
    .copied()
    .unwrap_or(surface_caps.formats[0]);

// instantiate the anchor_kit_wgpu::Renderer using these wgpu objects
let mut anchor_kit_wgpu_renderer = Renderer::new(&device, &queue, surface_format);

Register any textures (if you want to render images):

let diffuse_bytes = include_bytes!("test.png");
let image_id = renderer.get_image_id_from_bytes(&device, &queue, diffuse_bytes); // store the image id somewhere in rendering state to use it during the `generate_frame()` function

Use anchor-kit-core's declarative API to define GUI (run each frame):

See examples above in the feature section for more specific element implementation details.

let render_list = self.ui_state.generate_frame(ui_frame_info, |ui| {
    ui.anchor(AnchorPosition::TopCenter, None, |ui| {
        ... // additional elements defined here (see more examples above in the features section)
    });
}

Convert anchor-kit primitives to wgpu frame buffers, and render them (run each frame):

// call the anchor_kit_wgpu_renderer `render()` function with the render_list created by the `generate_frame` function above
self.anchor_kit_wgpu_renderer.render(
    &self.device,
    &self.queue,
    &mut render_pass,
    &screen_info,
    &render_list,
);

// more wgpu boilerplate (not anchor-kit specific), but this is how the frame is actually triggered for rendering (with the frame buffers the `render()` function defines above)
drop(render_pass);
self.queue.submit(iter::once(encoder.finish()));

Reproducibility Guide

Since creating a new wgpu & winit app from scratch requires a lot of boilerplate code, the easiest way to reproduce the results we demonstrated above is to use the provided example code in the anchor-kit repository (see examples dir in this repo), which already contains all of the required boilerplate code to get a window to visualize.

Clone the repo:

git clone git@github.com:cliff42/anchor-kit.git

cd into the examples dir for the example you want to run:

For the overlay example with dynamic data that changes per frame:

cd anchor-kit/examples/winit-overlay

For the simple example with static data:

cd anchor-kit/examples/winit-simple

Run the example:

(In either example dir):

cargo run

Once the project has finished building, a window should appear with the example GUI.

To stop the rendering, either close the window or kill the program (CTRL + C).

Modify the example code to create your own GUIs:

Find the generate_frame() function call in the example code in lib.rs (look for the comment: // HERE IS WHERE anchor-kit GUIS ARE CREATED (UPDATE THIS RENDER LIST GENERATION)).

overlay example generate_frame call: https://github.com/cliff42/anchor-kit/blob/main/examples/winit-overlay/src/lib.rs#L171

simple example generate_frame call: https://github.com/cliff42/anchor-kit/blob/main/examples/winit-simple/src/lib.rs#L143

Use the examples above in the features section and in the demo/ presentation videos to modify the GUI creation by using anchor-kit's declarative API, and modify the closure functions to create whatever GUI you wish to visualize.

Some things to note:

• If you want to render images, make sure to register the texture with your anchor_kit_wgpu_renderer and keep track of the generated texture id to pass into the image elements. See example: here.

• Not all styling is applied to each element. If you are struggling to see styling changes that you apply being rendered, remember that not all style parameters have effects on every element type. For example, adding a background-color to text elements directly will not create a background highlight behind the text, instead you would have to create a pill element with your preferred background-color and wrap the text element in the pill element's closure function (the text element needs to be a child of pill element).

Contributions by each team member

Chris:

• core layout system
  • measure pass
  • layout pass
  • render pass
• renderable elements
  • anchors
  • text
  • flex rows/ cols
  • images
  • dividers
  • pills
• element styling
• wgpu integration
  • main rendering pipeline
  • image rendering pipeline
  • shader development (vertex & fragment shaders)
• help with examples

Piotr:

• made core functional part of the examples with winit - simple window rendering - transparent window rendering (overlay) - continuous window updates to UI for changing data - using wgpu rendering pipeline with winit - initial rendering pass for window canvas - use second rendering pass from anchor-kit to add elements ontop - window re-sizing and re-scaling
• found and reported bugs while working on examples

Lessons Learned

Computer graphics and rendering are quite hard. Going into the project, we didn't fully understand all of the intricacies involved in creating a rendering library, even one with a relatively limited scope like anchor-kit. We didn't expect the amount of work required to get simple things like rounded corners or texture rendering. It was especially interesting to learn about shader development, which is something that we hadn't done before. Since we were new to shader development, it was very fun, albeit time-consuming, to learn about to differences between the types of shaders, how to hook them up to rendering pipelines, and all of the math involved in various coordinate systems and concepts like signed distance functions. We are very grateful for Inigo Quilez and the vast library of open source shader development tutorials he has published. His tutorials came in handy and were greatly appreciated when dealing with late-night shader debugging.

Another lesson learned early on in anchor-kit's development was the importance of separating concerns with regard to our core layout framework. Initially, we aimed to convert user-defined elements (via their closure functions) to renderable primitives in a single pass. Trying to measure elements, determine their layouts and actually convert them to primitives all at the same time proved to be very messy and led to a plethora of issues in anchor-kit's early development. After taking a step back, and doing some deep reading on best practices with render trees, we ended up determining that the best course of action was to separate the concerns into our three core passes (measure, layout, and render), which greatly reduced the complexity of our layout system and made rendering elements significantly easier. With this, we learned the importance of taking a step back to think about first principles and getting a better understanding of best practices before diving deep into actual development. We also gained a much better understanding of just what it takes to actually enable responsive elements and complex styling, which we often take for granted, especially when developing web applications.

Future Work

• We plan to add new element integrations to anchor-kit-core to enable more complex data visualizations and provide users with even simpler APIs to create their desired GUIs.
• We also want to add new rendering library integrations, likely starting with a dedicated library for winit, which should help reduce the amount of boilerplate the user needs to add to get a GUI rendering in a window.
